Introduction

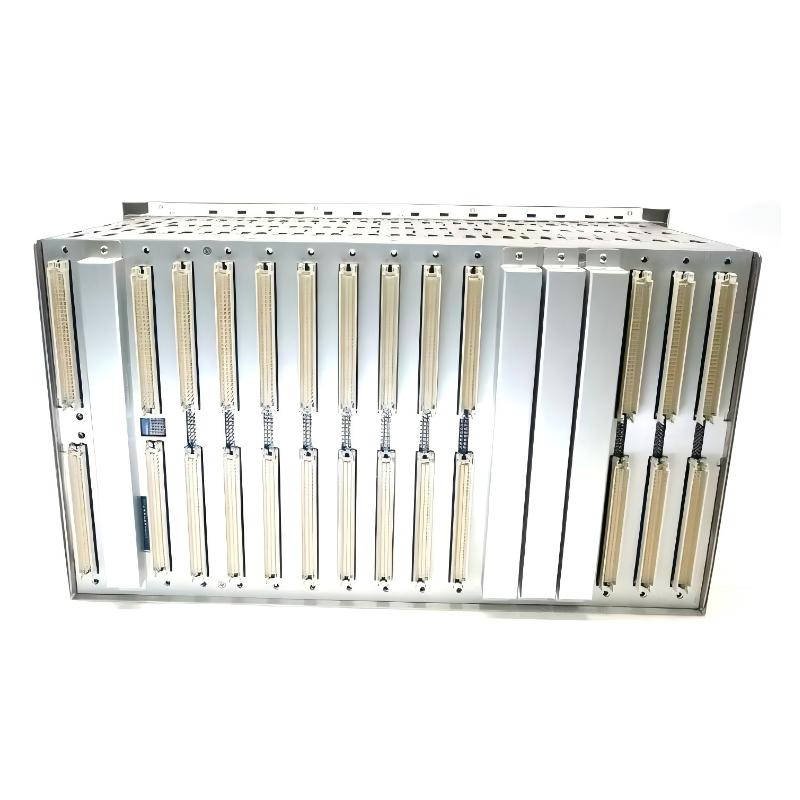

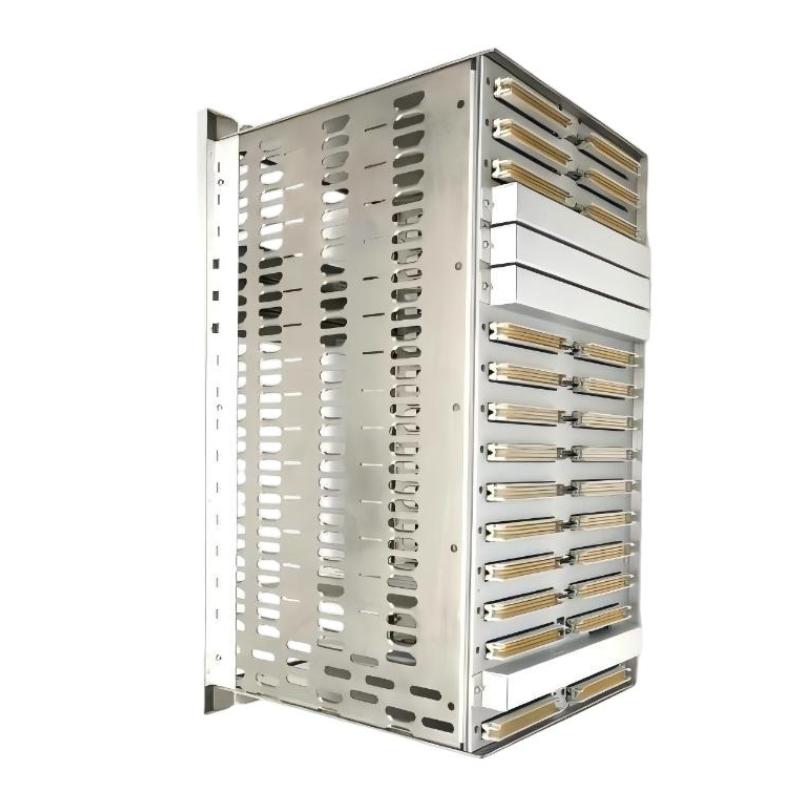

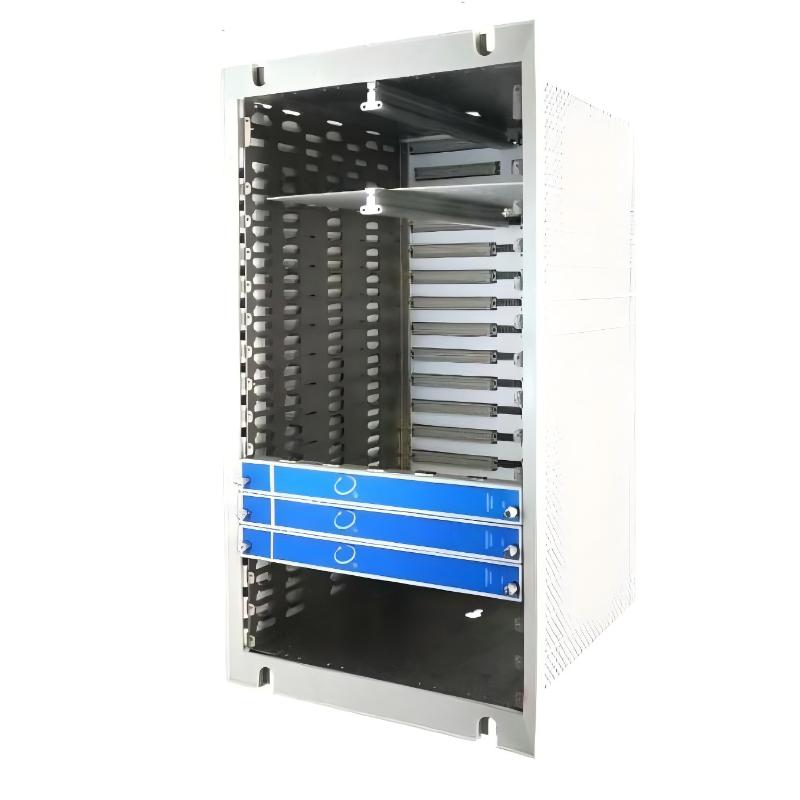

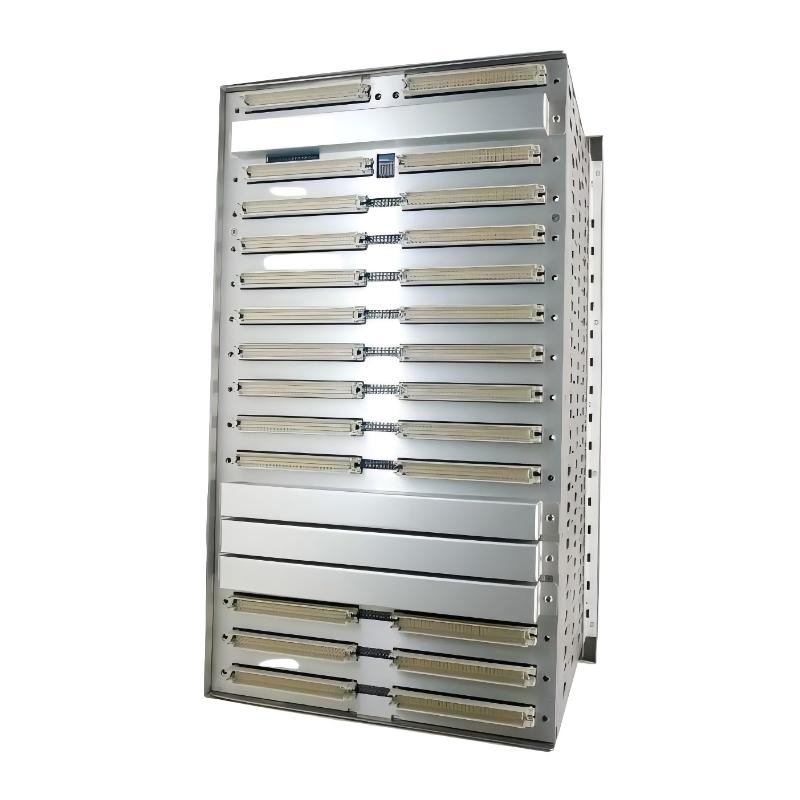

The Bently Nevada 3500/05-02-01-00-00-00 is a 3500/05 System Rack designed to provide a reliable mechanical and electrical platform for the Bently Nevada 3500 machinery protection system. This rack serves as a central hub for mounting multiple monitoring modules that support vibration monitoring, shaft position tracking, and overall machinery condition assessment.
Its compact design allows flexible system configurations, making it ideal for industrial facilities where space efficiency is required without compromising monitoring capabilities. The rack ensures reliable power distribution and communication between all installed modules, forming the core of a complete machinery protection solution.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 3500/05-02-01-00-00-00 |
| Product Type | 3500/05 System Rack |
| System Series | Bently Nevada 3500 Monitoring System |
| Module Capacity | 7 monitoring module slots |
| Rack Function | Housing and interconnection of monitoring modules |
| Mounting Type | Rack-mounted installation |
| System Compatibility | Compatible with Bently Nevada 3500 series modules |
| Application Environment | Industrial machinery monitoring and protection systems |
Product Overview
The 3500/05-02-01-00-00-00 system rack provides a robust foundation for Bently Nevada 3500 monitoring modules. It supports multiple modules installed within an organized framework while distributing power and enabling communication through its internal backplane.
Modules installed in this rack perform critical functions such as vibration detection, Keyphasor signal processing, and relay outputs for alarms or emergency shutdowns. The rack ensures coordinated operation among all modules, enabling accurate condition monitoring and reliable machinery protection.
Its modular architecture allows system expansion or reconfiguration as operational needs evolve, and its industrial-grade construction guarantees dependable performance under demanding conditions.
Applications
Small Turbine Monitoring
Provides the rack platform for modules that measure vibration, shaft displacement, and rotational speed in compact turbine installations.
Compressor and Pump Monitoring
Supports modules that detect mechanical issues and abnormal vibration in compressors and pumps.
Power Generation Equipment
Installed in generator monitoring systems to maintain safe and efficient machine operation.
Oil and Gas Facilities
Forms the central rack for machinery protection systems in critical rotating equipment.
Predictive Maintenance in Small Installations
Acts as the hub for condition monitoring systems that detect early mechanical faults and prevent unexpected equipment failures.
Advantages
Compact and Modular Design
Supports multiple modules for customized monitoring system configurations.
Space-Efficient Rack
Designed for installations where full-sized racks are impractical.
Integrated Backplane
Provides reliable power and signal communication between modules.
Scalable Monitoring Infrastructure
Additional modules can be installed within the rack’s capacity as operational needs grow.
Industrial-Grade Durability
Engineered for continuous operation in challenging industrial environments.
Compatible Modules
The 3500/05-02-01-00-00-00 rack works with a variety of modules from the Bently Nevada 3500 system.
| Module | Module Type | Function |
|---|---|---|
| 3500/15 | Power Supply Module | Provides electrical power for all modules |
| 3500/22M | Data Interface Module | Enables communication with monitoring software |
| 3500/25 | Keyphasor Module | Supplies rotational reference signals |
| 3500/42M | Proximitor / Seismic Monitor | Monitors vibration and shaft displacement |
| 3500/32M | Relay Output Module | Provides alarm and shutdown outputs |
This combination provides a fully functional machinery protection solution in a compact system.
Recommended Alternative Models
| Model | Product Type | Application | Key Feature |
|---|---|---|---|
| Bently Nevada 3500/05-02-01 | Compact System Rack | Small machinery monitoring | 7-slot modular design |
| Bently Nevada 3500/05-01-01 | Standard System Rack | Full machinery monitoring | 14-slot rack |
| Bently Nevada 3500/05-02-02 | Compact Rack | Space-constrained installations | Flexible module configuration |
| Bently Nevada 3500/05 Monitoring Rack | Rack Platform | Machinery protection | High compatibility with monitoring modules |
| Bently Nevada 3500/05-01-02 | Standard Rack | Industrial monitoring | 14-slot modular design |
Technical FAQs
What is the primary function of this system rack?
It provides a reliable structural and electrical platform for installing and interconnecting monitoring modules within the 3500 machinery protection system.
How many modules can this rack support?
It supports multiple monitoring modules, allowing flexible system configuration for small-scale installations.
Is this rack compatible with all 3500 series modules?
Yes, it works with modules compatible with the 3500/05 compact rack design.
Where is this rack typically installed?
It is installed inside industrial control cabinets in power plants, oil and gas facilities, and other industrial environments where space efficiency is required.
