Introduction

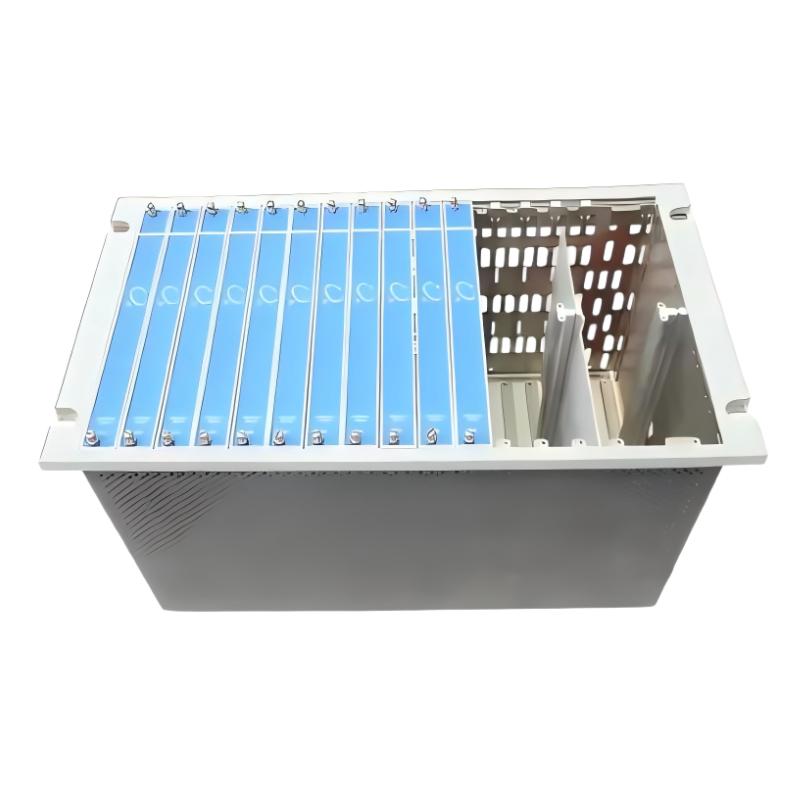

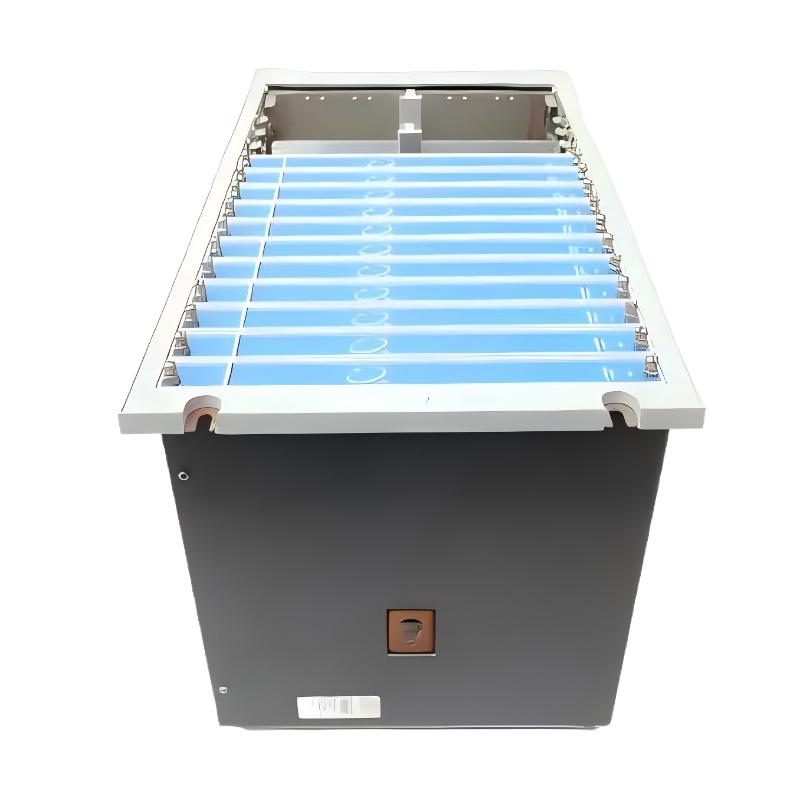

The Bently Nevada 3500/05-01-03-02-00-01 is a 3500/05 System Rack designed to provide the mechanical and electrical foundation for the Bently Nevada 3500 machinery protection system. This rack serves as the central installation platform for multiple monitoring modules, supporting machinery condition monitoring, vibration analysis, and shaft position tracking.
With a standard 19-inch industrial rack format, it can accommodate up to 14 monitoring modules, allowing flexible and scalable system configurations. The rack is widely used in industries such as power generation, oil and gas processing, and heavy industrial manufacturing, where reliable continuous monitoring of critical equipment is essential.
The integrated backplane provides power distribution and communication pathways, ensuring all modules operate cohesively and reliably as part of a complete machinery protection solution.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 3500/05-01-03-02-00-01 |
| Product Type | 3500/05 System Rack |
| System Series | Bently Nevada 3500 Monitoring System |
| Rack Standard | 19-inch industrial rack |
| Module Capacity | 14 monitoring module slots |
| Rack Function | Housing and interconnection of monitoring modules |
| Mounting Type | Rack-mounted installation |
| System Compatibility | Compatible with Bently Nevada 3500 series modules |
| Weight | 4.5 kg |
| Application Environment | Industrial machinery monitoring and protection systems |
Product Overview
The 3500/05 system rack provides both mechanical support and electrical connectivity for Bently Nevada 3500 monitoring modules. It allows modules to be installed in an organized framework while distributing power and enabling communication through its integrated backplane.
Installed modules perform key functions such as vibration monitoring, Keyphasor signal generation, and relay outputs for alarms or shutdowns. The rack ensures coordinated operation of all modules, allowing accurate machinery monitoring and protection.
Its modular design allows for system expansion, reconfiguration, and customization based on operational requirements. Its industrial-grade construction ensures reliable performance under demanding operating conditions.
Applications
Turbine Condition Monitoring
Serves as the rack platform for monitoring modules in steam and gas turbines, measuring vibration, shaft displacement, and rotational speed.
Compressor Monitoring Systems
Supports modules that detect mechanical issues, abnormal vibration, and other critical parameters in industrial compressors.
Power Generation Equipment
Installed in generator monitoring systems to maintain safe and efficient machine operation.
Oil and Gas Processing Facilities
Forms the backbone rack for machinery protection systems in pumps, compressors, and other rotating equipment.
Industrial Predictive Maintenance
Acts as the central hub for condition monitoring systems that detect early signs of mechanical faults and prevent unexpected failures.
Advantages
Modular and Flexible Design
Supports multiple modules for customized monitoring system configurations.
Standard 19-Inch Rack
Compatible with industrial control cabinets for easy installation.
Integrated Backplane
Ensures reliable power distribution and signal communication between modules.
Scalable Monitoring Infrastructure
Additional modules can be installed as operational needs grow.
Industrial-Grade Durability
Designed for continuous operation in demanding industrial environments.
Compatible Modules
The 3500/05 rack is compatible with a variety of modules from the Bently Nevada 3500 system.
| Module | Module Type | Function |
|---|---|---|
| 3500/15 | Power Supply Module | Provides electrical power for all installed modules |
| 3500/22M | Data Interface Module | Enables communication with monitoring software |
| 3500/25 | Keyphasor Module | Supplies rotational reference signals |
| 3500/42M | Proximitor / Seismic Monitor | Monitors vibration and shaft displacement |
| 3500/32M | Relay Output Module | Provides alarm and shutdown outputs |
These modules collectively provide a complete machinery protection and condition monitoring system.
Recommended Alternative Models
| Model | Product Type | Application | Key Feature |
|---|---|---|---|
| Bently Nevada 3500/05-01-01 | System Rack | Machinery monitoring | Standard configuration |
| Bently Nevada 3500/05-01-02 | System Rack | Equipment protection | Modular architecture |
| Bently Nevada 3500/05-01-03-00-00 | System Rack | Industrial monitoring | Standard 19-inch rack |
| Bently Nevada 3500/05-01-03-01 | System Rack | Condition monitoring | Flexible module configuration |
| Bently Nevada 3500 Monitoring Rack | Rack Platform | Machinery protection | High compatibility with monitoring modules |
Technical FAQs
What is the primary function of the 3500/05 system rack?
It provides the structural and electrical platform for installing and interconnecting monitoring modules within the 3500 machinery protection system.
How many monitoring modules can be installed in this rack?
The rack supports up to 14 monitoring modules, allowing scalable system configuration.
Is this rack compatible with all 3500 series modules?
Yes, it is fully compatible with standard Bently Nevada 3500 monitoring modules.
Where is this rack typically installed?
It is usually installed inside industrial control cabinets in power plants, oil and gas facilities, and heavy machinery operations.
