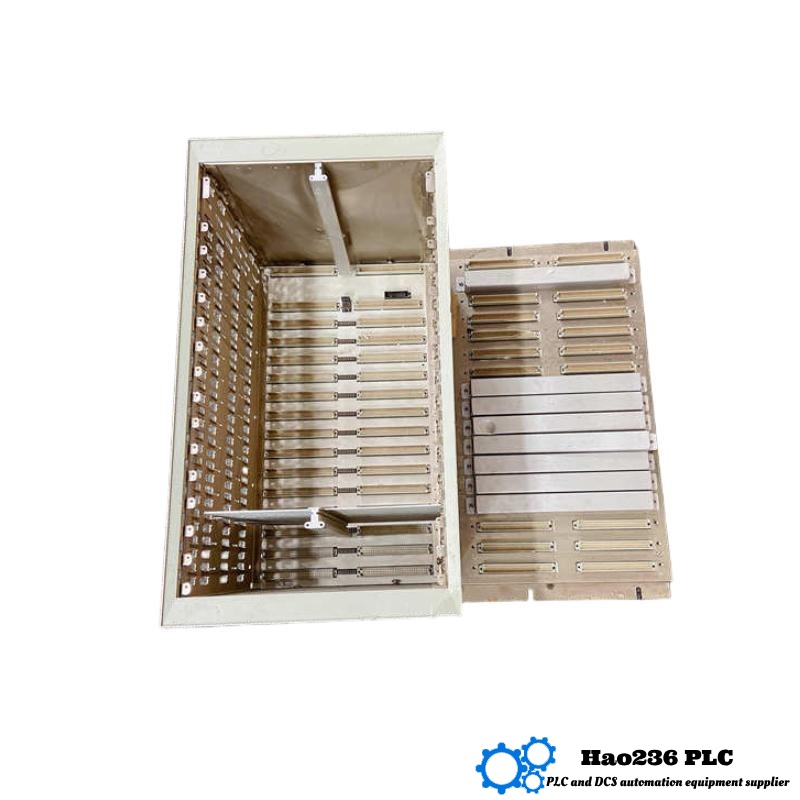

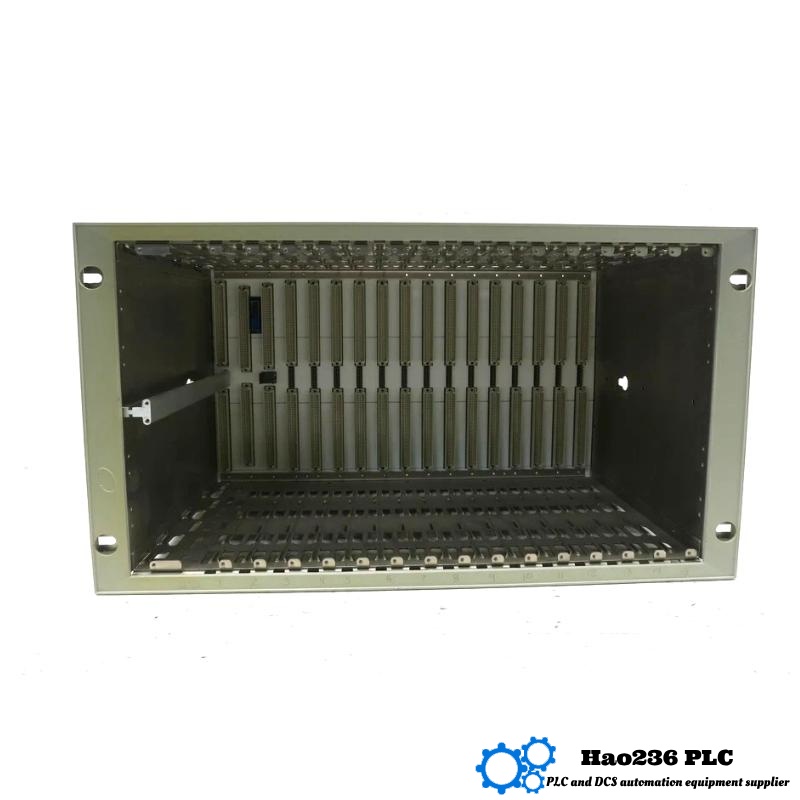

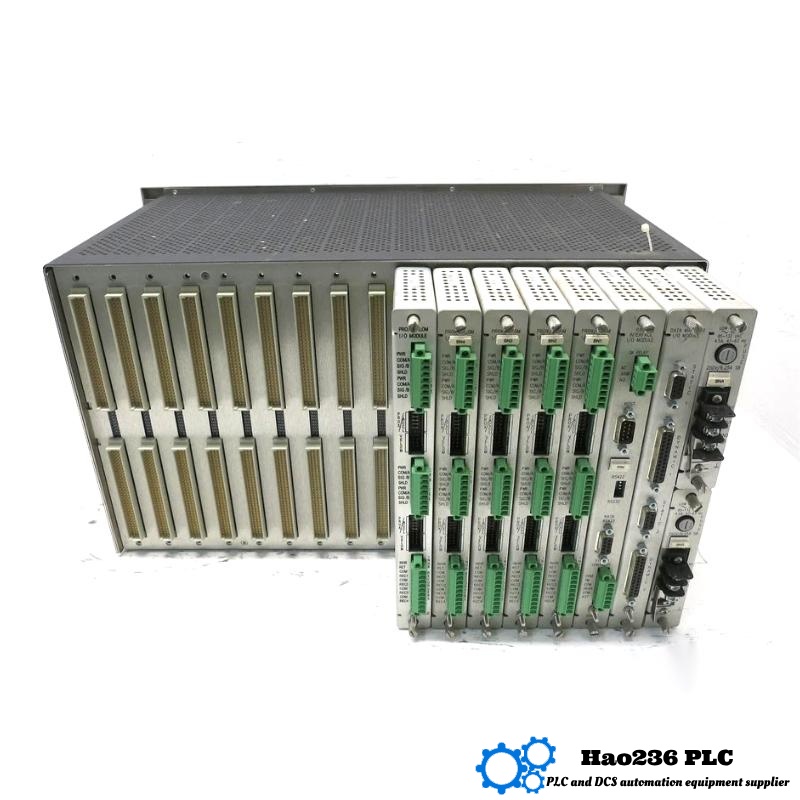

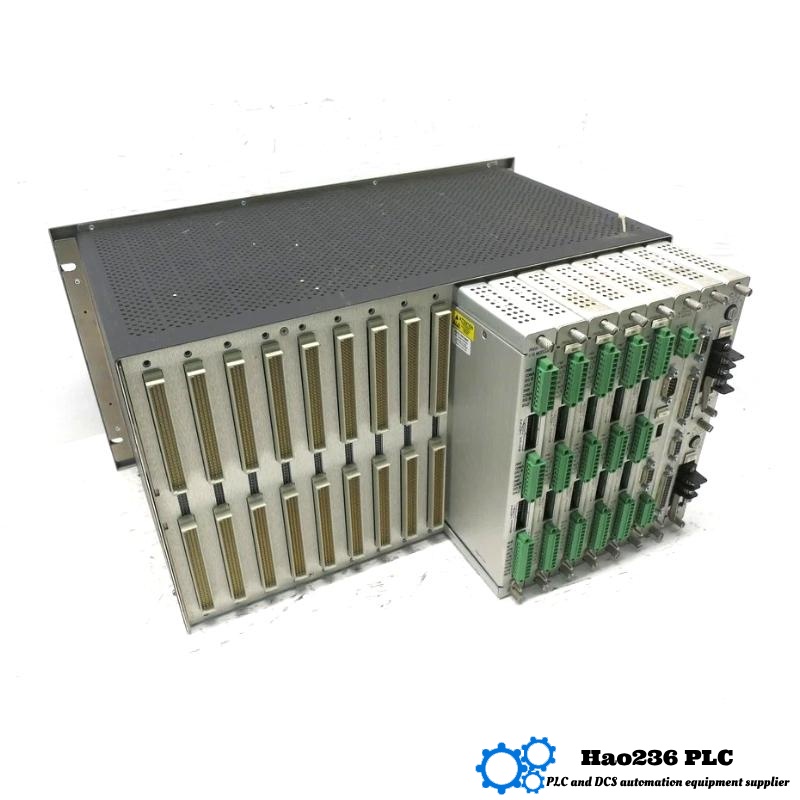

Bently Nevada 3500/05-01-03-00-00-00 System Rack
Product Introduction
The Bently Nevada 3500/05-01-03-00-00-00 system rack is a core component designed to house monitoring modules in the 3500/05 series of machinery protection systems. This 19-inch rack is engineered to accommodate up to 14 modules, providing a robust infrastructure for continuous condition monitoring of critical equipment.
The rack is equipped with features that enhance its durability and performance, ensuring its longevity in industrial environments where uptime is crucial. This unit is a direct fit for applications that require vibration monitoring, temperature measurement, and other predictive maintenance solutions.
This product is ideal for high-performance environments where failure to monitor machinery condition can result in significant operational losses. It is designed to integrate seamlessly with other Bently Nevada products, offering a scalable and flexible solution to machinery health management.
Product Parameters
| Parameter | Specification |
|---|---|
| Rack Size | 19-inch (14 module slots) |
| Weight | 4.5 kg |
| Dimensions (HxWxD) | 132.1 mm x 482.6 mm x 330 mm |
| Power Supply | 24 V DC nominal |
| Mounting | Standard 19-inch rack mount |
| Operating Temp | -20°C to +60°C |
| Material | Rugged steel chassis |
| Module Compatibility | Bently Nevada 3500/05 series modules |
Product Applications
The 3500/05-01-03-00-00-00 system rack is designed for a variety of industrial applications that require continuous machinery monitoring, such as:
-
Power Generation Plants: Monitor turbines, generators, and other rotating equipment to ensure reliable operation and reduce downtime.
-
Oil & Gas Industry: Monitor critical pumps, compressors, and motors used in upstream and downstream operations.
-
Petrochemical and Chemical Plants: Safeguard pumps, motors, and other assets from unexpected failure by providing real-time vibration and temperature data.
-
Manufacturing Plants: Enhance production line reliability by continuously monitoring key machinery in automated systems.
-
Mining and Heavy Industry: Monitor large industrial equipment such as crushers, conveyors, and mills that operate under heavy loads and harsh conditions.
This system rack provides the foundation for effective predictive maintenance, enabling early detection of faults before they result in catastrophic failures. The modularity of the rack allows for flexible system expansion and integration, making it ideal for future growth in industrial environments.
Product Advantages
-
High Module Capacity: Accommodates up to 14 monitoring modules, ensuring comprehensive monitoring of critical machinery in a single rack.
-
Standardized 19-Inch Form Factor: Designed for easy installation into standard industrial racks, minimizing the need for custom installations.
-
Durable Construction: Built with a rugged steel chassis, the rack is designed to withstand harsh industrial environments, including exposure to vibration, temperature fluctuations, and dust.
-
Efficient Power Supply: The 24 V DC nominal power supply ensures the stable operation of the monitoring system, even in fluctuating power environments.
-
Temperature Range: Operates effectively in a wide range of temperatures, from -20°C to +60°C, making it adaptable to various industrial settings.
-
Modular Design: The rack’s modularity allows easy expansion, enabling operators to scale the system as their monitoring needs grow.
Brand
Bently Nevada is a globally recognized leader in machinery protection and condition monitoring solutions. Bently Nevada has developed cutting-edge technologies that help industries monitor the health of their assets, reduce downtime, and increase operational efficiency. With decades of expertise in vibration monitoring and predictive maintenance, Bently Nevada has become the preferred choice for industries across the world.
Product Series
The 3500/05-01-03-00-00-00 system rack is a part of the 3500/05 series, a modular family of products designed to offer flexible, scalable, and reliable machinery monitoring solutions. These products are engineered to provide real-time data on machinery conditions, enabling predictive maintenance strategies that save both time and money.
Recommended Related Models (3500/05 Series)
| Model Number | Description | Rack Size/Slots | Weight |
|---|---|---|---|
| 3500/05-01-01-02-00-00 | 14-slot rack with enhanced power supply | 19-inch (14 slots) | 4.6 kg |
| 3500/05-01-02-01-00-00 | 19-inch rack with 7 module slots | 19-inch (7 slots) | 3.0 kg |
| 3500/05-01-01-01-01-00 | 14-slot rack with auxiliary diagnostics | 19-inch (14 slots) | 4.5 kg |
| 3500/05-01-03-01-00-00 | Rack with integrated communication bus | 19-inch (14 slots) | 4.8 kg |
| 3500/05-01-01-01-00-01 | Rack with enhanced cooling system | 19-inch (14 slots) | 4.7 kg |
Popular Models from Bently Nevada Brand
| Model Number | Description | Key Parameter | Weight |
|---|---|---|---|
| 3500/22-01-05-00-00-00 | 3300 XL Proximity Probe Module | 2-channel input | 0.5 kg |
| 3500/72-01-01-00-00-00 | 3500/72 Vibration Monitor Module | 4-channel vibration | 0.8 kg |
| 3500/25-01-01-00-00-00 | Speed Reference Module | 1-channel speed input | 0.6 kg |
| 3500/92-01-01-00-00-00 | Transmitter Module | 4-channel output | 0.7 kg |
| 3500/10-01-01-00-00-00 | System Power Supply Module | 24 V DC | 1.2 kg |
Frequently Asked Questions (FAQs)
Q1: What is the maximum number of modules supported by the 3500/05-01-03-00-00-00 rack?
A1: It supports up to 14 modules in a standard 19-inch rack format.
Q2: What is the weight of the 3500/05-01-03-00-00-00 rack?
A2: The rack weighs approximately 4.5 kg.
Q3: Is this rack compatible with all 3500/05 series modules?
A3: Yes, it is designed to be fully compatible with all modules in the 3500/05 series.
Q4: What type of power supply does the rack use?
A4: It uses a 24 V DC nominal power supply for reliable operation.
Q5: Can this rack be mounted in standard industrial racks?
A5: Yes, it fits standard 19-inch rack enclosures commonly used in industrial setups.
Q6: What temperature range can the rack operate in?
A6: It operates reliably between -20°C and +60°C.
Q7: Is cooling integrated into the rack design?
A7: Yes, the rack includes optimized airflow for heat dissipation.
Q8: Can the rack be expanded to monitor more machines?
A8: Yes, by adding more modules up to the 14-slot capacity, monitoring can be scaled.
Q9: What industries typically use this rack?
A9: It is widely used in power generation, oil & gas, petrochemical, and manufacturing industries.
Q10: Is installation and maintenance straightforward for this rack?
A10: Yes, its design emphasizes easy installation and modular maintenance.
