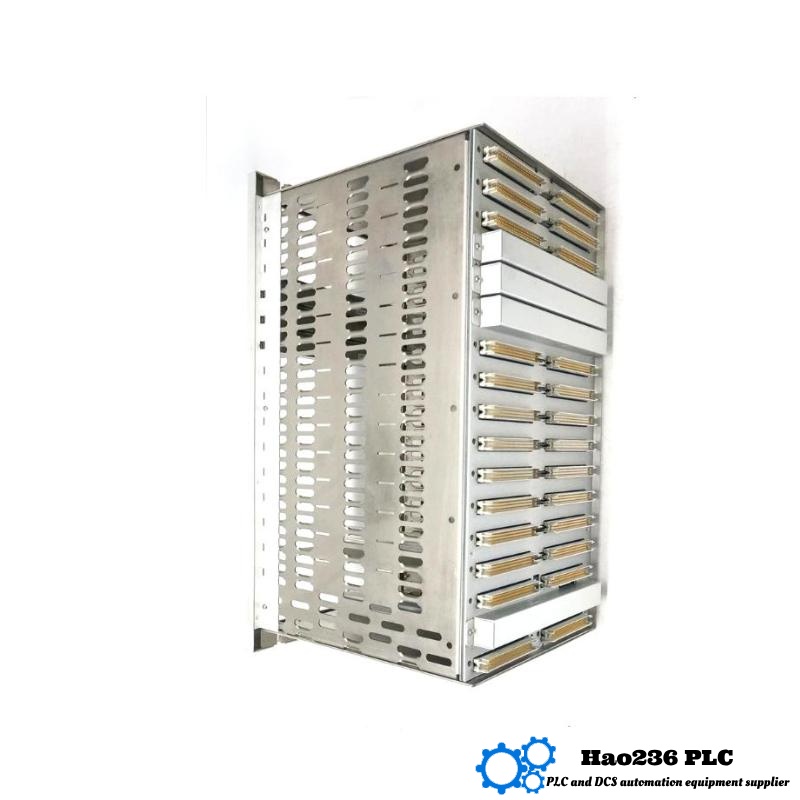

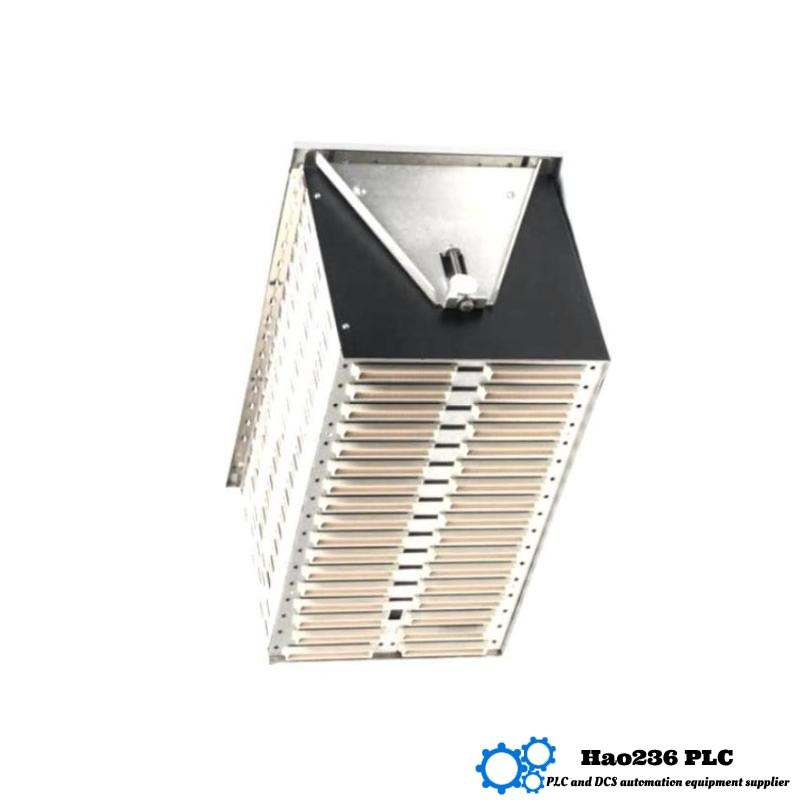

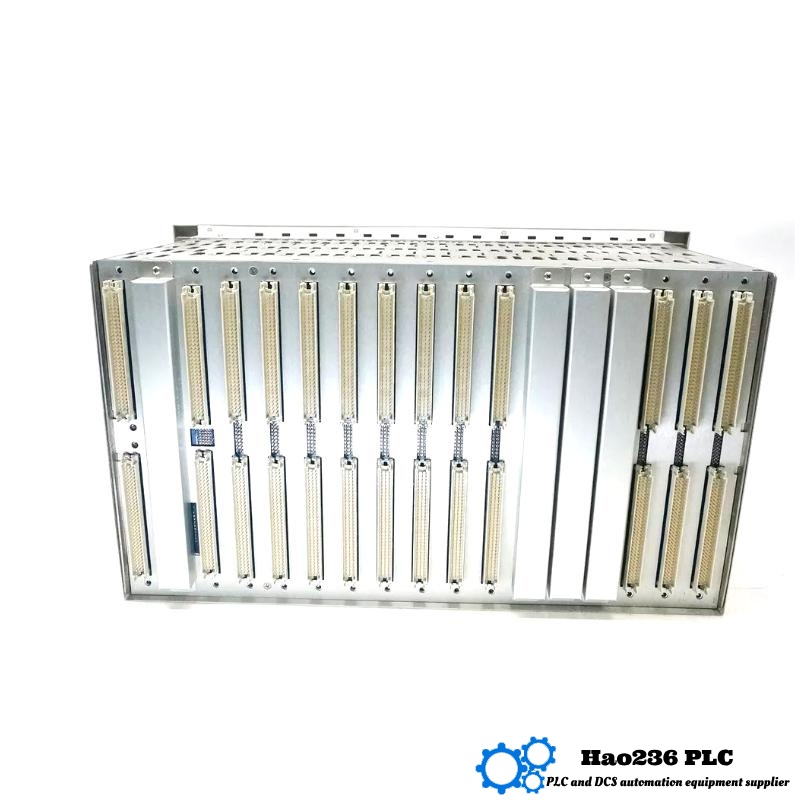

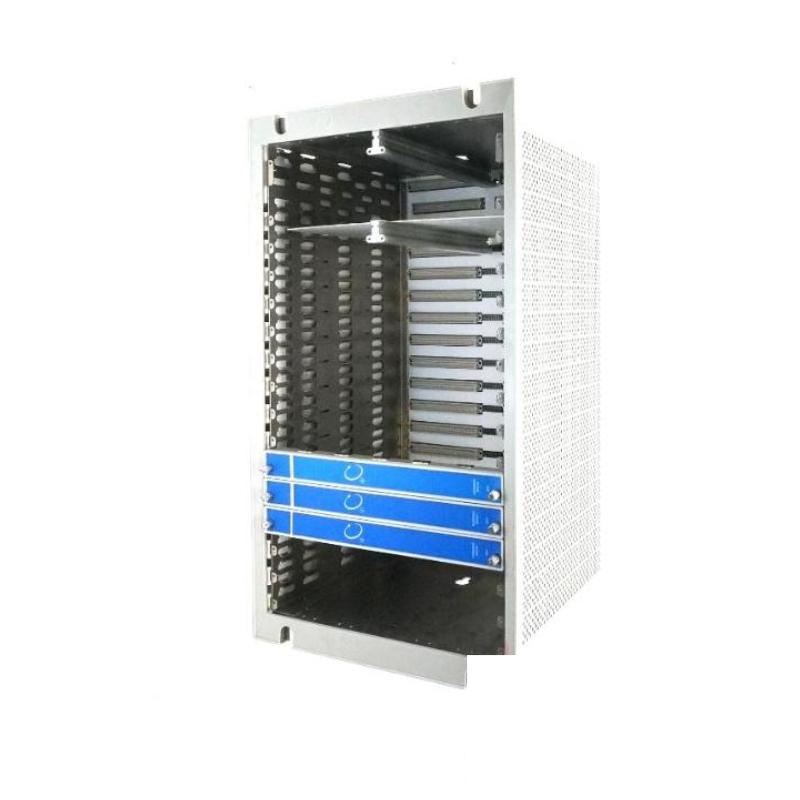

Bently Nevada 3500/05-01-01-01-00-00 System Rack
Product Introduction
The Bently Nevada 3500/05-01-01-01-00-00 is a high-quality system rack designed specifically for the 3500/05 series monitoring systems. This 19-inch rack supports up to 14 module slots, providing a robust and flexible platform for vibration and machinery condition monitoring modules.
This rack serves as the backbone for the 3500/05 system, allowing easy installation and connection of various modules to deliver reliable and continuous monitoring of critical machinery assets. Its durable construction ensures long-term operational stability in demanding industrial environments.
Product Parameters
| Parameter | Specification |
|---|---|
| Rack Size | 19-inch (14 module slots) |
| Weight | 4.5 kg |
| Dimensions (HxWxD) | 132.1 mm x 482.6 mm x 330 mm |
| Power Supply | 24 V DC nominal |
| Mounting | Standard 19-inch rack mount |
| Operating Temp | -20°C to +60°C |
| Material | Rugged steel chassis |
| Module Compatibility | Bently Nevada 3500/05 series modules |
Product Applications
The 3500/05-01-01-01-00-00 rack is engineered for industrial machinery condition monitoring. It finds wide application in:
-
Power generation plants monitoring turbines, generators, and motors.
-
Oil & gas facilities for pump and compressor health surveillance.
-
Petrochemical plants to ensure continuous operation of critical rotating equipment.
-
Manufacturing plants where machinery uptime is essential.
-
Any industry requiring vibration and machinery diagnostics integrated in a scalable, modular system.
This rack provides the infrastructure to host monitoring modules that capture and analyze machinery vibration data, aiding in predictive maintenance and minimizing unplanned downtime.
Product Advantages
-
High Module Capacity: Accommodates up to 14 monitoring modules, supporting extensive machinery monitoring in one rack.
-
Standardized Form Factor: Fits easily into existing 19-inch rack enclosures for streamlined installation.
-
Robust Build: Designed to withstand harsh industrial environments, ensuring reliable operation over extended periods.
-
Easy Integration: Compatible with all 3500/05 series modules, simplifying system expansion and upgrades.
-
Efficient Power Distribution: Ensures stable and reliable power supply to all installed modules, supporting consistent data collection.
-
Optimized Cooling: Effective heat dissipation maintains system stability and prolongs component lifespan.
Brand
Bently Nevada, known globally for pioneering machinery protection systems and vibration monitoring technologies.
Product Series
This system rack belongs to the 3500/05 series, which is a subset of the Bently Nevada 3500 system family, focusing on versatile, modular, and scalable machinery condition monitoring solutions.
Recommended Related Models (3500/05 Series)
| Model Number | Description | Rack Size/Slots | Weight |
|---|---|---|---|
| 3500/05-01-01-02-00-00 | 14-slot rack with enhanced power supply | 19-inch (14 slots) | 4.6 kg |
| 3500/05-01-02-01-00-00 | 19-inch rack with 7 module slots | 19-inch (7 slots) | 3.0 kg |
| 3500/05-01-01-01-01-00 | 14-slot rack with auxiliary diagnostics | 19-inch (14 slots) | 4.5 kg |
| 3500/05-01-03-01-00-00 | Rack with integrated communication bus | 19-inch (14 slots) | 4.8 kg |
| 3500/05-01-01-01-00-01 | Rack with enhanced cooling system | 19-inch (14 slots) | 4.7 kg |
Popular Models from Bently Nevada Brand
| Model Number | Description | Key Parameter | Weight |
|---|---|---|---|
| 3500/22-01-05-00-00-00 | 3300 XL Proximity Probe Module | 2-channel input | 0.5 kg |
| 3500/72-01-01-00-00-00 | 3500/72 Vibration Monitor Module | 4-channel vibration | 0.8 kg |
| 3500/25-01-01-00-00-00 | Speed Reference Module | 1-channel speed input | 0.6 kg |
| 3500/92-01-01-00-00-00 | Transmitter Module | 4-channel output | 0.7 kg |
| 3500/10-01-01-00-00-00 | System Power Supply Module | 24 V DC | 1.2 kg |
Frequently Asked Questions (FAQs)
Q1: What is the maximum number of modules supported by the 3500/05-01-01-01-00-00 rack?
A1: It supports up to 14 modules in a standard 19-inch rack format.
Q2: What is the weight of the 3500/05-01-01-01-00-00 rack?
A2: The rack weighs approximately 4.5 kg.
Q3: Is this rack compatible with all 3500/05 series modules?
A3: Yes, it is designed to be fully compatible with all modules in the 3500/05 series.
Q4: What type of power supply does the rack use?
A4: It uses a 24 V DC nominal power supply for reliable operation.
Q5: Can this rack be mounted in standard industrial racks?
A5: Yes, it fits standard 19-inch rack enclosures commonly used in industrial setups.
Q6: What temperature range can the rack operate in?
A6: It operates reliably between -20°C and +60°C.
Q7: Is cooling integrated into the rack design?
A7: Yes, the rack includes optimized airflow for heat dissipation.
Q8: Can the rack be expanded to monitor more machines?
A8: Yes, by adding more modules up to the 14-slot capacity, monitoring can be scaled.
Q9: What industries typically use this rack?
A9: It is widely used in power generation, oil & gas, petrochemical, and manufacturing industries.
Q10: Is installation and maintenance straightforward for this rack?
A10: Yes, its design emphasizes easy installation and modular maintenance.
