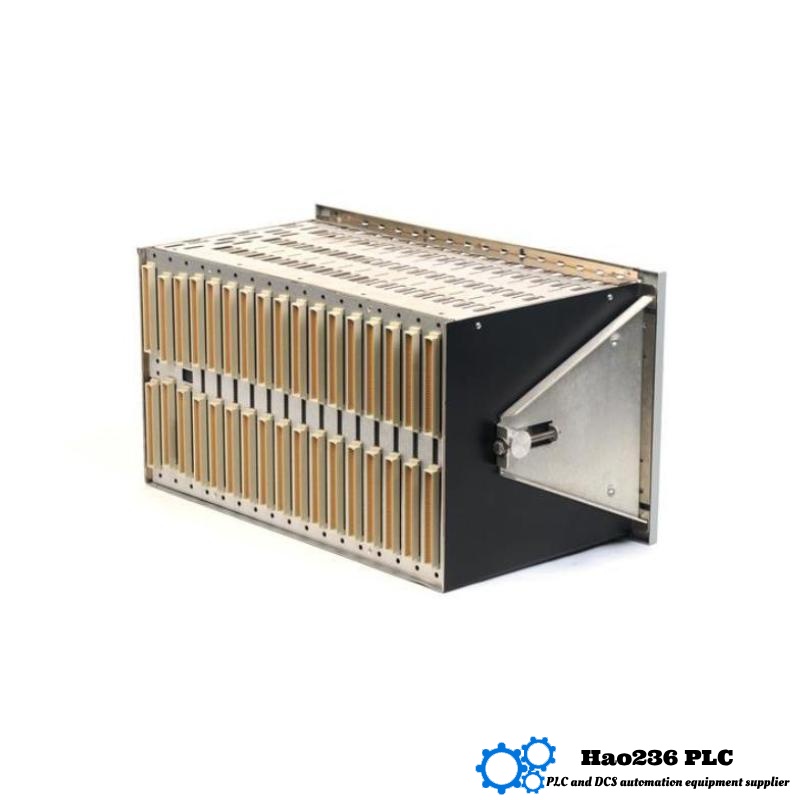

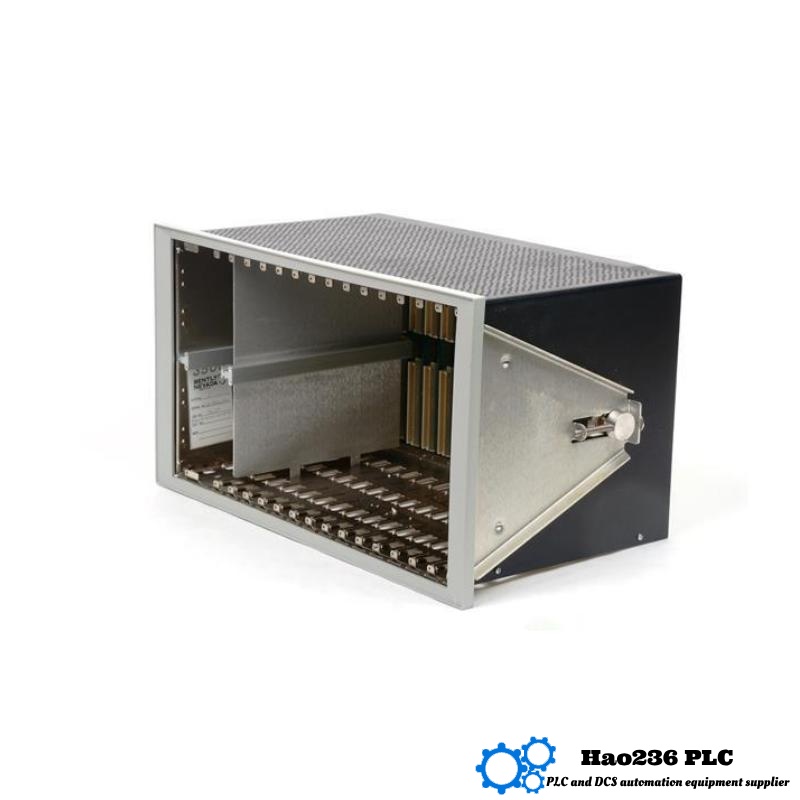

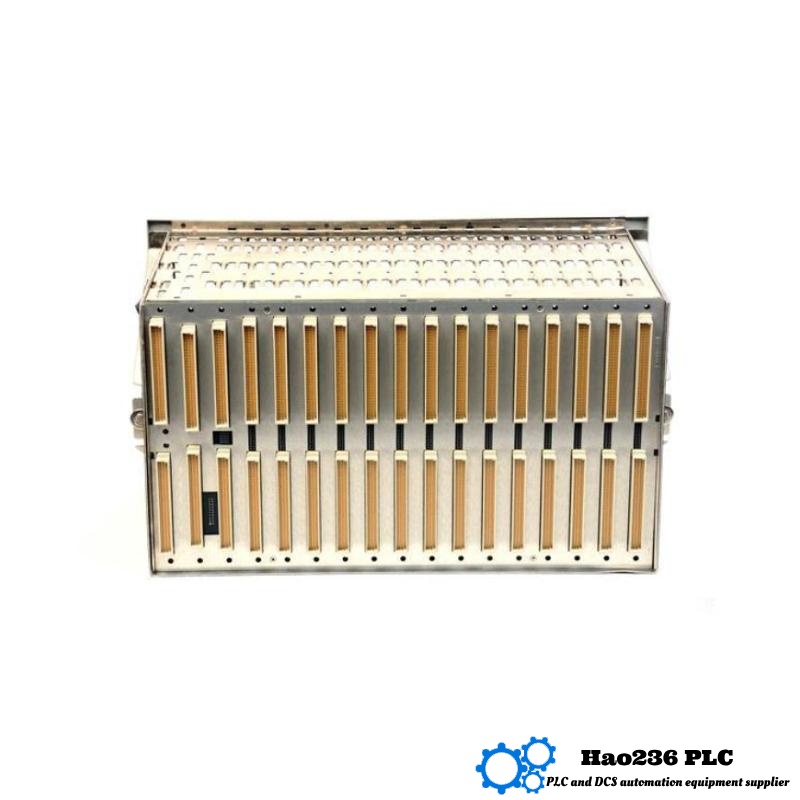

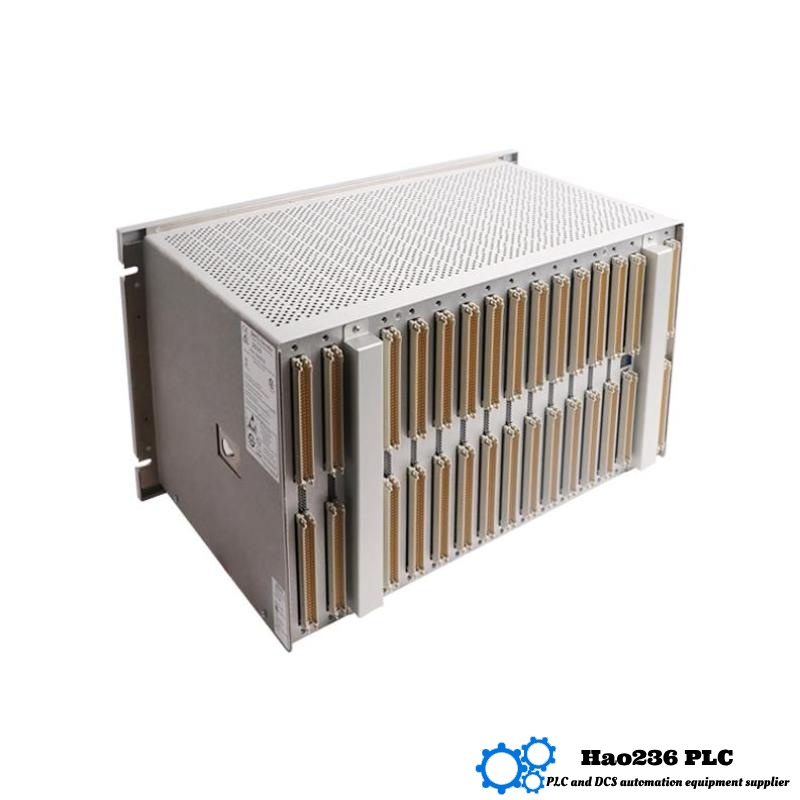

Bently Nevada 3500/05-01-01-00-00 System Rack
Product Introduction
The Bently Nevada 3500/05-01-01-00-00 is a part of Bently Nevada’s renowned 3500 series of machinery monitoring systems. This system rack is designed to house and organize the various monitoring modules that are essential to a comprehensive condition monitoring system. It is engineered to accommodate up to 14 modules in a 19-inch rack configuration, providing a reliable, compact solution for integrating multiple components in a vibration and condition monitoring setup.
Built with high-quality materials and designed for industrial environments, the 3500/05 system rack offers ease of use and flexibility in installation. The rack ensures efficient power distribution, proper heat dissipation, and secure placement for each module, making it a reliable choice for critical monitoring applications. It is used in conjunction with various monitoring sensors and modules to monitor the health of rotating equipment and machinery in industries like power generation, manufacturing, and oil & gas.
Product Parameters
| Feature | Specification |
|---|---|
| Model | 3500/05-01-01-00-00 |
| Rack Size | 19-inch (14 module slots) |
| Weight | 4.5 kg |
| Material | High-quality industrial metal |
| Mounting Type | Rack-mounted |
| Number of Slots | 14 |
| Dimensions (LxWxH) | 17.5 x 48.3 x 8.8 cm |
| Power Supply | 24 V DC |
| Compatibility | Bently Nevada 3500 series modules |
| Operating Temperature | -40°C to +85°C |
| Humidity Range | 0 to 95% non-condensing |
| Cooling | Passive cooling |
| Mounting Orientation | Horizontal |
| Recommended Use | Vibration monitoring, condition monitoring |
Product Applications
The 3500/05 system rack is primarily used in machinery condition monitoring setups. It is designed to hold various modules in a 19-inch rack configuration, making it ideal for industrial environments that require compact and organized systems. Here are some of the key applications:
-
Vibration Monitoring Systems: The system rack is often used in vibration monitoring applications to house and integrate sensors and modules that track the condition of rotating equipment like motors, turbines, and pumps.
-
Condition Monitoring: In industries where machine health is critical, the 3500/05 system rack supports condition monitoring systems by providing an organized and easily accessible rack for the monitoring modules.
-
Power Generation: Used in power plants to monitor the status of critical equipment such as turbines and generators, ensuring that early warnings are given to prevent system failures.
-
Oil & Gas: In oil rigs and refineries, the 3500/05 system rack ensures the smooth operation of machinery by facilitating real-time monitoring of vital components such as compressors and pumps.
-
Manufacturing: The 3500/05 rack is also ideal for large manufacturing plants, where the health of equipment like conveyor belts, motors, and compressors can be monitored and maintained to avoid unplanned downtime.
Product Advantages
-
Space-Saving Design: With its 19-inch rack configuration, the 3500/05 system rack optimizes space, making it perfect for environments where space is at a premium.
-
High Flexibility: Accommodating 14 modules in a single rack, it offers flexibility in configuring different monitoring systems based on the unique needs of the facility.
-
Robust Build: The rack is built to withstand harsh industrial environments with its high-quality industrial metal construction, ensuring durability and long-term reliability.
-
Efficient Power Distribution: It supports efficient power distribution and proper heat dissipation, ensuring that modules operate within optimal temperature ranges.
-
Easy Installation: The rack’s design allows for simple and quick installation, reducing setup time and ensuring minimal disruption to ongoing operations.
-
Wide Compatibility: The 3500/05 rack is fully compatible with other 3500 series modules and components, making it a versatile choice for users already relying on the Bently Nevada 3500 series.
-
Cost-Effective: The system rack’s robust design, combined with its modular flexibility, makes it a cost-effective solution for large-scale monitoring systems that require long-term performance.
Brand Overview
Bently Nevada, is a world leader in the field of vibration and condition monitoring systems. With a legacy of over 60 years, Bently Nevada specializes in offering high-performance solutions for critical asset management, ensuring the longevity and reliability of machinery and equipment in industries like power generation, oil & gas, manufacturing, and many others. The 3500 series is one of the company’s most renowned product lines, offering advanced technology for monitoring vibration, temperature, and other parameters of rotating equipment.
Related Models
Here are 5 related models from the 3500 series that offer similar features and functionalities:
| Model | Type | Number of Slots | Rack Size | Weight |
|---|---|---|---|---|
| 3500/20 | System Rack | 8 | 19-inch (8 module slots) | 4.2 kg |
| 3500/50 | System Rack | 16 | 19-inch (16 module slots) | 5.2 kg |
| 3500/12 | System Rack | 12 | 19-inch (12 module slots) | 4.8 kg |
| 3500/06 | System Rack | 10 | 19-inch (10 module slots) | 4.4 kg |
| 3500/14 | System Rack | 14 | 19-inch (14 module slots) | 4.7 kg |
Popular Bently Nevada Models
Below are 5 popular models from Bently Nevada that are often used alongside the 3500/05 system rack:
| Model | Type | Measurement Range | Weight | Power Supply |
|---|---|---|---|---|
| 3500/22 | Vibration Module | 0-50,000 RPM | 0.3 kg | 24V DC |
| 3500/42M | Proximity Probe Module | 0-50,000 RPM | 0.4 kg | 24V DC |
| 3500/53 | Tachometer Module | 0-50,000 RPM | 0.45 kg | 24V DC |
| 3500/71 | Temperature Module | -40°C to +300°C | 0.5 kg | 24V DC |
| 3500/92 | Relay Module | 1000V AC/DC | 0.5 kg | 24V DC |
FAQs
-
Q: What is the size of the 3500/05 system rack?
A: The rack size is 19 inches, and it can hold up to 14 modules. -
Q: How much does the 3500/05 rack weigh?
A: The weight of the rack is 4.5 kg. -
Q: How many modules can be installed in the 3500/05 rack?
A: The rack can accommodate up to 14 modules. -
Q: What is the power supply requirement for the 3500/05 system rack?
A: The power supply requirement is 24V DC. -
Q: Is the 3500/05 system rack compatible with other 3500 series modules?
A: Yes, it is fully compatible with other 3500 series modules. -
Q: What is the temperature range for the 3500/05 system rack?
A: The operating temperature range is -40°C to +85°C. -
Q: What kind of materials is the 3500/05 system rack made from?
A: The rack is made from high-quality industrial metal for durability and strength. -
Q: How is the system rack mounted?
A: The rack is rack-mounted and is designed to be installed in standard 19-inch server racks. -
Q: Can I use the 3500/05 system rack in harsh industrial environments?
A: Yes, the system rack is designed for use in harsh industrial environments, ensuring long-term reliability. -
Q: What industries can benefit from the 3500/05 system rack?
A: Industries such as power generation, oil & gas, manufacturing, and chemical processing can benefit from using the system rack for condition monitoring.
