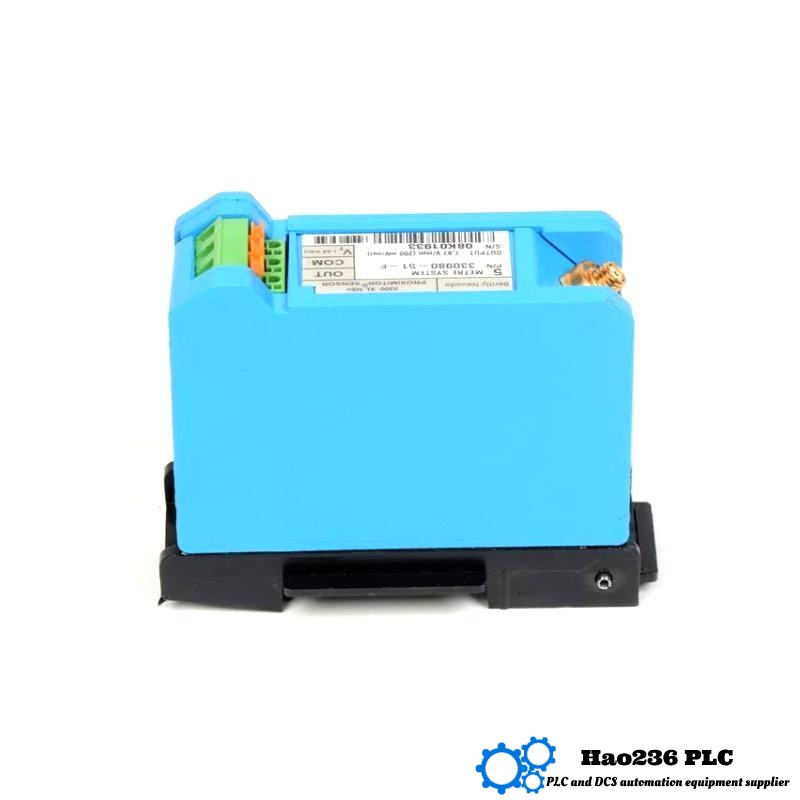

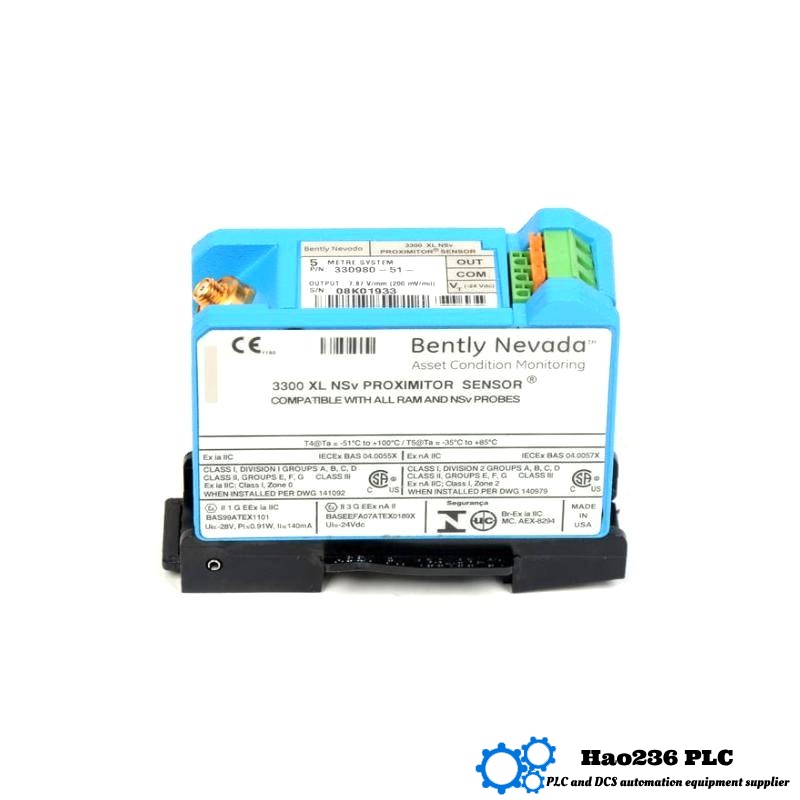

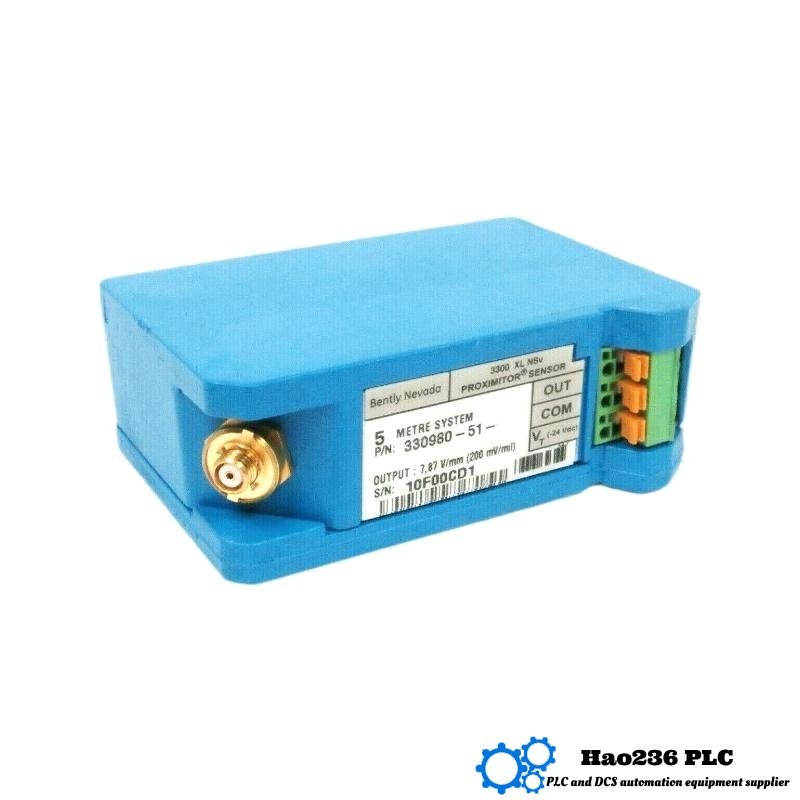

1. Product Overview — Bently Nevada 330980‑51‑CN
Introduction
The 330980‑51‑CN is a proximitor (eddy‑current non‑contact displacement / vibration sensor) in the 3300 XL NSv family. The “51” indicates a 5.0 m system length and DIN‑compatible slim mounting form. The suffix “CN” denotes a regional / China compliance version (i.e. labeling, certifications, or packaging aligned with China / Asia market requirements). This sensor is engineered for use in tight mechanical spaces while meeting local regulatory demands.
The 330980‑51‑CN accepts 3300 NSv or RAM probes + extension cables and converts the probe’s gap variation (as shaft moves) into a voltage output. It offers improved electromagnetic compatibility (EMC) to maintain signal integrity under field conditions.
2. Technical Specifications
| Parameter | Specification / Typical Value |
|---|---|
| Model | 330980‑51‑CN |
| Series / Type | 3300 XL NSv Proximitor Sensor |
| System Length | 5.0 metres (probe + extension cable + sensor module) |
| Mounting / Form Factor | DIN-style / slim housing (for “51” variant) |
| Certifications / Compliance | China‑region “CN” variant (local compliances) |
| Dimensions (L × W × H) | 81.3 mm × 61.2 mm × 63.5 mm (8.13 × 6.12 × 6.35 cm) ([turn0search4] & [turn0search8]) |
| Weight (module only, kg) | 0.50 kg (500 g) (vendor listing) ([turn0search8]) |
| Operating Temperature | –52 °C to +100 °C ([turn0search10]) |
| Storage Temperature | –52 °C to +105 °C ([turn0search10]) |
| Power Supply (non-barrier) | –17.5 VDC to –26 VDC |
| Power Supply (barrier) | –23 VDC to –26 VDC |
| Supply Sensitivity | < 2 mV change in output per volt variation in supply |
| Output Resistance | 50 Ω |
| Linear / Measurement Range | Published listings suggest 0 to 5 mm (0 to 0.2 in) for some CN version ([turn0search1]) |
| Input / Probe Compatibility | Accepts one non-contact 3300 NSv or RAM probe + extension cable |
| Housing Material | Aluminum alloy housing |
| Humidity / Environmental | 100 % condensing, non-submersible when connectors are sealed |
| RFI / EMI Immunity | Engineered OEM shielding; improved immunity to high-frequency noise (CE-level) ([turn0search8]) |
Notes & Context
-
Some listings show a weight of 0.22 kg for 330980‑51‑CN, likely referring to a different sub-variant (e.g. unpacked module) ([turn0search10]).
-
The published dimension 81.3 × 61.2 × 63.5 mm appears consistently in several vendor datasheets.
-
The “CN” suffix typically does not change the core electrical/mechanical performance — it indicates region-specific compliance.
3. Applications
The 330980‑51‑CN sensor is used in industrial monitoring tasks, particularly in constrained installation environments. Typical use cases:
-
Monitoring shaft vibration / displacement on turbines, compressors, motors
-
Axial (thrust) position measurement when flat faces or narrow envelopes are required
-
Keyphasor / phase reference signal in machine systems
-
Retrofitting older RAM / 190 / 3300 sensors into compact machinery layouts
-
Use in petrochemical, power generation, oil & gas, and advanced manufacturing plants
-
Environments requiring China‑approved sensors where local compliance matters
Its slim DIN form and regional compliance make it suitable where both geometry and regulations are constraints.
4. Advantages & Key Features
-
Slim / DIN-compatible design: Fits in tight cabinets or rack systems
-
Local compliance support (“CN”): Simplifies regional deployment
-
Strong EMI / RFI immunity: Maintains signal quality in noisy plant conditions
-
Stable output under supply variation: Less than 2 mV/V drift
-
Wide operating temperature envelope: –52 °C to +100 °C
-
Robust mechanical housing: Aluminum body able to survive industrial stresses
-
Tool-free wiring: SpringLoc terminals for field wiring ease
-
Probe & system compatibility: Works with 3300 NSv / RAM probes and extension cables
-
Versatility in measurement: Suitable for vibration, displacement, axial position tasks
5. Recommended Models — Same Series / Related
| Model | System Length / Mounting | Compliance Variant | Dimensions / Weight | Notes / Differences |
|---|---|---|---|---|
| 330980‑51‑05 | 5.0 m, DIN-mount | Certified “05” | ~81.3 × 61.2 × 63.5 mm, ~0.50 kg | Same geometry but non‑CN certification |
| 330980‑50‑05 | 5.0 m, panel-mount | Certified “05” | same footprint, lighter module | Panel-mount version |
| 330980‑50‑00 | 5.0 m, panel-mount | Base (“00”) | similar size, base compliance | Uncertified panel variant |
| 330980‑51‑00 | 5.0 m, DIN-mount | Base (“00”) | same form, base version | DIN form without extra compliance |
| 330980‑72‑CN | 7.2 m, panel-mount | CN variant | ~81.3 × 61 × 63.5 mm, ~255 g | Longer cable CN variant |
6. Popular Models from the Same Brand
| Model | Type / Function | Application / Strength | Notes |
|---|---|---|---|
| 330105‑02‑12‑05‑02 | Proximity probe + extension | Shaft displacement sensing | Frequently paired with 3300 XL modules |
| 3500/05‑01‑01‑00‑00 | Monitoring rack module | Multi-channel vibration monitoring | Core condition-monitoring chassis |
| 9200‑03‑05‑10‑00 | Smart / digital condition module | Remote diagnostics / IIoT integration | Advanced communication features |
| 330500 Velocity Sensor | Velocity transducer | Vibration velocity measurement | Often used in tandem with displacement sensors |
| 330450‑10‑05 | Compact probe assembly | Shaft position monitoring in low-clearance | Probe side component in tight layouts |
7. FAQs (Q / A)
Q1: What does “CN” in 330980‑51‑CN mean?
A1: It designates China / regional compliance variant — labeling, packaging, or certifications tailored for local regulatory environments.
Q2: Does the “51” denote cable length or mounting form?
A2: It indicates a 5.0‑metre total system length and DIN‑compatible slim mounting.
Q3: What is the module’s weight?
A3: Approximately 0.50 kg (500 g) as commonly listed.
Q4: What are the sensor’s dimensions?
A4: 81.3 mm × 61.2 mm × 63.5 mm per published listings.
Q5: What voltage does it require?
A5: –17.5 VDC to –26 VDC in non-barrier mode; –23 to –26 VDC when used with barriers.
Q6: What is the operating temperature range?
A6: –52 °C to +100 °C is typical; storage up to +105 °C.
Q7: What output resistance does it present?
A7: 50 Ω.
Q8: Which probes / cables are compatible?
A8: 3300 NSv or RAM probes and extension cables.
Q9: Is the “CN” version equivalent electrically to “05” version?
A9: Yes — the CN variant retains core performance, differing mainly in compliance / certification.
Q10: How is wiring handled?
A10: Uses SpringLoc terminal strips, enabling tool-free robust wiring.
