Product Overview

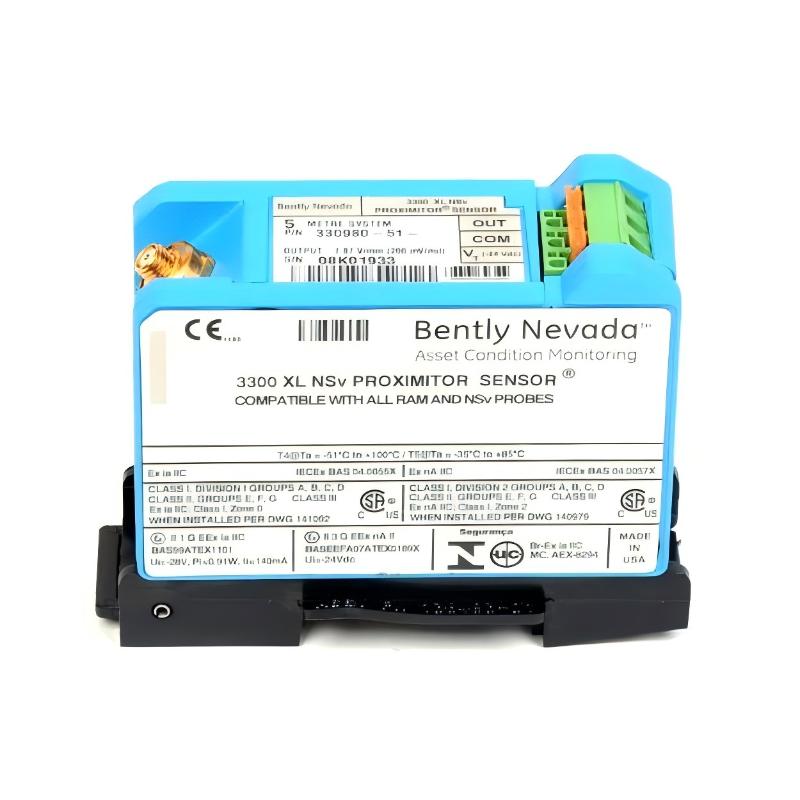

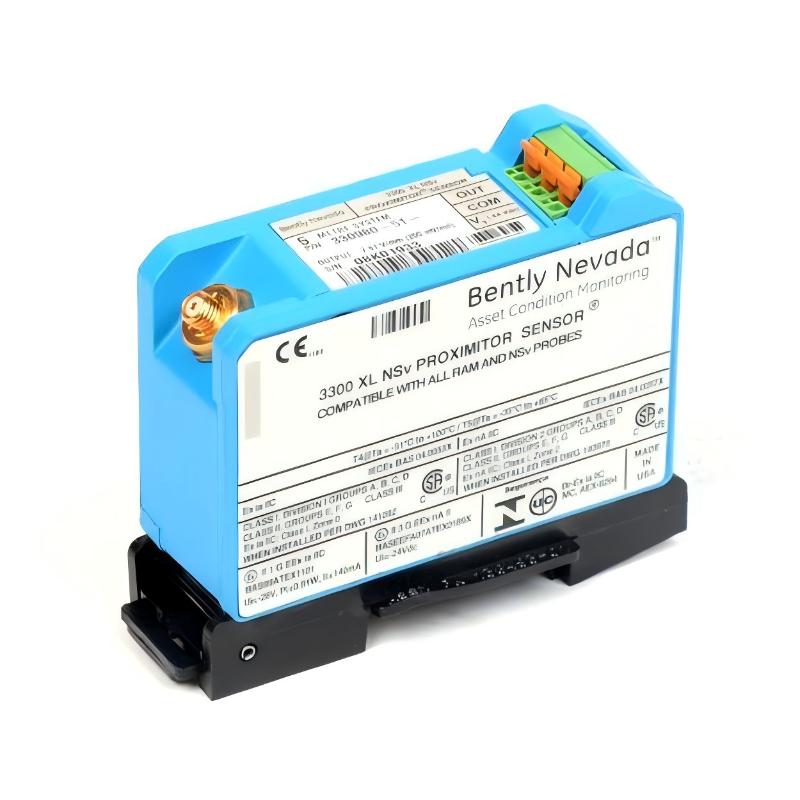

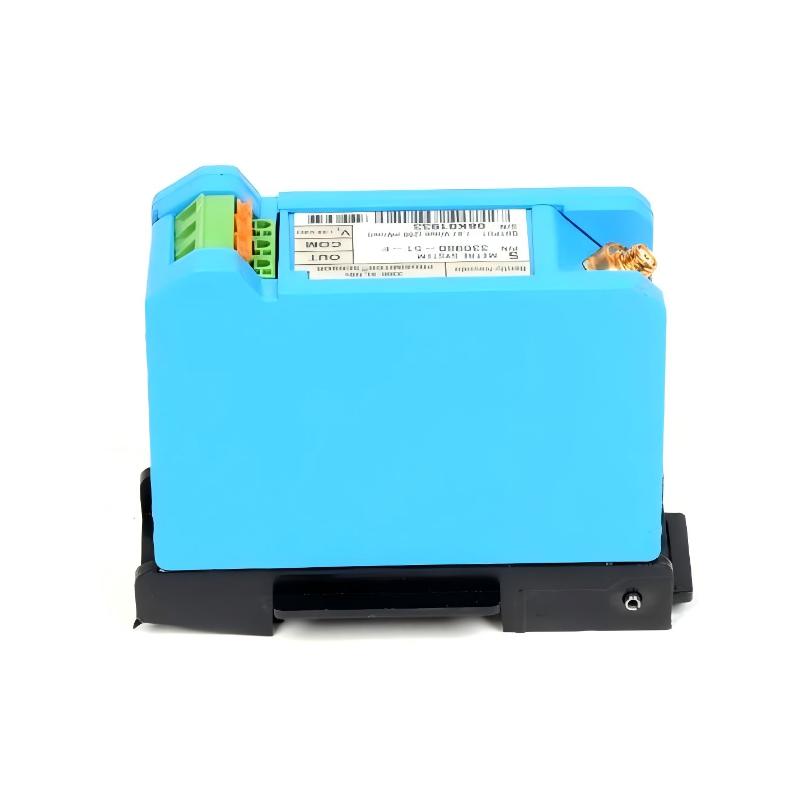

The Bently Nevada 330980-51-CN is a 3300 XL NSv front sensor designed for high-accuracy, non-contact measurement of vibration and shaft displacement in rotating machinery. It belongs to the Bently Nevada 3300 XL NSv (Narrow Side-view) sensor series, which is optimized for compact installations where space is limited but monitoring reliability is critical.

This sensor is widely used in machinery protection and condition monitoring systems to ensure stable operation of critical rotating equipment in industrial environments.

Technical Specifications

What This Product Is

The 330980-51-CN NSv front sensor is a non-contact proximity measurement component used for monitoring the condition of rotating machinery. It operates as part of a complete system that includes a proximity probe, extension cable, and monitoring module.

Its purpose is to measure shaft movement and vibration without physical contact, providing accurate and stable signals for machinery protection systems.

Function and Working Principle

The sensor operates using eddy current proximity technology. A high-frequency electromagnetic field is generated at the probe tip. When a conductive shaft rotates within this field, eddy currents are induced on the shaft surface.

Changes in the gap between the probe and the shaft alter the electromagnetic response, which is converted into a proportional electrical signal.

It enables measurement of:

• Shaft vibration
• Radial displacement
• Axial movement
• Rotor dynamic behavior

The non-contact design ensures long-term stability and eliminates mechanical wear.

Role in Industrial Systems

The 330980-51-CN plays a key role in machinery protection systems by acting as the signal interface within the 3300 XL NSv architecture.

Its primary functions include:

• Converting probe signals into usable monitoring data
• Supporting continuous vibration monitoring
• Enabling early fault detection in rotating equipment
• Providing input for alarm and shutdown systems
• Supporting predictive maintenance strategies

Industrial Applications

This sensor is widely used in industries requiring compact installation and reliable monitoring:

• Power generation plants
• Oil and gas facilities
• Petrochemical and refining plants
• Industrial compressor systems
• Pumping and hydraulic systems
• Industrial motor and turbine systems

It is especially suitable for space-constrained machinery configurations.

Compatible Components

The 330980-51-CN is typically used with:

• 3300 XL NSv proximity probes
• Matched 5.0 m extension cables
• Bently Nevada 3300 XL NSv monitoring modules
• Machinery protection systems
• Signal processing and acquisition units
• Industrial mounting accessories

All components must be properly matched to ensure accurate system performance.

Recommended Alternative Models

Key Advantages

• High-precision non-contact measurement
• Compact NSv design for tight installations
• Stable performance in harsh industrial environments
• Fully compatible with 3300 XL NSv system architecture
• Supports continuous machinery monitoring
• Reliable signal conditioning output

Technical FAQs

What is the main function of this sensor?
It measures shaft vibration and displacement using eddy current non-contact technology.

What does the “CN” version mean?
It typically indicates a regional or configuration variant within the NSv series.

Is it part of a full system?
Yes, it works with probes, cables, and monitoring modules in the 3300 XL NSv system.

What equipment is it used for?
It is used on pumps, compressors, motors, and other rotating machinery.

Conclusion

The Bently Nevada 330980-51-CN 3300 XL NSv Front Sensor is a compact and reliable industrial monitoring solution designed for non-contact vibration and displacement measurement. Its NSv architecture and 5.0-meter configuration make it ideal for space-limited installations while ensuring stable performance, machinery protection, and predictive maintenance capability in demanding industrial environments.
