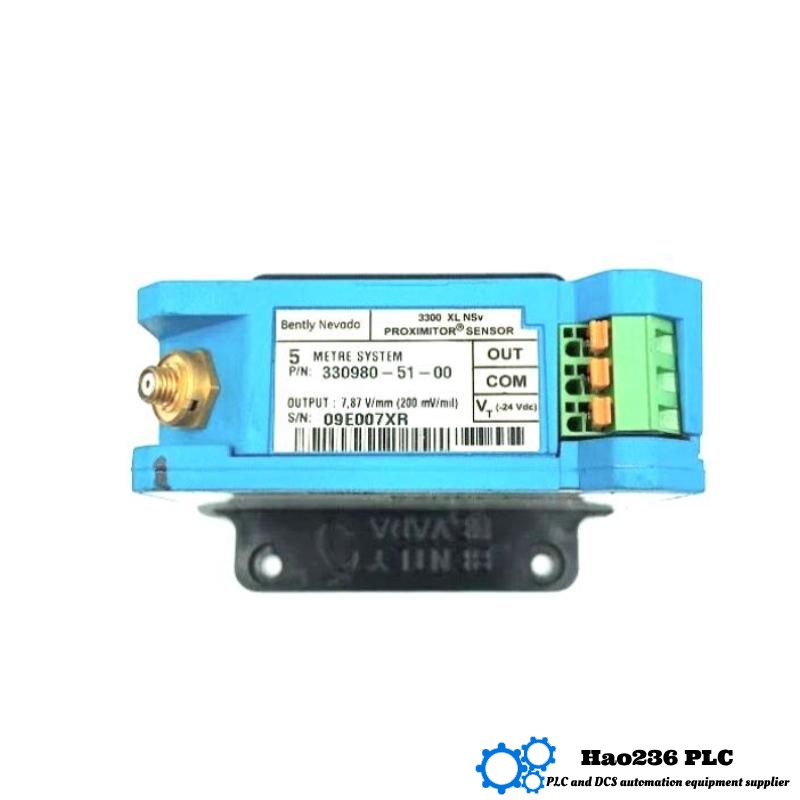

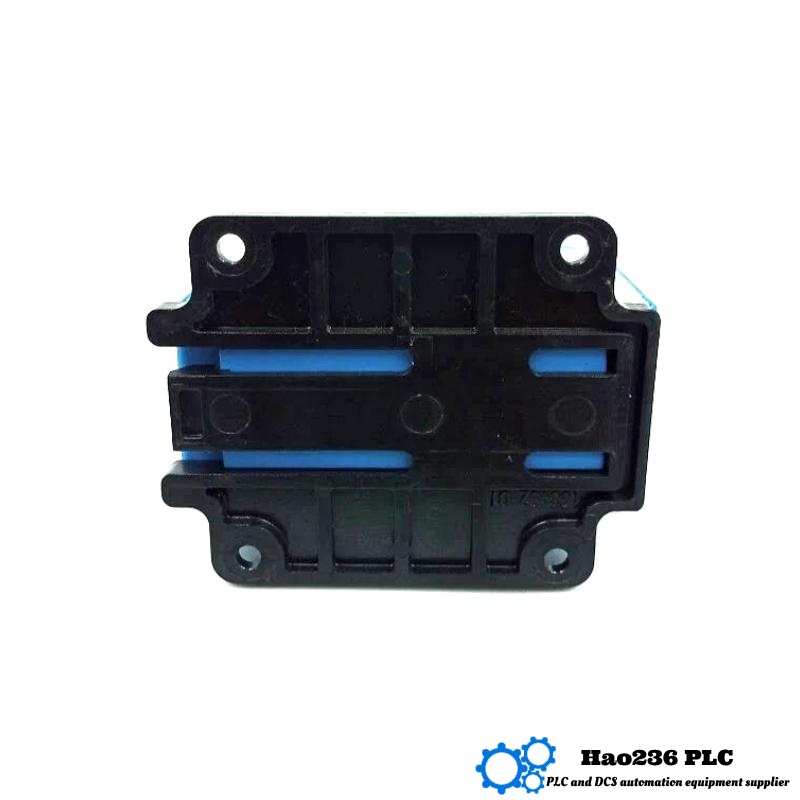

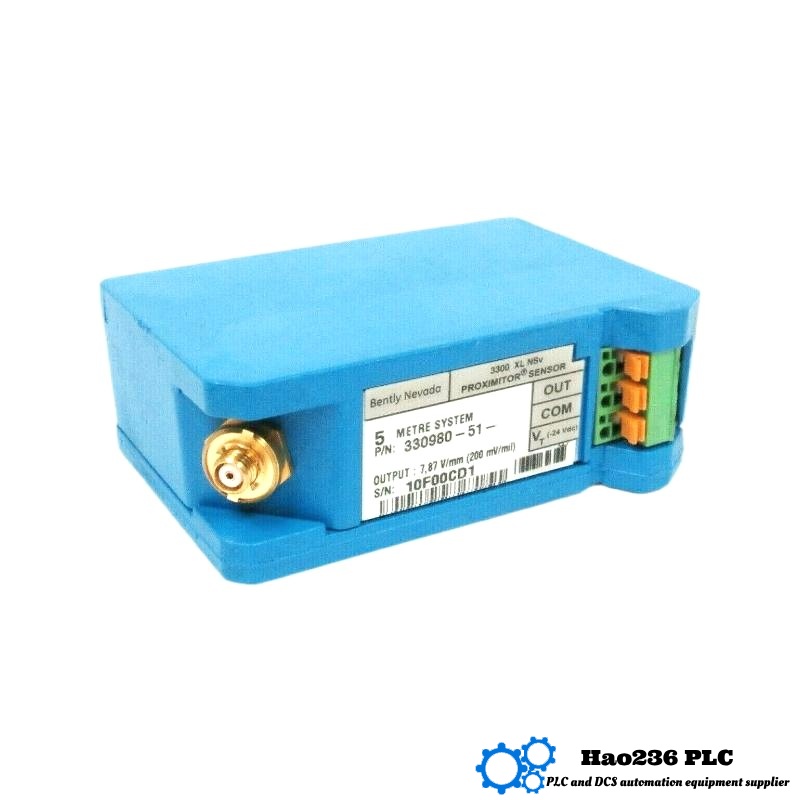

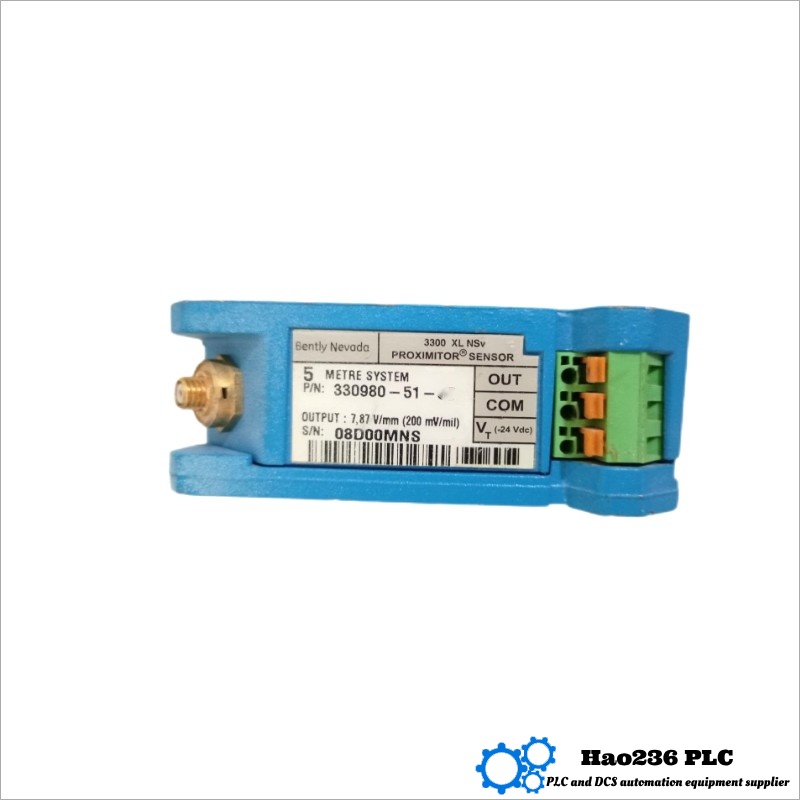

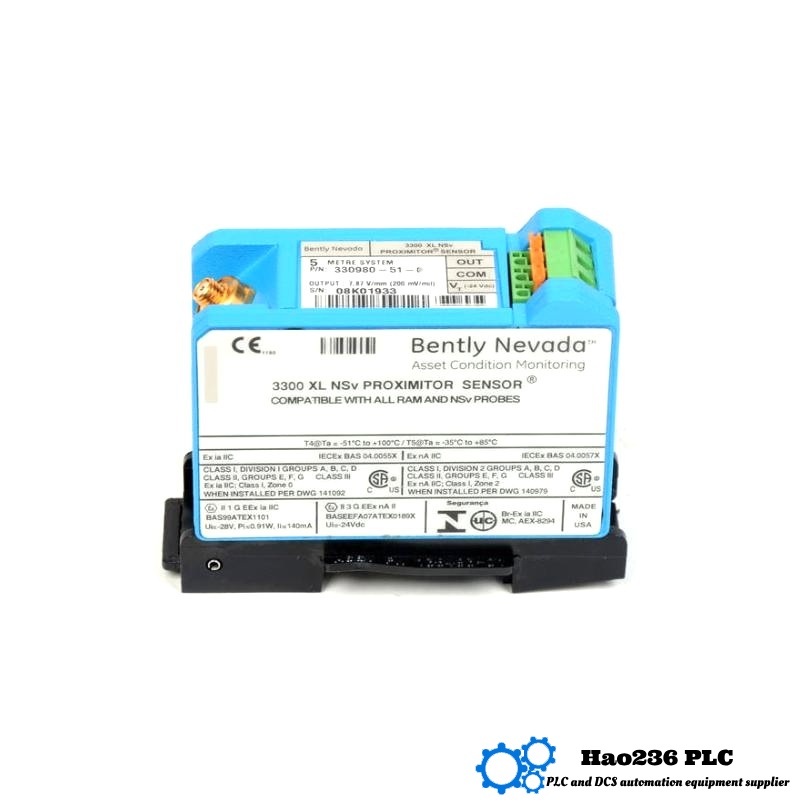

- Bently Nevada
- 330980-51-00
- Proximitor Sensor
- USA
- 81.3 mm × 61 mm × 63.5 mm
- 0.246kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 124
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| sales@plc-automations.com | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
🔧 Product Overview – Bently Nevada 330980-50-05
📌 Introduction
The Bently Nevada 330980-50-05 is part of the 3300 XL NSv (Narrow Side-view) Proximitor Sensor family, specifically designed for applications with space constraints or reduced mounting clearance. With a system length of 5.0 meters, this model is engineered to function in tight environments, such as small steam turbines, gearboxes, or other compact rotating equipment.
It accepts inputs from the 3300 NSv probe and extension cable, converting shaft position or vibration amplitude into a proportional voltage output. The “05” suffix indicates that this model meets stringent industrial certifications, making it suitable for hazardous or regulated environments.
📊 Technical Specifications
| Parameter | Value |
|---|---|
| Model | 330980-50-05 |
| Product Type | 3300 XL NSv Proximitor Sensor |
| System Length | 5.0 meters (sensor + extension cable + probe) |
| Mounting Type | Panel Mount |
| Input | Compatible with 3300 NSv probe and extension cable |
| Output | Voltage output (typical: 0–10 V, depending on configuration) |
| Power Supply (Non-barrier) | –17.5 VDC to –26 VDC |
| Power Supply (Barrier Use) | –23 VDC to –26 VDC |
| Sensitivity | Typically 7.87 mV/μm (200 mV/mil) |
| Frequency Range | Up to 10 kHz |
| Operating Temperature | –52°C to +100°C |
| Storage Temperature | –52°C to +105°C |
| Humidity Resistance | 100% condensing, sealed when connectors are closed |
| Housing Material | Aluminum alloy |
| Dimensions (L×W×H) | 81.3 mm × 61 mm × 63.5 mm |
| Weight | Approx. 0.246 kg |
| Shock Tolerance | 100 g |
| EMI / RFI Protection | Enhanced shielding for high-noise environments |
| Certifications | Industrial approvals (e.g., CE, ATEX, depending on region) |
🏭 Applications
-
Compact gas turbines
-
Steam turbines
-
High-speed gearboxes
-
Small compressors and pumps
-
OEM skids where sensor mounting space is restricted
-
Environments requiring certified electronics for vibration monitoring
-
General machinery requiring shaft displacement or thrust measurement
⭐ Advantages
-
Slim Housing: Ideal for installations with limited clearance
-
Full Compatibility: Works with 3300 NSv and RAM probes
-
Robust Design: High resistance to vibration, temperature, and EMI
-
Certified Safety: Suitable for hazardous environments with industrial approvals
-
Wide Operating Range: Performs reliably across extreme temperature ranges
-
Tool-free Wiring: Uses SpringLoc terminals for easy field installation
-
High Accuracy: Delivers reliable, linear output in a compact footprint
-
System Integration Ready: Easily integrated with standard monitoring systems
🔄 Recommended Models – Same Series / Related
| Model | System Length | Mounting Type | Certification | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 330980-50-00 | 5.0 m | Panel | None | 81.3 × 61 × 63.5 | ~0.246 |
| 330980-50-CN | 5.0 m | Panel | China-compliant | 81.3 × 61 × 63.5 | ~0.246 |
| 330980-51-05 | 5.0 m | DIN Rail | Certified | 93 × 72 × 71 | ~0.470 |
| 330980-70-05 | 7.0 m | Panel | Certified | 81.3 × 61 × 63.5 | ~0.246 |
| 330980-72-05 | 7.2 m | Panel | Certified | 81.3 × 61 × 63.5 | ~0.246 |
🔝 Recommended Models – Same Brand (Popular)
| Model | Function | System Length | Type | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 330105-02-12-05-02 | Proximity Probe | 5.0 m | Probe + Cable | Ø8 mm probe head | ~0.180 |
| 330500-02-00 | Velocity Transducer | N/A | Vibration Sensor | 63.5 × 31.8 | ~0.310 |
| 3500/42M | Vibration Monitor Module | N/A | Rack Module | 100 × 25 × 178 | ~0.400 |
| 330130-045-00-05 | Extension Cable | 4.5 m | Cable Only | N/A | ~0.100 |
| 330180-91-05 | NSv Probe (Side View) | 9.1 m | Probe | Side-mount, small head | ~0.210 |
❓ FAQ – Top 10
Q1: What is the purpose of the 330980-50-05 sensor?
A1: It measures shaft vibration or displacement in rotating machinery using a non-contact proximity method.
Q2: What does “05” in the model number mean?
A2: It designates that the unit is certified for use in regulated or hazardous environments.
Q3: What is the total system length supported?
A3: 5.0 meters, which includes the probe, extension cable, and proximitor sensor.
Q4: Is this model compatible with older systems?
A4: Yes, it is compatible with 3300 and RAM series probes and cables.
Q5: Can this sensor be used in high-temperature environments?
A5: Yes, it operates from –52°C to +100°C.
Q6: How is it mounted?
A6: This version uses panel mounting.
Q7: What is the electrical output of the sensor?
A7: It provides a voltage output, typically 0–10 V depending on the configuration.
Q8: Is it resistant to electromagnetic interference?
A8: Yes, it has enhanced shielding to prevent EMI/RFI disturbances.
Q9: What type of terminal does it use?
A9: SpringLoc terminals, which allow tool-free wiring.
Q10: What is its typical weight?
A10: The sensor module weighs approximately 0.246 kg.
