1. Product Overview — Bently Nevada 330980‑50‑05
Introduction

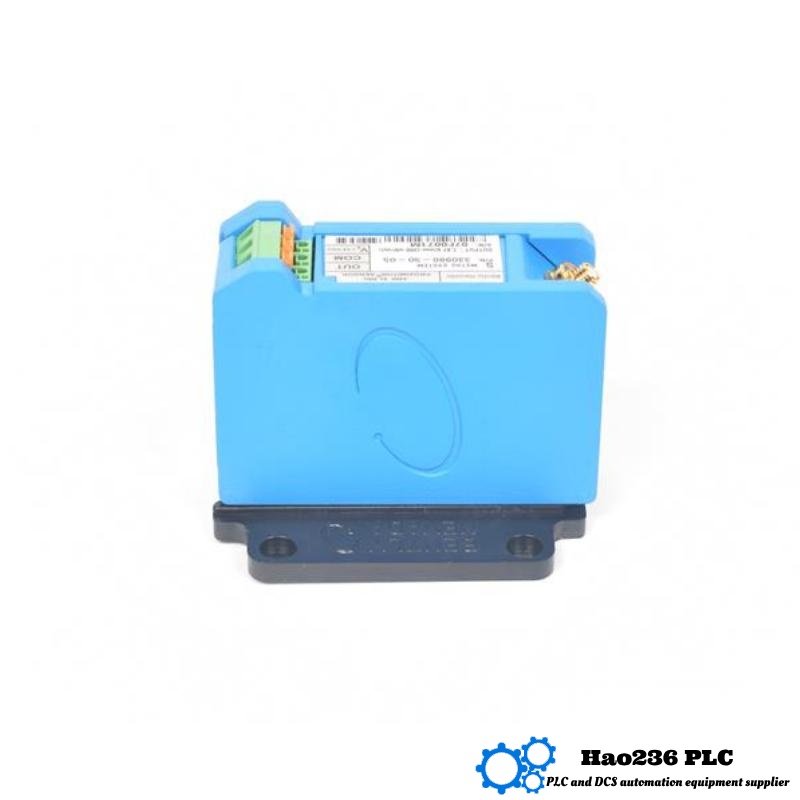

The Bently Nevada 330980‑50‑05 is a compact, slim-profile non‑contact proximity sensor in the 3300 XL NSv family. The “NSv” variant is designed for installations with constrained geometry—thin mounting envelopes, side-view access, or counter-bore clearance limitations. The “50” denotes a 5.0 m total system length (probe + extension cable + sensor module). The “05” suffix indicates that this variant carries full certifications (e.g. CE, ATEX, IECEx) for industrial and possibly hazardous environments.
This sensor accepts signals from a 3300 NSv or RAM style probe and converts them into a voltage output proportional to shaft displacement or vibration. Its slim design and enhanced shielding allow installation in confined spaces without sacrificing measurement performance.
2. Technical Specifications — 330980‑50‑05
| Parameter | Specification / Typical Value |
|---|---|
| Model | 330980‑50‑05 |
| Series / Type | 3300 XL NSv Proximitor Sensor |
| System Length | 5.0 metres (probe + cable + module) |
| Mounting Style | Panel mount, slim form factor |
| Probe / Cable Compatibility | 3300 NSv / RAM probes & extension cables |
| Supply Voltage | –17.5 VDC to –26 VDC |
| Barrier Supply Range | –23 VDC to –26 VDC (with barrier) |
| Supply Sensitivity | < 2 mV change in output per volt of supply variation |
| Output Resistance | 50 Ω |
| Operating Temperature | –52 °C to +100 °C |
| Storage Temperature | –52 °C to +105 °C |
| Weight (module only, kg) | ~0.246 kg (246 g) |
| Dimensions (approx.) | 81.3 mm × 61 mm × 63.5 mm |
| Housing Material | Aluminum alloy (A308 / A380) |
| Humidity / Environment | 100% condensing (non-submersible when connectors sealed) |
| Linear / Measurement Range | Vendor listings suggest ~2.5 mm to 127 mm (0.1–5 in) in certain configs |
| Output Signal Options | Versions may support 0–10 V, 4–20 mA depending on configuration |
| Vibration / Shock Tolerance | 100 g (operating) / 300 g (shock) in some variants |
| RFI / EMI Immunity | Enhanced design allowing CE compliance under typical mounting |
| Terminal Type | SpringLoc tool-free terminal strips |
3. Applications
The 330980‑50‑05 is ideal for machinery monitoring in settings with tight mechanical envelopes or limited access. Typical applications:
-
Shaft vibration and displacement monitoring on turbines, compressors, motors
-
Axial (thrust) position monitoring in limited radial room
-
Retrofit of old RAM / 3300 / 190 sensor systems into compact assemblies
-
Keyphasor / phase reference sensing
-
Use in petrochemical, power plants, and process equipment where approvals are required
-
Machinery with constrained housing or limited approach clearance
4. Advantages & Key Features
-
Compact / Slim Form — Suits installations with limited clearance
-
Certified for Industrial Use — “05” suffix provides regulatory compliance
-
Robust EMI / RFI Immunity — Allows operation without special shielding
-
Stable Output vs Power Variation — Less than 2 mV shift per volt supply change
-
Wide Temperature Range — Can operate in extremes from –52 °C to +100 °C
-
Robust Build — Aluminum housing with mechanical durability
-
Tool-Free Wiring — SpringLoc terminals simplify field installation
-
Interoperable with 3300 NSv / RAM Probes — Facilitates upgrades or replacements
-
Flexible Output Configurations — Supports multiple signal types (V, mA) in variants
5. Related / Same-Series / Variant Models (5 Suggestions)
| Model | System Length / Mounting | Certification Variant | Approx. Weight / Notes | Key Difference / Use Case |
|---|---|---|---|---|
| 330980‑50‑00 | 5.0 m, panel mount | Base variant (no certifications) | ~0.255 kg | Uncertified base version |
| 330980‑50‑CN | 5.0 m, panel mount | CN / regional variant | ~0.24 kg | Local compliance / labeling variant |
| 330980‑51‑05 | 5.0 m, DIN mount | Certified (“05”) | similar weight | DIN-rail mount version |
| 330980‑70‑05 | 7.0 m, panel mount | Certified (“05”) | ~0.25 kg (shipping) | Longer cable (7 m) version |
| 330980‑72‑05 | 7.2 m, panel mount | Certified (“05”) | ~0.255 kg | Alternate long-cable NSv variant |
6. Popular Models from the Same Brand (5 Examples)
| Model | Type / Role | Application / Key Feature | Notes |
|---|---|---|---|
| 330105‑02‑12‑05‑02‑00 | Proximity probe module | Shaft displacement / vibration sensing | Common partner in 3300 systems |
| 3500/05‑01‑01‑00‑00 | Monitoring rack module | Multi-channel vibration / condition diagnostics | Central rack used in many plants |
| 9200‑03‑05‑10‑00 | Smart / digital sensor module | Remote diagnostics, IIoT integration | Advanced networking capability |
| 330500 Velocity Sensor | Velocity transducer | Vibration velocity measurement | Often used complementary to displacement sensors |
| 330450‑10‑05 | Compact probe assembly | Tight-space target measurement | For installations where standard probes can’t fit |
7. FAQs (10 Q&A)
Q1: What does “NSv” mean in 3300 NSv?
A1: It denotes a narrow / slim variant of the proximity sensor, built to fit in constrained mechanical spaces where standard sensor bodies are too bulky.
Q2: What supply voltage does 330980‑50‑05 require?
A2: It operates on –17.5 VDC to –26 VDC in non-barrier mode; if a barrier is present, supply should be –23 to –26 VDC.
Q3: What is the module weight?
A3: Approximately 0.246 kg (246 grams) per vendor data listing.
Q4: What are its dimensions?
A4: Roughly 81.3 mm × 61 mm × 63.5 mm (3.2 in × 2.4 in × 2.5 in), as per vendor specification.
Q5: What is the measurement / linear range?
A5: Vendor listings suggest ranges from 0.1 to 5 inches (2.5 mm to 127 mm) for some configurations.
Q6: What output types are supported?
A6: Some configurations support 0–10 V or 4–20 mA, depending on the variant.
Q7: What is its temperature range?
A7: Rated operational range: –52 °C to +100 °C; storage to +105 °C.
Q8: Is it compatible with existing NSv / RAM probes and cables?
A8: Yes, it supports the same probes and extension cable types used in the 3300 NSv / RAM ecosystem.
Q9: Does it require special mounting to achieve EMI immunity?
A9: No, the NSv design includes shielding that often allows compliance without additional mounting constraints.
Q10: What type of wiring interface is used?
A10: It uses SpringLoc terminal strips (tool-free) for secure and easy field wiring.
