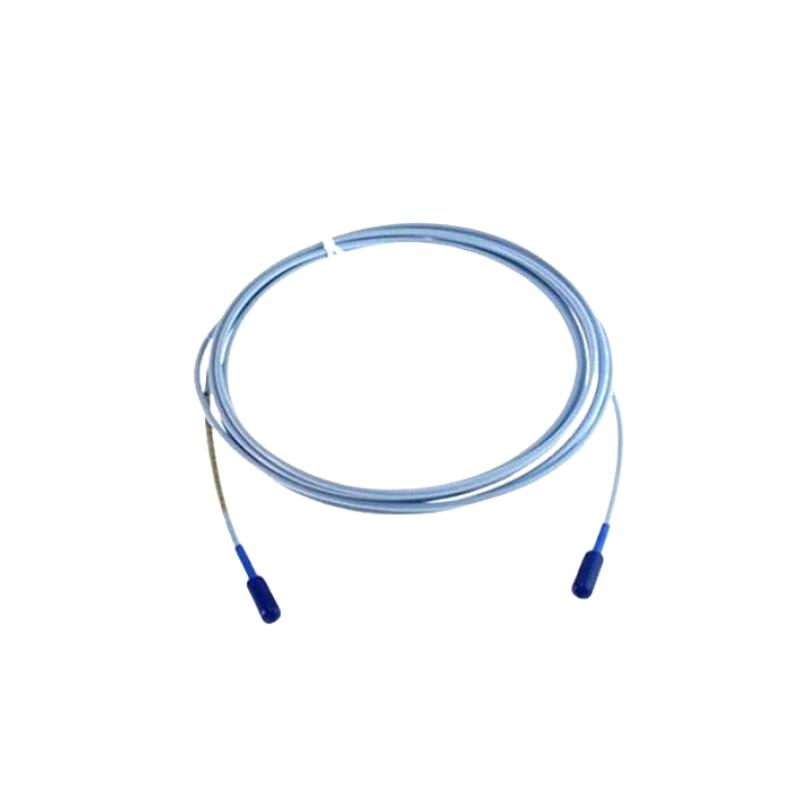

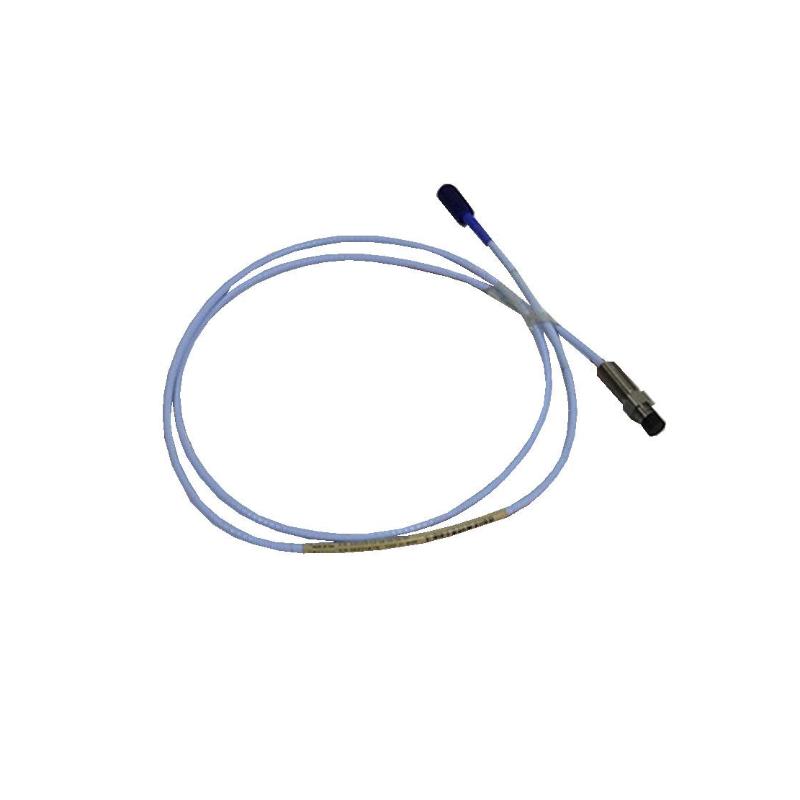

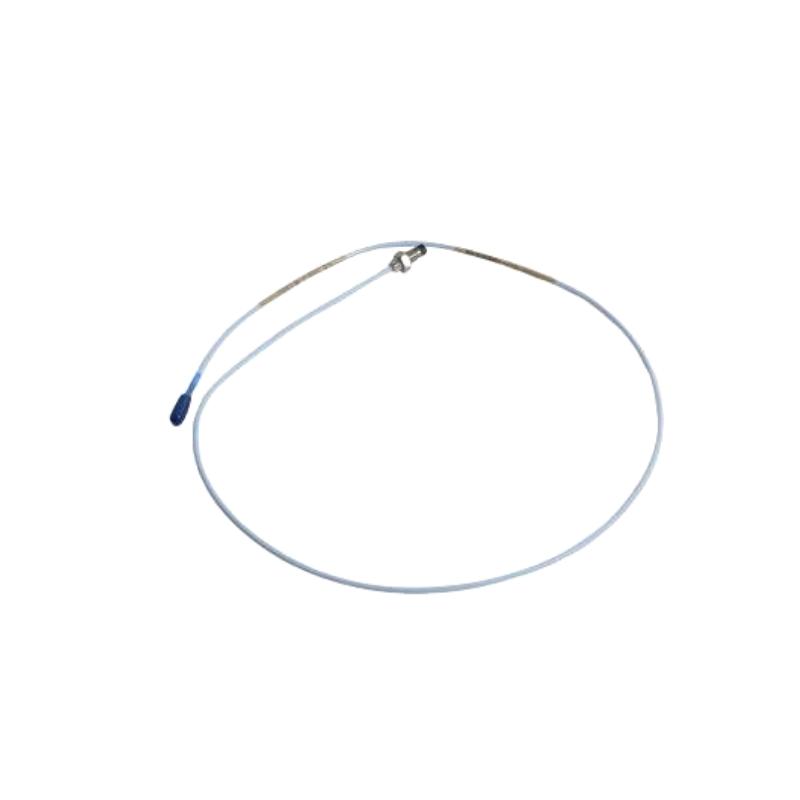

Bently Nevada 330730-080-02-00 Extension Cable: Technical Specifications, Product Description, Applications, Advantages, and Related Models

1. Product Overview

The Bently Nevada 330730-080-02-00 is a model number associated with the 3300 XL 11 mm proximity measurement system extension cable family. An extension cable connects a compatible proximity probe to its associated Proximitor sensor, forming part of the electrical measurement chain used to monitor rotating machinery.

In industrial plants, proximity measurement systems are commonly used to monitor shaft vibration and relative shaft position. When the probe, extension cable, sensor, and monitoring equipment are correctly matched, the system can provide measurements that help maintenance personnel evaluate machinery condition and investigate abnormal operating behavior.

Typical applications include steam turbines, gas turbines, centrifugal compressors, pumps, large motors, and other rotating equipment used in continuous industrial processes.

The extension cable is not an independent measuring instrument. It supports the measurement system by providing the required electrical connection, so its cable length, electrical characteristics, connectors, and physical construction must match the installed equipment.

The complete suffix “-02-00” should be checked against the relevant ordering specification before assigning a precise meaning to the cable construction or approval option. Similar model numbers may differ in armor, connector arrangement, or other configuration details.

2. Brand and Product Series

3. Detailed Technical Specifications

The model 330730-080-02-00 is an 8.0 m extension cable with standard cable and connector protectors. The final “00” option indicates that agency approval is not required for this ordering configuration.

3300 XL 11 mm Extension Cable

+1

The dimensions and weights above should be interpreted carefully. The 8.0 m figure is the nominal cable length, while the smaller dimensions refer to a listed package measurement rather than the full cable laid out. The approximately 0.36 kg figure is a listed product weight, not a guaranteed weight for every supplied assembly.

3300 XL 11 mm Extension Cable

+2

4. Product Description

4.1 Purpose and operating principle

The 330730-080-02-00 serves as an extension cable within a compatible 3300 XL 11 mm proximity measurement system. It provides the electrical connection between the proximity probe and the associated Proximitor sensor.

A proximity probe detects changes in the distance between its sensing face and a conductive target, commonly a rotating shaft. The associated sensor processes the probe’s electrical response, and the monitoring equipment uses that signal to evaluate shaft vibration or relative position.

The extension cable is an important part of this measurement chain because its electrical properties contribute to the overall system configuration. Cable length, capacitance, conductor resistance, and connector condition must be suitable for the connected probe and sensor.

4.2 Cable and connector construction

This model uses a standard cable and connector-protector configuration. The connector protectors help shield the connection area from incidental contact and environmental exposure when installed correctly.

The cable family uses 75 Ω triaxial construction with FEP insulation. An optional flexible stainless-steel armor with an FEP outer jacket is associated with armored versions of the family, but the exact armor configuration must be verified for the individual part number.

The connector-protector option should not be confused with the optional armored construction. They address different aspects of the assembly: connector protection and mechanical protection along the cable route.

4.3 Electrical signal transmission

The cable’s typical capacitance is 69.9 pF/m. This characteristic matters because the probe, extension cable, and Proximitor sensor are designed to operate together as a defined electrical system.

Using an incorrect cable length or an electrically incompatible replacement can affect the measurement channel. Therefore, selecting a cable based only on its physical length or connector appearance is not sufficient.

4.4 Industrial operating conditions

The cable family is intended for industrial instrumentation applications where the connection between sensing and signal-conditioning components must remain reliable.

The stated temperature range is approximately −51°C to +177°C. Actual suitability depends on the exact cable assembly, connector protection, routing, and the environmental conditions at the installation location.

4.5 Role in machinery monitoring

The cable does not independently measure vibration, temperature, pressure, or shaft position. Its role is to carry the electrical signal needed by the compatible proximity measurement system.

When installed and maintained correctly, it helps preserve the signal path between the probe and sensor, supporting reliable machinery condition monitoring.

5. Product Applications

5.1 Steam turbines and power-generation equipment

Steam turbines operate under demanding mechanical conditions, and shaft vibration monitoring is an important part of machinery maintenance. A compatible proximity measurement system can provide information about shaft movement and relative position.

The extension cable connects the probe to the sensor electronics so the monitoring system can receive the intended signal. Maintaining the correct cable configuration helps avoid problems caused by unsuitable replacement parts.

5.2 Gas turbines

Gas turbines operate at high rotational speeds and can experience considerable thermal and mechanical stress. A correctly selected extension cable supports the measurement system used to monitor shaft behavior.

Where additional physical protection is required, the cable route and the appropriate armored configuration should be selected according to the installation requirements. Connector protection alone does not provide full-length cable armor.

5.3 Centrifugal compressors

Centrifugal compressors are used in many continuous industrial processes. Monitoring shaft vibration and relative displacement can help maintenance personnel investigate changes in machine behavior.

The extension cable provides the electrical connection between the probe and its sensor. Cable damage, poor connector engagement, or an incompatible electrical configuration may affect the measurement signal.

5.4 Pumps and electric motors

Large pumps and motors may use proximity measurement systems to monitor shaft movement or support machinery protection. The extension cable provides the connection required for the compatible sensor arrangement.

During maintenance, technicians should inspect the cable and connectors as part of troubleshooting rather than automatically assuming that a faulty measurement originates in the probe or monitor.

5.5 Oil, gas, and process-industry machinery

In process plants, compressors, pumps, turbines, and other rotating equipment may be fitted with proximity measurement systems. A properly selected extension cable helps maintain the connection between the sensing element and its associated electronics.

The cable’s actual suitability depends on the installed system and the site’s environmental and approval requirements.

5.6 Industrial machinery refurbishment

The model may be used when replacing a damaged extension cable in an existing compatible installation. Matching the original cable specification helps preserve the intended electrical configuration and simplifies maintenance planning.

Before replacement, verify the full model number, length, connector protectors, optional armor requirements, and approval option.

6. Product Advantages

6.1 Defined electrical characteristics

The 75 Ω triaxial construction and specified capacitance support the electrical requirements of the compatible proximity measurement system.

Using the correct cable helps maintain the intended relationship between the probe, extension cable, and Proximitor sensor.

6.2 Connector protection

The standard connector-protector configuration helps protect the connection area from incidental contact and certain environmental exposures.

Correct installation remains important. The connector protectors should be fitted and maintained according to the applicable installation instructions.

6.3 Long nominal cable length

The 8.0 m length provides routing flexibility where the probe and sensor cannot be installed close together.

The cable length must still be appropriate for the complete electrical system. A longer or shorter cable should not be substituted without confirming compatibility.

6.4 Optional mechanical protection

The broader cable family includes configurations with flexible stainless-steel armor. Where the installation requires additional mechanical protection, the exact armored option can be evaluated.

The presence of connector protectors on the 330730-080-02-00 does not, by itself, confirm that the full cable length is armored.

6.5 Practical replacement and maintenance

An extension cable can be inspected and replaced as a separate component. This can help maintenance teams isolate cable-related issues without automatically replacing the probe, sensor, and monitoring equipment together.

A proper troubleshooting procedure should also consider probe condition, connector quality, sensor compatibility, grounding, and monitor-channel configuration.

6.6 Support for planned maintenance

Recording the exact model and configuration helps reduce spare-parts errors and supports consistent maintenance procedures.

For critical machinery, it is useful to retain the complete ordering code, cable length, installation location, and replacement history.

7. Installation and Maintenance Recommendations

Before installation

• Confirm the full model number 330730-080-02-00.

• Verify that the required cable length is 8.0 m.

• Confirm that standard cable and connector protectors match the installation requirement.

• Check the cable’s electrical compatibility with the probe and Proximitor sensor.

• Confirm whether the application requires optional armor or a particular approval.

• Inspect the supplied cable and connectors for physical damage.

During installation

• Route the cable away from sharp edges and moving machinery.

• Observe the specified minimum bend radius of approximately 25.4 mm.

• Avoid pulling the cable by its connectors.

• Secure the cable without crushing or deforming it.

• Keep connectors clean and ensure they are properly engaged.

• Follow the approved installation procedure for the complete measurement system.

During maintenance

• Inspect the cable jacket and connector protectors for wear or damage.

• Check the connectors for contamination, looseness, and deterioration.

• Investigate unstable measurements by checking the full signal chain.

• Replace damaged cables with a compatible assembly.

• Record the installed model and replacement details in the maintenance history.

8. Five Related Models in the Same Series

The following models are comparison candidates from the same extension-cable family or closely related configurations. The dimensions and weights for variants not specifically verified should be confirmed against the actual product specification.

These are candidates for comparison, not guaranteed drop-in replacements. The exact ordering code, electrical length, connector arrangement, and approval requirements should be checked before substitution.

9. Five Additional Models from the Same Brand

The following models represent other commonly encountered components or product families used in machinery condition monitoring. They serve different purposes and are not direct replacements for the extension cable.

The complete model code should be confirmed before purchasing these products. Probe dimensions, thread types, connectors, and system compatibility can vary by configuration.

10. Main Product and Related Cable Comparison

11. Purchasing Checklist

Before purchasing the 330730-080-02-00, confirm the following:

1. Full model number: Match every part of the ordering code.

2. Cable length: Confirm that the required length is 8.0 m.

3. Connector protectors: Ensure the standard connector-protector configuration is appropriate for the installation.

4. Electrical compatibility: Verify the cable against the installed probe and Proximitor sensor.

5. Armor requirements: Confirm whether the installation requires optional armor.

6. Approval requirements: Check whether the installation requires any special approval or certification.

7. Dimensions: Use the assembly drawing for the cable diameter, connector dimensions, and routing clearance.

8. Net weight: Use the verified product weight for engineering records and the packaged shipping weight for transport planning.

9. Product condition: Inspect the cable, connectors, and protectors before installation.

10. Commissioning: After replacement, verify the measurement channel according to the approved site procedure.

12. Conclusion

The Bently Nevada 330730-080-02-00 is an 8.0 m extension cable for the 3300 XL 11 mm proximity measurement system. Its standard cable and connector-protector configuration is intended to provide a suitable electrical connection between compatible proximity probes and their associated sensor electronics.

The principal considerations when selecting this model are its nominal length, electrical characteristics, connector-protector configuration, and compatibility with the installed transducer system.

For replacement and procurement, the complete ordering code should be checked before purchase. The listed net weight is approximately 0.36 kg, while shipping weight may be higher because of packaging. Exact dimensions and weight should be confirmed against the supplied assembly specification.
