Product Overview

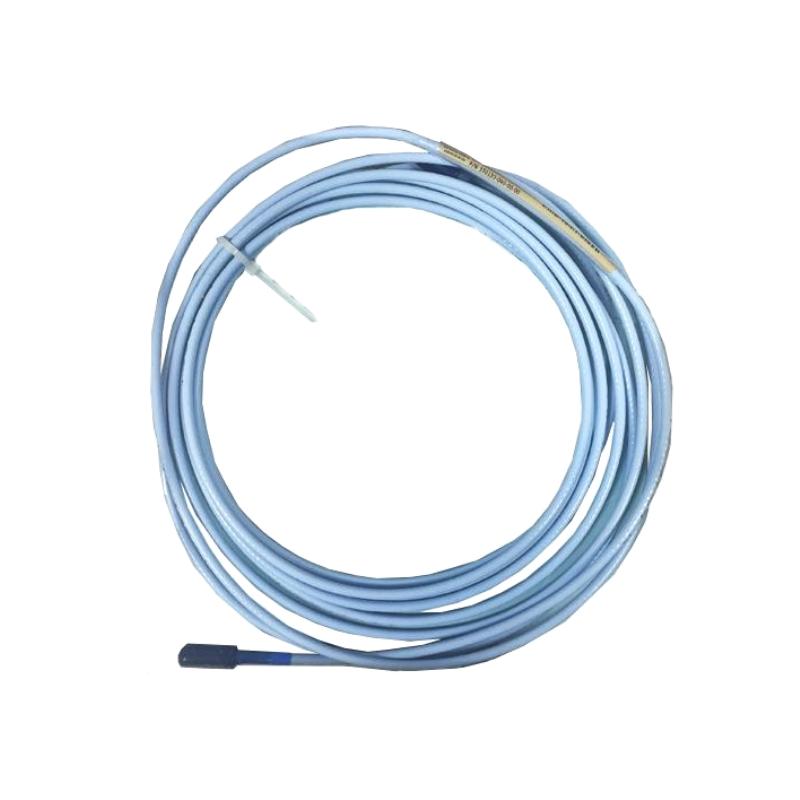

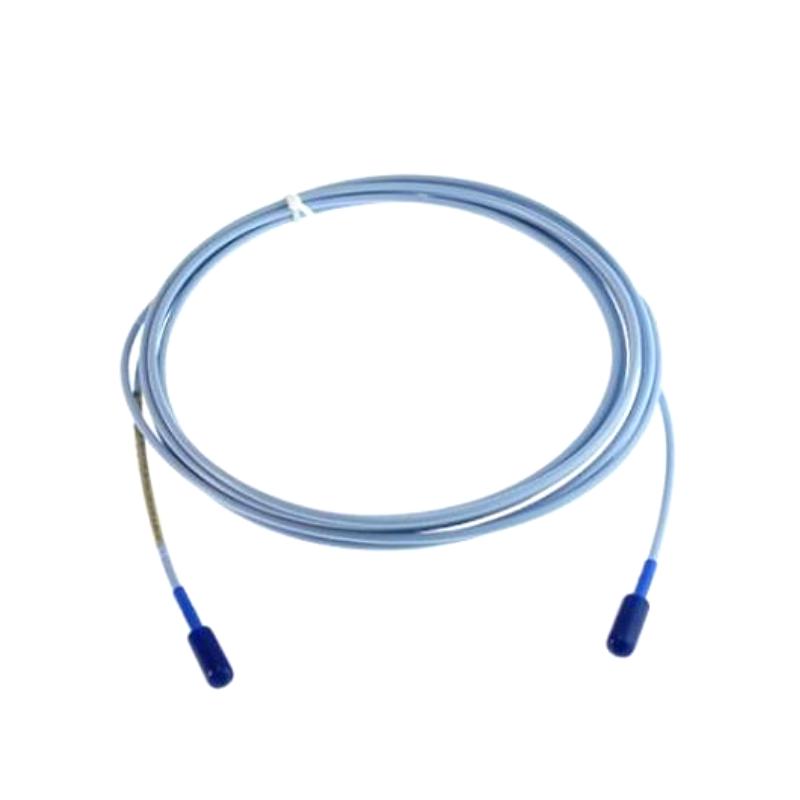

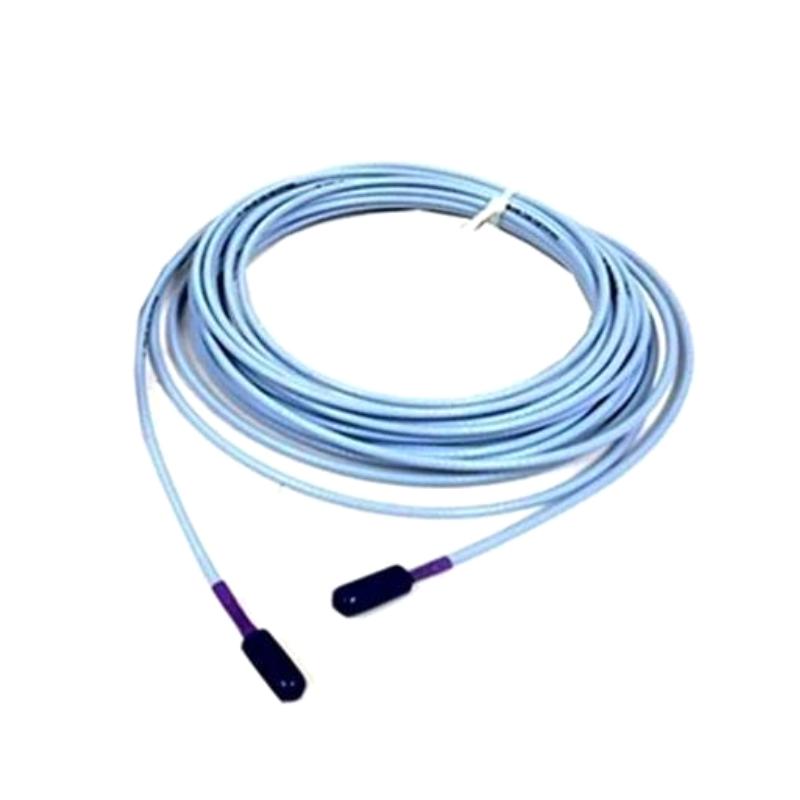

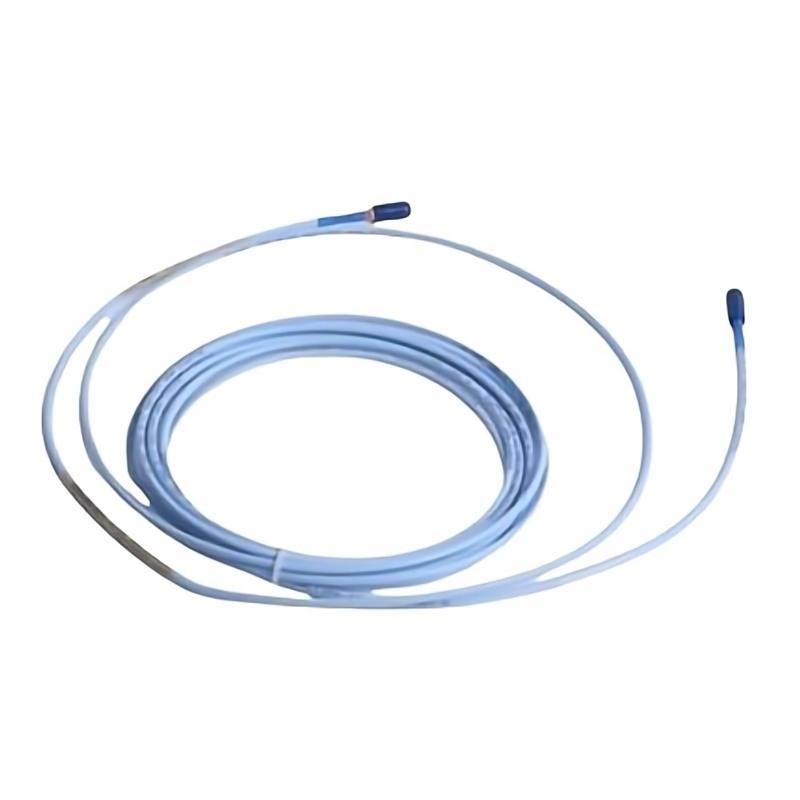

The Bently Nevada 30910-02-10-70-01-00 is a 3300 XL NSv Narrow Sideview Proximity Probe used for non-contact measurement of shaft vibration and relative position in rotating machinery. The NSv design is intended for installations where conventional proximity probes may not fit because of restricted radial clearance, small shaft diameters, or limited space around the measurement target.

The probe operates using eddy-current sensing. Its tip is positioned near a conductive target, typically a rotating shaft, and detects changes in the gap between the sensing surface and the target. A compatible Proximitor Sensor processes the probe response into a signal that can be used by machinery monitoring equipment.

The 3300 XL NSv system is particularly relevant to centrifugal air compressors, refrigeration compressors, process gas compressors, and other machinery with limited probe installation space. Its narrow-sideview characteristics also make it suitable for certain small-target measurements, including shaft vibration on smaller-diameter shafts and axial position measurement on appropriately configured flat targets.

In a compressor bearing assembly, for example, the probe can monitor shaft movement without contacting the rotating surface. The resulting signal allows the monitoring system to evaluate changes in shaft vibration or position during operation. When combined with other machinery measurements, this information helps maintenance personnel investigate developing mechanical problems and assess changes in operating behavior.

The 30910-02-10-70-01-00 belongs to a calibrated transducer arrangement rather than functioning as an independent monitoring instrument. The probe must work with a compatible extension cable and Proximitor Sensor. The electrical characteristics of these components collectively determine the measurement response, so substitutions must account for the complete transducer system.

The 3300 XL NSv family also supports applications where conventional probe installation geometry is impractical. This can be valuable when existing machinery has a small counterbore, a narrow bearing housing, or a restricted access point that limits the use of other sensing arrangements.

For maintenance teams, the probe’s main purpose is to provide a stable displacement-related signal from a defined measurement point. Correct positioning, suitable target geometry, secure mounting, and compatible signal-conditioning electronics are essential to obtaining meaningful measurements.

The probe should not be treated as a complete machinery protection device. It supplies the sensing signal, while the connected monitoring modules perform measurement processing, alarm evaluation, and any configured protective actions. Its contribution is the non-contact measurement required by the wider monitoring architecture.

Technical Specifications

Product Features

• Narrow-sideview design: Supports probe installations where radial clearance or surrounding machine geometry limits conventional sensor placement.
• Non-contact measurement: Detects changes in the distance between the sensing tip and a conductive target without physical contact.
• Rotating machinery monitoring: Supplies displacement-related signals for compatible compressor, turbine, and pump monitoring systems.
• Small-target applications: Supports suitable measurements on smaller-diameter shafts and restricted target geometries.
• Transducer system compatibility: Operates with the corresponding extension cable and Proximitor Sensor.
• Continuous signal acquisition: Supports ongoing shaft measurement while the connected monitoring system is operating.
• Compact installation options: Helps address measurement locations with limited mounting clearance.
• Condition monitoring integration: Supplies measurement data for compatible machinery monitoring and diagnostic equipment.
• Replacement application: Can be used where the installed system specifies this particular probe configuration.

Working Principle

The 30910-02-10-70-01-00 uses eddy-current sensing to detect changes in the gap between its tip and a conductive target. The probe operates with compatible signal-conditioning electronics, which provide the required excitation and convert the probe response into a measurement signal.

Conductive Shaft → 3300 XL NSv Probe → Compatible Extension Cable → Proximitor Sensor → Machinery Monitoring System

When the probe is installed near a shaft, its electromagnetic field interacts with the conductive target. Changes in the distance between the probe tip and the target alter the electrical response of the sensing circuit. The Proximitor Sensor processes this response to produce an output suitable for the monitoring equipment.

During normal operation, shaft movement changes the measured gap. The monitoring system can use the resulting signal to evaluate relative shaft position and dynamic movement, depending on the installed monitoring channel and its configuration.

The narrow-sideview design is useful when the available mounting space limits the use of conventional proximity probes. This is especially relevant to some compressor bearing arrangements and smaller-diameter shafts. However, the target geometry and probe orientation still influence measurement performance. A suitable installation must preserve the required clearance and sensing relationship.

The probe, extension cable, and Proximitor Sensor form a calibrated electrical system. The cable configuration is therefore part of the measurement specification rather than simply a wiring convenience. Using incompatible components can alter the response and reduce measurement accuracy.

The probe itself does not calculate vibration severity or determine whether a machine should trip. The connected monitoring equipment evaluates the signal and applies the configured alarm or protection logic. This separation allows the same sensing principle to support different measurement and monitoring arrangements.

If the signal changes unexpectedly, the investigation should include the probe mounting, target surface, sensing gap, cable condition, connector integrity, and Proximitor operation. A problem in any of these areas can affect the measurement independently of the machine’s actual mechanical condition.

Role in the Machinery Monitoring Architecture

The Bently Nevada 30910-02-10-70-01-00 occupies the sensing stage of a 3300 XL NSv measurement channel. It detects changes in the distance between the probe tip and the monitored target, while the associated electronics process the signal for the machinery monitoring system.

Machine Shaft → NSv Proximity Probe → Extension Cable → Proximitor Sensor → Monitoring Module → Plant Monitoring System

Industrial Applications

Installation and Maintenance

1. Verify the probe reference: Confirm that the required component is Bently Nevada 30910-02-10-70-01-00 and that the installed measurement channel calls for this configuration.
2. Inspect the mounting location: Check the probe holder, threaded mounting point, and surrounding machine structure for damage or contamination.
3. Prepare the equipment safely: Follow the site’s machinery isolation procedures before working near rotating components.
4. Check the target geometry: Confirm that the monitored shaft or target surface is suitable for the intended NSv measurement arrangement.
5. Set the sensing gap: Establish the required probe-to-target clearance using the applicable transducer installation procedure.
6. Secure the probe mounting: Install the probe without damaging the sensing tip, threaded case, or mounting hardware.
7. Route the cable correctly: Prevent crushing, sharp bends, abrasion, and contact with hot or moving machine components.
8. Inspect the connector: Check the connector and mating interface for damage, contamination, and secure engagement.
9. Verify transducer compatibility: Confirm that the probe, extension cable, and Proximitor Sensor form a compatible system.
10. Check the electrical response: Follow the commissioning procedure to verify the probe signal and the response of the connected electronics.
11. Review monitoring data: Confirm that the monitoring system receives a plausible measurement under the applicable operating conditions.
12. Record commissioning results: Document the installed probe reference, mounting details, transducer configuration, measurement checks, and any abnormalities identified.

If the measurement remains unstable, investigate the target surface, mounting position, sensing gap, cable, connector, and Proximitor Sensor before replacing additional components.

Related Components

Recommended Related Models

Key Advantages

• Supports proximity measurement in restricted-clearance machinery installations.
• Detects shaft movement without contacting the monitored surface.
• Works with compatible NSv extension cables and Proximitor Sensors.
• Supports vibration and relative-position monitoring in suitable rotating machinery.
• Provides a sensing input for compatible machinery monitoring and protection systems.

Technical FAQs

What makes an NSv proximity probe different from a conventional proximity probe?

The 3300 XL NSv system is intended for installations where limited radial clearance, small shaft diameter, or restricted target geometry makes conventional probe placement difficult. Its narrow-sideview characteristics support specific measurement arrangements that may not accommodate a conventional design.

Why must the probe be used with a compatible Proximitor Sensor?

The probe and Proximitor Sensor operate as parts of a calibrated measurement system. Their electrical characteristics determine the response of the complete transducer arrangement. A physically compatible connector does not, by itself, establish electrical or measurement compatibility.

Can this probe be used to monitor both shaft vibration and position?

The probe supplies a displacement-related signal that can support shaft vibration and relative-position measurements. The actual measurement functions depend on the installation geometry, connected monitoring module, and configured channel.

What should be checked if the probe reading changes after replacement?

Check the probe mounting, sensing gap, target surface, cable routing, connector condition, and Proximitor Sensor. Changes in any part of the transducer arrangement can affect the measurement, so the complete channel should be assessed before attributing the reading change to shaft behavior.
