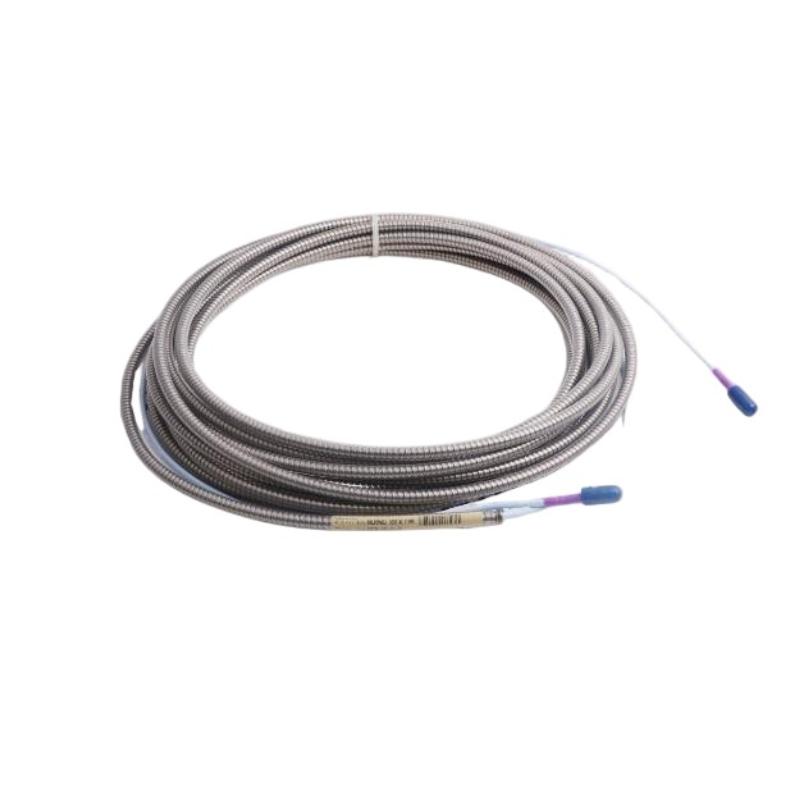

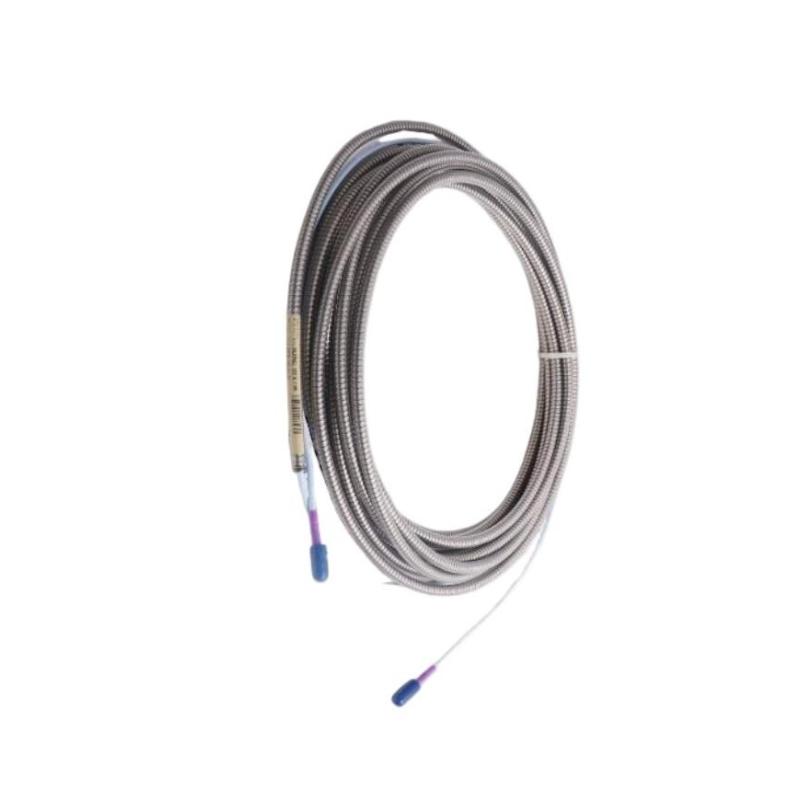

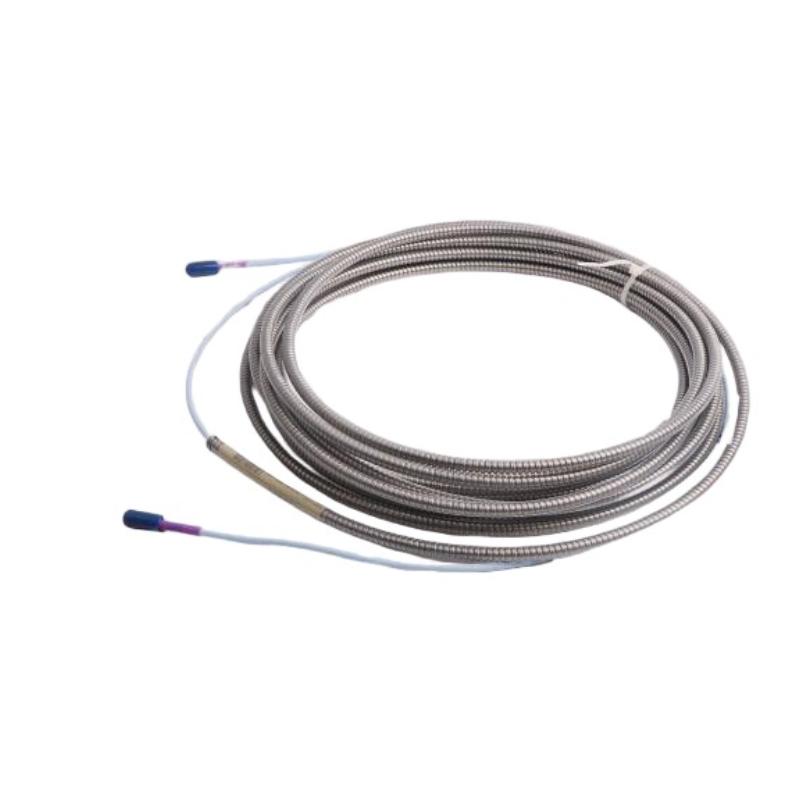

Bently Nevada 330730-080-01-RU Extension Cable — Product Overview, Technical Parameters, Applications, Advantages, and Related Models

1. Product Overview

The Bently Nevada 330730-080-01-RU is a model designation associated with the 3300 XL 11 mm proximity measurement system extension cable family. This type of cable is used to connect a compatible proximity probe to its associated Proximitor sensor, forming part of the electrical circuit used for machinery condition monitoring.

In industrial installations, proximity measurement systems are used to monitor shaft vibration and relative shaft position. When the correct probe, extension cable, sensor, and monitoring equipment are combined, the system can provide information that helps maintenance personnel evaluate the operating condition of rotating machinery.

Typical applications include steam turbines, gas turbines, centrifugal compressors, large pumps, electric motors, and other rotating equipment where continuous monitoring is important.

The extension cable is a supporting component rather than an independent measuring instrument. Its electrical properties, cable length, connector arrangement, and construction must be compatible with the rest of the measurement system.

The suffix “-RU” should be checked against the applicable product ordering documentation. It should not automatically be interpreted as a particular cable length, approval, connector type, or electrical specification without confirmation.

2. Basic Product Information

3. Detailed Technical Specifications

Dimensions and weight: The nominal cable length is 8.0 m. The cable and armor diameters are separate measurements, and connector dimensions must be checked against the specific assembly drawing. The approximately 0.14 kg net weight and 1.5 kg shipping weight are different quantities and should not be used interchangeably.

4. Product Applications

4.1 Steam turbine monitoring

Steam turbines require reliable monitoring because changes in shaft vibration or position can be associated with bearing wear, rotor movement, alignment problems, or changing operating conditions.

When installed in a compatible proximity transducer system, the extension cable carries the signal from the probe to the associated sensor electronics. This allows the monitoring equipment to receive the signal needed to assess shaft movement.

4.2 Gas turbine monitoring

Gas turbines operate at high speeds and can experience significant temperature changes and mechanical vibration. The armored cable construction provides additional protection along the cable route, particularly where mechanical contact or abrasion is a concern.

The actual installation must remain within the temperature and environmental limits of the supplied assembly. Cable armor alone does not establish suitability for every high-temperature or hazardous location.

4.3 Centrifugal compressors

Centrifugal compressors are used in process plants and other facilities where unexpected downtime can be costly. Proximity probes can be used to monitor shaft vibration and relative position, supporting the identification of changes in machine behavior.

The extension cable helps maintain the electrical connection between the probe and the sensor. Proper routing and connector installation are important for consistent measurement performance.

4.4 Pumps and motors

Large pumps and motors may be equipped with monitoring systems to help identify developing mechanical problems. A suitable extension cable provides the necessary connection between the sensing element and the sensor interface.

During maintenance, technicians should inspect the cable for damage, connector deterioration, and incorrect routing before concluding that the probe or monitoring module is defective.

4.5 Shaft displacement and axial position measurement

A compatible proximity measurement system can be used to monitor axial shaft position or thrust-related movement. The measurement signal may help maintenance engineers investigate changes in rotor position or bearing behavior.

The cable supports the signal path but does not independently determine shaft displacement. The final measurement capability depends on the probe, sensor, monitor, target material, and system configuration.

4.6 Differential expansion monitoring

In suitable turbine installations, proximity transducers may be used in differential expansion arrangements to monitor relative movement between different machine structures or components.

The extension cable can form part of the measurement circuit where the installed system is designed for that purpose. The complete arrangement must be engineered and configured for the intended measurement.

4.7 Industrial machinery maintenance

The model may also be relevant when replacing a damaged cable in an existing 3300 XL 11 mm installation. Using the correct replacement helps maintain the intended electrical configuration and reduces the risk of ordering a physically similar but incompatible cable.

Before replacement, confirm the full part number, cable length, armor configuration, connector arrangement, and required approval option.

5. Product Advantages

5.1 Armored cable protection

The flexible stainless-steel armor provides an additional mechanical barrier around the cable. This can help reduce damage caused by incidental contact, abrasion, and handling during installation.

The armor does not eliminate the need for proper cable support, bend-radius control, and protection from moving equipment.

5.2 Defined electrical characteristics

The cable’s specified impedance and capacitance help maintain the electrical characteristics required by the compatible proximity measurement system.

Using the correct cable configuration is important because the probe, extension cable, and sensor operate as a connected system. An unsuitable replacement may affect signal behavior or system calibration.

5.3 Suitability for industrial environments

The cable family is designed for industrial instrumentation applications. The armored configuration can be useful where the cable is exposed to vibration or mechanical interference.

Environmental suitability still depends on the exact product ratings, including temperature, moisture, chemical exposure, and any special installation requirements.

5.4 Practical integration with existing systems

For facilities already using compatible 3300 XL 11 mm equipment, selecting the correct extension cable can simplify maintenance and spare-parts planning.

Matching the original configuration is generally preferable to choosing a replacement based only on length or connector appearance.

5.5 Replaceable component

The extension cable can be inspected and replaced as an individual component. If a measurement channel becomes unstable, technicians can check the cable and connectors as part of a structured troubleshooting process.

This helps separate cable-related issues from possible probe faults, sensor problems, monitor-channel issues, or installation errors.

5.6 Support for planned maintenance

Keeping the full model number and configuration in the maintenance database helps technicians order the correct spare part and document replacement work.

For critical machinery, accurate spare-parts identification can reduce avoidable delays during maintenance.

6. Installation and Maintenance Recommendations

Before installation

• Verify that the complete model number is 330730-080-01-RU.

• Confirm that an 8.0 m cable is appropriate for the installed transducer system.

• Check compatibility with the probe and Proximitor sensor.

• Verify the connector configuration and the required approval option.

• Inspect the cable, armor, and connectors for physical damage.

• Confirm the installation’s temperature and environmental requirements.

During installation

• Route the cable away from sharp edges and moving machinery.

• Observe the specified minimum bend radius.

• Avoid pulling or twisting the cable by its connectors.

• Secure the cable without crushing or deforming the assembly.

• Keep connectors clean and properly engaged.

• Follow the approved installation procedure for the complete measurement system.

During maintenance

• Inspect the armor and outer jacket for cuts, crushing, kinks, or abrasion.

• Check connectors for contamination, looseness, or physical deterioration.

• Investigate abnormal readings by checking the full measurement channel.

• Replace damaged cables with a compatible assembly.

• Record the installed model and replacement details in the maintenance history.

7. Five Related Models in the Same Series

The following models are candidates for comparison within the 3300 XL extension cable family. Cable lengths and suffix meanings should be checked against the exact ordering configuration before purchasing.

These models should not be treated as automatically interchangeable. Cable length, connector configuration, armor options, and electrical compatibility must all be checked against the installed system.

8. Five Additional Models from the Same Brand

The following products represent other components used in proximity measurement and machinery condition monitoring. They are related to the same general application area but are not direct replacements for the extension cable.

The dimensions and weights in this table require confirmation for the complete model numbers. The products have different functions, so their suitability depends on the equipment design and intended monitoring task.

9. Comparison of the Main Model and Related Cable Options

10. Purchasing Checklist

When ordering 330730-080-01-RU, confirm the following details:

1. Complete model number: Make sure the full suffix matches the required configuration.

2. Cable length: Verify that 8.0 m is the correct length for the installed system.

3. Armor configuration: Confirm that the cable is armored if that is required by the original installation.

4. Approval option: Verify that the selected option meets the installation’s requirements.

5. Electrical compatibility: Confirm that the cable is appropriate for the installed probe and sensor.

6. Connector configuration: Check the actual connectors rather than relying on a general product-family description.

7. Dimensions: Obtain the cable drawing for the outside diameter, armor diameter, connector dimensions, and routing clearance.

8. Net weight: Use the verified assembly weight for equipment records and transport calculations.

9. Product condition: Inspect the cable, jacket, armor, and connectors before installation.

10. Commissioning: After replacement, verify the measurement channel according to the approved site procedure.

11. Final Summary

The Bently Nevada 330730-080-01-RU is an armored extension cable associated with the 3300 XL 11 mm proximity measurement system. Its nominal 8.0 m length, triaxial cable construction, defined capacitance, and stainless-steel armor make it a component intended for compatible industrial machinery monitoring installations.

Its main purpose is to provide a suitable electrical connection between the proximity probe and the associated sensor electronics. The armored construction offers additional mechanical protection, while correct electrical matching helps maintain the performance of the complete measurement chain.

For procurement and replacement, the most important checks are the full model number, cable length, armor configuration, connector arrangement, electrical compatibility, and approval option.

The nominal cable length is 8.0 m, and one product listing gives a net weight of approximately 0.14 kg. Shipping weight is a separate figure and may be considerably higher because of packaging. The exact assembly drawing and supplied product specification should be used whenever precise dimensions or weight are required.
