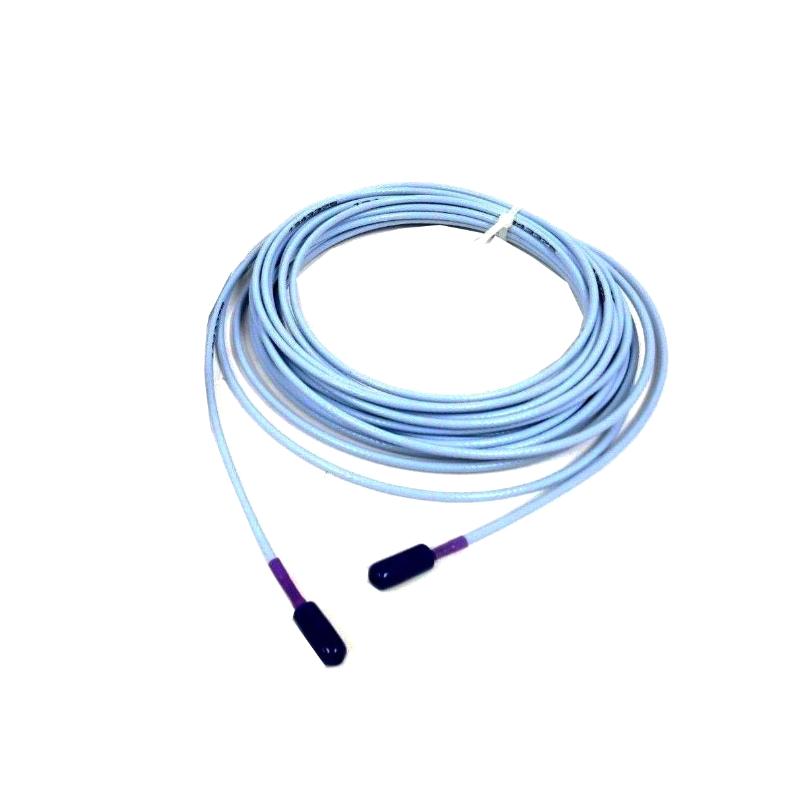

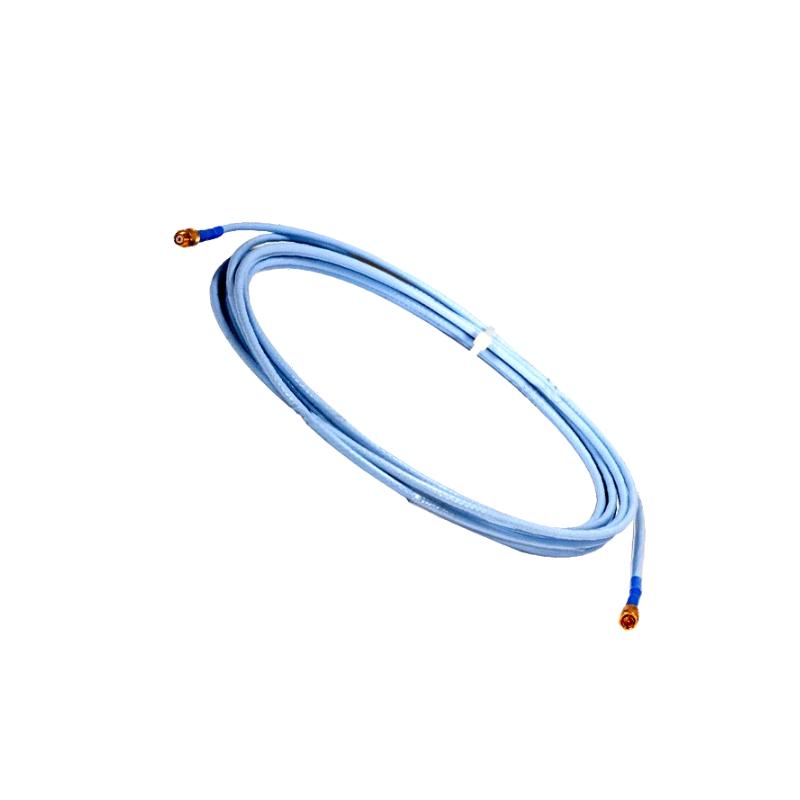

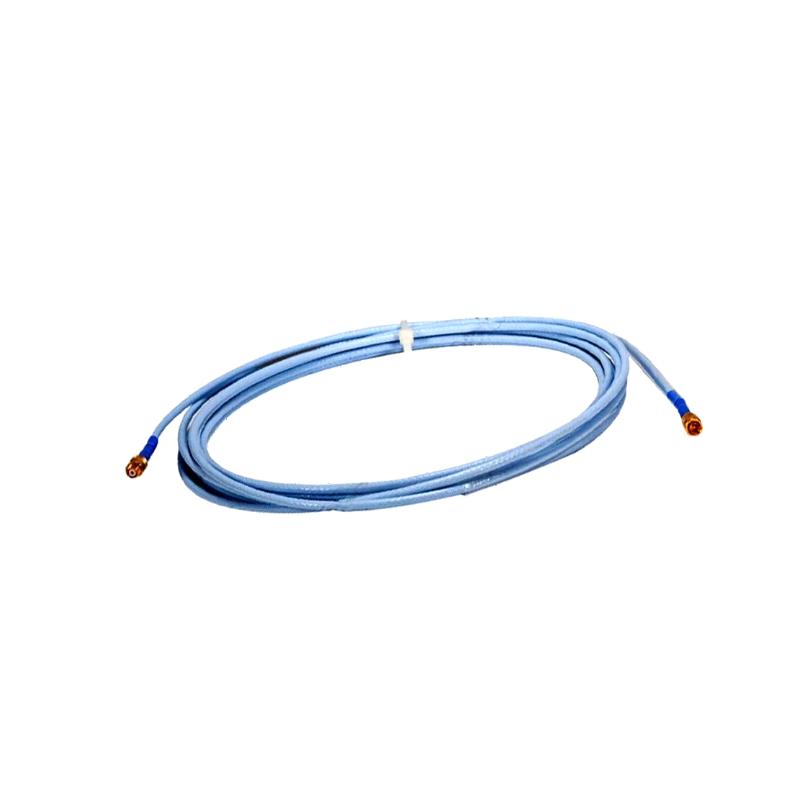

Bently Nevada 330730-080-01-CN Extension Cable — Technical Specifications, Product Overview, Applications, Advantages, and Related Models

1. Product Overview

The Bently Nevada 330730-080-01-CN is a model designation associated with the 3300 XL 11 mm proximity measurement system extension cable family. Extension cables of this type connect a compatible proximity probe to its associated Proximitor sensor, forming part of the electrical measurement chain used in industrial machinery monitoring.

The cable is intended for applications where accurate and stable transmission of proximity measurement signals is important. When installed with compatible system components, it supports the monitoring of shaft vibration and relative shaft position in rotating machinery, including turbines, compressors, pumps, and other industrial equipment.

The cable is a supporting component rather than a standalone measuring instrument. Its performance depends on the compatibility of the probe, extension cable, Proximitor sensor, and monitoring equipment. Correct cable length, electrical characteristics, connector configuration, and installation practices are therefore essential.

The suffix “-CN” should be verified against the applicable ordering documentation before assigning it a particular meaning. It should not automatically be interpreted as a cable length, certification, or electrical specification.

2. Product Parameters

The following table summarizes the model and the principal technical characteristics associated with this cable family. Details that cannot be confirmed from the model designation alone are identified accordingly.

Specification note: The product family’s typical characteristics should not be treated as a verified datasheet for the exact suffix “-CN.” The precise cable dimensions, net weight, connector details, temperature limits, and ordering-option meaning should be confirmed before purchasing or installing the product.

3. Detailed Product Description

3.1 Extension cable function

The 330730-080-01-CN is intended to serve as an extension cable in a compatible proximity transducer system. It carries the electrical signals between the probe and the associated sensor electronics, allowing the complete measurement chain to operate as designed.

In machinery monitoring applications, the probe detects changes in the distance between its sensing face and a conductive target, typically a rotating shaft. The sensor electronics process the probe’s electrical response, and the monitoring equipment uses the resulting signal to assess shaft movement and machinery condition.

The extension cable is therefore an important part of the measurement path. Its electrical properties must be compatible with the rest of the transducer system to avoid introducing measurement errors or affecting system calibration.

3.2 Cable construction

The relevant 3300 XL extension cable configurations use industrial cable construction designed for machinery instrumentation. In the armored version, a flexible stainless-steel protective layer helps shield the cable from mechanical contact, abrasion, and incidental damage during installation and operation.

An outer insulating jacket provides an additional layer of protection. The exact material and construction of the supplied cable should be checked against the product specification associated with the complete model number.

The armor improves mechanical protection but does not eliminate the need for proper cable routing. Sharp bends, excessive pulling force, crushing, and repeated contact with moving machinery can still damage the cable or its connectors.

3.3 Electrical signal characteristics

Proximity measurement systems rely on defined electrical characteristics across the probe, extension cable, and sensor. Cable impedance, capacitance, conductor resistance, and total electrical length can all influence the performance of the complete circuit.

For this reason, selecting an extension cable based only on physical length is insufficient. The replacement must also match the electrical requirements of the installed system.

A cable with an unsuitable configuration may cause incorrect readings, inconsistent measurement behavior, or problems during system calibration. Maintaining the intended electrical configuration helps preserve measurement reliability.

3.4 Connector arrangement

The extension cable connects to compatible components through the connector arrangement specified for the installed system. Connector compatibility should be checked before the cable is fitted, particularly when replacing an existing cable with a different ordering suffix.

During installation, connector contacts should be clean and undamaged, and the connection should be fully secured according to the applicable installation instructions. Cable tension should not be transferred directly to the connector.

3.5 Industrial operating suitability

Industrial machinery installations can expose instrumentation cables to vibration, temperature changes, limited installation space, and occasional mechanical interference. An appropriately selected armored extension cable can help maintain a protected connection under these conditions.

Actual suitability depends on the environment and the precise assembly ratings. Areas exposed to chemicals, oil, moisture, extreme temperatures, or hazardous-area requirements may require additional installation controls or specific approvals.

4. Product Applications

4.1 Steam turbines

Steam turbines are commonly monitored for shaft vibration and relative shaft position. A compatible proximity measurement system can help identify changes in machine behavior and support the investigation of vibration, alignment, bearing, or rotor-related problems.

The extension cable provides the connection between the probe and its sensor electronics. Maintaining a correct cable configuration helps ensure that the monitoring system receives the intended measurement signal.

4.2 Gas turbines

Gas turbines operate at high rotational speeds and under demanding thermal and mechanical conditions. Monitoring shaft movement can provide useful information about machine stability and changes in operating behavior.

The armored cable configuration can provide additional protection where the cable route passes through areas with a risk of abrasion or incidental contact. The complete assembly must still be installed within its specified temperature and environmental limits.

4.3 Centrifugal compressors

Centrifugal compressors are widely used in continuous industrial processes. Shaft vibration and relative displacement measurements can help maintenance personnel assess operating stability and investigate unusual changes in machinery behavior.

A correctly configured extension cable helps maintain the electrical connection between the probe and the sensor interface. Cable condition should be considered when troubleshooting unstable or implausible measurements.

4.4 Pumps and electric motors

Large pumps and motors may be fitted with proximity measurement systems where shaft movement or vibration needs to be monitored. Such monitoring can contribute to planned maintenance and help identify developing mechanical issues.

The extension cable supports the measurement chain and provides a practical replacement component when the original cable is damaged or no longer suitable for service.

4.5 Industrial rotating machinery

Other applications may include gearboxes, process compressors, industrial drives, and machinery used in chemical processing, refining, and manufacturing.

The cable can be suitable where the equipment uses a compatible 3300 XL 11 mm proximity measurement configuration. Suitability should not be assumed merely because the equipment operates in an industrial environment.

4.6 Shaft position and thrust monitoring

Compatible proximity transducer systems may be used to monitor axial shaft position. Changes in measured position can help engineers assess machine behavior and investigate potential thrust-bearing or rotor-position problems.

The extension cable supports the transmission of the measurement signal, while the probe, sensor electronics, and monitor determine the overall measurement capability.

4.7 Equipment maintenance and refurbishment

The model may be considered during the repair or refurbishment of an existing machinery monitoring installation. Replacing a damaged extension cable can restore the electrical connection without necessarily replacing every component in the transducer system.

Before replacement, the installed model should be checked against the equipment documentation. The replacement must match the required length, electrical characteristics, connector configuration, armor requirements, and approval conditions.

5. Main Product Advantages

5.1 Mechanical protection

An armored construction can help protect the cable against abrasion and incidental mechanical contact. This is useful in installations where the cable must be routed through equipment structures or near machinery components.

The armor should be regarded as an additional protective feature, not as a guarantee against all forms of mechanical damage.

5.2 Stable electrical connection

Using the correct extension cable helps maintain the intended electrical characteristics of the proximity measurement circuit. This supports reliable signal transmission between the probe and the sensor electronics.

The benefit depends on selecting a compatible cable and maintaining the connectors and cable routing in good condition.

5.3 Compatibility with established monitoring systems

The 3300 XL 11 mm family is designed for use with compatible proximity measurement components. Where an installation already uses this system, selecting the correct extension cable can simplify replacement planning and maintenance.

Compatibility must be checked against the full model code and the installed system configuration.

5.4 Suitability for demanding machinery installations

The cable family is intended for industrial instrumentation applications in which reliable electrical connections are important. Armored construction can be useful in areas where mechanical protection is a priority.

Temperature, chemical exposure, moisture, and other environmental conditions must still remain within the ratings of the actual supplied assembly.

5.5 Replaceable system component

An extension cable can be inspected and replaced independently when damage or connection problems are identified. This can help maintenance teams isolate a fault without automatically replacing the probe, sensor electronics, and monitoring equipment together.

A systematic diagnosis is important because unstable readings can also result from probe damage, sensor problems, incorrect configuration, grounding issues, or faults elsewhere in the monitoring channel.

5.6 Support for planned maintenance

Correctly identifying the installed cable model helps maintenance personnel maintain spare-parts records, reduce ordering errors, and plan replacements before a cable fault affects equipment monitoring.

Accurate records should include the full model number, installed length, cable construction, connector configuration, and any required approvals.

6. Installation and Maintenance Recommendations

Before installation

• Verify the complete model number: 330730-080-01-CN.

• Confirm the actual cable length and the required electrical length of the transducer system.

• Check the connector arrangement and ensure compatibility with the probe and sensor.

• Confirm the precise meaning of the “CN” suffix from the relevant product documentation.

• Inspect the cable jacket, armor, and connectors for visible damage.

• Check whether the installation requires particular environmental or hazardous-area approvals.

During installation

• Route the cable away from moving parts, sharp edges, and unnecessary sources of mechanical stress.

• Observe the minimum bend radius specified for the actual assembly.

• Avoid pulling the cable by its connector.

• Secure the cable without crushing the protective jacket or deforming the armor.

• Keep connectors clean and ensure that they are correctly engaged.

• Follow the installation instructions for the complete proximity measurement system.

During routine maintenance

• Check for abrasion, cuts, crushing, kinks, corrosion, or other signs of damage.

• Inspect connectors for contamination, looseness, or physical deterioration.

• Investigate abnormal readings by checking the entire measurement channel rather than assuming the cable is the only possible cause.

• Replace damaged assemblies with electrically compatible components.

• Record the replacement model and inspection results in the equipment maintenance history.

7. Five Related Models in the Same Series

The following models are comparison candidates within the same extension cable family or closely related configurations. Their full suffixes and availability must be verified before use. The dimensions and weights shown are not confirmed for every exact part number.

These models are not automatically interchangeable. Differences in length, cable construction, electrical characteristics, and ordering options can affect system compatibility.

8. Five Additional Models from the Same Brand

The following models represent other components or product families used in machinery condition monitoring. They are alternatives for comparison or system planning, not direct replacements for the extension cable.

These model numbers are included as comparison candidates. Confirm each complete ordering code before purchasing, and do not assume that a probe, extension cable, or monitoring module can replace another component with a different function.

9. Summary of Key Parameters

10. Conclusion

The Bently Nevada 330730-080-01-CN is associated with the 3300 XL 11 mm proximity measurement extension cable family. Its role is to provide the electrical connection required for a compatible probe-and-sensor arrangement used in rotating machinery monitoring.

For industrial maintenance, the most important considerations are not just the cable’s physical length or appearance. The complete model code, electrical configuration, connector arrangement, cable construction, and environmental requirements must all match the intended installation.

The five related cable models provide a starting point for comparing different lengths and configurations, while the additional probe and monitoring-module models illustrate other components used in machinery condition monitoring.

For procurement and engineering records, the exact dimensions, net weight in kilograms, and meaning of the “CN” suffix should be confirmed against the specific product documentation. This avoids relying on assumed suffix meanings or approximate values that may not match the actual supplied assembly.
