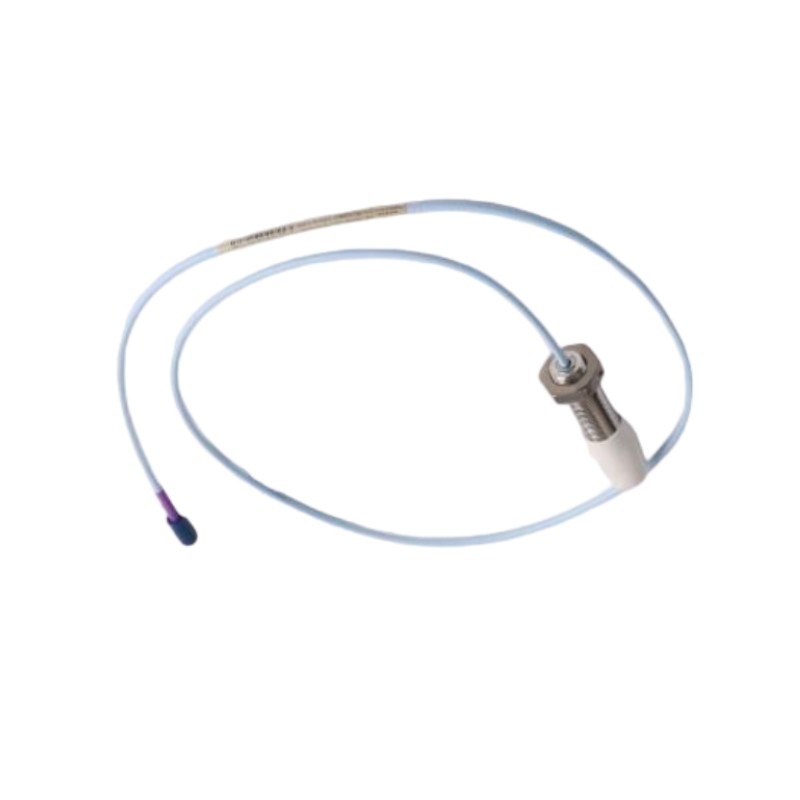

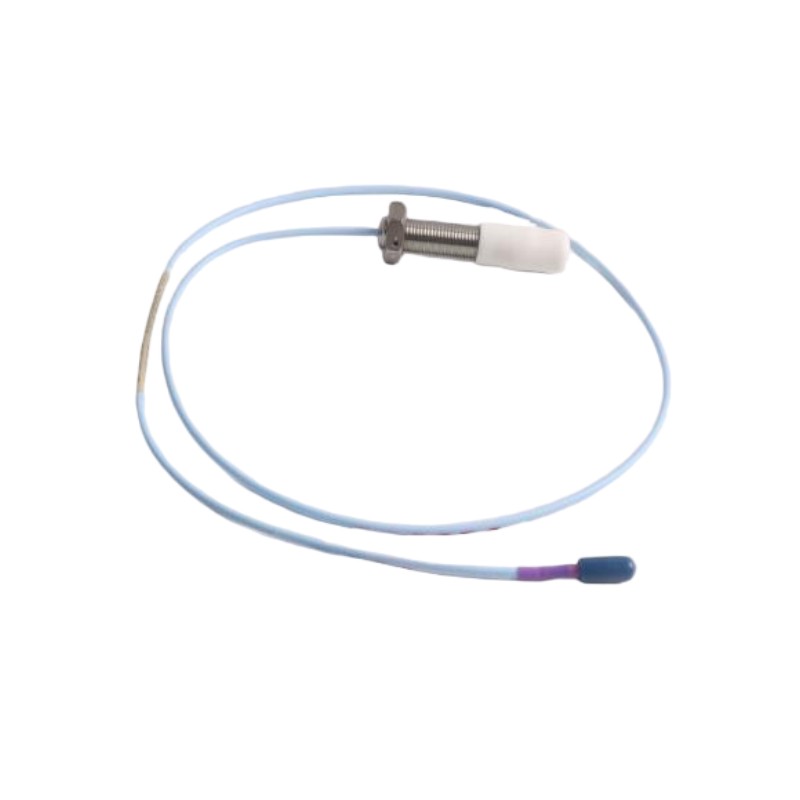

Bently Nevada 330709-000-120-10-02-00 Proximity Probe — Product Description and Technical Specifications

1. Product Overview

The Bently Nevada 330709-000-120-10-02-00 is a metric-threaded, non-contact proximity probe belonging to the 3300 XL 11 mm proximity transducer product family. It is designed for machinery condition monitoring, shaft vibration measurement, displacement monitoring, and other applications where accurate measurement of a rotating machine’s shaft position is important.

The probe operates as part of a complete proximity transducer system. In a typical installation, the probe is connected to an extension cable and a compatible Proximitor Sensor. The system converts changes in the gap between the probe tip and a conductive metal target into an electrical signal that can be used by a monitoring instrument.

This type of measurement is particularly useful for industrial machines where shaft movement, bearing condition, axial displacement, or mechanical clearance needs to be monitored continuously.

The 3300 XL 11 mm family is designed for industrial monitoring applications requiring a relatively wide linear measurement range. The probe is intended to be selected and installed according to the machine design, mounting thread, cable arrangement, target material, and monitoring system requirements.

2. Product Identification and Model Code

The model number contains several fields that identify the probe’s mechanical configuration, cable length, connector arrangement, and approval option.

Important model-code note: The 120 field identifies the nominal case-length option in the ordering code. It should not be treated as a verified overall installed length, because the probe’s actual envelope depends on the dimensional drawing and configuration. The complete model should be checked against the nameplate and order documentation before replacement or installation.

3. Detailed Technical Parameters

The following table summarizes the main mechanical, electrical, and installation characteristics of the 330709-000-120-10-02-00.

Parameter interpretation: The 4.0 mm linear range and 3.94 V/mm scale factor describe the matched 3300 XL 11 mm transducer system, not an independently powered probe. To obtain the specified measurement performance, the probe must be used with a compatible extension cable and Proximitor Sensor, with the system configured for the intended target material and geometry.

The product’s physical length and weight should also be distinguished from shipping dimensions and gross shipping weight. The 120 mm code identifies the case-length option, while the cable extends beyond the case. A final mechanical drawing and the supplier’s packing details should be used for installation planning and freight calculations.

4. Product Introduction

The 330709-000-120-10-02-00 is a non-contact sensor probe designed for industrial machinery monitoring. Rather than touching the rotating shaft, it uses an electromagnetic sensing principle to detect changes in the distance between the probe tip and a conductive metal surface.

When the shaft moves, vibrates, or changes its axial position, the gap between the target and the probe changes. The corresponding electrical response is processed by the compatible Proximitor Sensor, allowing the monitoring system to represent mechanical movement as a measurable signal.

This non-contact arrangement is valuable in rotating equipment because the sensor can measure shaft movement without relying on a mechanical linkage or placing a contact element against the shaft. It is commonly used where continuous monitoring is required and where a small change in shaft position can be an important indicator of machine condition.

The 330709 model uses an M16 × 1.5 metric mounting thread and has an unarmored construction. Its 120 mm case-length configuration provides a mounting option for installations that require a relatively long probe case. The 1.0 m lead option is intended for the corresponding compatible system arrangement.

The ClickLoc connector provides a defined connection interface for the matching transducer components. Correct connector selection, cable routing, and installation are important because the probe does not operate as a standalone measurement instrument.

In a properly configured system, the probe can support measurements associated with shaft vibration, radial displacement, axial position, and other machine movements that are suitable for the 3300 XL 11 mm system.

5. Main Applications

5.1 Steam Turbines and Gas Turbines

The probe family is suitable for selected turbine monitoring points where non-contact shaft displacement measurements are required. It may be used to observe shaft vibration or position relative to the installed probe, provided the target geometry, mounting arrangement, and monitoring equipment are compatible.

For turbine applications, correct positioning is especially important. The probe must be mounted securely, aligned with the intended target, and adjusted according to the transducer system’s installation procedure.

5.2 Generators and Large Rotating Machines

Large generators and associated rotating machinery may require continuous shaft movement monitoring. A compatible proximity transducer system can provide a signal representing shaft displacement relative to the machine housing.

This information can be used alongside other vibration and operating measurements to help maintenance personnel evaluate machine condition and identify changes that warrant further investigation.

5.3 Pumps and Compressors

Industrial pumps and compressors may use proximity probes at suitable bearing locations or other engineered measurement points. The system can help monitor shaft movement and vibration, particularly in machinery where the design includes fluid-film bearings and an appropriate conductive shaft target.

The specific mounting thread and case length must match the machine’s probe bracket or installation port. A longer case is not automatically a better choice; it must provide the correct clearance, engagement, and sensing position.

5.4 Bearing and Shaft Vibration Monitoring

One of the principal uses of the 3300 XL 11 mm family is non-contact shaft vibration measurement. A probe positioned near a conductive shaft surface detects changes in the shaft-to-probe gap.

When installed as part of a compatible system, the resulting signal can be used by machinery monitoring equipment to assess vibration behavior and identify changes from an established baseline.

5.5 Axial Position and Thrust Monitoring

Proximity transducers can also be installed to measure axial movement when the probe faces a suitable thrust collar or other target surface.

Axial position monitoring is useful on machinery where changes in rotor position may indicate thrust-bearing movement, changes in operating condition, or a developing mechanical issue. The probe arrangement must be engineered for the intended direction of measurement.

5.6 Industrial Power Generation

Power-generation equipment often relies on continuous condition monitoring to help maintenance teams identify changes in machine behavior. The 3300 XL 11 mm system may be suitable for selected measurement points on turbines, generators, and associated rotating machinery.

The exact application depends on the installed monitoring architecture, required measurement range, probe location, and approved engineering design.

5.7 Industrial Process Plants

The same measurement principle can be applied to suitable rotating equipment in process industries, including machinery used in chemical processing, refining, pulp and paper production, and other continuous-process facilities.

The probe should be selected according to the actual machine interface and environmental conditions rather than by product family alone.

6. Product Advantages

6.1 Non-Contact Measurement

The probe measures the gap between its tip and a conductive target without needing physical contact with the shaft. This makes it useful for continuous monitoring of rotating machinery where contact-based measurement would be unsuitable.

6.2 Wide Linear Measurement Range

The 3300 XL 11 mm system provides a nominal 4.0 mm linear range under its specified operating conditions. This range can be useful in applications requiring shaft displacement or position measurement over a wider interval than some smaller probe systems provide.

6.3 Metric Threaded Mounting

The M16 × 1.5 mounting thread offers a standardized metric interface. This is helpful when the machine’s mounting port, bracket, and installation drawing are designed for that thread specification.

Thread compatibility must be confirmed before replacement. Similar probe diameters do not guarantee that different thread systems are mechanically interchangeable.

6.4 Stainless Steel Case

The AISI 304 stainless steel case provides a robust metal housing for industrial installation. The actual resistance to a particular environment still depends on temperature, moisture, chemical exposure, installation practices, and the limitations of the complete transducer system.

6.5 Compact Electrical Connection

The miniature coaxial ClickLoc connector supports connection to the matching transducer components. Properly installed connections help maintain signal continuity and reduce the likelihood of connection-related measurement problems.

6.6 Suitable for Continuous Condition Monitoring

When integrated into an appropriate monitoring system, the probe can provide a continuous signal that helps operators and maintenance personnel observe shaft movement and changes in machinery behavior.

6.7 Multiple Installation Configurations in the Same Family

The 3300 XL 11 mm family includes probes with different mounting threads, case lengths, cable lengths, and cable construction options. This allows a suitable configuration to be selected for different machine designs, provided all system requirements are satisfied.

6.8 Supports Condition-Based Maintenance

Measurements from a correctly installed proximity system can contribute to trend analysis, condition assessment, and maintenance planning. The probe does not diagnose every failure by itself, but its signal can be an important input to a broader machinery protection and diagnostic strategy.

7. Brand and Product Series

The 3300 XL 11 mm series is intended for applications requiring a compatible non-contact displacement measurement system. The probe, extension cable, and Proximitor Sensor must be selected as a matched arrangement. Replacing only the probe without confirming the installed system configuration may lead to incorrect measurements or an incompatible installation.

8. Five Related Models in the Same Series

The following models are related options within the 3300 XL 11 mm probe family or its supporting transducer system. They are not all direct replacements for the specified model; differences in mounting thread, armor, cable length, or component function must be considered.

Model selection notes:

• The 330709 models share the M16 × 1.5 unarmored probe family, but different case-length codes change the mechanical installation requirements.

• The 330710 model is the armored counterpart in the same metric-thread family. Armor can be useful where the installation design calls for additional cable protection, but the entire cable path and connector arrangement must be checked.

• 330730 is an extension-cable component rather than a probe. Its electrical length and connector arrangement must match the probe and Proximitor Sensor.

• A similar model number does not establish drop-in compatibility. Always compare the complete part number and installation drawing before ordering.

9. Five Popular Related Models from the Same Brand

The following are commonly encountered models or components associated with machinery condition monitoring. They serve different functions, so they should not be treated as interchangeable alternatives to the 330709 probe.

These products cover different parts of a machinery monitoring installation: sensing, signal conditioning, monitoring, and data interface. Selection should be based on the function required in the installed system, not simply on brand or series similarity.

10. Installation and Compatibility Considerations

10.1 Confirm the Mounting Thread

This probe uses an M16 × 1.5 metric thread. Before installation, check that the mounting port or bracket uses the same thread and that the engagement depth is appropriate for the probe’s geometry.

Do not force the probe into a different thread or rely on adapters without engineering approval.

10.2 Check the Case Length and Clearance

The 120 mm case-length option should be compared with the machine’s mounting drawing. The available clearance must accommodate the probe case, cable exit, connector, and any required adjustment.

The probe tip must be positioned correctly relative to the target. A longer case should not be selected solely because it appears to provide greater reach.

10.3 Match the Complete Transducer System

Confirm compatibility among the probe, extension cable, Proximitor Sensor, and monitoring channel. The specified lead length and cable configuration are part of the system design.

Cable lengths and component combinations can affect electrical performance. A probe with the correct mounting thread may still be unsuitable if its electrical configuration does not match the existing system.

10.4 Verify the Target Material and Geometry

The target should be a suitable conductive metal with appropriate surface geometry. Target material, diameter, curvature, surface condition, and nearby metal structures can affect measurement performance.

The published nominal linear range should only be expected when the complete system is installed and configured under its specified conditions.

10.5 Set the Gap Correctly

The nominal gap is typically established at approximately 2.5 mm for the applicable system setup. The final setting should follow the relevant installation instructions and be verified using the correct electrical measurements.

An incorrect gap can reduce usable measurement range or result in inaccurate output.

10.6 Protect the Cable and Connector

Route the cable so that it is not pinched, sharply bent, pulled, or exposed to avoidable mechanical damage. Maintain the specified minimum bend radius and use the correct connector handling procedure.

The 02 option identifies the miniature coaxial ClickLoc connector with standard cable; it does not indicate the connector-protector option.

10.7 Verify Environmental Limits

The probe’s operating range should not be assumed to apply to every component in the complete system. The extension cable, Proximitor Sensor, connectors, and installation location may have different limits.

Check the relevant component specifications when the equipment is exposed to high temperatures, condensation, vibration, chemical contamination, or other demanding conditions.

11. Purchasing and Replacement Checklist

Before ordering the 330709-000-120-10-02-00, confirm the following details:

12. Summary

The Bently Nevada 330709-000-120-10-02-00 is an unarmored M16 × 1.5 metric-threaded proximity probe in the 3300 XL 11 mm family. Its specified configuration includes a 120 mm case-length option, a 1.0 m lead, a miniature coaxial ClickLoc connector, standard cable, and no agency-approval option selected.

Its principal purpose is to provide a non-contact displacement signal for suitable conductive targets when used with a compatible extension cable and Proximitor Sensor. Typical applications include shaft vibration monitoring, displacement measurement, and selected axial-position monitoring installations on industrial rotating machinery.

The product’s main advantages are its non-contact sensing principle, the nominal 4.0 mm linear range of the matched system, metric-threaded mounting, and compatibility with an established family of industrial machinery monitoring components.

For replacement or new installation, the most important checks are the complete model number, M16 × 1.5 mounting interface, case length, cable and connector configuration, system compatibility, target geometry, and installation gap. The unit’s exact weight and full external dimensions should be confirmed from the supplied product documentation rather than inferred from the model number alone.
