Product Overview

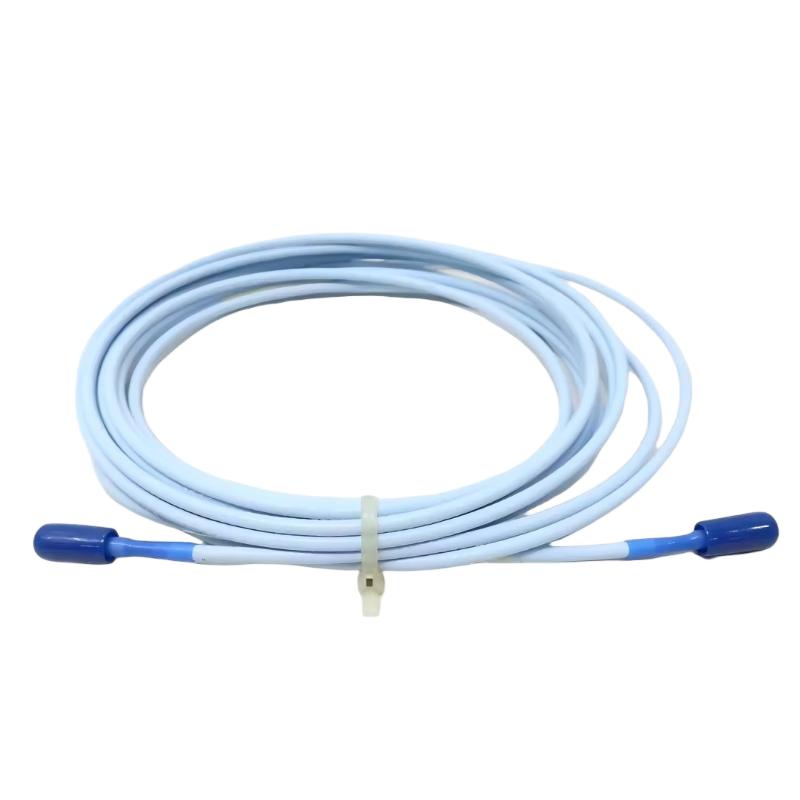

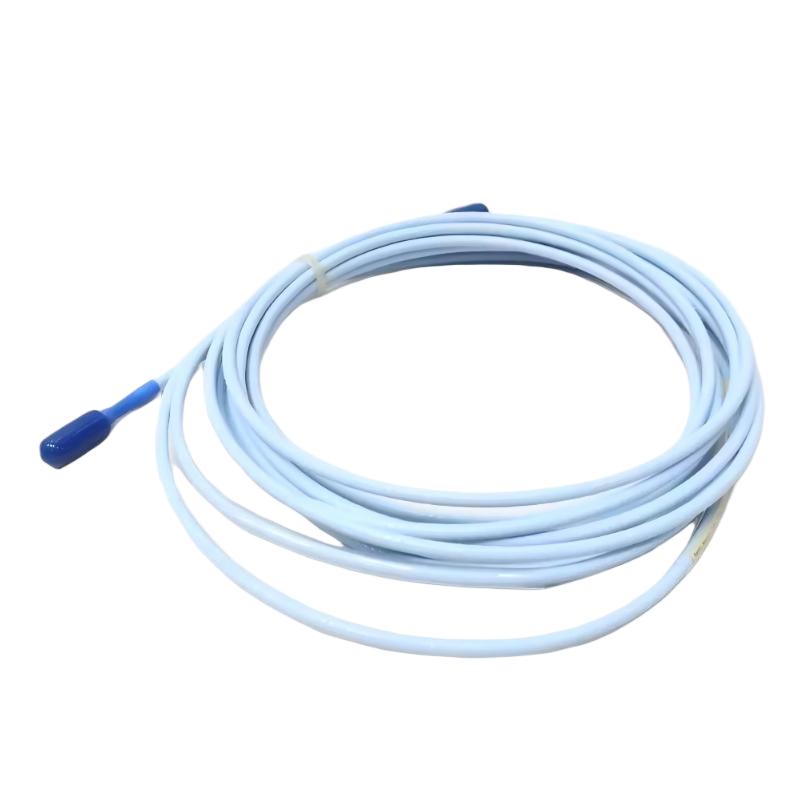

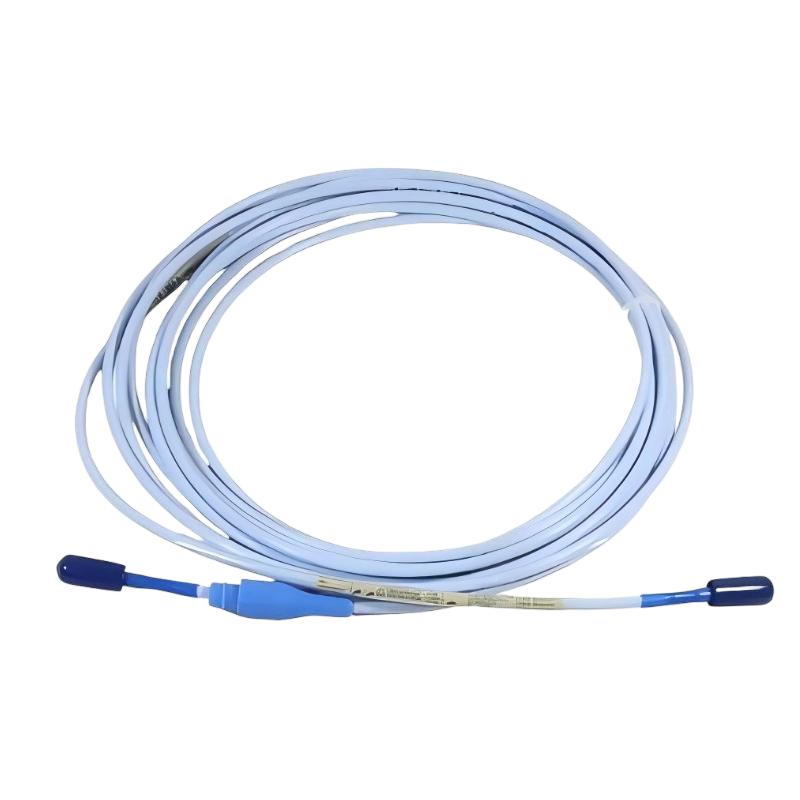

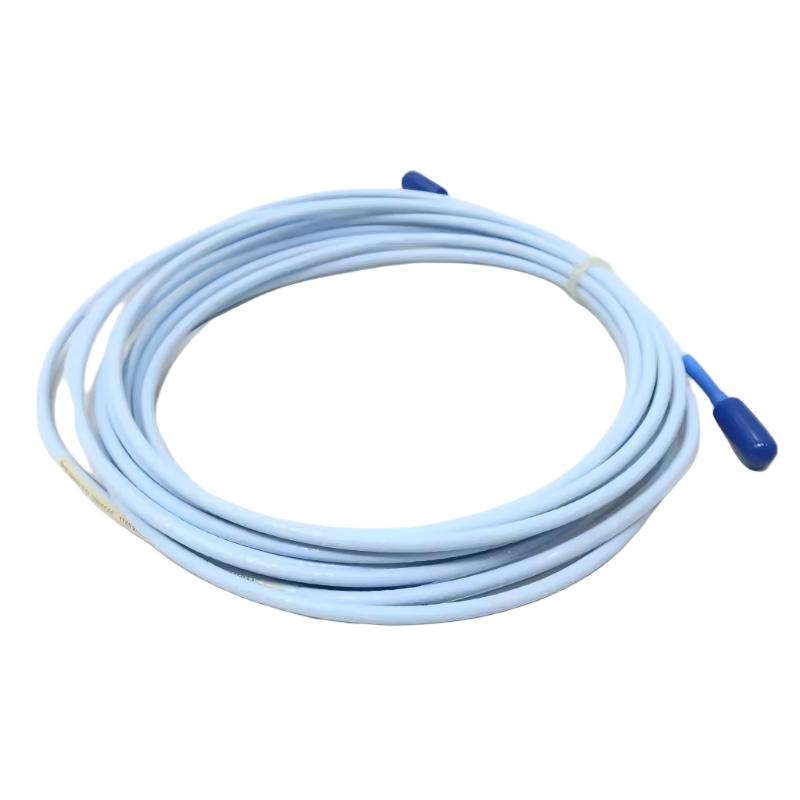

In industrial automation and machinery protection applications, accurate monitoring of rotating equipment is essential for maintaining operational stability and preventing unexpected equipment failures. The Bently Nevada 330193-00-02-50-00 3300 XL 8 mm Probe is a high-precision proximity probe designed to measure shaft vibration, displacement, and position in critical rotating machinery.

The 330193-00-02-50-00 belongs to the 3300 XL 8 mm Probe Series and uses eddy current sensing technology to provide reliable non-contact measurement. By detecting changes in the distance between the probe tip and the rotating shaft, the sensor provides accurate condition information for machinery monitoring and protection systems.

The non-contact measurement principle eliminates direct mechanical contact between the probe and the rotating component, reducing wear and improving measurement stability during long-term operation. This makes the probe suitable for applications involving turbines, compressors, generators, pumps, motors, and other industrial rotating equipment.

With a total length of 5 meters and a weight of 1.615 kg, the Bently Nevada 330193-00-02-50-00 provides flexible installation capability for systems where the sensing location and monitoring equipment require extended distance connection.

Technical Specifications

Function and Working Principle

The Bently Nevada 330193-00-02-50-00 operates based on eddy current proximity sensing technology to monitor shaft movement and position.

During operation, the probe generates an electromagnetic field around the sensing tip. When the conductive shaft surface changes position relative to the probe, the electromagnetic field changes accordingly. These changes are converted into electrical signals that represent shaft displacement and vibration conditions.

The working process includes:

• Generating a stable electromagnetic sensing field
• Detecting the distance between the probe and shaft surface
• Measuring dynamic shaft vibration
• Monitoring static shaft position
• Transmitting measurement signals to the monitoring system

Main functions include:

• Radial vibration monitoring
• Axial displacement measurement
• Shaft position detection
• Rotor condition monitoring
• Machinery protection monitoring

The non-contact design enables continuous measurement performance while reducing maintenance requirements.

Role in Industrial Machinery Protection Systems

The Bently Nevada 330193-00-02-50-00 is an important sensing component used in rotating machinery condition monitoring systems. It provides real-time information about shaft behavior and helps maintenance teams identify abnormal operating conditions.

The probe is commonly integrated with:

These components work together to create a complete machinery protection and monitoring solution.

Industrial Applications

The Bently Nevada 330193-00-02-50-00 is widely used in industries requiring reliable rotating equipment monitoring.

The 5-meter configuration provides installation flexibility for medium-distance monitoring applications.

Installation and System Integration

Correct installation is essential to achieve accurate measurement results and reliable monitoring performance.

Recommended installation procedures include:

• Install the probe according to equipment mounting requirements
• Confirm M10 × 1 thread compatibility
• Adjust the probe gap correctly
• Protect the cable from mechanical stress
• Keep wiring away from strong interference sources
• Verify signal output during commissioning

During startup and testing, engineers should confirm:

• Correct probe installation position
• Stable signal output
• Accurate vibration measurement
• Proper system communication
• Correct alarm functions

Proper installation improves monitoring accuracy and extends system reliability.

Compatible System Components

The Bently Nevada 330193-00-02-50-00 can be integrated with various industrial automation and monitoring components.

Together, these components provide a complete rotating equipment monitoring system.

Recommended Alternative Models

Key Advantages

• High-accuracy non-contact measurement
• Reliable 8 mm eddy current sensing technology
• M10 × 1 metric mounting design
• 5-meter total length configuration
• Stable shaft vibration monitoring
• Suitable for continuous industrial operation
• Supports predictive maintenance strategies
• Improves rotating equipment reliability

Technical FAQs

What is the Bently Nevada 330193-00-02-50-00 used for?

The Bently Nevada 330193-00-02-50-00 is an 8 mm proximity probe used for monitoring shaft vibration, displacement, and position in rotating machinery.

What is the total length of this probe?

The total length of the 330193-00-02-50-00 is 5 meters.

What sensing technology does this probe use?

It uses eddy current proximity sensing technology for accurate non-contact shaft measurement.

What thread type does this model use?

The probe uses an M10 × 1 metric thread configuration.

What equipment can use this probe?

It is commonly used on turbines, compressors, generators, pumps, motors, and other critical rotating equipment.

Conclusion

The Bently Nevada 330193-00-02-50-00 3300 XL 8 mm Probe is a reliable industrial proximity sensing solution designed for accurate monitoring of rotating machinery conditions.

With its advanced eddy current sensing technology, 8 mm probe design, M10 × 1 mounting configuration, and 5-meter total length, it provides stable shaft vibration and displacement measurement for machinery protection and condition monitoring applications.

For maintenance engineers, automation professionals, and industrial system integrators, the Bently Nevada 330193-00-02-50-00 offers an effective solution for predictive maintenance, equipment diagnostics, machinery protection, and long-term industrial operation reliability.
