Product Overview

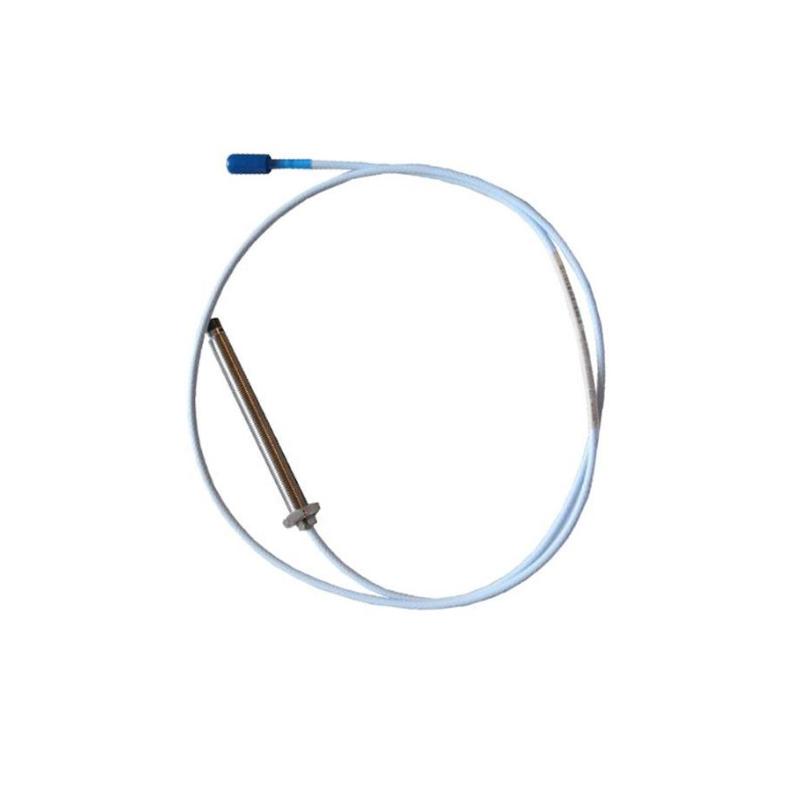

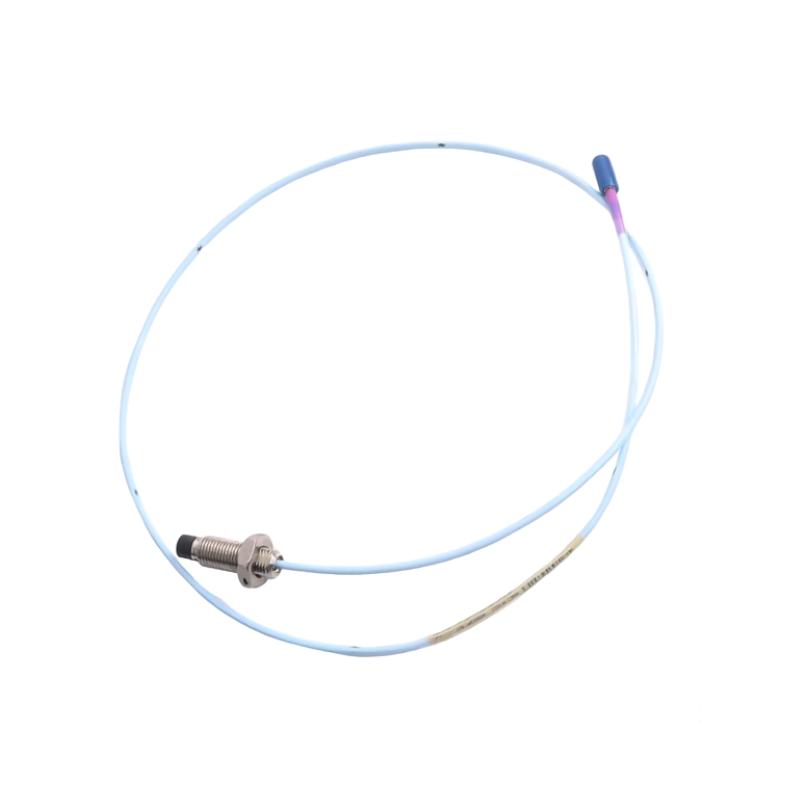

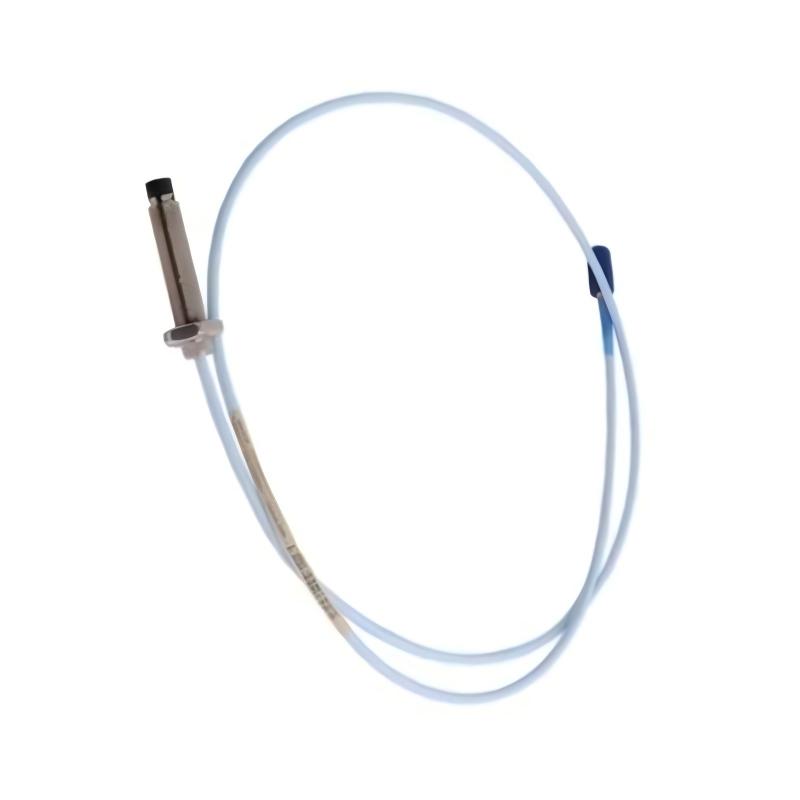

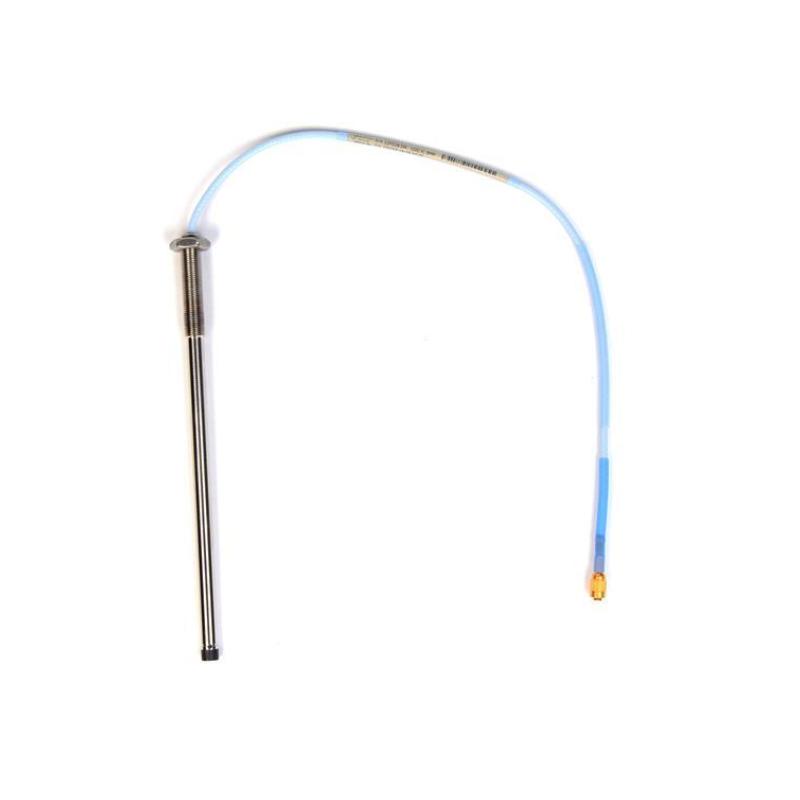

In industrial automation and machinery protection systems, accurate monitoring of rotating equipment is essential for improving operational reliability, reducing maintenance costs, and preventing unexpected equipment failures. The Bently Nevada 330193-00-02-10-00 3300 XL 8 mm Probe is a high-precision proximity sensor designed for continuous measurement of shaft vibration, displacement, and position in critical rotating machinery.

The 330193-00-02-10-00 belongs to the 3300 XL 8 mm Probe Series and uses advanced eddy current sensing technology to provide reliable non-contact measurement. By detecting changes in the distance between the probe tip and the rotating shaft, the sensor delivers accurate mechanical condition information for machinery monitoring and protection systems.

Unlike contact-based measurement devices, the proximity probe operates without physical contact with the rotating component, reducing mechanical wear and improving long-term stability. It is commonly applied in industrial equipment such as turbines, compressors, generators, pumps, motors, and other high-speed rotating machinery.

With a total length of 1 meter and a weight of 0.323 kg, the Bently Nevada 330193-00-02-10-00 provides a compact and reliable solution for machinery condition monitoring applications.

Technical Specifications

Function and Working Principle

The Bently Nevada 330193-00-02-10-00 uses eddy current proximity measurement technology to monitor the movement and position of rotating shafts.

During operation, the probe generates an electromagnetic field at the sensing tip. When the conductive surface of the shaft moves relative to the probe, the electromagnetic field changes. These variations are converted into electrical signals that represent shaft displacement and vibration conditions.

The working process includes:

• Generating a stable electromagnetic sensing field
• Detecting the distance between probe tip and shaft surface
• Measuring shaft vibration movement
• Monitoring shaft position changes
• Transmitting measurement signals to the monitoring system

Main functions include:

• Radial vibration monitoring
• Axial displacement measurement
• Shaft position detection
• Rotor condition monitoring
• Machinery protection feedback

The non-contact measurement principle enables continuous operation while reducing sensor wear and maintenance requirements.

Role in Industrial Machinery Protection Systems

The Bently Nevada 330193-00-02-10-00 serves as an important sensing element in rotating machinery monitoring systems. It provides real-time operating information that helps maintenance teams identify potential equipment problems.

The probe is commonly integrated with:

Together, these components create a complete machinery condition monitoring solution.

Industrial Applications

The Bently Nevada 330193-00-02-10-00 is widely used in industries requiring continuous monitoring of rotating equipment.

Its compact design makes it suitable for installations requiring accurate measurement in limited spaces.

Installation and System Integration

Proper installation is important to ensure accurate measurement results and reliable system operation.

Recommended installation procedures include:

• Install the probe in the correct mounting location
• Confirm proper M10 × 1 thread connection
• Adjust the probe gap according to equipment requirements
• Keep cables away from mechanical damage
• Avoid strong electromagnetic interference
• Verify signal output during commissioning

During startup, engineers should check:

• Probe installation position
• Signal stability
• Shaft vibration values
• Communication with monitoring systems
• Alarm and protection functions

Correct installation improves measurement accuracy and extends system reliability.

Compatible System Components

The Bently Nevada 330193-00-02-10-00 can be integrated with various industrial automation and monitoring components.

These components work together to provide comprehensive rotating machinery monitoring.

Recommended Alternative Models

Key Advantages

• High-precision non-contact measurement
• Reliable 8 mm eddy current sensing technology
• M10 × 1 metric mounting configuration
• Compact 1-meter total length
• Accurate shaft vibration monitoring
• Suitable for continuous industrial operation
• Supports predictive maintenance programs
• Improves rotating equipment reliability

Technical FAQs

What is the Bently Nevada 330193-00-02-10-00 used for?

The Bently Nevada 330193-00-02-10-00 is an 8 mm proximity probe used for monitoring shaft vibration, displacement, and position in rotating machinery.

What is the total length of this probe?

The total length of the 330193-00-02-10-00 is 1 meter.

What sensing technology does this probe use?

It uses eddy current proximity sensing technology for accurate non-contact measurement.

What type of mounting thread does this model use?

The probe uses an M10 × 1 metric thread configuration.

What equipment is suitable for this probe?

It is commonly used on turbines, compressors, generators, pumps, motors, and other critical rotating equipment.

Conclusion

The Bently Nevada 330193-00-02-10-00 3300 XL 8 mm Probe is a reliable industrial proximity sensing solution designed for accurate monitoring of rotating machinery conditions.

With its advanced eddy current sensing technology, 8 mm probe design, M10 × 1 mounting configuration, and 1-meter total length, it provides stable vibration and displacement measurement for machinery protection and condition monitoring applications.

For maintenance engineers, automation professionals, and industrial system integrators, the Bently Nevada 330193-00-02-10-00 provides an effective solution for predictive maintenance, equipment diagnostics, machinery protection, and long-term industrial operation reliability.
