Product Overview

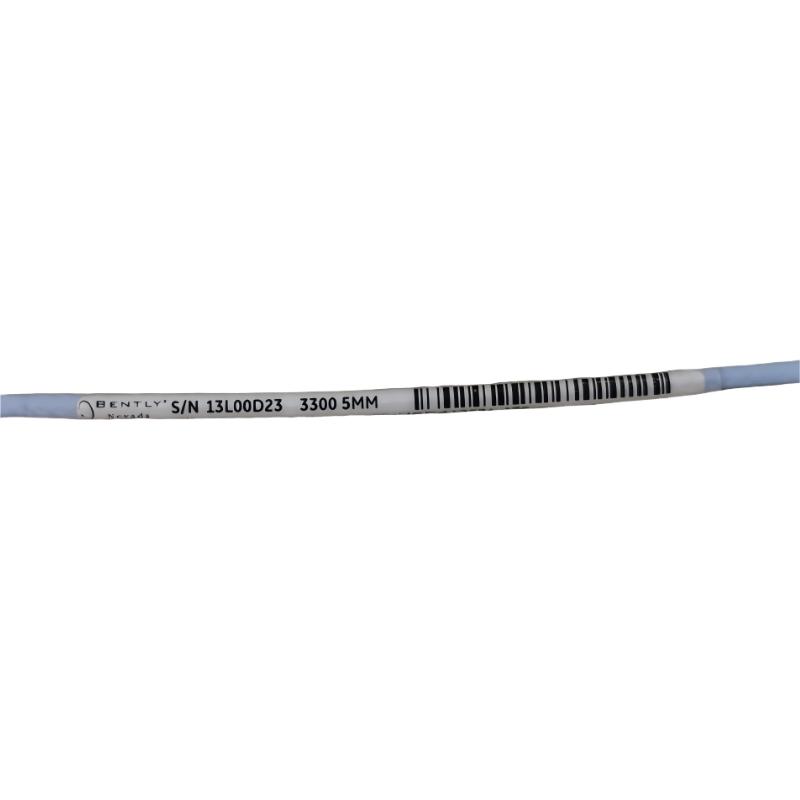

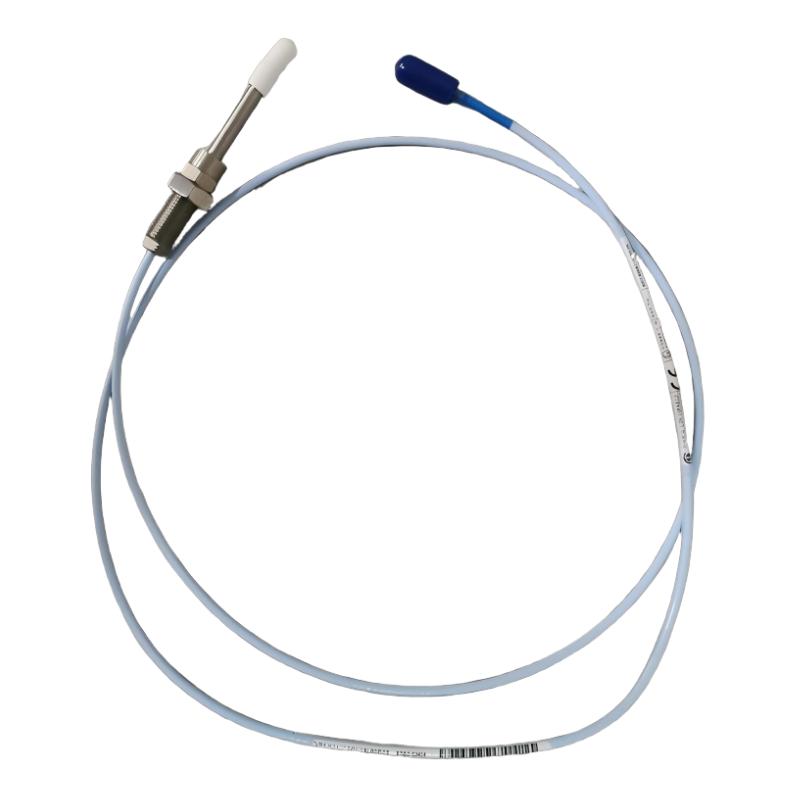

The Bently Nevada 330171-XX-XX-10-02-05 3300 5 mm Proximity Probe is a precision non-contact displacement sensor designed for monitoring shaft vibration, rotor position, and mechanical movement in critical rotating machinery.
This proximity probe is an important sensing component used in industrial machinery protection and predictive maintenance systems. It utilizes eddy current sensing technology to accurately measure the distance between the probe tip and the rotating shaft surface, providing reliable vibration and displacement information during equipment operation.
The 330171-XX-XX-10-02-05 model features a 1-meter total length configuration and is designed for applications requiring stable signal transmission, flexible installation, and reliable long-term operation.
This type of proximity probe is commonly installed on high-value rotating equipment where continuous condition monitoring is required, including:
- Steam turbines
- Gas turbines
- Compressors
- Pumps
- Generators
- Industrial motors
- Rotating machinery protection systems
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330171-XX-XX-10-02-05 |
| Product Series | 3300 5 mm Proximity Probe |
| Product Type | Eddy Current Proximity Probe |
| Measurement Function | Shaft vibration and displacement monitoring |
| Probe Diameter | 5 mm |
| Total Length | 1 meter |
| Cable Length | 1 meter |
| Weight | 0.323 kg |
| Sensor Technology | Eddy current sensing |
| Measurement Method | Non-contact displacement measurement |

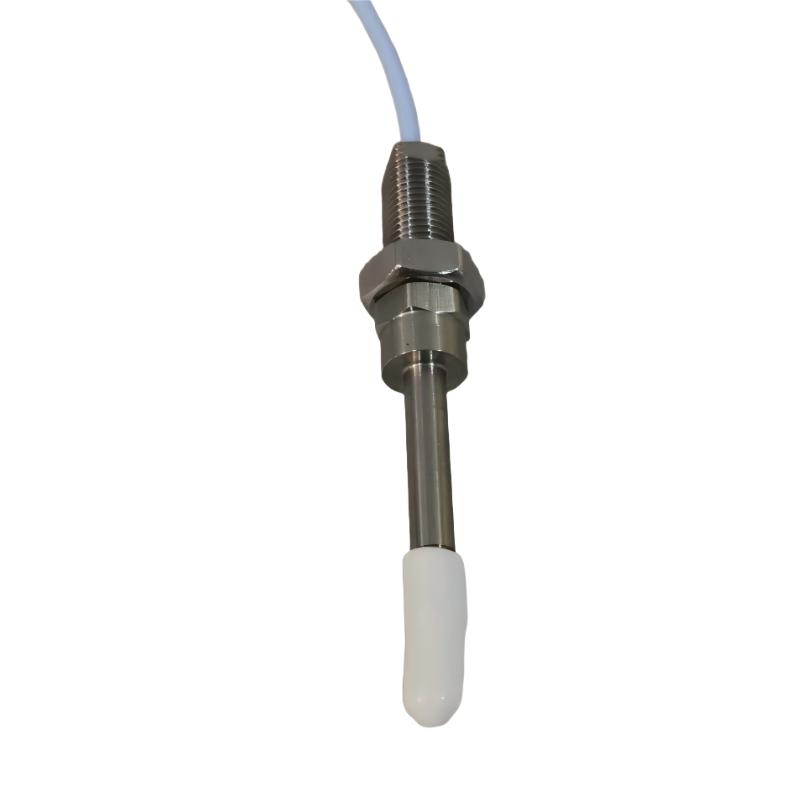

| Installation Type | Threaded mounting |

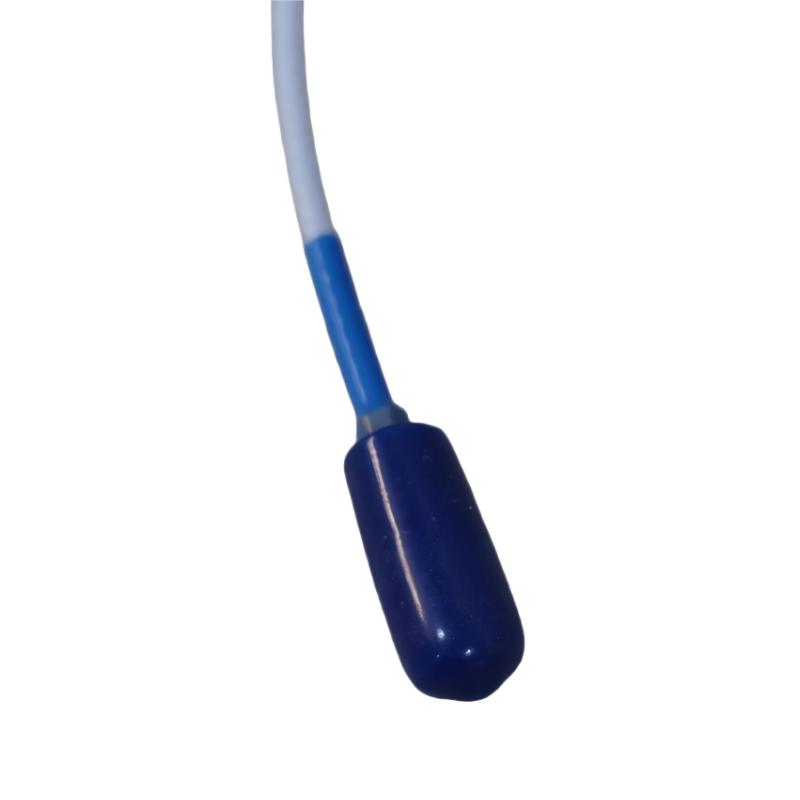

| Connector Type | Miniature coaxial ClickLoc connector |
| Cable Type | Standard cable configuration |
| Application | Rotating machinery condition monitoring |
| Operating Environment | Industrial automation and machinery protection systems |
Function and Working Principle
The Bently Nevada 330171-XX-XX-10-02-05 proximity probe operates through eddy current sensing technology.
During operation, the probe generates an electromagnetic field at the sensing tip. When the rotating shaft moves relative to the probe, the distance change affects the electromagnetic field.
The sensor converts these changes into electrical signals that represent shaft displacement and vibration movement. These signals are then processed by monitoring equipment to evaluate machine health and detect abnormal operating conditions.
Non-Contact Measurement Technology
The proximity probe measures shaft movement without direct contact with rotating components.
This design provides several important benefits:
- Prevents mechanical wear between sensor and shaft
- Supports high-speed rotating equipment monitoring
- Provides stable measurement accuracy
- Reduces maintenance requirements
- Allows continuous machine condition monitoring
Shaft Vibration Monitoring
The probe continuously monitors shaft movement and provides important vibration information.
Typical monitoring functions include:
- Rotor vibration measurement
- Shaft displacement detection
- Mechanical imbalance analysis
- Misalignment monitoring
- Machine condition evaluation
Position Measurement Capability
The sensor can also detect static shaft position changes, making it suitable for machinery protection systems and operational monitoring applications.
Role in Industrial Machinery Monitoring Systems
The Bently Nevada 330171-XX-XX-10-02-05 plays an important role in rotating equipment condition monitoring systems.
It provides accurate shaft movement data that helps engineers evaluate equipment performance and develop effective maintenance strategies.
The proximity probe is commonly integrated with:
| System Component | Function |
|---|---|
| Proximitor Sensor | Converts proximity signals into usable monitoring data |
| Extension Cable | Provides flexible installation distance |
| Vibration Monitoring Module | Processes vibration information |
| Machinery Protection System | Protects critical equipment |
| PLC Controller | Integrates sensor monitoring data |
| DCS Platform | Supports centralized plant monitoring |
Main functions include:
- Real-time vibration monitoring
- Early mechanical fault detection
- Equipment protection
- Predictive maintenance support
- Improved operational reliability
Industrial Applications
Steam Turbine Monitoring
Steam turbines require accurate shaft vibration measurement to maintain safe and efficient operation.
The proximity probe helps monitor:
- Rotor vibration changes
- Shaft displacement variations
- Mechanical stability
- Abnormal operating conditions
Gas Turbine Systems
Gas turbines operate under demanding conditions and require reliable vibration monitoring solutions.
The probe provides continuous shaft movement information to support equipment protection and maintenance analysis.
Compressor Condition Monitoring
Industrial compressors depend on accurate shaft monitoring to maintain stable operation.
The probe helps detect:
- Excessive vibration
- Rotor movement changes
- Mechanical wear
- Unbalanced operating conditions
Pump Monitoring Applications
Industrial pumps use proximity probes to improve equipment reliability and maintenance efficiency.
Common applications include:
- Process pumps
- High-speed pumps
- Critical pumping equipment
Generator Monitoring
Generators require continuous shaft vibration monitoring to maintain stable operation and reduce unexpected downtime.
Industrial Rotating Equipment
The probe is suitable for monitoring:
- Motors
- Turbines
- Compressors
- Pumps
- Generators
Installation and System Integration
Correct installation is essential to ensure accurate measurement performance.
Recommended installation procedures include:
- Install the probe at the correct measurement location
- Ensure proper mechanical mounting
- Maintain correct probe alignment
- Connect with compatible monitoring electronics
- Protect the cable from mechanical damage
- Verify signal stability during commissioning
During installation, engineers normally check:
| Configuration Item | Purpose |
|---|---|
| Probe Installation Position | Ensures correct shaft measurement |
| Probe Gap Adjustment | Provides accurate sensing distance |
| Cable Connection | Maintains stable signal transmission |
| Monitoring Channel Setup | Defines alarm and protection parameters |
| System Testing | Confirms proper operation |
Compatible System Components
The Bently Nevada 330171-XX-XX-10-02-05 proximity probe is commonly used with the following components:
| Component | Function |
|---|---|
| Proximitor Sensor | Processes probe output signals |
| Extension Cable | Provides additional installation flexibility |
| Vibration Monitoring Module | Analyzes equipment vibration data |
| Machinery Protection System | Provides machine protection functions |
| PLC Control System | Integrates monitoring signals |
| DCS Control System | Enables centralized monitoring |
Related Bently Nevada Accessories and Modules
| Model / Component | Type | Function |
|---|---|---|
| 3300 Proximitor Sensor | Signal Processing Module | Converts proximity signals |
| 3300 Extension Cable | Signal Cable | Extends installation distance |
| 3300 Monitoring Module | Protection Module | Supports vibration monitoring |
| 3300 System Components | Monitoring Platform | Complete machinery monitoring solution |
| Probe Mounting Accessories | Installation Components | Supports sensor installation |
Recommended Alternative Bently Nevada Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| 330171-XX-XX-10-02-05 | 3300 5 mm Proximity Probe | 1-meter standard cable configuration | General machinery monitoring |
| 330171-24-57-10-01-05 | 3300 5 mm Proximity Probe | 1-meter installation design | Industrial vibration monitoring |
| 330171-24-40-05-02-00 | 3300 5 mm Proximity Probe | Compact 0.5-meter design | Limited space applications |
| 330171-20-55-05-02-CN | 3300 5 mm Proximity Probe | Compact monitoring solution | Rotating equipment protection |
| 3300 XL 8 mm Proximity Probe | Proximity Sensor | Larger measurement range | Large rotating machinery |
Key Advantages
Accurate Vibration Measurement
The Bently Nevada 330171-XX-XX-10-02-05 provides reliable shaft vibration and displacement measurement for critical industrial machinery.
Flexible Installation
The 1-meter total length design allows easier installation in different equipment layouts.
Reliable Non-Contact Operation
The eddy current sensing principle ensures stable measurement without physical contact with rotating components.
Continuous Condition Monitoring
The probe supports long-term monitoring of important industrial assets.
Predictive Maintenance Support
The collected vibration data helps engineers identify potential problems before serious equipment failures occur.
Industrial Compatibility
Suitable for turbines, compressors, pumps, generators, and various rotating machinery applications.
Technical FAQs
What is the Bently Nevada 330171-XX-XX-10-02-05 used for?
The Bently Nevada 330171-XX-XX-10-02-05 is a 3300 5 mm proximity probe designed for shaft vibration and displacement monitoring.
How does this proximity probe work?
It uses eddy current sensing technology to measure shaft movement without physical contact.
What is the total length of this model?
The total length of this proximity probe is 1 meter.
What equipment can use this proximity probe?
It can be installed on turbines, compressors, pumps, generators, motors, and other industrial rotating equipment.
Why are proximity probes important?
They provide continuous machine condition information, helping improve reliability, reduce downtime, and support predictive maintenance programs.
Conclusion
The Bently Nevada 330171-XX-XX-10-02-05 3300 5 mm Proximity Probe is a reliable industrial sensor designed for accurate shaft vibration and displacement monitoring.
With its eddy current sensing technology, 1-meter installation configuration, and stable measurement performance, it provides essential condition monitoring data for machinery protection and predictive maintenance applications.
Used in turbines, compressors, pumps, generators, and industrial automation environments, this proximity probe helps improve equipment reliability, optimize maintenance planning, and enhance operational safety.
For automation engineers, maintenance professionals, and industrial system integrators, the Bently Nevada 330171-XX-XX-10-02-05 provides a dependable solution for advanced rotating machinery condition monitoring applications.
