Product Overview

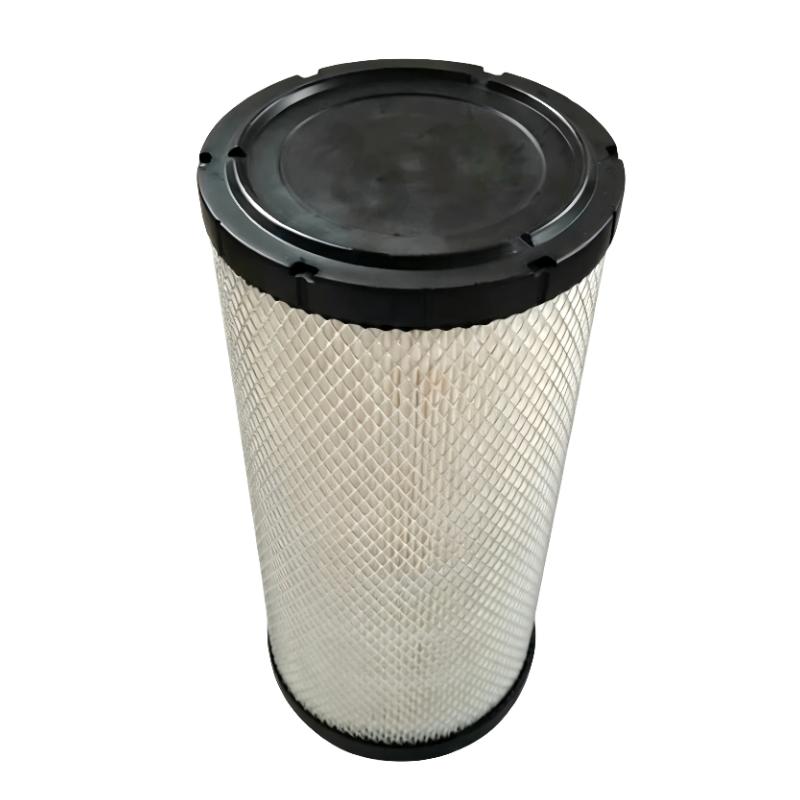

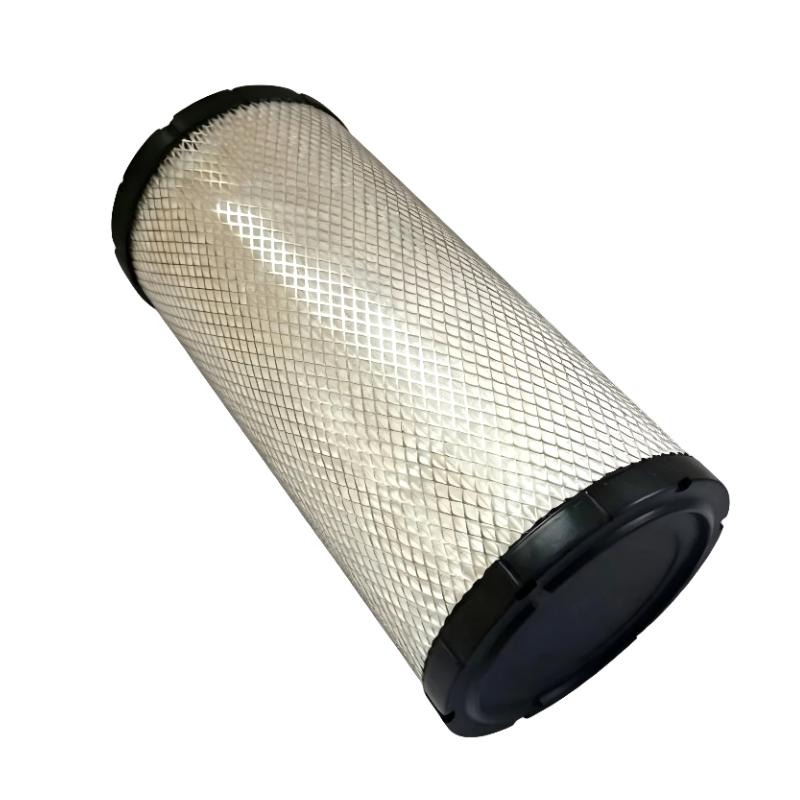

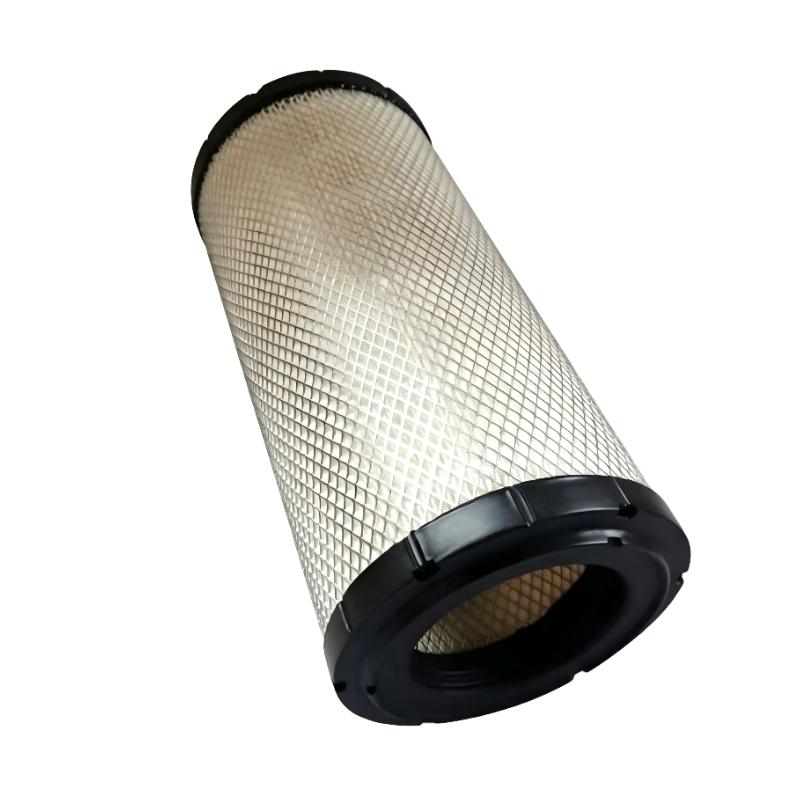

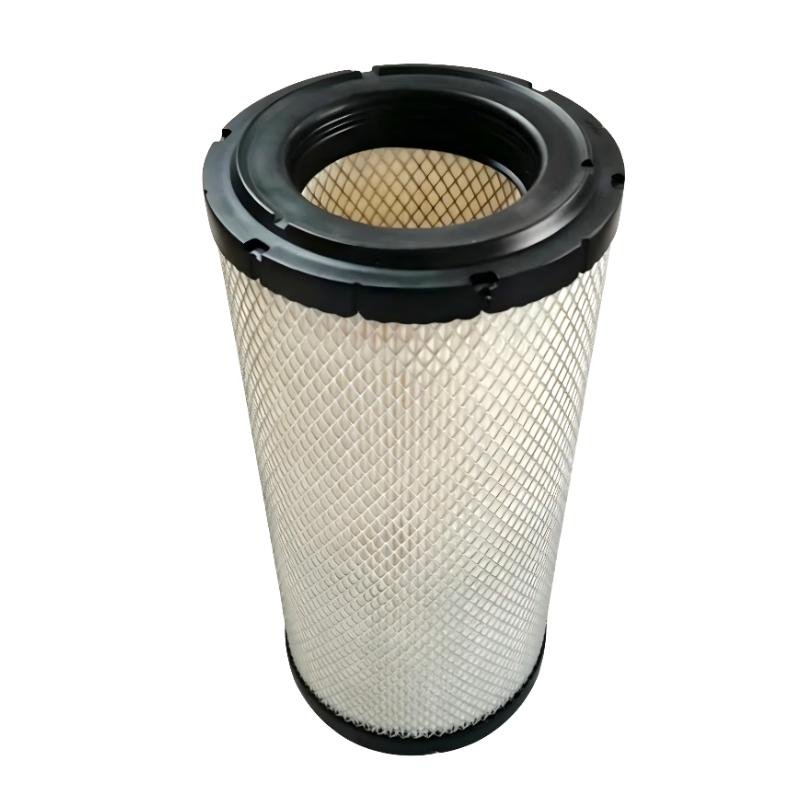

The Ingersoll Rand 47588443001 48958201 Air Filter is an intake air filtration component used in compatible industrial air compressor systems. Its primary function is to remove airborne dust and particulate matter before the incoming air reaches the compressor’s internal components.
In an industrial compressor, intake air quality affects the condition of the air end, lubrication circuit, and downstream separation components. Dust entering the compression system can accumulate on internal surfaces, contaminate circulating oil, and increase wear over time. The air filter helps reduce this contamination by retaining particles in its filtration medium while allowing air to flow toward the compressor inlet.
The 48958201 element is identified in Ingersoll Rand parts listings as an air filter element. It is also cross-referenced with replacement elements such as HIFI-FILTER SA16724 and Baldwin RS5784. The component is associated with multiple industrial compressor applications, so its selection depends on the filter housing and equipment configuration rather than the part number alone.
During normal operation, the compressor draws atmospheric air through the filter. As the filtration medium captures dust, its resistance to airflow gradually increases. If the element becomes excessively loaded, the resulting intake restriction can affect airflow and compressor performance. Regular inspection and replacement help maintain the intended intake conditions.
The filter should be distinguished from coolant filters and air/oil separators. An intake air filter cleans incoming air, a coolant or oil filter removes contaminants from circulating lubricant, and an air/oil separator removes entrained oil from compressed air. Each component serves a separate stage of the compressor system.
For maintenance teams, the 48958201 reference provides a specific identification for intake filtration service. Correct installation, proper sealing, and timely replacement are essential to prevent unfiltered air from bypassing the element and entering the compressor.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Ingersoll Rand |
| Model Reference | 47588443001 |
| Part Number | 48958201 |
| Product Name | Air Filter |
| Product Type | Radial Seal Air Filter Element |
| Product Category | Industrial Air Compressor Spare Part |
| Primary Function | Removes airborne particulate matter from intake air |
| Filtration Stage | Compressor air intake |
| Filter Design | Radial seal filter element |
| Overall Height | 352 mm |
| Outer Diameter | 163 mm |
| Inner Diameter | 96 mm |
| Weight | 0.35 kg |
Product Features
- Intake air filtration: Captures airborne dust and particles before they enter the compressor.
- Radial seal construction: Uses a sealing arrangement intended to limit air bypass around the filter element.
- Dedicated part reference: Identifies the 48958201 element for replacement planning and inventory control.
- Contamination reduction: Helps limit the entry of particulate matter into the compressor’s internal air and oil systems.
- Airflow support: Maintains the intended intake path when the element is clean and correctly installed.
- Replacement element compatibility: Cross-referenced with selected aftermarket filter references for compatible applications.
- Routine service integration: Can be included in scheduled compressor intake maintenance.
- Filter restriction management: Supports troubleshooting when intake airflow is reduced by a loaded element.
- Component separation: Serves the intake filtration stage rather than the coolant filtration or oil separation stages.
- Compressor protection: Helps reduce contamination-related wear when used and maintained under the specified operating conditions.
Working Principle
The 48958201 Air Filter removes particles from incoming air by passing the airflow through a porous filtration medium. The medium retains contaminants while allowing air to continue through the intake system.
Ambient Air → 48958201 Air Filter → Compressor Intake → Rotary Screw Air End
When the compressor operates, negative pressure at the intake draws air through the filter element. Dust and other suspended particles are captured by the filtration medium, reducing the amount of contamination reaching the compression chamber.
The radial seal helps direct incoming air through the intended filtration path. If the seal is damaged, incorrectly seated, or incompatible with the filter housing, air may bypass the medium. This can allow contaminants to enter the compressor even when the filter material itself remains in reasonable condition.
As particles accumulate, airflow resistance increases. A heavily loaded element can restrict the amount of air supplied to the compressor, potentially affecting capacity and operating efficiency. The actual effect depends on the filter condition, compressor demand, and intake system design.
Filter maintenance should therefore consider both the condition of the filtration medium and the sealing interface. Replacing a clogged element can restore the intended airflow path, while checking the housing and seals helps prevent unfiltered bypass. If airflow problems continue after replacement, the intake valve, ducting, and other possible restrictions should also be examined.
Role in an Ingersoll Rand Compressor System
The 48958201 Air Filter occupies the intake filtration stage, upstream of the compressor air end. It removes airborne contamination before the air enters the compression process, while other filters and separators handle contaminants in the lubricant and compressed-air streams.
Atmospheric Air → Air Filter → Intake Valve → Compressor Air End → Oil Separation System → Compressed Air Outlet
| System Component | Function |
|---|---|
| Ingersoll Rand 48958201 Air Filter | Removes airborne particles from incoming air |
| Filter Housing | Holds the filter element and directs intake airflow |
| Radial Seal | Helps prevent unfiltered air from bypassing the filter |
| Intake Valve | Controls air admission into the compressor |
| Rotary Screw Air End | Compresses the incoming air |
| Coolant Filter | Removes contaminants from circulating compressor lubricant |
| Oil Separator Element | Separates entrained oil from compressed air |
| Oil Cooler | Removes heat from the circulating lubricant |
| Compressor Controller | Coordinates operating conditions and monitors available signals |
| Filter Restriction Indicator | Indicates filter loading where fitted |
Industrial Applications
| Application | Typical Use |
|---|---|
| Industrial Manufacturing | Filtering intake air for compressors supplying production equipment |
| Automotive Plants | Reducing dust entry into compressors serving pneumatic machinery |
| Metalworking Facilities | Maintaining intake filtration in environments with airborne workshop particles |
| Packaging Operations | Supporting compressed-air generation for automated packaging lines |
| Industrial Utility Rooms | Replacing intake filters during planned maintenance |
| Process Manufacturing | Protecting compressor internals from airborne contamination |
| Continuous-Operation Facilities | Maintaining intake filtration on compressors with extended operating hours |
| Compressor Service Workshops | Inspecting filter elements and intake sealing arrangements |
| Equipment Maintenance Areas | Replacing loaded filters as part of preventive maintenance |
| Industrial Compressed-Air Systems | Supporting intake air quality in compatible compressor installations |
Installation and Maintenance
- Verify the part reference: Confirm that 48958201 is the required air filter element for the installed compressor configuration.
- Prepare the equipment safely: Stop the compressor, isolate the electrical supply, and follow the site’s lockout and tagout procedure.
- Access the intake housing: Open the filter enclosure according to the equipment maintenance procedure.
- Inspect the used element: Look for dust loading, damaged filter material, deformation, or signs of poor sealing.
- Remove the old filter carefully: Avoid releasing accumulated contamination into the clean-air side of the intake housing.
- Clean the filter housing: Remove loose debris from the housing and the filter seating surfaces without pushing contaminants into the intake passage.
- Inspect the radial seal interface: Check the housing contact surface for damage, contamination, or anything that could prevent proper sealing.
- Install the replacement element: Position the filter correctly and ensure that the sealing surface seats evenly.
- Secure the housing: Refit the cover and retaining hardware according to the applicable maintenance procedure.
- Check the intake path: Confirm that the filter and housing are correctly assembled and that no obvious bypass gap remains.
- Inspect operation after restart: Observe available intake restriction indications and check for abnormal airflow behavior.
- Record the service: Document the replacement part number, filter condition, operating hours, and any intake-system issues found during maintenance.
Related Components
| Component | Function |
|---|---|
| Ingersoll Rand 48958201 Air Filter | Filters incoming air before compression |
| Filter Housing | Supports the filter and directs airflow |
| Radial Seal | Helps prevent unfiltered air from bypassing the element |
| Intake Valve Assembly | Regulates air entering the compressor |
| Filter Restriction Indicator | Indicates increased intake resistance where fitted |
| Ingersoll Rand 23424922 Coolant Filter | Filters contaminants from circulating lubricant |
| Ingersoll Rand 23523772 Filter Pad | Provides pre-filtration in compatible intake assemblies |
| Ingersoll Rand 23545841 Air/Oil Separator | Separates entrained oil from compressed air |
| Rotary Screw Air End | Compresses the filtered intake air |
| Compressor Controller | Coordinates compressor operation and monitors available operating signals |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Ingersoll Rand 48958201 | Radial Seal Air Filter Element | Intake filtration for compatible compressor systems |
| HIFI-FILTER SA16724 | Replacement Air Filter Element | Cross-reference for compatible applications |
| Baldwin RS5784 | Replacement Air Filter Element | Cross-reference for compatible applications |
| Ingersoll Rand 54471834 | Air Filter Element | Related intake filtration reference |
| Ingersoll Rand 23487457 | Air Filter | Intake filtration in compatible compressor configurations |
| Ingersoll Rand 23523772 | Filter Pad | Pre-filtration in specified compressor intake assemblies |
| Ingersoll Rand 23424922 | Coolant Filter | Filtration of circulating compressor lubricant |
Key Advantages
- Removes airborne particulate matter before it enters the compressor.
- Supports intake airflow when clean and correctly installed.
- Provides a dedicated part number for maintenance and replacement planning.
- Helps limit contamination-related wear in compressor systems.
- Supports routine inspection of the intake filter and sealing interface.
Technical FAQs
What is the purpose of the radial seal on the 48958201 filter?
The radial seal helps prevent incoming air from bypassing the filtration medium. Proper seating is necessary to ensure that intake air passes through the filter rather than entering the compressor through an unfiltered gap.
Which replacement filter references are associated with 48958201?
Cross-reference listings identify HIFI-FILTER SA16724 and Baldwin RS5784 as replacement references. Compatibility depends on the intended application and the filter housing configuration.
Can a clogged intake filter affect compressor output?
Yes. As contamination accumulates, the filter’s resistance to airflow can increase. Excessive restriction may reduce the air available to the compressor and affect operating performance.
What should be inspected if dust is found downstream of the filter?
Inspect the filter medium, radial seal, housing contact surfaces, and installation position. A damaged element or poor seal can allow unfiltered air to bypass the filtration stage. Also examine the intake housing for contamination introduced during maintenance.
