Bently Nevada 330130-045-11-05 – Full Technical Overview
1. Brand and Series
- Brand: Bently Nevada
- Series: 3300 XL Proximity Transducer System
- Model: 330130-045-11-05
- Product Type: Extension Cable Assembly (3300 XL System Component)
This model is part of the 3300 XL machinery protection platform, widely used for vibration, displacement, and condition monitoring of rotating equipment.
2. Product Introduction

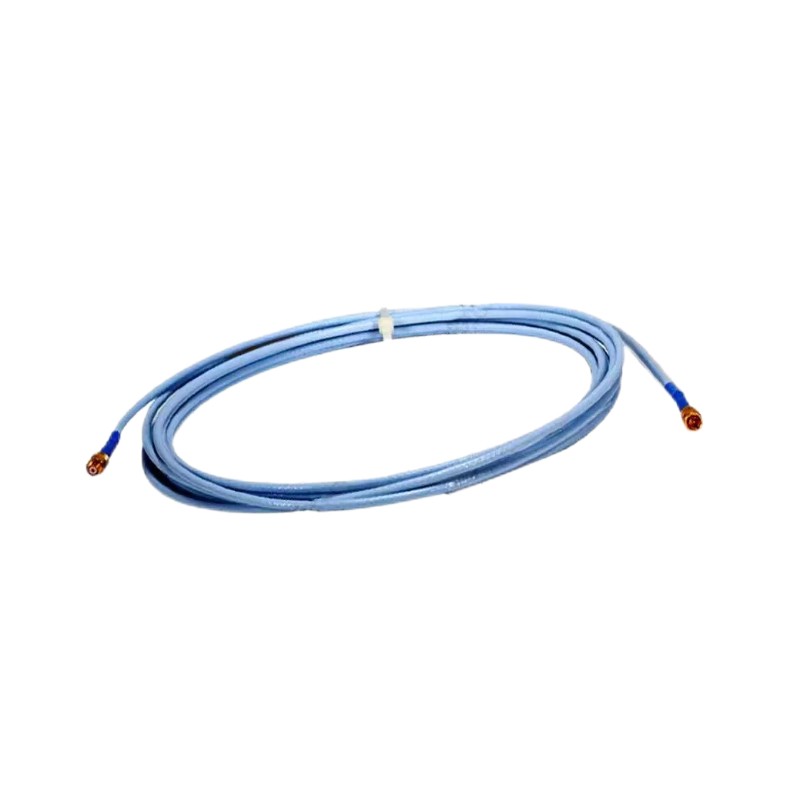

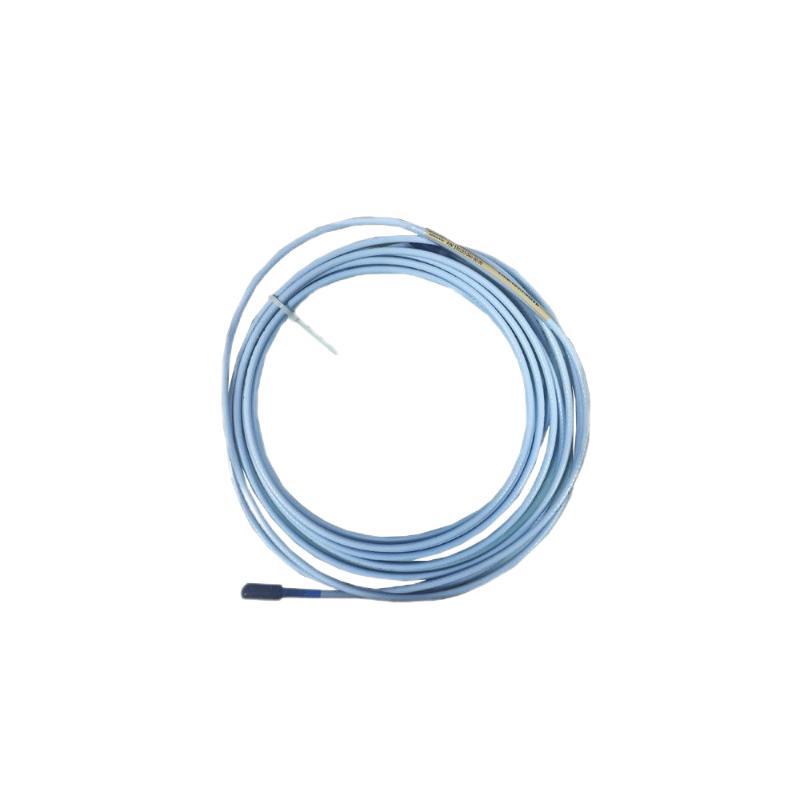

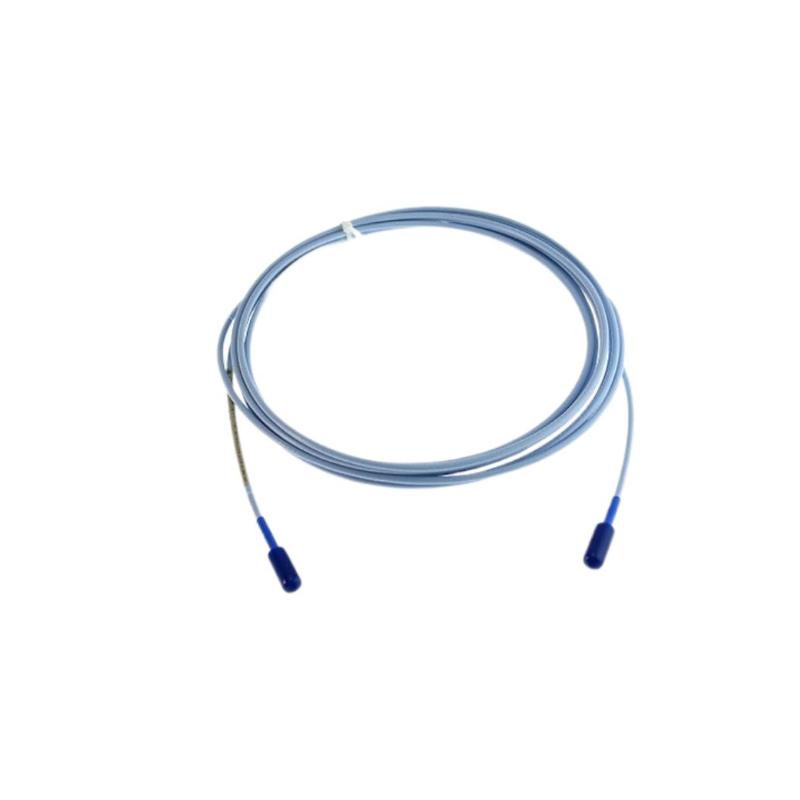

The 330130-045-11-05 is a 4.5-meter extension cable used in proximity transducer systems.
It is responsible for connecting the proximity probe to the proximitor sensor, ensuring accurate transmission of vibration and shaft displacement signals without distortion or signal loss.
The model belongs to a modular system where each code segment defines a technical configuration:
- 045 → 4.5 m cable length
- 11 → Armored FluidLoc® cable design (oil-resistant sealing structure)
- 05 → Certification / approval configuration for industrial compliance
This cable is designed for continuous monitoring in critical rotating machinery, where reliability and signal stability are essential.
3. Product Specifications
| Parameter | Details |
|---|---|
| Model | 330130-045-11-05 |
| Series | 3300 XL |
| Product Type | Extension Cable Assembly |
| System Architecture | Probe + Extension Cable + Proximitor Sensor |
| Cable Length | 4.5 meters |
| Cable Structure | Armored FluidLoc® sealed triaxial cable |
| Signal Type | Eddy-current proximity signal |
| Measurement Function | Vibration / Shaft Position / Speed |
| Connector Type | Gold-plated industrial connectors |
| Operating Voltage | -17.5 Vdc to -26 Vdc |
| Capacitance | ~69.9 pF/m typical |
| Operating Temperature | -40°C to +85°C (industrial range) |
| System Compatibility | 3300 XL 8 mm probe system |
| Environmental Protection | Oil, vibration, EMI resistant |
| Dimensions | ~20.5 × 22.4 × 3.3 cm |
| Weight (kg) | ~0.46 – 2.0 kg depending on configuration |
4. Product Applications
This extension cable is widely used in industrial rotating machinery monitoring systems:
- Steam turbines
- Gas turbines
- Compressors
- Pumps
- Generators
- Petrochemical rotating equipment
Typical monitoring functions include:
- Shaft vibration measurement
- Axial displacement tracking
- Speed and phase reference (Keyphasor signals)
It is especially suitable for environments requiring long-distance signal transmission under vibration, heat, and oil exposure conditions.
5. Product Advantages
Stable Signal Transmission
Triaxial shielding ensures strong resistance to electrical noise and signal loss.
FluidLoc Protection Design
Prevents oil and liquid ingress into the connector system, improving reliability.
Industrial-Grade Durability
Armored cable construction withstands mechanical stress and vibration.
Wide Temperature Resistance
Operates reliably in demanding industrial temperature environments.
High System Compatibility
Fully compatible with 3300 XL proximity probe systems.
Secure Connection System
Gold-plated connectors ensure corrosion resistance and stable electrical contact.
Long Service Life
Designed for continuous operation in critical machinery monitoring systems.
6. Same Series / Related Models (5 Recommended)
| Model | Type | Cable Length | Function | Weight (kg) |
|---|---|---|---|---|
| 330130-040-11-05 | Extension Cable | 4.0 m | Vibration signal transmission | ~0.6–1.5 |
| 330130-045-03-05 | Extension Cable | 4.5 m | Armored industrial version | ~0.5–0.8 |
| 330130-050-11-05 | Extension Cable | 5.0 m | Extended machinery monitoring | ~0.8–1.6 |
| 330130-020-11-05 | Extension Cable | 2.0 m | Compact systems | ~0.4–0.9 |
| 330130-080-11-05 | Extension Cable | 8.0 m | Long-distance monitoring | ~1.0–2.2 |
7. Popular Models from Same Brand (5 Recommended)
| Model | Type | Function | Output | Weight (kg) |
|---|---|---|---|---|
| 330101-00-00-10-02-00 | Proximity Probe | Vibration sensing | Analog signal | ~0.5 |
| 330180-50-00 | Proximitor Sensor | Signal conditioning | 4–20 mA | ~1.0 |
| 3500/22M | Monitoring Module | Data acquisition | Digital output | ~2.0 |
| 3500/25 | Keyphasor Module | Speed reference | Pulse signal | ~2.0 |
| 1900/65A | Machinery Monitor | Compact system monitor | Digital | ~1.5 |
9. FAQ (10 Q&A)
Q1: What is the main function of this cable?
A: It transmits vibration and displacement signals between probe and monitoring system.
Q2: What does “045” mean in the model number?
A: It indicates a 4.5-meter cable length.
Q3: What does “11-05” configuration represent?
A: It indicates armored FluidLoc cable design with industrial approval specification.
Q4: What system is it compatible with?
A: It is compatible with the 3300 XL proximity transducer system.
Q5: What is FluidLoc technology used for?
A: It prevents oil and liquid ingress into the cable and connector system.
Q6: What industries use this cable?
A: Power generation, oil & gas, petrochemical, and heavy industry.
Q7: Can it operate in harsh environments?
A: Yes, it is designed for vibration, oil exposure, and industrial EMI conditions.
Q8: Does it require calibration after replacement?
A: No, it is fully interchangeable within the system.
Q9: What is the typical weight of the cable?
A: Approximately 0.46 to 2.0 kg depending on configuration.
Q10: Why is this cable important in monitoring systems?
A: It ensures accurate and stable transmission of critical machinery condition data.
