Product Overview

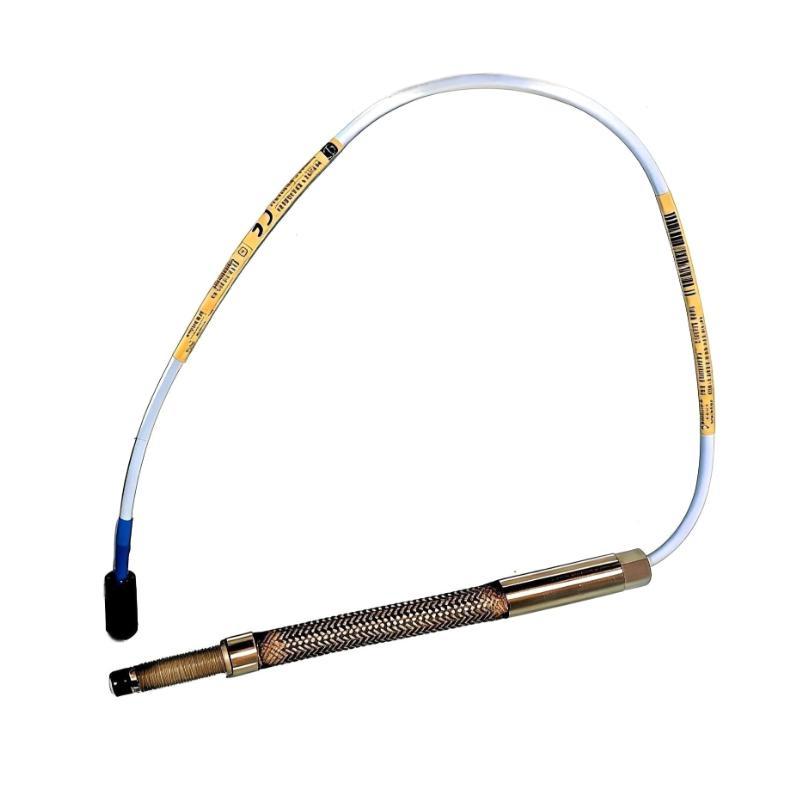

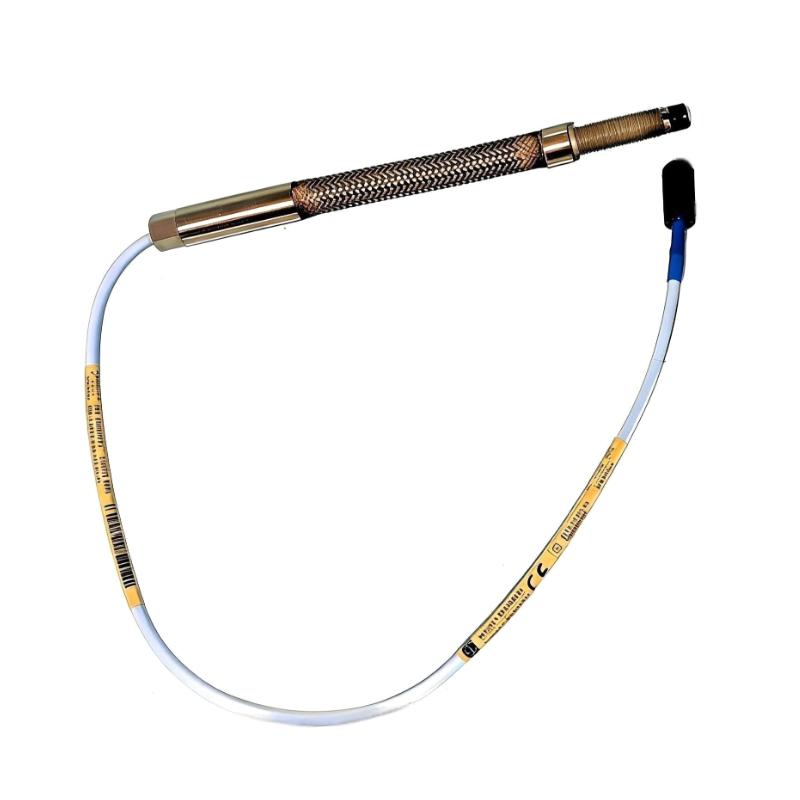

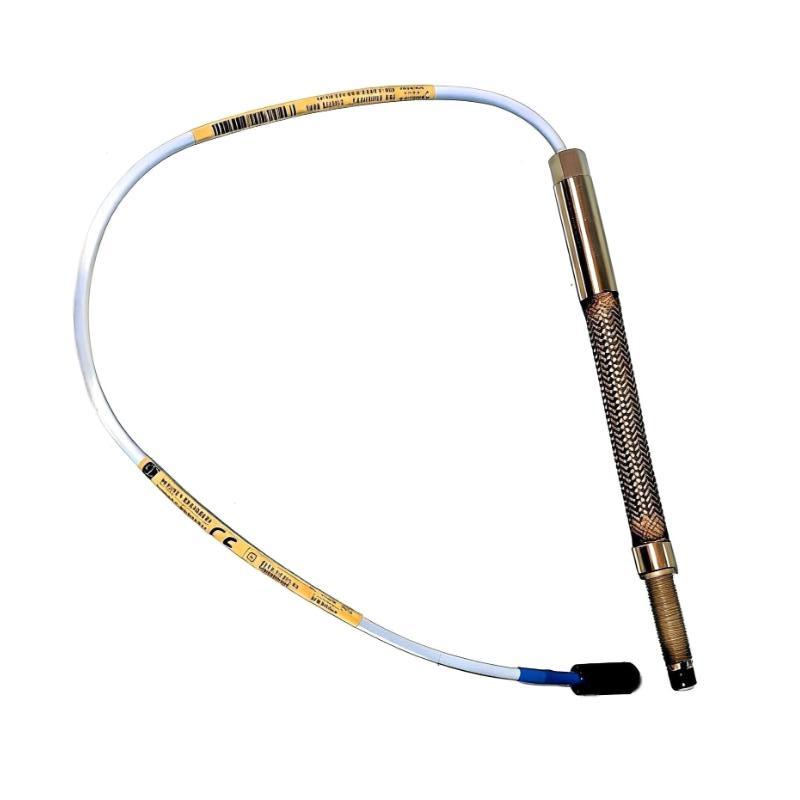

The Bently Nevada 129716-XXX-037-15-05 3300 XL Proximity Sensor is a high-precision vibration and proximity sensor designed to monitor and measure the position, displacement, and vibration of rotating machinery in various industrial settings. This sensor is part of the 3300 XL series, which is known for its reliable performance and advanced diagnostic capabilities. The 8 mm sensor head diameter makes it compatible with a wide range of machinery, ensuring accurate data collection even in challenging environments. It is used in predictive maintenance programs to detect early signs of wear or misalignment in machinery, reducing the risk of unplanned downtime and enhancing overall system reliability.

Technical Specifications

Function and Working Principle

The 3300 XL Proximity Sensor measures the position, vibration, or displacement of machinery by emitting an electromagnetic field from its sensor head. Here’s how it works:

• Electromagnetic Field Generation: The sensor head generates an electromagnetic field that interacts with a target on the rotating machinery. As the target moves, the disturbance in the electromagnetic field is detected by the sensor.
• Signal Output: The sensor outputs a linear DC voltage signal, typically ranging from 4–20 mA or 0–10 V, that corresponds to the amount of displacement or vibration of the target.
• High-Precision Monitoring: The sensor can detect even minute changes in the machinery’s position, enabling it to identify misalignments, imbalance, and vibration anomalies that may indicate potential issues.
• Real-Time Monitoring: This continuous measurement provides real-time data, which is essential for predictive maintenance and condition monitoring systems.

By using a non-contact measurement approach, the sensor eliminates the potential for wear over time, ensuring a long lifespan and reliable performance.

Role in Industrial Monitoring Systems

The Bently Nevada 129716-XXX-037-15-05 3300 XL Proximity Sensor plays a crucial role in ensuring reliable machinery performance and preventing costly failures. Its primary functions include:

• Condition Monitoring: The sensor provides real-time data about the machinery’s condition, allowing operators to identify issues such as misalignment, excessive vibration, or displacement.
• Predictive Maintenance: It helps identify potential equipment issues before they lead to system failure, allowing for planned maintenance and reducing the risk of unexpected downtime.
• Performance Optimization: By ensuring that machinery operates within the desired parameters, it helps improve efficiency and reduce wear and tear on components.
• Integration with Monitoring Systems: This sensor can be integrated with Bently Nevada’s 3300 XL series or other vibration monitoring systems, providing a comprehensive view of equipment health.

These capabilities make the 3300 XL Proximity Sensor a valuable tool in preventive maintenance programs, helping industries minimize downtime, enhance machine performance, and optimize maintenance schedules.

Industrial Applications

The Bently Nevada 129716-XXX-037-15-05 3300 XL Proximity Sensor is designed for use in various industrial applications where monitoring the condition of rotating machinery is critical:

• Rotating Machinery Monitoring: Commonly used in monitoring motors, turbines, compressors, and other types of rotating equipment for displacement and vibration.
• Predictive Maintenance: Ideal for machinery that requires condition-based monitoring to detect potential issues early, allowing for cost-effective maintenance.
• Power Generation: Used in power plants to monitor critical rotating machinery, including generators and pumps, ensuring their performance is within safe limits.
• Oil and Gas: Employed in monitoring turbines, compressors, and other rotating equipment in both onshore and offshore facilities.
• Manufacturing Industry: Helps monitor machinery used in automated production lines, ensuring smooth operations and reducing the risk of downtime.
• Aerospace and Automotive: Used to monitor engine components and other rotating machinery in aircraft and automotive manufacturing, ensuring precision and safety.
• Process Control and Automation: Suitable for industries where machinery position and vibration need to be monitored to ensure proper functioning in processes like conveyor systems and assembly lines.

This proximity sensor is particularly useful in high-precision environments that require consistent performance monitoring and early fault detection.

Installation and System Integration

To ensure optimal performance, the 3300 XL Proximity Sensor should be installed following these steps:

1. Mounting Location: Install the sensor on a fixed surface near the rotating component to be monitored. Ensure it is aligned with the target for accurate readings.
2. Sensor Head Alignment: The 8 mm sensor head should be positioned at an appropriate distance from the rotating part for accurate proximity measurements.
3. Power and Signal Connection: Connect the sensor to the monitoring system using the appropriate DC voltage or current output (typically 4-20 mA or 0-10 V).
4. Verification: After installation, verify the output signal from the sensor against expected values to ensure proper calibration and operation.
5. Environmental Protection: Ensure the sensor is installed in an environment where it is protected from dust, water, and extreme temperatures, as it has an IP67 rating.
6. Continuous Monitoring: Once installed, the sensor will provide continuous readings that can be integrated into a predictive maintenance program.

Compatible System Components

The Bently Nevada 129716-XXX-037-15-05 3300 XL Proximity Sensor is compatible with:

• Bently Nevada 3300 XL Vibration Monitoring Systems
• Bently Nevada Proximity Probe Systems
• Condition Monitoring Systems for predictive maintenance
• Rotating Equipment such as motors, turbines, and pumps
• Industrial Automation Systems

These components ensure seamless integration into existing infrastructure for comprehensive machinery monitoring and predictive maintenance.

Recommended Alternative Models

Key Advantages

• High precision for accurate displacement and vibration measurement
• Non-contact measurement technology eliminates wear and tear on the sensor head
• Easy integration with Bently Nevada 3300 XL monitoring systems
• Durable construction with IP67 protection, suitable for industrial environments
• Real-time data output allows for proactive maintenance scheduling and improved equipment uptime
• Versatile use in industries such as power generation, oil and gas, and manufacturing
• Compact design (8 mm sensor head) makes it suitable for installation in confined spaces

Technical FAQs

What is the sensing range of the 3300 XL Proximity Sensor?
The sensor typically offers a 50 mm sensing range, but this may vary depending on the application.

How does the proximity sensor work?
It emits an electromagnetic field, which is disturbed by the movement of a target on rotating machinery. This disturbance is converted into a linear voltage output that corresponds to the displacement or vibration of the target.

Can the sensor be used in extreme environments?
Yes, the sensor has an operating temperature range of -40°C to +85°C and an IP67 protection rating, making it suitable for harsh industrial environments.

Conclusion

The Bently Nevada 129716-XXX-037-15-05 3300 XL Proximity Sensor is a powerful tool for vibration, displacement, and position monitoring in rotating machinery. Its non-contact measurement and high precision make it an essential part of a predictive maintenance program, helping industries such as power generation, manufacturing, oil and gas, and automotive to improve equipment reliability and reduce unplanned downtime. Whether used in high-precision applications or in harsh industrial environments, this sensor ensures accurate and reliable performance, making it a key component for modern condition monitoring systems.
