Product Overview

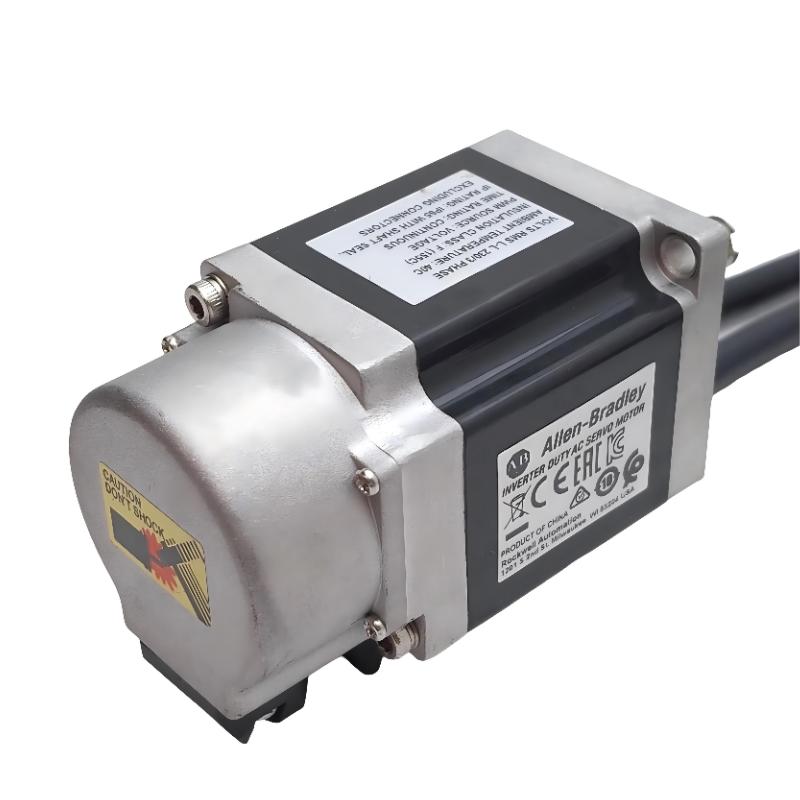

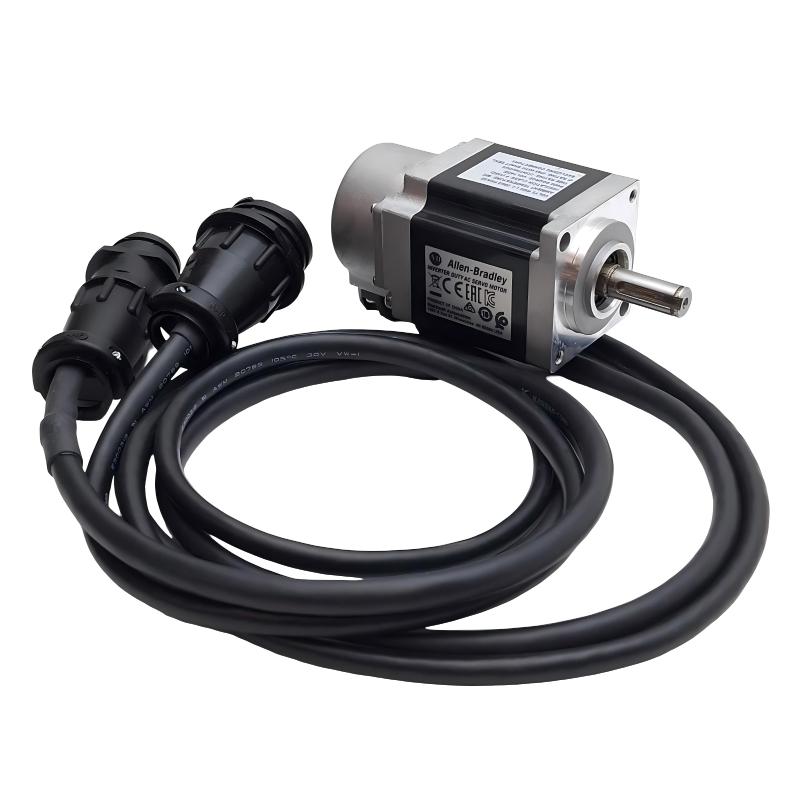

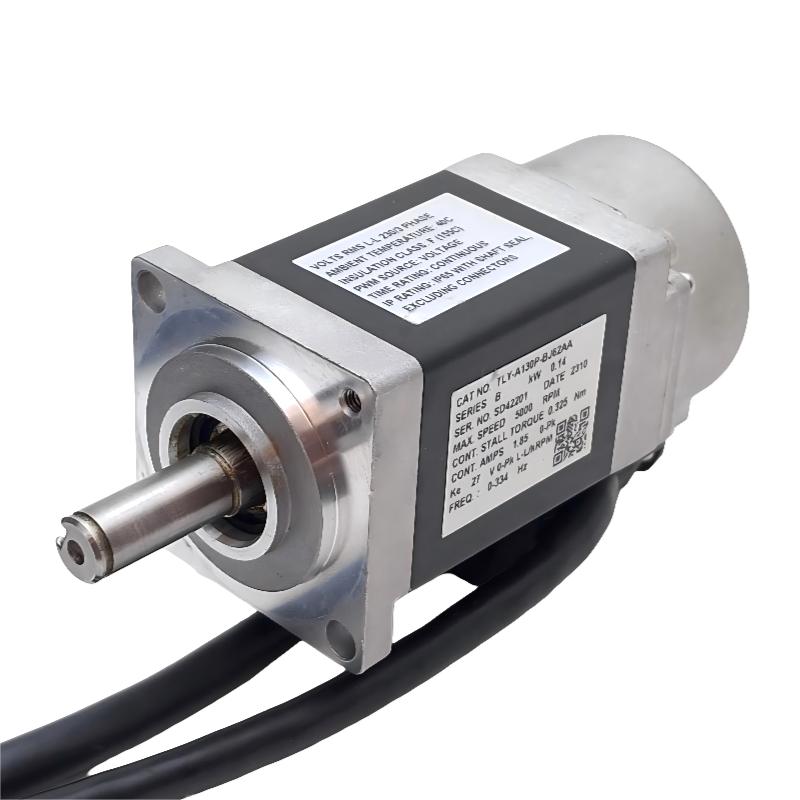

The Allen-Bradley TLY-A130P-BJ62AA is a low-inertia AC servo motor from the TL-Series (Kinetix motion platform). It is designed for high-speed, precision motion control applications where compact size, fast response, and accurate positioning are required.
This motor integrates a high-resolution absolute encoder and is typically used together with Allen-Bradley Kinetix servo drives.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Series | TL-Series Servo Motor |
| Model | TLY-A130P-BJ62AA |
| Frame Size | 46 mm (NEMA 17 equivalent) |
| Motor Type | 3-phase AC synchronous servo motor |
| Rated Voltage | 230 V AC |
| Rated Speed | 5000 rpm |
| Rated Torque | ~0.32–0.325 Nm |
| Rated Power | ~0.14 kW |
| Encoder Type | Absolute encoder (battery-backed, multi-turn) |
| Protection Class | IP65 |
| Brake | No holding brake |
| Shaft Type | Keyed shaft |
| Connector Type | Circular industrial connectors |
| Magnet Stack Length | ~30–76 mm (variant dependent) |
| Weight | 1.81 kg |
Function and Working Principle
The TLY-A130P-BJ62AA operates as a closed-loop servo actuator.
Core Functions
- Converts electrical energy into precise rotational motion
- Provides high-speed positioning control
- Maintains torque accuracy under varying loads
- Sends real-time position feedback via encoder
- Enables closed-loop control with servo drive
Working Principle
- Servo drive sends controlled AC current
- Motor generates rotating magnetic field
- Rotor follows commanded position/speed
- Encoder continuously reports position feedback
- Drive adjusts current in real time for correction
This closed-loop system ensures high precision and fast dynamic response.
Role in Industrial Control Systems
The motor functions as:
- A precision motion actuator
- A position-controlled rotary drive unit
- A high-speed servo axis component
- A key element in Kinetix motion control systems
It always works in combination with a servo drive (e.g., Kinetix series).
Industrial Applications
This servo motor is widely used in:
- Packaging machinery
- Pick-and-place robots
- CNC auxiliary axes
- Conveyor positioning systems
- Printing and labeling machines
- Assembly automation systems
- Textile and electronics manufacturing
Installation and System Integration
- Mounted via 46 mm flange interface
- Connected to Kinetix servo drive systems
- Requires encoder feedback wiring to drive

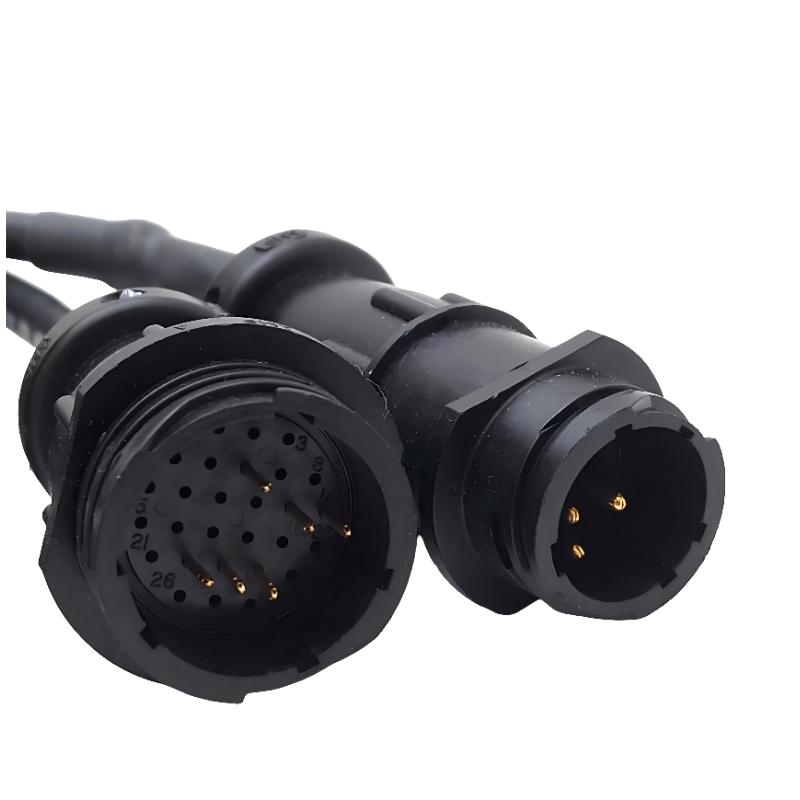

- Uses circular industrial connectors for power and feedback
- Must be properly tuned with drive parameters
- Typically paired with motion controllers (PLC + motion module)
Compatible System Components
- Allen-Bradley Kinetix servo drives (e.g., 5100, 5500, 6000 series)
- Rockwell Automation motion controllers
- Encoder feedback modules (built-in)
- Servo drive power amplifiers
- Industrial motion control PLC systems
Recommended Alternative Models
| Model | Type | Key Feature |
|---|---|---|
| TLY-A130P-BJ62AA | Servo motor | Standard TL-series low inertia |
| MPL-B series motors | Servo motor | Higher torque industrial variant |
| VPL series motors | Servo motor | Compact next-gen Kinetix platform |
| Yaskawa Sigma series | Servo motor | Alternative high-performance system |
Key Advantages
- High-speed operation up to 5000 rpm
- Compact 46 mm frame size for tight installations
- High-resolution absolute feedback
- IP65 protection for industrial environments
- Fast dynamic response (low inertia design)
- Compatible with Kinetix motion systems
Technical FAQs
Q1: What type of motor is TLY-A130P-BJ62AA?
It is a 3-phase AC synchronous servo motor with encoder feedback.
Q2: Does it require a servo drive?
Yes, it must be used with a compatible Kinetix servo drive.
Q3: What is its main use?
High-precision motion control such as positioning, robotics, and automation.
Q4: Is it suitable for continuous rotation applications?
Yes, it supports continuous operation depending on load and tuning.
Conclusion
The Allen-Bradley TLY-A130P-BJ62AA servo motor is a compact, high-speed precision actuator designed for advanced motion control systems. With its absolute encoder feedback and low-inertia design, it delivers accurate positioning and fast dynamic response in modern industrial automation applications.
