Product Overview

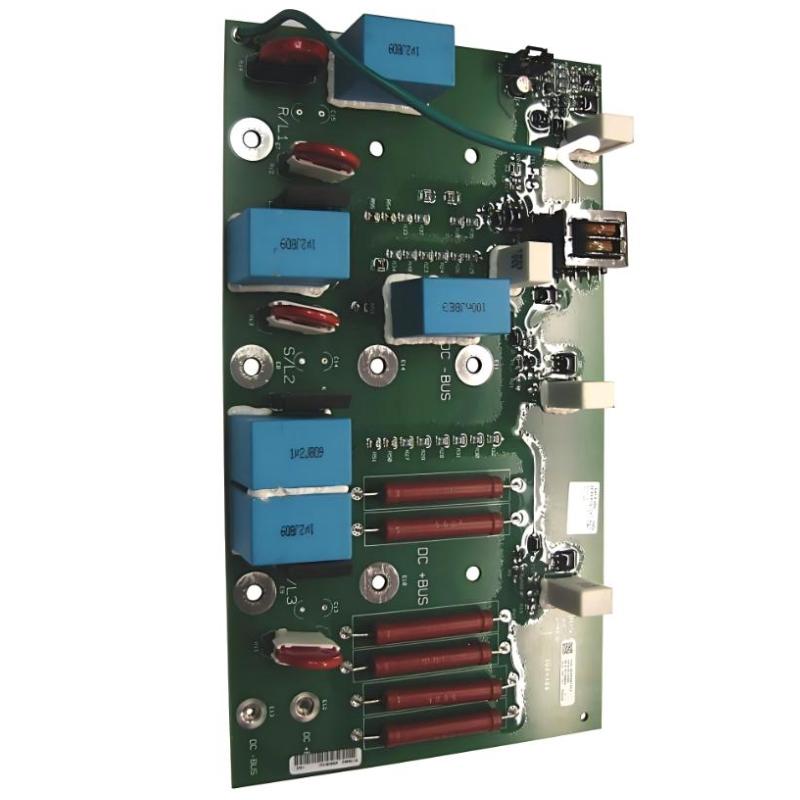

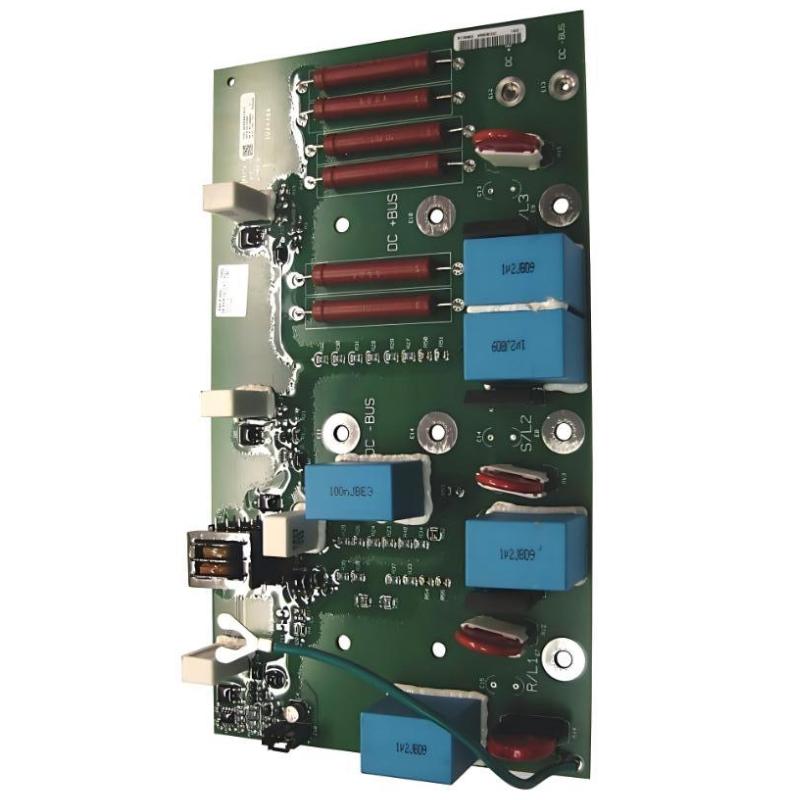

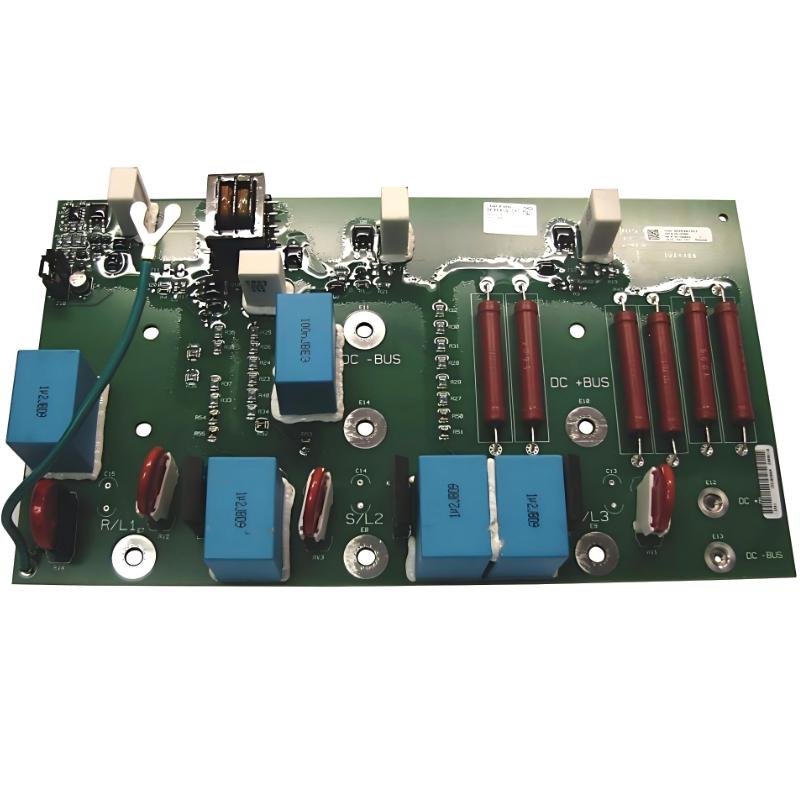

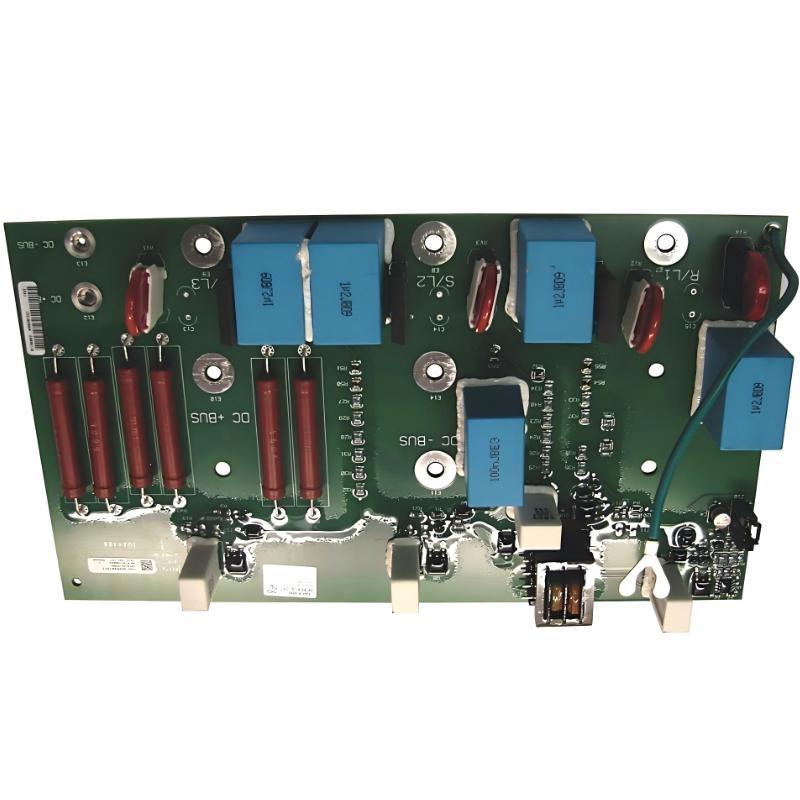

The SK-R9-PCG1-DF7 is a Precharge Kit used in the Allen-Bradley PowerFlex 750-Series AC Drives, specifically designed for Frame 7 systems.
Its main role is to manage the precharging process of the DC bus capacitors when the drive is powered on. This prevents inrush current damage and ensures safe energization of high-power drive systems.
It is an internal drive protection and power-management component, not a control or I/O module.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Model | SK-R9-PCG1-DF7 |
| Product Type | Precharge Kit |
| System Compatibility | PowerFlex 750-Series AC Drives |
| Frame Size | Frame 7 |
| Function | DC bus precharge control |
| Electrical Role | Limits inrush current during power-up |
| Installation Type | Internal drive assembly kit |
| Weight | 0.5 kg |
| Dimensions | 120 × 30 × 100 mm |
Function and Working Principle
The SK-R9-PCG1-DF7 operates as part of the drive’s power-up protection circuit.
Main Functions
- Controls precharging of DC link capacitors
- Limits initial inrush current when power is applied
- Protects rectifier and capacitor banks
- Ensures safe transition to full voltage operation
- Supports stable startup of high-power VFD systems
Operating Sequence
- Power is applied to the drive
- Precharge circuit engages through resistor path
- DC bus capacitors charge gradually
- Once voltage stabilizes, bypass contactor closes
- Drive enters normal operation mode
Role in Industrial Control Systems
The SK-R9-PCG1-DF7 functions as:
- A power protection module inside VFD systems
- A startup current limiting device
- A safeguard for DC bus components
- A critical part of PowerFlex 750 Frame 7 architecture
Without it, the drive may experience overcurrent faults or component damage at startup.
Industrial Applications
This kit is used in high-power drive systems such as:
- Large conveyor systems
- Industrial pumps and pumping stations
- Fans and ventilation systems
- Compressors
- Process industry machinery
- Heavy-duty motor control applications
It is always installed as part of a complete PowerFlex 750 drive assembly, not as a standalone field device.
Installation and System Integration
- Installed inside PowerFlex 750 Frame 7 drive enclosure
- Connected to DC bus and precharge circuitry
- Works with rectifier and power module system
- Typically replaced during drive maintenance or repair
- Requires correct frame-size matching
⚠️ Installation must be performed by qualified technicians due to high-voltage DC bus hazards.
Compatible System Components
- PowerFlex 750-Series AC Drives
- Frame 7 drive power modules
- DC bus capacitor assemblies
- Rectifier input sections
- Control and protection boards
- Precharge resistors and contactor assemblies
Recommended Alternative Models
| Model | Product Type | Key Feature |
|---|---|---|
| SK-R9-PCG1-DF7 | Precharge Kit | Frame 7 standard version |
| SK-R9-PCG2-DF7 | Precharge Kit | Alternative Frame 7 variant |
| PowerFlex 750 Power Module Kits | Drive subsystem | Integrated replacement assemblies |
Key Advantages
- Protects drive during startup inrush current
- Extends lifespan of DC bus capacitors
- Ensures safe energization of high-power systems
- Essential for reliable Frame 7 drive operation
- Improves overall system stability and safety
Technical FAQs
Q1: What is the main function of SK-R9-PCG1-DF7?
It limits inrush current during startup by controlling DC bus precharging.
Q2: Is it a control module?
No, it is a power protection component inside the drive.
Q3: Which drives use it?
It is used in PowerFlex 750-Series Frame 7 AC drives.
Q4: What happens if it fails?
The drive may experience startup faults or DC bus overcurrent damage.
Conclusion
The Allen-Bradley SK-R9-PCG1-DF7 Precharge Kit is a critical internal protection component for PowerFlex 750 Frame 7 drives. It ensures safe startup by controlling DC bus charging and protecting sensitive power electronics from inrush current damage.
