Allen-Bradley MPL-SSN-A3B3 Shaft Seal Kit: Product Overview, Specifications, Applications, and Related Models

1. Product Introduction

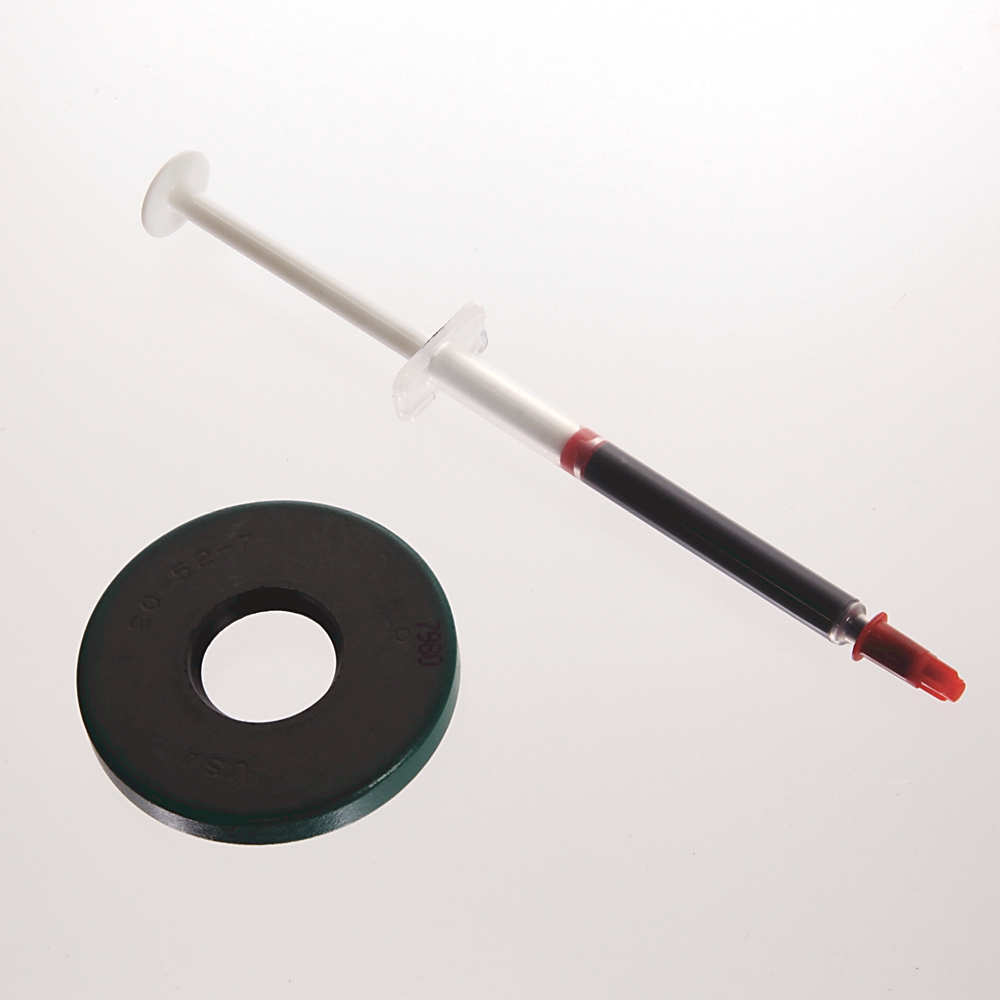

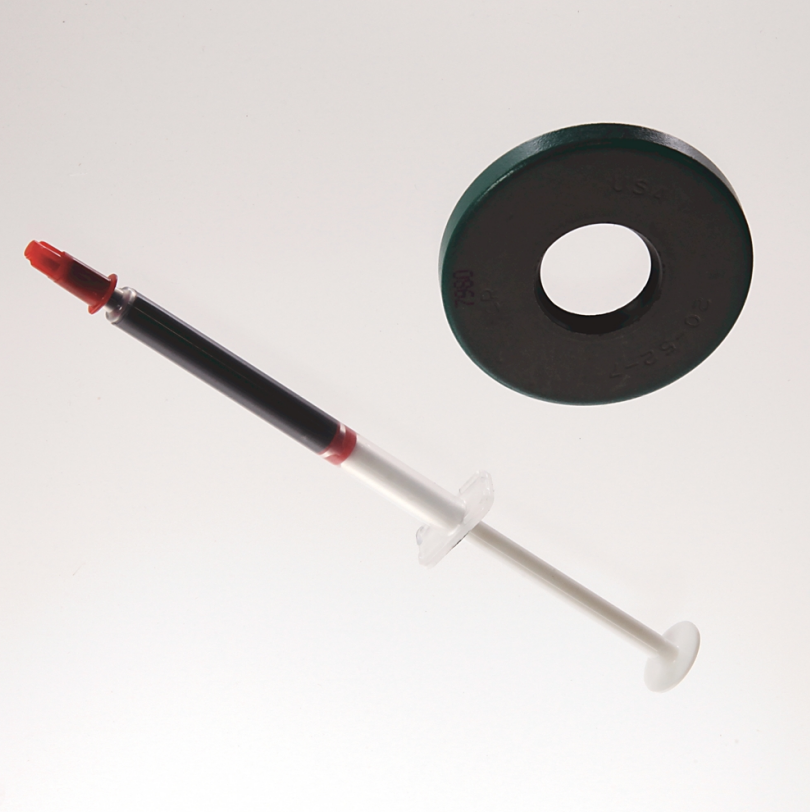

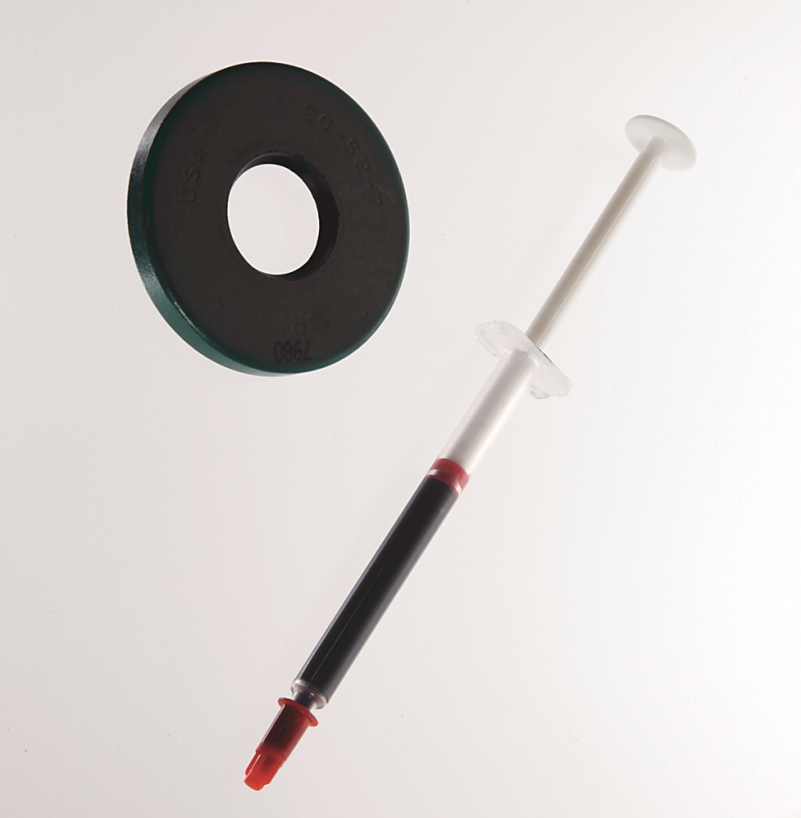

The Allen-Bradley MPL-SSN-A3B3 is a shaft seal kit designed for compatible MP-Series low-inertia servo motors, specifically the MPL-A3xx and MPL-B3xx motor families. It is an accessory rather than a servo motor, drive, or electronic control module.

The kit is used to provide a sealing interface around the motor shaft. When correctly installed, the shaft seal helps limit the entry of dust, moisture, and other contaminants into the motor’s shaft-bearing area. This can be particularly useful in machinery where the motor operates near lubricants, cutting fluids, airborne particles, or routine washdown and cleaning activities.

The shaft seal is a relatively small component, but it can play an important role in protecting motor reliability. A damaged, worn, or incorrectly installed seal can reduce the protection available at the shaft opening and may contribute to premature wear or maintenance problems.

The MPL-SSN-A3B3 is intended for compatible motor frames, so the motor’s complete catalog number and shaft configuration should be checked before ordering or installation.

2. Product Specifications

Dimensional clarification: The 17 × 47 × 7 mm figures describe the seal itself, not the complete motor or necessarily the shipping package. The approximate weight of 0.136 kg is a reference value for the listed item and packaging may vary.

3. Product Dimensions and Weight

MPL-SSN-A3B3 shaft seal

Reference dimensions

17 × 47 × 7 mm

Inner diameter × outer diameter × width

Approx. 0.136 kg

Reference item weight; confirm the actual kit and packaging before shipment planning.

The most important dimensions when selecting this seal are its inner diameter, outer diameter, and width. The inner diameter must match the relevant shaft and sealing arrangement, while the outer diameter must fit the intended housing or seal seat. The width must also match the available installation space.

Do not select a replacement based on appearance alone. A seal that looks similar may have a different material, size, or fit and may not provide the intended protection.

4. Main Functions and Advantages

4.1 Shaft contamination protection

The primary purpose of the MPL-SSN-A3B3 is to help protect the shaft opening of a compatible servo motor. It forms a sealing interface around the rotating shaft and helps reduce the entry of external contaminants.

This protection is useful in production environments where dust, fine particles, oil mist, or other residues may be present. The actual protection level depends on the seal’s condition, installation quality, shaft condition, and the motor’s mounting orientation.

4.2 Nitrile rubber sealing material

The kit uses a nitrile-based seal. Nitrile rubber is commonly used in industrial sealing applications because it offers useful resistance to many oils and lubricants.

Compatibility should still be checked against the actual chemicals, cleaning agents, temperatures, and operating conditions in the application. Nitrile rubber is not suitable for every fluid or every environmental condition.

4.3 Helps support motor service life

A correctly installed and maintained shaft seal can help reduce contamination-related wear and maintenance issues. It is especially relevant where motors are exposed to airborne particles or routine industrial residue.

A seal does not eliminate the need for preventive maintenance. Shaft wear, incorrect alignment, excessive heat, chemical incompatibility, and improper installation can all affect its performance.

4.4 Designed for a defined motor-frame group

The A3B3 designation identifies the intended motor-frame group. This makes the part easier to identify when servicing compatible MPL-A3xx and MPL-B3xx motors.

The advantage is practical rather than electronic: the seal helps maintain the intended mechanical protection of the motor without requiring a change to the servo drive, encoder, or motion-control program.

4.5 Compact and straightforward to replace

Compared with replacing a complete servo motor, replacing a worn shaft seal can be a much smaller maintenance task when the motor and seal are otherwise serviceable.

However, replacement work should be performed using the correct procedure. The motor should be isolated from power, the shaft and sealing surface should be inspected, and the new seal should be installed without damaging its sealing lip.

5. Typical Applications

The MPL-SSN-A3B3 is an accessory for servo motors used in automated machinery. Its applications therefore follow the equipment in which compatible MPL-A3xx and MPL-B3xx motors are installed.

Packaging and conveying equipment

Packaging machines often use servo motors for film feeding, indexing, cutting, sealing, and product positioning. A shaft seal can help limit the entry of dust and production residue around a compatible motor shaft.

Precision positioning machinery

Servo-driven positioning systems depend on consistent motor performance. Keeping the shaft sealing arrangement in good condition can help protect the motor in environments where fine particles or lubricants are present.

Automated assembly systems

Assembly machinery may use servo motors for repetitive movements, indexing tables, transfer mechanisms, and small motion axes. Shaft-seal maintenance can form part of a routine service program.

Material handling and production lines

In production lines with airborne dust, grease, or other residue, an intact seal can help reduce contamination at the motor shaft opening. The seal should not be treated as a substitute for a suitable enclosure or a motor designed for severe environmental exposure.

6. Brand and Product Series

The MPL-SSN-A3B3 is not itself a motor from the MPL-A3xx or MPL-B3xx series. It is a service accessory intended for those motor families. It does not generate torque, control position, provide feedback, or connect electrically to a servo drive.

7. Installation and Maintenance Considerations

Before replacing the shaft seal, confirm the complete motor catalog number and check that the accessory is appropriate for that motor. The A3B3 designation covers a particular group of motor frames, but the complete motor configuration should still be verified.

During installation, inspect the shaft for scratches, wear, corrosion, or a visible groove at the sealing surface. A new seal may not resolve leakage or contamination problems if the shaft or housing is damaged.

Avoid cutting, twisting, or excessively stretching the seal during installation. The sealing lip should be seated correctly, and any lubricant used during installation should be compatible with the seal material and the applicable service instructions.

After installation, check for abnormal friction, leakage, or signs that the seal has been displaced. Follow the motor manufacturer’s maintenance instructions for the exact procedure and any required lubricant.

8. Five Related Models and Accessories

The following five models are related shaft-seal options within the same general accessory family. They are not direct substitutes for the MPL-SSN-A3B3: each is intended for a different motor-frame group or shaft configuration.

The dimensions in this table describe the seal itself, not the motor. The listed weight values are marked as unconfirmed rather than estimated from the A3B3 kit, since different seals and packaging can have different weights.

When selecting one of these accessories, match the part number to the exact motor family. A larger seal is not necessarily an acceptable replacement for a smaller one, even if the material appears similar.

9. Five Popular Related Models from the Same Brand

The models below are examples of commonly used automation products from the same brand. They cover servo motors, programmable logic control, industrial networking, and motion control. They are broader product recommendations, not replacements for the MPL-SSN-A3B3.

Dimensions and weights are model- and configuration-dependent. Where a dependable exact figure is not available here, it is explicitly marked for verification instead of being guessed.

Why these models may be relevant

– MPL-A320P-HJ72AA: Worth considering when maintaining or configuring a compatible low-inertia servo application, provided the motor’s ratings and feedback configuration match the system.

– MPL-B310P-HJ72AA: Relevant to applications using the MPL-B motor family. Confirm voltage class, drive compatibility, shaft options, and feedback before treating it as a replacement.

– 1756-L83E: A programmable controller option for machine-level logic, sequencing, and automation coordination. It is not a shaft-seal accessory.

– 1756-EN2TR: Relevant when the automation architecture requires EtherNet/IP communication through a compatible ControlLogix chassis.

– 2094-BC02-M02: Relevant to motion-control systems built around compatible Kinetix 6000 hardware. Confirm the complete system architecture before selecting it.

For all five models, the exact dimensions and weight should be taken from the applicable product drawing or physical nameplate and hardware revision. A generic estimate would not be reliable enough for cabinet layout, mounting, or shipping calculations.

10. Product Selection Checklist

Before purchasing or installing the MPL-SSN-A3B3, use the following checklist:

• Confirm the full servo motor catalog number.
• Verify that the motor belongs to the MPL-A3xx or MPL-B3xx family.
• Check the required seal dimensions: 17 mm inner diameter, 47 mm outer diameter, and 7 mm width.
• Inspect the shaft and seal housing for wear or damage.
• Confirm compatibility with the operating temperature, lubricant, cleaning chemicals, and surrounding environment.
• Confirm the actual kit weight and package dimensions if required for freight or inventory records.
• Follow the applicable installation procedure and inspect the seal after replacement.

11. Overall Assessment

The Allen-Bradley MPL-SSN-A3B3 is a small mechanical maintenance component for compatible MP-Series low-inertia servo motors. Its value lies in helping maintain the shaft’s sealing interface and reducing the risk of contamination entering the motor through the shaft opening.

Its main advantages are its defined motor-family compatibility, compact dimensions, nitrile sealing material, and straightforward role in preventive maintenance. It is especially relevant for service teams maintaining existing MPL-A3xx and MPL-B3xx installations.

The most important purchasing consideration is correct compatibility. Confirm the motor family and seal dimensions before ordering, and do not substitute a different frame-size seal merely because it looks similar. For accurate shipping, installation planning, or inventory records, use the actual item’s verified weight and packaging dimensions rather than treating a reference value as a guaranteed specification.
