Product Overview

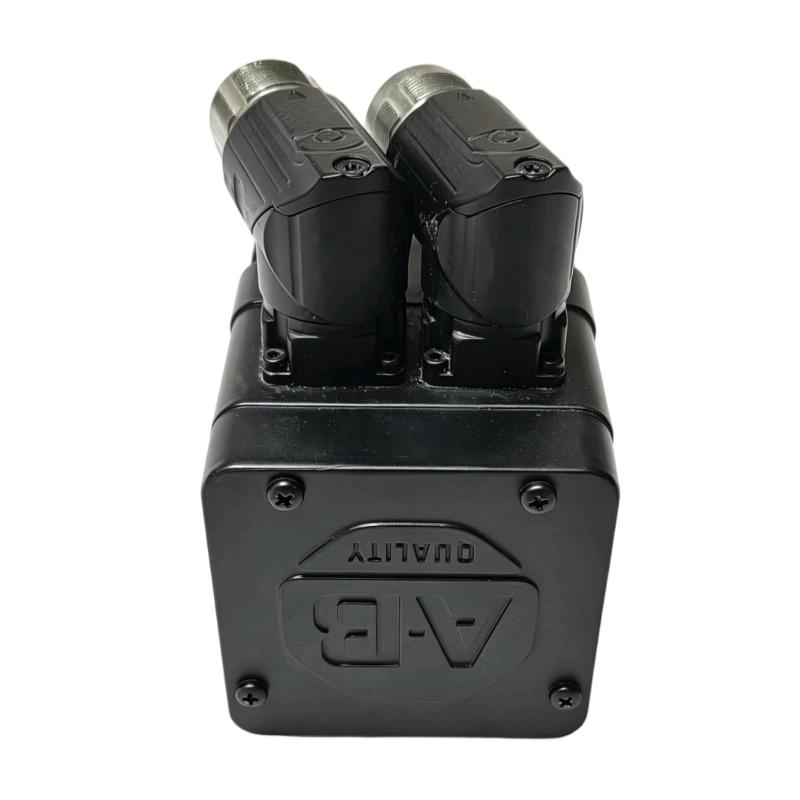

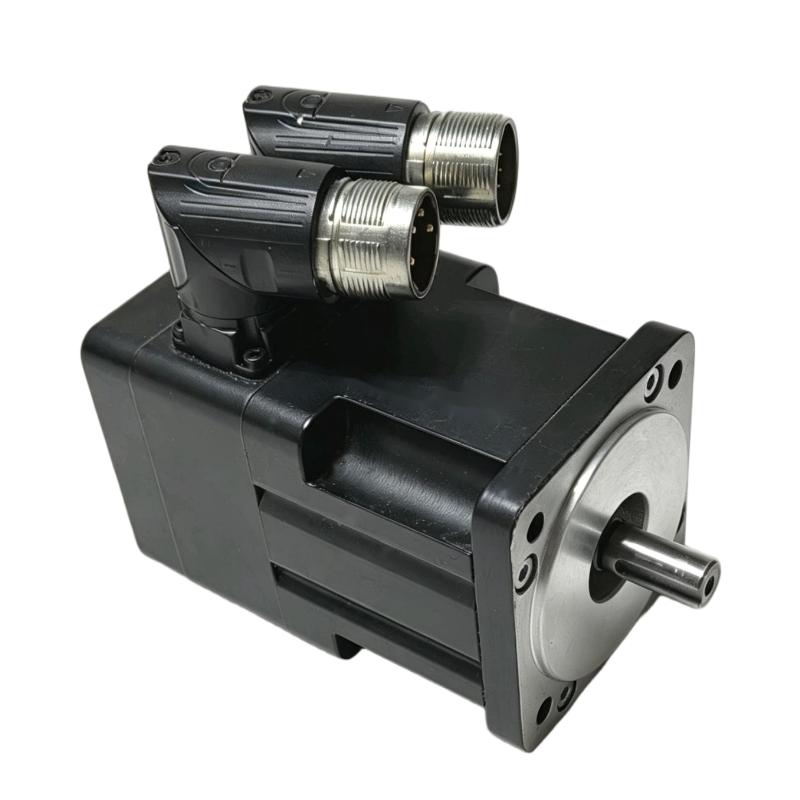

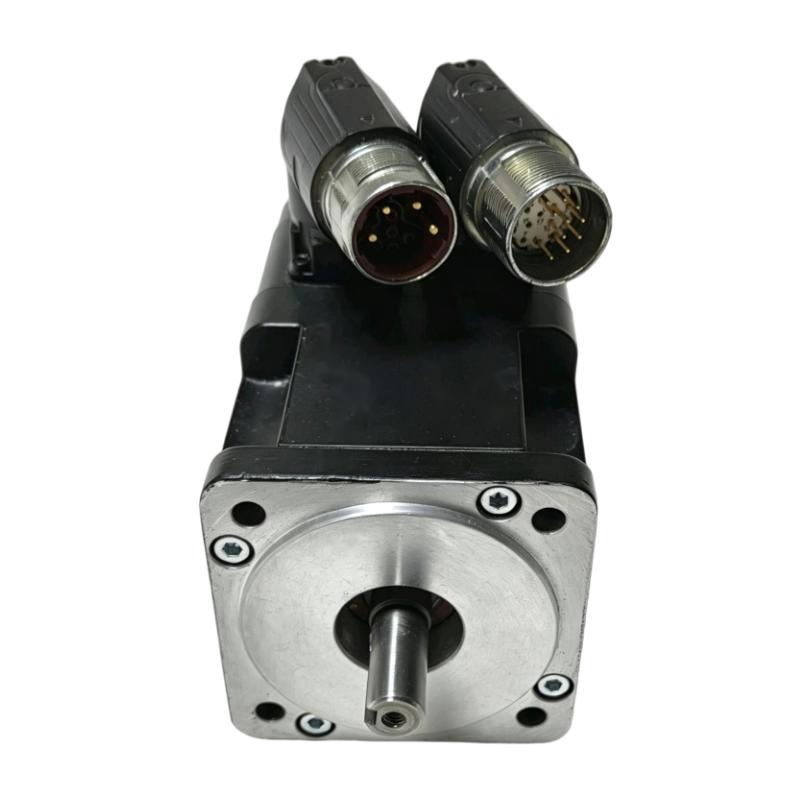

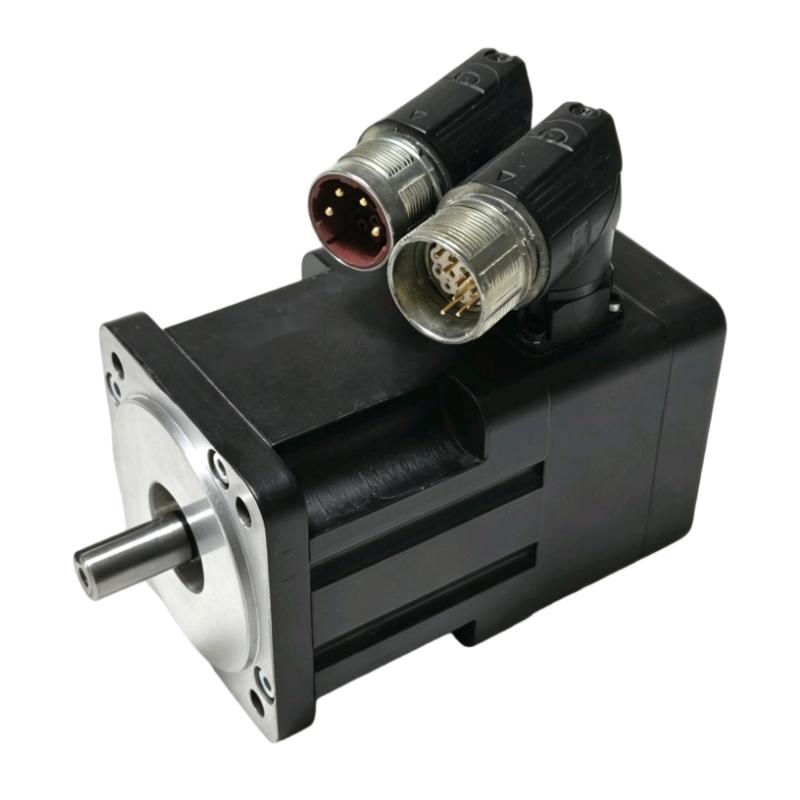

The Allen Bradley MPL-B210V-VJ72AA is an MP-Series rotary servo motor used as the motor element in closed-loop industrial motion systems. It is suited to machine axes that require controlled acceleration, positioning, and coordinated movement rather than simple fixed-speed rotation. Typical applications include automated machinery, indexing mechanisms, packaging equipment, material handling systems, and production-line motion assemblies.
In an Allen Bradley motion-control installation, the motor works together with a compatible servo drive and motion controller. The controller establishes the required axis movement, while the drive regulates motor operation and uses feedback information to keep the actual movement aligned with the commanded profile. This arrangement is particularly useful when a machine must repeatedly reach defined positions or maintain synchronization with other axes.
The MPL-B210V-VJ72AA can be applied to rotary machine mechanisms through suitable mechanical transmission components such as couplings, belts, gears, or other drive arrangements. During replacement or system upgrades, the motor should be evaluated as part of the complete servo axis, including the drive, feedback connection, mechanical load, and controller configuration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | MPL-B210V-VJ72AA |
| Product Type | MP-Series Rotary Servo Motor |
| Product Family | MP-Series |
| Series | MP-Series |
| Motor Type | Rotary Servo Motor |
| Motion Type | Servo Motion |
| Control Method | Closed-Loop Motion Control |
| Application | Industrial Motion Control |
| System Integration | Servo Drive and Motion Controller |
| Feedback | Motor Feedback |
| Mechanical Function | Rotary Machine-Axis Drive |
| Installation | Machine-Mounted |
| Frame Size | 75 mm |
| Weight | 1.4 kg |
Product Features
- MP-Series rotary servo motor for industrial motion-control applications
- Suitable for closed-loop servo-axis operation
- Supports controlled rotary movement for automated machinery
- Works with a compatible servo drive and motion controller
- Feedback-based operation supports accurate axis monitoring and correction
- Suitable for positioning, indexing, and coordinated machine movement
- Can drive mechanical assemblies through appropriate transmission components
- Applicable to single-axis and coordinated multi-axis equipment
- Suitable for repetitive production cycles requiring controlled motor response
- Fits within the broader Allen Bradley MP-Series servo motor platform
Working Principle
The MPL-B210V-VJ72AA operates as part of a closed-loop servo axis rather than as an independently controlled motor. The motion controller first determines the required movement according to the machine program. This may involve a target position, movement sequence, acceleration and deceleration profile, or coordination with another machine axis.
The servo drive receives the motion command and regulates the electrical power delivered to the motor. The motor converts this controlled electrical input into rotary mechanical movement, which is transferred to the machine through the connected mechanical transmission.
During operation, motor feedback supplies actual movement information to the servo control system. The drive can compare commanded behavior with feedback information and make the necessary control adjustments. This continuous feedback process is what allows the motor to participate in positioning and synchronized motion rather than simply running at a fixed output.
For a machine builder or maintenance engineer, the complete motion chain should therefore be considered when commissioning this motor: controller command, drive regulation, motor rotation, feedback response, and mechanical load all influence the final axis behavior.
Role in a Servo Motion Control Architecture
The MPL-B210V-VJ72AA occupies the motor stage of the servo architecture. It receives controlled power from the servo drive and converts that electrical input into mechanical rotation, while its feedback path contributes information to the closed-loop control process.
| Control Architecture Layer | Function | Relationship to MPL-B210V-VJ72AA |
|---|---|---|
| Motion Controller | Generates and coordinates motion commands | Determines required motor movement |
| Servo Drive | Regulates motor power and servo control | Controls the motor |
| Servo Motor | Produces mechanical rotation | MPL-B210V-VJ72AA |
| Feedback System | Reports actual motor behavior | Supports closed-loop correction |
| Mechanical Transmission | Transfers motor movement | Connects motor to the machine mechanism |
| Machine Load | Performs the required production movement | Determines the actual load on the axis |
| HMI / Supervisory Layer | Operator control and machine status | Provides operating commands and status information |
Industrial Applications
| Application | Typical Use |
|---|---|
| Packaging Machinery | Controlled rotary movement for packaging and indexing mechanisms |
| Automated Assembly | Repeatable movement of assembly mechanisms and machine axes |
| Material Handling | Controlled movement of transfer and positioning equipment |
| Indexing Systems | Repeated movement between defined machine positions |
| Conveyor Equipment | Servo-controlled movement where positioning or synchronization is required |
| Production Machinery | Coordinated movement within automated manufacturing processes |
| Machine Tools | Controlled rotary motion for selected machine mechanisms |
| Robotics and Automation | Rotary axis movement within integrated automated equipment |
Installation and Maintenance
- Verify the servo drive — Confirm that the connected servo drive is compatible with the MPL-Series motor and intended motion application.
- Check the mechanical mounting — Make sure the motor mounting arrangement is secure and properly aligned with the driven mechanism.
- Inspect the motor before installation — Check the housing, shaft, connectors, and accessible surfaces for transportation or storage damage.
- Verify feedback compatibility — Confirm that the motor feedback connection is correctly matched to the associated servo drive and control system.
- Check motor cabling — Inspect power and feedback cables for correct routing, secure connections, and signs of physical damage.
- Protect feedback wiring — Keep feedback cables appropriately separated from sources of electrical interference where the machine wiring arrangement requires it.
- Check the mechanical load — Verify that the connected mechanism moves freely and that abnormal resistance is not present before enabling the axis.
- Confirm axis configuration — Check the selected motor, feedback settings, direction, scaling, and other applicable motion parameters.
- Verify rotation direction — Perform a controlled low-risk movement to confirm that commanded and actual directions correspond to the machine sequence.
- Check machine alignment — Confirm that couplings and other transmission components are correctly installed and do not introduce excessive mechanical stress.
- Monitor operating behavior — Watch for unusual vibration, noise, temperature increase, positioning errors, or unexpected servo faults during operation.
- Follow controlled replacement procedures — Isolate the equipment, discharge stored energy as required, protect against ESD, install the replacement motor correctly, verify configuration, and perform a controlled functional test before returning the machine to service.
Related Components
| Component | Function |
|---|---|
| Allen Bradley Servo Drive | Regulates electrical power and closed-loop servo operation |
| Allen Bradley Motion Controller | Generates and coordinates machine-axis commands |
| Motor Power Cable | Provides the motor power connection |
| Motor Feedback Cable | Transfers feedback information to the servo system |
| Mechanical Coupling | Connects the motor shaft to the driven mechanism |
| Gearbox | Adapts motor rotation to the requirements of the machine |
| HMI | Provides operator commands and machine status |
| Control System Network | Supports communication between motion-control devices |
Recommended Related Models
| Model | Product Type | Series |
|---|---|---|
| Allen Bradley MPL-B210V-EJ72AA | Rotary Servo Motor | MP-Series |
| Allen Bradley MPL-B210V-EJ74AA | Rotary Servo Motor | MP-Series |
| Allen Bradley MPL-B1530U-HJ74AA | Rotary Servo Motor | MP-Series |
| Allen Bradley MPL-B1530U-VJ72AA | Rotary Servo Motor | MP-Series |
| Allen Bradley MPL-B1530U-VJ74AA | Rotary Servo Motor | MP-Series |
Key Advantages
- MP-Series platform for industrial servo applications
- Closed-loop operation with motor feedback
- Suitable for controlled rotary machine movement
- Supports positioning and indexing applications
- Integrates with servo drive and motion-controller architectures
- Applicable to automated production and material-handling equipment
- Suitable for coordinated machine-axis operation
Technical FAQs
What type of motion application is the MPL-B210V-VJ72AA suitable for?
The MPL-B210V-VJ72AA is suitable for industrial applications requiring controlled rotary motion, including positioning, indexing, automated assembly, material handling, and coordinated machine movement. The final application suitability depends on the complete servo-axis requirements.
What should be checked when replacing this MP-Series motor?
The replacement should be checked against the existing servo drive, feedback interface, mechanical mounting, shaft connection, controller configuration, and machine load. A replacement motor should not be selected solely because it belongs to the same product family.
What can cause positioning errors on a servo axis using this motor?
Positioning errors can originate from several parts of the motion chain, including feedback connections, servo configuration, drive operation, mechanical coupling, excessive load, or mechanical backlash. Troubleshooting should therefore examine the electrical, control, feedback, and mechanical portions of the axis.
How should the motor be commissioned after installation?
Begin with a controlled test after verifying wiring, mechanical connections, feedback, and axis configuration. Check direction and basic movement first, then progressively verify the required positioning and operating sequence while monitoring for abnormal vibration, noise, temperature, or servo faults.
