Product Overview

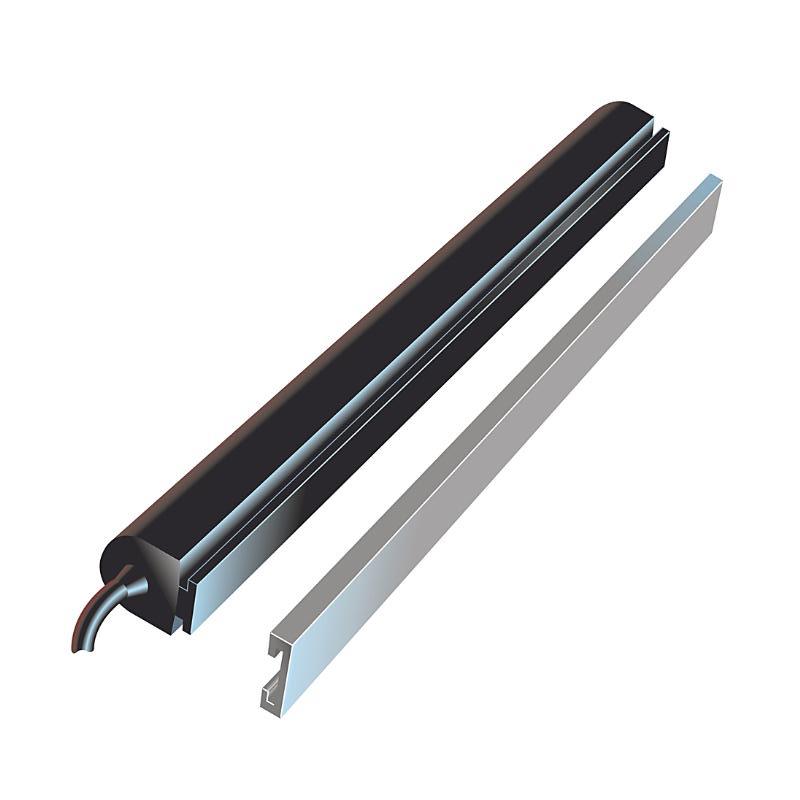

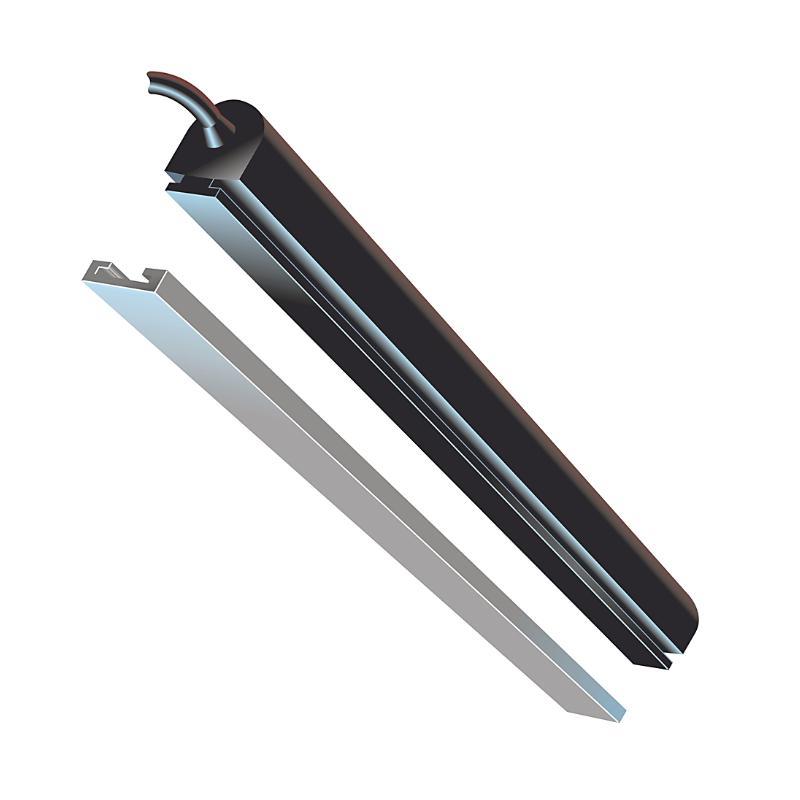

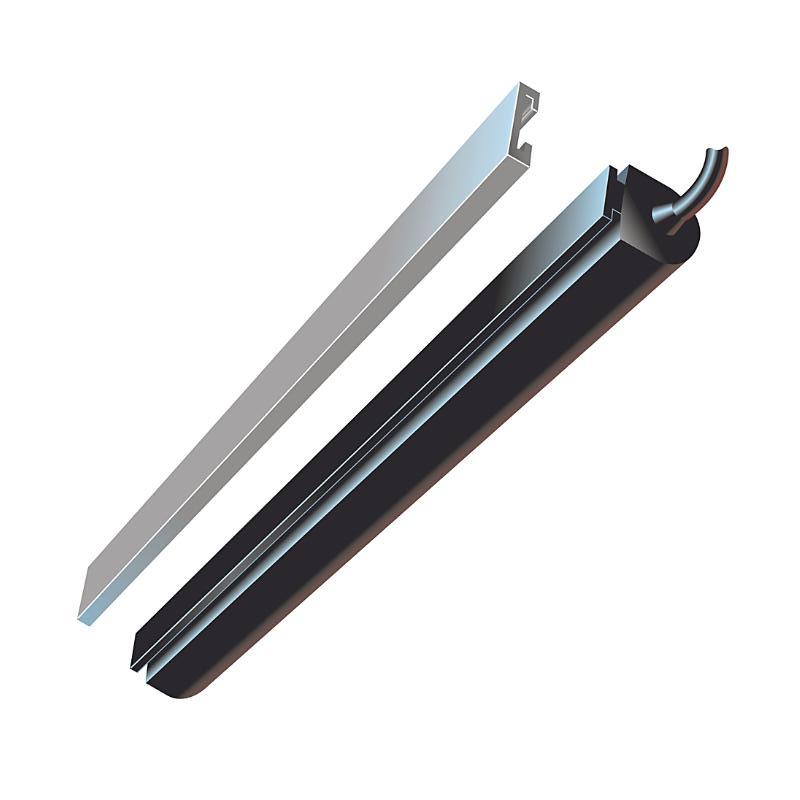

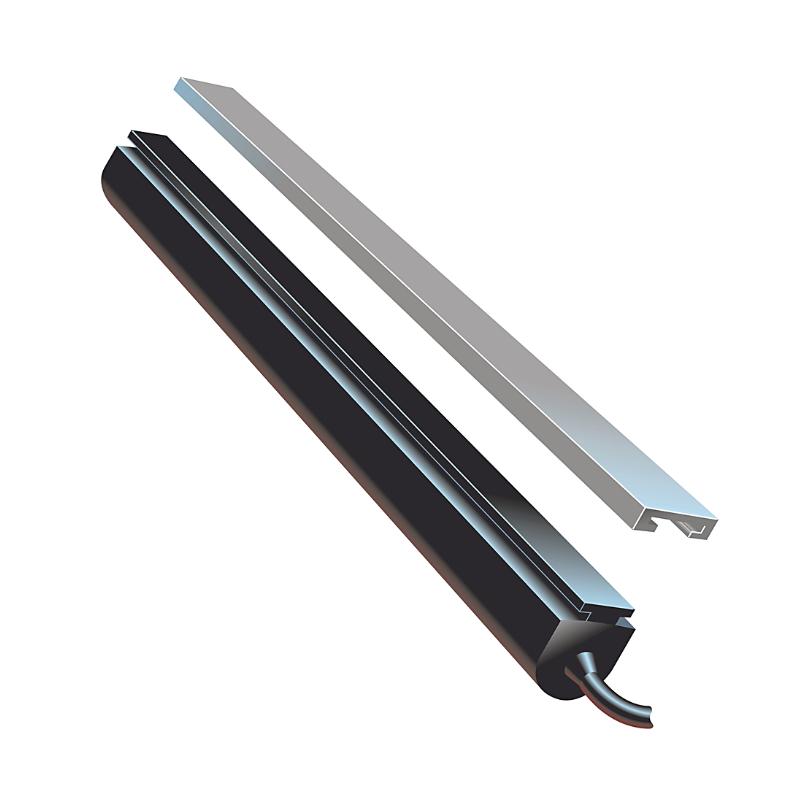

The Allen Bradley 440F-EFNNN04220 Guardmaster Safedge Contact Edge is a pressure-sensitive safety device used to detect contact with the edge of a moving or closing machine component. It is intended for applications where personnel or equipment could be exposed to a hazardous movement at the edge of a door, gate, panel, or other moving structure.

The Safedge Contact Edge provides a flexible sensing surface along the protected edge. When sufficient pressure is applied to the sensing edge, the internal switching mechanism changes state and sends a signal to the associated safety control circuit. This allows the machine to initiate the required stop or protective response.

Typical installations include automated doors, machine access panels, powered gates, material-handling equipment, and machinery with closing or crushing points. The contact edge is particularly useful when the hazard follows the physical edge of a moving component and requires continuous protection along that edge.

Technical Specifications

Product Features

• Guardmaster Safedge pressure-sensitive contact edge for machine safety applications.
• Provides continuous sensing along a protected machine edge.
• Suitable for detecting physical contact with moving or closing equipment.
• Can be installed on doors, gates, access panels, and other moving structures.
• Helps protect against crushing and trapping hazards at machine edges.
• Interfaces with the associated safety control system for protective stopping.
• Suitable for industrial machinery and automated access equipment.
• Provides a practical alternative to protecting an extended hazard zone with multiple individual switches.

Working Principle

The 440F-EFNNN04220 uses a pressure-sensitive sensing edge that responds when an external force is applied to the protected surface. Under normal conditions, the sensing edge remains in its normal state while the machine operates within its intended sequence.

When an object or person contacts the sensing edge with sufficient force, the internal switching arrangement changes state. The associated safety control circuit detects this condition and can initiate the configured stop response.

A typical signal path is:

Physical Contact → Safedge Contact Edge → Safety Interface / Controller → Machine Stop Circuit → Actuator or Drive

After the contact condition has been cleared, the safety circuit must return to its intended operating state according to the machine’s reset and restart procedure. The exact response depends on the complete safety architecture rather than the contact edge alone.

Role in a Machine Safety Control Architecture

The Safedge contact edge forms part of the field-level protective sensing layer. It monitors a physical hazard directly at the edge of a moving machine component and transfers the resulting safety state to the machine safety control system.

Protected Machine Edge → 440F-EFNNN04220 → Safety Interface → Safety Relay / Controller → Stop Function → Machine

The contact edge should be evaluated as one part of the complete safeguarding system. Correct mounting, sensing coverage, safety control, stopping performance, and reset behavior all contribute to the effectiveness of the finished safety function.

Industrial Applications

Installation and Maintenance

1. Identify the hazardous edge
   Determine the complete section requiring pressure-sensitive protection before selecting the mounting arrangement.
2. Install the contact edge correctly
   Mount the Safedge device securely along the intended protective edge and follow the applicable installation requirements.
3. Maintain continuous coverage
   Ensure that the sensing edge covers the intended hazard area without unprotected gaps that could create an accessible crushing point.
4. Check mechanical alignment
   Confirm that the contact edge is correctly aligned with the moving structure and does not interfere with normal machine movement.
5. Protect the sensing surface
   Avoid conditions that could cause unnecessary mechanical damage, excessive compression, or deformation of the sensing edge.
6. Verify electrical connections
   Check the contact-edge wiring and associated safety interface against the machine electrical drawings.
7. Perform functional testing
   Apply the required test force at representative positions along the sensing edge and verify that the safety circuit responds correctly.
8. Check the complete stop function
   Confirm that activation of the contact edge produces the intended machine stopping response.
9. Inspect the mounting hardware
   Check for loose fasteners, damaged supports, or movement of the sensing edge from its intended position.
10. Check for environmental contamination
    Remove dirt, process residue, or other material that could interfere with the mechanical operation or sensing surface.
11. Inspect the contact edge periodically
    Look for cuts, deformation, wear, or other physical damage that could affect safety performance.
12. Document safety tests
    Record functional tests, inspections, and corrective maintenance according to the machine’s safety procedures.

Compatible System Components

Recommended Related Models

Key Advantages

• Provides continuous pressure-sensitive protection along a machine edge.
• Suitable for crushing and trapping hazard protection.
• Can protect extended moving edges without requiring multiple discrete switches.
• Interfaces with Guardmaster safety control equipment.
• Suitable for automated doors, gates, machine panels, and industrial handling equipment.
• Allows the protective function to be located directly at the physical hazard.

Technical FAQs

What type of hazard is the Guardmaster Safedge contact edge intended to protect against?

It is intended for applications where contact with a moving or closing machine edge can create hazards such as crushing, trapping, or pinching. The sensing edge detects physical contact and initiates the configured safety response.

Where can the 440F-EFNNN04220 be installed?

It can be used along suitable moving or closing edges such as powered doors, gates, machine access panels, and material-handling equipment. The mounting arrangement should be selected according to the machine’s hazard assessment and required sensing coverage.

How should the contact edge be tested after installation?

The sensing edge should be functionally tested at representative points along its protected length. Each test should confirm that contact produces the expected safety signal and that the complete machine stop function responds correctly.

Can the contact edge be connected directly to a standard PLC input?

A standard PLC input should not automatically be treated as the safety interface for a safety-related protective function. The contact edge should be integrated into an appropriately designed safety circuit using suitable safety control equipment, with the complete safety function validated for the application.
