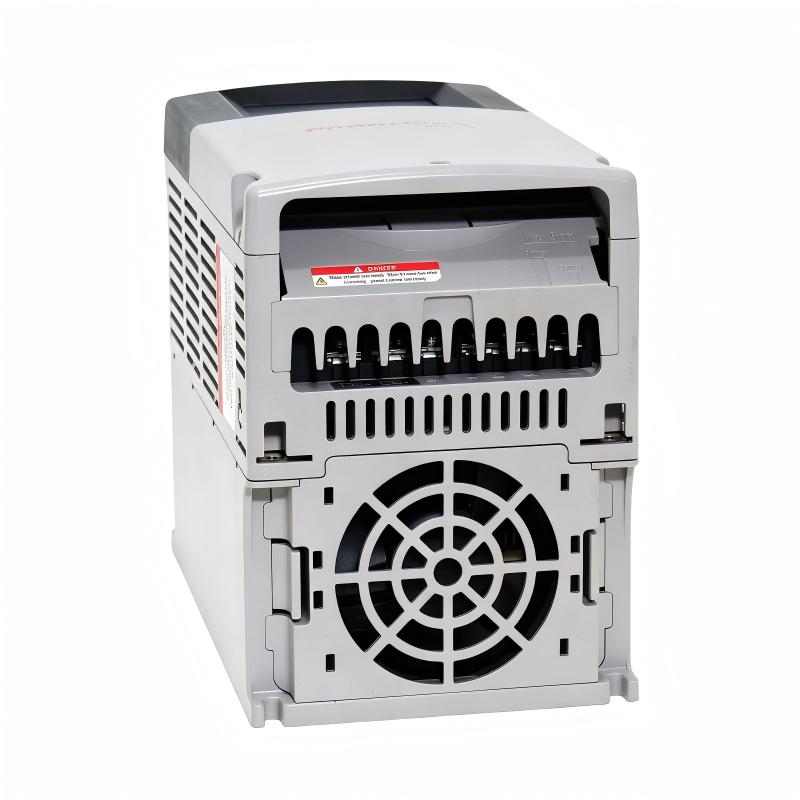

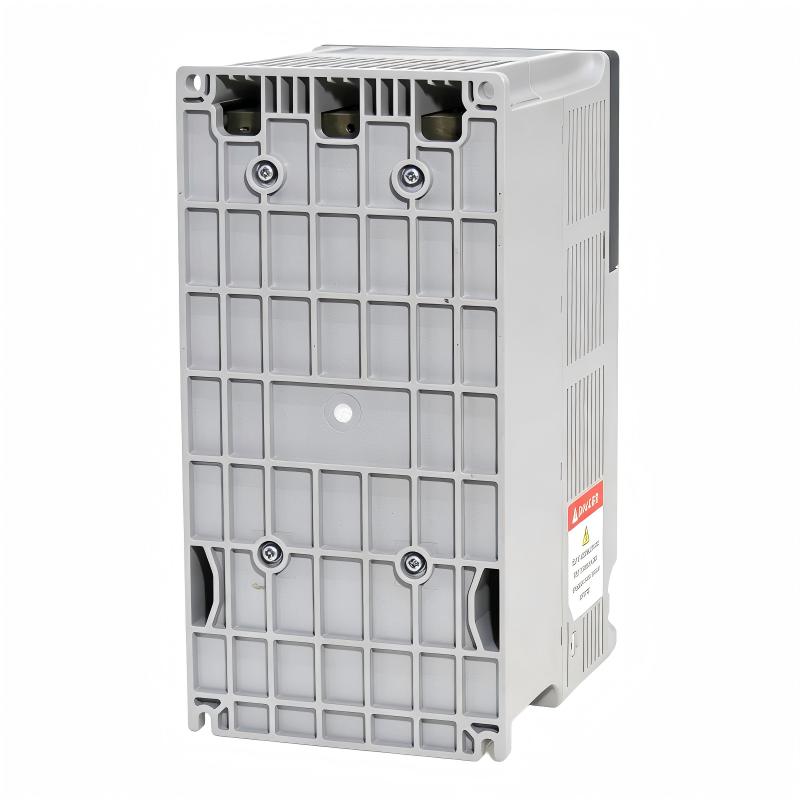

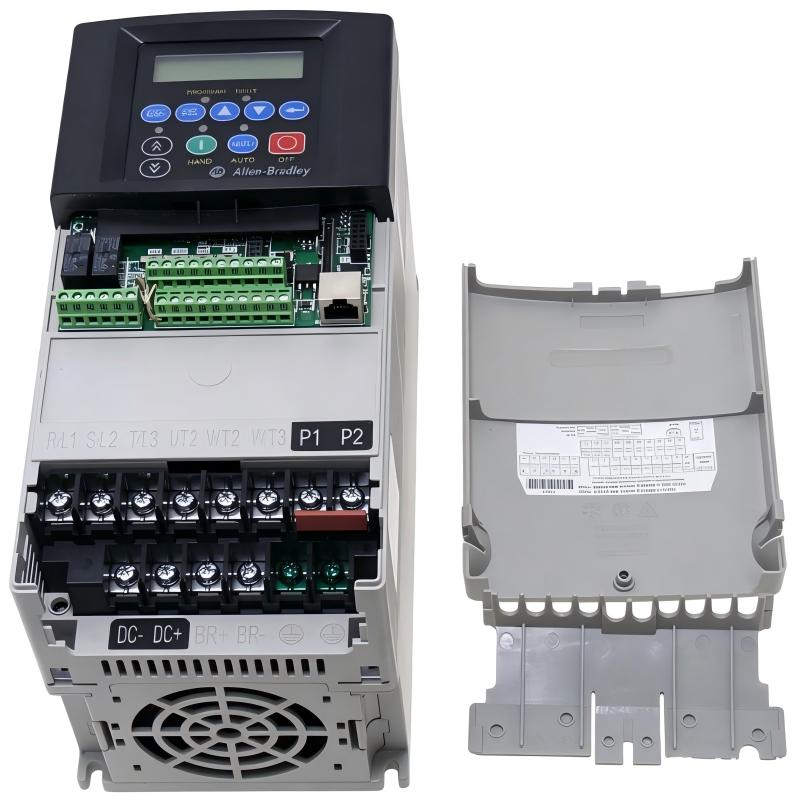

Allen-Bradley 22C-B024N103 AC Drive — Product Description, Technical Parameters, Applications, Advantages, and Related Models

1. Product Overview

The Allen-Bradley 22C-B024N103 is identified by its catalog number as a product associated with the PowerFlex 400 variable-frequency drive family. This drive family is designed primarily for motor-speed control in applications such as fans, pumps, and other industrial equipment requiring adjustable motor operation.

A variable-frequency drive (VFD) regulates an AC motor by adjusting the frequency and voltage supplied to it. By controlling motor speed according to actual operating requirements, a drive can help improve process control, reduce unnecessary energy consumption in suitable applications, and reduce mechanical stress caused by direct starting.

Important specification note: The exact electrical rating, enclosure dimensions, and net weight of catalog number 22C-B024N103 have not been independently verified here. The tables therefore distinguish family-level information from model-specific details rather than presenting unconfirmed figures as established specifications.

2. Technical Parameters

The exact rated current and motor-power range are essential when selecting a replacement or integrating the drive into an existing control panel. The catalog number should be checked against the nameplate before finalizing the design.

Dimensions and weight are equally important for installation planning. The overall panel layout must allow adequate clearance for wiring, cooling airflow, maintenance access, and the manufacturer’s specified mounting requirements.

3. Detailed Product Introduction

The Allen-Bradley 22C-B024N103 is associated with the PowerFlex 400 family of variable-frequency drives, a product family intended for motor-control applications where adjustable speed and practical integration into industrial systems are important.

In a conventional fixed-speed arrangement, an AC motor generally operates close to its supply-frequency-dependent operating speed. A variable-frequency drive allows the motor’s operating speed to be adjusted by changing the frequency supplied to it. This makes it possible to adapt equipment output to changing process demands rather than relying entirely on mechanical throttling or continuous full-speed operation.

For fan and pump systems, speed adjustment can provide more flexible control of airflow or liquid flow. For example, a ventilation system may require high airflow during one operating period and substantially less airflow during another. A correctly selected drive can adjust the motor speed to match the demand, helping improve control and potentially reduce energy consumption.

The drive also provides a practical way to manage motor acceleration and deceleration. Instead of applying full supply voltage immediately to the motor, a configured drive can ramp the motor toward its target frequency. This can reduce sudden mechanical loading in suitable applications and help create smoother equipment operation.

The actual functions available in a specific installation depend on the precise drive configuration, parameter settings, motor characteristics, and control-system design. Protection features, communication capabilities, and operating limits should therefore be verified against the documentation for the exact catalog number.

4. Product Applications

4.1 Industrial Fans and Ventilation Systems

Variable-frequency control is useful for ventilation equipment that operates under changing airflow requirements. A drive can adjust the fan motor’s speed to suit the demand, helping maintain more consistent environmental conditions.

Potential applications include factory ventilation, equipment-room ventilation, air-handling systems, and general industrial exhaust systems. Suitability depends on motor ratings, the fan load profile, and the installation environment.

4.2 Water Pumps and Circulation Systems

Pumping systems frequently experience changes in flow demand. With a compatible motor and properly designed control arrangement, a drive can adjust pump speed to support the required flow or pressure.

Potential uses include water circulation, utility pumping, and industrial process-water systems. The drive must be selected according to motor current, supply voltage, pump characteristics, and the control requirements of the system.

4.3 HVAC Equipment

Heating, ventilation, and air-conditioning equipment may require variable fan or pump output as operating conditions change. A suitable drive can support more flexible motor control and reduce the need for a motor to run continuously at full speed.

The precise application must account for the equipment manufacturer’s requirements, required control signals, and any applicable safety or building-system standards.

4.4 Material Handling Equipment

Certain conveyor and material-handling systems benefit from adjustable motor speed, controlled starting, and coordinated operation with other machinery.

Before using this drive in a conveyor application, confirm that its current rating, overload capability, braking requirements, and control functions are suitable for the load. Heavy starting loads or frequent acceleration and deceleration may require a different drive configuration.

4.5 General Industrial Machinery

Compatible industrial machinery may use variable-frequency drives to regulate motor speed and coordinate equipment operation. Examples include auxiliary machinery, process equipment, and other motor-driven systems where variable-speed control is required.

The drive should not be assumed suitable for every motor or machine solely because its product family supports industrial motor control. Electrical compatibility and application requirements must be assessed individually.

5. Product Advantages

5.1 Adjustable Motor Speed

A variable-frequency drive allows the operating speed of a compatible AC motor to be adjusted to suit the process. This can provide greater flexibility than a fixed-speed motor arrangement.

5.2 Potential Energy Savings

In suitable variable-torque applications, such as many fan and centrifugal-pump systems, reducing motor speed can significantly reduce energy demand. Actual savings depend on the load profile, operating hours, system design, and control strategy.

5.3 Controlled Acceleration and Deceleration

Configurable acceleration and deceleration ramps can help reduce abrupt changes in motor speed. This may lessen mechanical shock on couplings, belts, fans, pumps, and other compatible equipment.

5.4 Improved Process Control

Adjustable motor speed can make it easier to match equipment output to changing process requirements. Depending on the overall control design, the drive may be operated through local controls or external control signals.

5.5 Integration into Industrial Control Systems

Industrial drives are commonly installed alongside motor protection devices, contactors where appropriate, programmable controllers, sensors, and operator interfaces. The specific integration options for this model must be checked against its documentation.

5.6 Flexible Equipment Operation

Using a properly selected drive can allow one motor-driven system to accommodate different operating conditions without relying solely on mechanical adjustments. This is particularly useful where demand changes throughout the working day.

5.7 Maintenance and Replacement Planning

Accurate catalog-number identification helps maintenance teams verify electrical compatibility, mounting requirements, and available accessories before replacing a drive. Confirming the complete model designation is particularly important when equipment has been in service for many years.

6. Brand and Product Series

The PowerFlex 400 family is associated with applications emphasizing variable-speed control for fan and pump loads. Nevertheless, the precise capabilities and ratings of an individual unit must be determined from its complete catalog number and nameplate.

7. Five Related Models for Comparison

The following table lists other models from the same brand that may be relevant when evaluating variable-frequency drives. They are comparison candidates, not confirmed direct replacements or guaranteed members of the same product series. Their exact specifications and physical details have not been verified here.

These catalog numbers should not be treated as a verified same-series shortlist. In particular, a similar-looking catalog number does not establish equivalent electrical ratings, mounting dimensions, firmware, or application compatibility.

For a practical replacement search, the most useful comparison criteria are the motor’s rated current, the drive’s input-voltage class, the required overload capacity, and the physical space available in the cabinet.

8. Five Other Allen-Bradley Models Worth Considering

The following models represent other variable-frequency drive families from the same brand. They may be worth evaluating for new installations, equipment upgrades, or alternative motor-control requirements. They are not necessarily interchangeable with the PowerFlex 400 model.

These alternatives span different drive families and intended applications. The appropriate model depends on the required motor power, operating environment, control functions, communication requirements, and installation constraints.

A model from a newer or different drive family is not automatically a suitable replacement. The complete electrical and mechanical requirements must be reviewed before making a selection.

9. Key Points to Check Before Purchase or Replacement

Before purchasing, installing, or replacing the 22C-B024N103, confirm the following details.

1. Input voltage and phase: Match the drive to the available electrical supply.

2. Rated output current: Confirm that the drive can supply the motor’s required current under the actual operating conditions.

3. Motor power: Check the motor nameplate and verify that the drive is suitable for the motor and load.

4. Overload requirements: Consider the starting torque, acceleration profile, and operating duty of the driven equipment.

5. Physical dimensions: Obtain the model-specific drawing to verify panel space, mounting-hole locations, ventilation clearance, and cable access.

6. Net weight: Confirm the actual weight for cabinet loading, mounting support, shipping, and handling calculations.

7. Control interface: Verify the required digital inputs, analog signals, communication options, and control method.

8. Protection and environment: Check ambient temperature, humidity, altitude, enclosure requirements, and any additional environmental constraints.

9. Replacement compatibility: Compare wiring, accessories, parameter settings, mounting arrangements, and control-system requirements before substituting another model.

10. Conclusion

The Allen-Bradley 22C-B024N103 is associated with the PowerFlex 400 variable-frequency drive family, which is intended for adjustable-speed motor-control applications, particularly fan and pump systems.

Its main potential benefits include variable-speed operation, controlled acceleration and deceleration, improved flexibility in process control, and possible energy savings when used in an appropriate application.

For technical purchasing, maintenance, or replacement work, the most important next step is to confirm the exact catalog number and obtain its model-specific ratings, dimensions, and weight. Those details should not be estimated from another drive in the same brand or product family, because incorrect specifications can lead to electrical incompatibility, installation problems, or unsuitable equipment operation.
