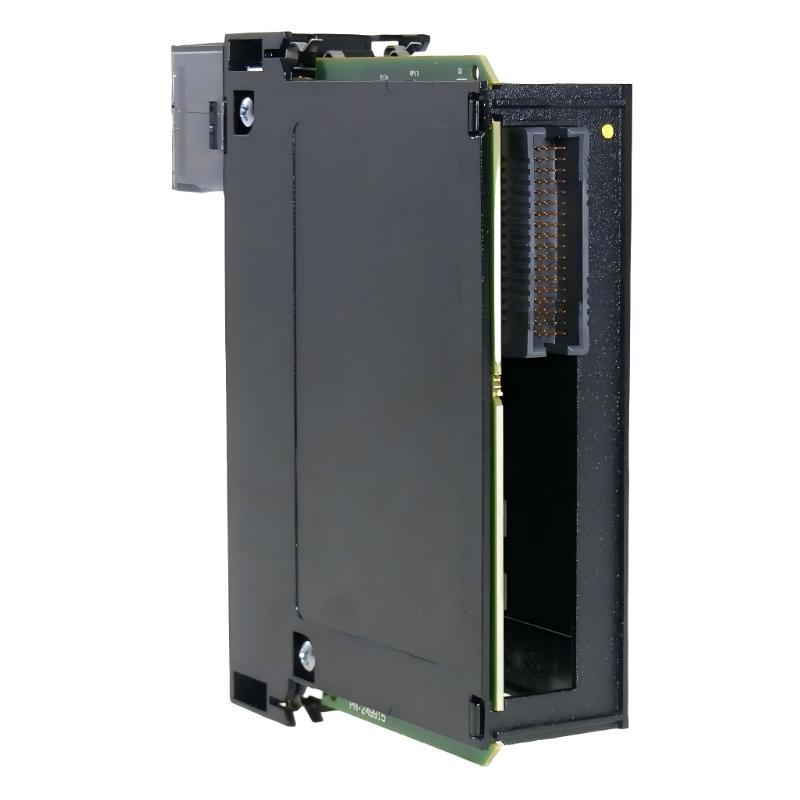

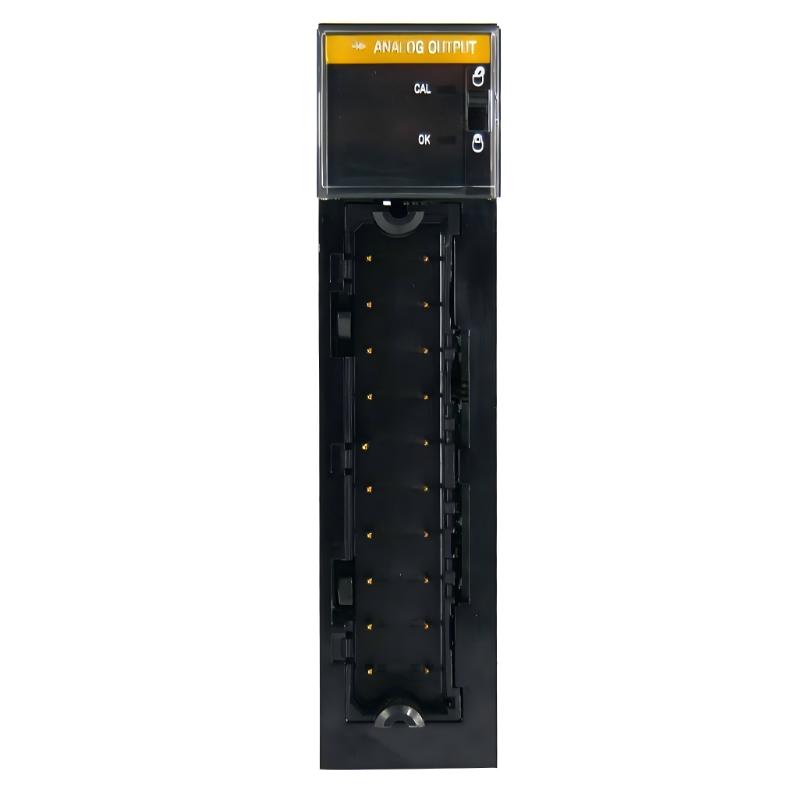

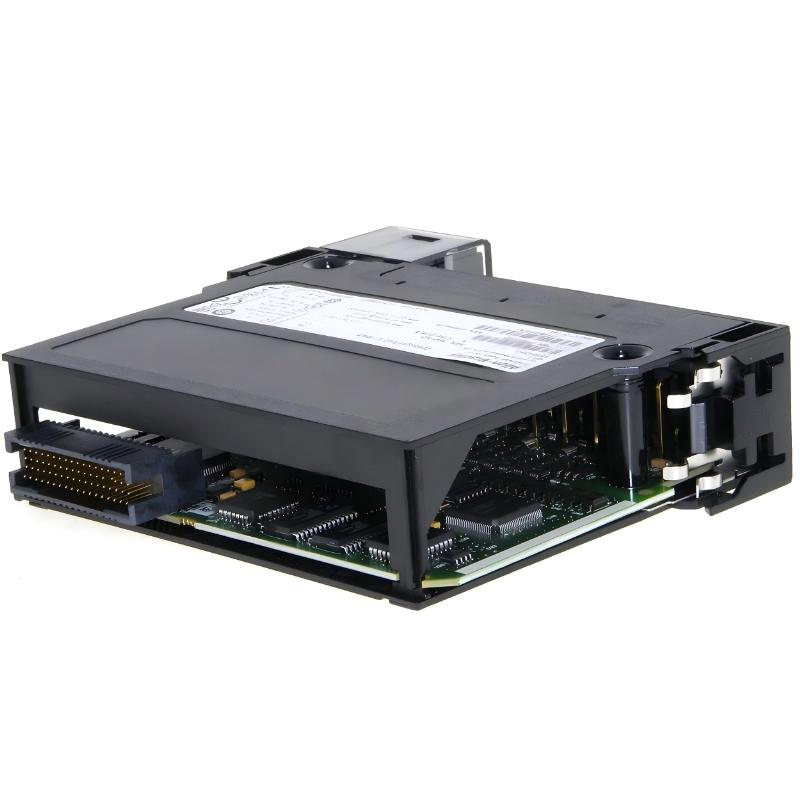

1756-OF8 Detailed Product Overview
Product Introduction
The 1756-OF8 is an 8-channel analog output module designed for industrial automation systems requiring precise control of voltage and current signals. It belongs to the ControlLogix modular automation platform and is widely used in process control and machine automation environments where stable analog signal generation is required.
This module provides eight independent analog output channels capable of delivering either voltage or current signals. Typical output ranges include ±10V DC and 0–20 mA / 4–20 mA, making it suitable for controlling field devices such as control valves, variable frequency drives (VFDs), actuators, and industrial instrumentation systems.
The module is installed in a ControlLogix chassis and communicates directly with PLC processors through the backplane, forming part of a fully integrated automation system.
Brand Information
| Item | Description |
|---|---|
| Brand | Industrial Automation Brand |
| Product Platform | ControlLogix |
| Product Type | Analog Output Module |
| Main Function | Voltage / Current Signal Output |
| Installation Method | Chassis Mount |
| Output Type | Analog (Voltage & Current) |
| Application Category | Industrial Automation |
| System Architecture | Modular PLC System |
Product Series Introduction
ControlLogix Series
The ControlLogix system is a high-performance modular automation platform designed for complex industrial control tasks requiring flexibility, scalability, and high-speed communication.
Key capabilities include:
- PLC logic processing
- Analog and digital I/O control
- Motion and process automation
- Industrial network communication
- System diagnostics and real-time monitoring
Key characteristics:
- High-speed backplane communication
- Modular expansion architecture
- Strong industrial reliability
- Flexible configuration options
- Long lifecycle stability
- High system integration efficiency
The 1756-OF8 is part of the analog output module family and is used where multiple high-precision analog signals are required in a single compact module.
It is commonly used in:
- Chemical and process industries
- Oil and gas systems
- Water treatment plants
- HVAC control systems
- Power generation facilities
- Industrial automation machinery
1756-OF8 Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 1756-OF8 |
| Product Type | Analog Output Module |
| Series | ControlLogix |
| Number of Outputs | 8 Channels |
| Output Types | Voltage / Current |
| Output Voltage Range | -10V to +10V DC |
| Output Current Range | 0–21 mA / 4–20 mA |
| Resolution | 15-bit |
| Accuracy | ±0.05% full scale (typical at 25°C) |
| Output Load Capability | 0–750 Ω (current mode) |
| Settling Time | < 2 ms to 95% final value |
| Backplane Current @ 5.1V DC | ~150 mA |
| Backplane Current @ 24V DC | ~210 mA |
| Power Dissipation | ~4.9 W max |
| Thermal Dissipation | ~16.78 BTU/hr |
| Isolation Voltage | 250V continuous (backplane isolation) |
| Open Circuit Detection | Supported (current mode only) |
| Short Circuit Protection | Electronic current limiting (~21 mA) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5%–95% non-condensing |
| Wiring Method | Removable terminal block |
| Dimensions | 11.1 × 3.8 × 30.0 cm |
| Weight kg（ ） | 2.0 kg (shipping approx.) |
Product Features
1. Dual Analog Output Capability
Supports both voltage and current outputs, allowing flexible integration with different field devices.
2. High Precision Signal Control
15-bit resolution ensures fine analog control for industrial processes requiring accuracy.
3. Fast Response Performance
Sub-2 ms settling time enables stable and responsive process control.
4. Multi-Channel Integration
Eight independent channels reduce the need for multiple modules in medium-scale systems.
5. Built-in Protection Features
Includes short-circuit protection and current limiting to improve system safety.
Product Advantages
High Signal Accuracy
Provides precise analog output suitable for sensitive process control applications.
Flexible Output Modes
Supports both voltage and current outputs in one module.
Strong Industrial Reliability
Designed for continuous operation in harsh industrial environments.
Efficient System Design
Reduces rack space by combining multiple outputs into a single module.
Stable Performance
Maintains consistent output even under load variations.
Easy Integration
Fully compatible with ControlLogix architecture and configuration tools.
Main Applications
Process Control Systems
Used in regulating flow, pressure, temperature, and chemical dosing systems.
Oil & Gas Industry
Controls valves, pumps, and instrumentation signals in upstream and downstream systems.
Water Treatment Plants
Used for pump control, valve positioning, and chemical injection systems.
HVAC Systems
Controls dampers, fans, and environmental regulation devices.
Power Generation
Used in turbine control and boiler regulation systems.
Industrial Automation
Provides analog control signals for machines and production systems.
Industrial Performance Summary
| Capability | Benefit |
|---|---|
| 8 Analog Channels | Multi-device control |
| High Resolution | Precise output signal |
| Fast Response | Stable dynamic control |
| Dual Output Types | Flexible integration |
| Strong Protection | Improved system safety |
| Modular Design | Easy expansion |
| Industrial Durability | Long lifecycle |
| Noise Immunity | Stable operation |
Recommended Related Models (Same Series / Similar Function)
| Model | Type | Channels | Output Type | Dimensions | Weight kg（ ） | Feature |
|---|---|---|---|---|---|---|
| 1756-OF4 | Analog output | 4 | Voltage/Current | 14.5 × 2.2 × 10.5 cm | 0.45 kg | Compact precision output |
| 1756-OF6CI | Current output | 6 | 4–20 mA | 14.5 × 5.6 × 14.0 cm | 0.48 kg | High-precision current control |
| 1756-OF6VI | Voltage output | 6 | Voltage | 14.5 × 5.6 × 14.0 cm | 0.50 kg | Voltage-specific module |
| 1756-OF4H | High-resolution output | 4 | Voltage/Current | 14.5 × 5.6 × 14.0 cm | 0.46 kg | Enhanced accuracy |
| 1756-OF4D | Diagnostic output | 4 | Voltage/Current | 14.5 × 5.6 × 14.0 cm | 0.47 kg | Advanced diagnostics |
Recommended Popular Models (Same Platform)
| Model | Type | Function | Dimensions | Weight kg（ ） | Advantage |
|---|---|---|---|---|---|
| 1756-L81E | PLC CPU | System control | 14.5 × 5.6 × 14.0 cm | 0.45 kg | High processing power |
| 1756-EN2TR | Ethernet module | Communication | 14.5 × 5.6 × 14.0 cm | 0.29 kg | Stable networking |
| 1756-IB16 | Input module | Digital input | 14.5 × 5.6 × 14.0 cm | 0.27 kg | Reliable sensing |
| 1756-OB16 | Output module | Digital output | 14.5 × 5.6 × 14.0 cm | 0.36 kg | Stable switching |
| 1756-PA75 | Power module | Power supply | 14.5 × 5.6 × 14.0 cm | 0.90 kg | System stability |
Installation Notes
- Install in a ventilated control cabinet
- Ensure proper grounding
- Use shielded analog wiring
- Avoid strong electromagnetic interference
- Maintain adequate cooling space
Maintenance Notes
| Item | Recommendation |
|---|---|
| Calibration | Periodic verification |
| Terminal inspection | Ensure tight connections |
| Dust control | Regular cleaning |
| Output testing | Verify signal accuracy |
| Power quality | Maintain stable supply |
| Environment | Avoid humidity fluctuations |
Overall Summary
The 1756-OF8 is a robust 8-channel analog output module designed for industrial automation systems requiring accurate voltage and current signal generation. Its combination of multi-channel output, high resolution, and fast response makes it suitable for a wide range of process control and industrial automation applications where stable analog control is essential.
