Troubleshooting Overview

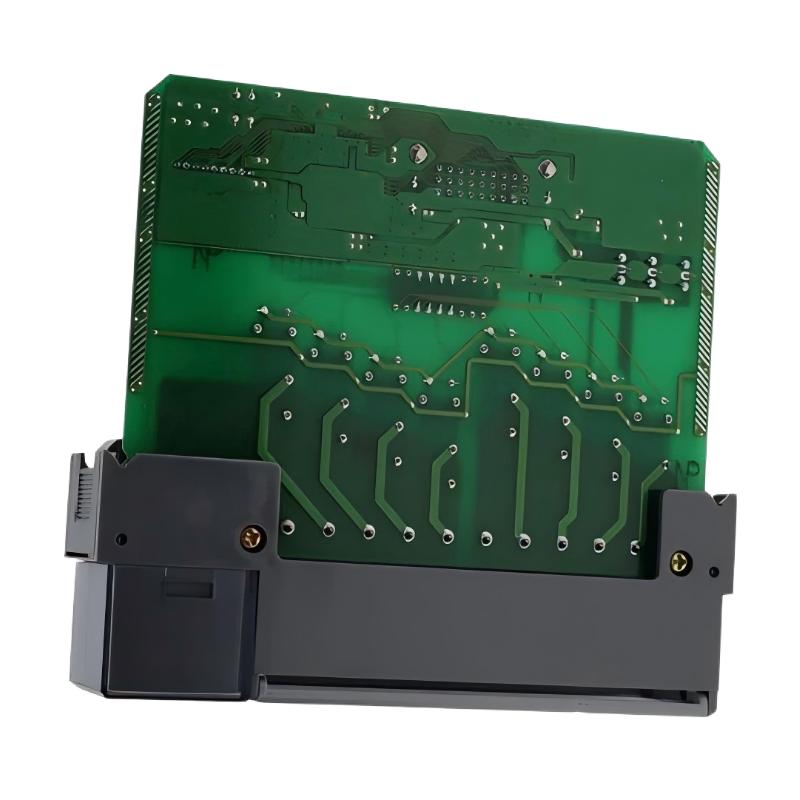

The Allen-Bradley 1746-OW8/A SLC 500 Relay Output Module Troubleshooting Guide explains how to diagnose relay output failures, switching problems, wiring faults, and abnormal field device operation.

The relay output module connects PLC control logic with external equipment. When output devices fail to operate correctly, engineers should inspect the complete control circuit instead of replacing the module immediately.

Common Fault Symptoms

• Output device does not start
• Relay contact does not switch
• PLC output command is active but equipment does not respond
• Output signal becomes unstable
• Equipment stops unexpectedly
• Multiple output channels fail

Common Failure Causes

The common causes of 1746-OW8/A output faults include:

• Loose terminal connections
• Damaged field wiring
• Incorrect PLC output addressing
• Relay contact wear
• Electrical surge impact
• Incorrect load connection
• Module hardware failure

Fault Diagnosis Process

The recommended troubleshooting steps include:

1. Check PLC output command status
2. Verify module operating condition
3. Inspect output wiring
4. Measure field device voltage
5. Check relay switching condition
6. Verify external equipment operation
7. Confirm final system status

1746_OW8A_DIAGNOSTIC

MODEL = 1746-OW8/A

STEP_01 = PLC_LOGIC_CHECK
STEP_02 = OUTPUT_STATUS_CHECK
STEP_03 = WIRING_CHECK
STEP_04 = LOAD_CHECK
STEP_05 = MODULE_CHECK

Repair Methods

After identifying the fault source, engineers can perform the following actions:

• Tighten loose wiring terminals
• Repair damaged cables
• Correct PLC addressing errors
• Replace damaged field devices
• Add electrical protection components
• Replace the output module if hardware damage is confirmed

Post-Repair Verification

• Check PLC output operation
• Test relay switching function
• Verify all output channels
• Confirm connected equipment response
• Monitor system operation
• Record maintenance results

Troubleshooting Summary

The Allen-Bradley 1746-OW8/A SLC 500 Relay Output Module troubleshooting process requires systematic inspection of PLC logic, wiring connections, relay contacts, and external equipment. Correct fault diagnosis helps reduce downtime and improves the reliability of industrial automation systems.
