1746-NT4/B Thermocouple/mV Analog Input Module Troubleshooting Overview

The Allen-Bradley 1746-NT4/B SLC 500 Thermocouple/mV Analog Input Module Troubleshooting Guide provides a professional method for diagnosing temperature measurement problems, analog signal instability, sensor connection errors, and configuration faults in industrial automation systems.

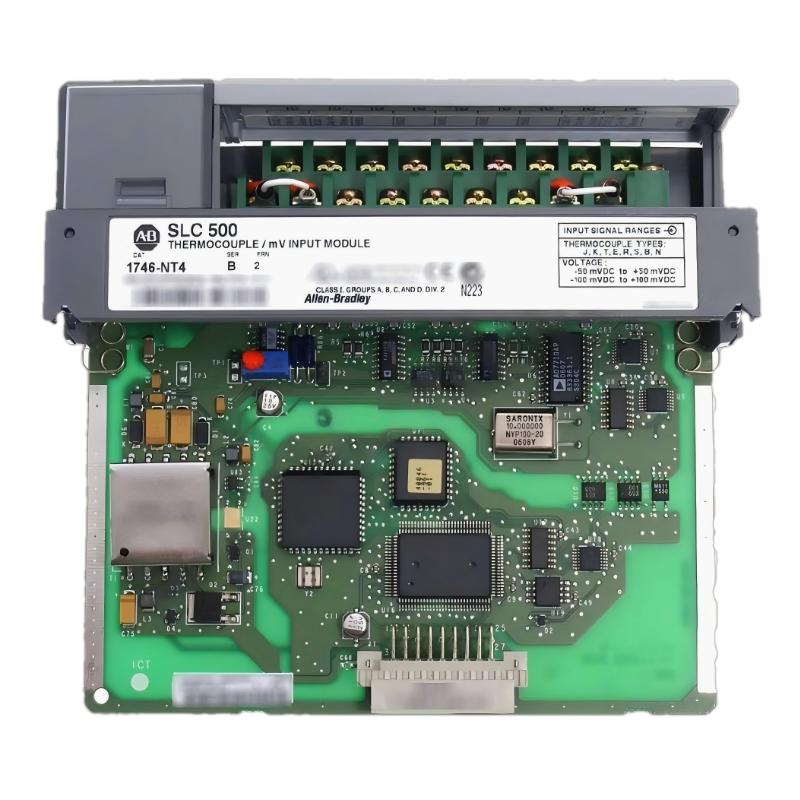

The 1746-NT4/B is a four-channel temperature measurement module used with SLC 500 PLC systems. It collects thermocouple and millivolt signals from field sensors and converts these analog signals into digital values for PLC monitoring and control.

When temperature data becomes incorrect or unstable, engineers should inspect the complete measurement circuit, including sensor condition, wiring quality, input configuration, environmental interference, and module operation.

Field Case: 1746-NT4/B Temperature Reading Failure Analysis

In an industrial heating process, operators discovered that one temperature monitoring channel displayed a value significantly different from the actual process temperature. The PLC control program was running normally, but the heating system could not maintain the expected temperature range.

Maintenance engineers checked the 1746-NT4/B module status and confirmed that the PLC communication was normal. The troubleshooting process then focused on the field temperature measurement circuit.

Inspection showed that the thermocouple connection terminal had become loose due to long-term vibration. The unstable connection caused inaccurate temperature signals.

After tightening the terminal connection and checking the sensor wiring, the temperature value returned to normal operation.

Common 1746-NT4/B Fault Symptoms

Typical fault symptoms during operation include:

• Incorrect temperature display
• Temperature value suddenly changes
• Input channel shows unstable readings
• PLC receives incorrect analog data
• One temperature channel stops updating
• Temperature control process becomes unstable
• Input signal exceeds expected range

These problems may come from sensors, wiring, configuration settings, electrical interference, or module hardware conditions.

Temperature Input Fault Diagnosis Process

A complete troubleshooting process for the 1746-NT4/B should include:

1. Check PLC temperature data monitoring
2. Verify module operating status
3. Inspect thermocouple sensor condition
4. Check input wiring connections
5. Measure sensor signal stability
6. Verify channel configuration
7. Inspect grounding and shielding

This method helps engineers determine whether the problem is caused by the temperature sensor, field wiring, PLC configuration, or analog input module.

Common Causes of 1746-NT4/B Failure

The main causes of 1746-NT4/B temperature input faults include:

• Loose thermocouple wiring
• Incorrect sensor type configuration
• Damaged temperature sensor
• Broken extension cable
• Electrical noise interference
• Poor grounding condition
• Incorrect PLC scaling parameters
• Analog input module hardware failure

In practical industrial maintenance, many temperature signal problems are related to external field conditions rather than internal module damage.

Detailed Troubleshooting Procedure

The recommended troubleshooting workflow includes:

1. Record abnormal temperature information
2. Check PLC input data values
3. Confirm 1746-NT4/B module status
4. Inspect sensor wiring connections
5. Check thermocouple polarity
6. Test sensor output signal
7. Verify channel parameters
8. Confirm system recovery

1746_NT4B_DIAGNOSTIC

MODEL = 1746-NT4/B

STEP_01 = CHECK_PLC_DATA
STEP_02 = CHECK_SENSOR
STEP_03 = CHECK_WIRING
STEP_04 = CHECK_CONFIGURATION
STEP_05 = CHECK_MODULE_STATUS

Fault Repair and Recovery Actions

After identifying the fault source, engineers can take the following corrective actions:

• Tighten loose terminal connections
• Replace damaged thermocouple sensors
• Repair broken signal cables
• Correct sensor configuration settings
• Improve cable shielding
• Separate analog cables from interference sources
• Adjust PLC data processing parameters
• Replace the module when hardware failure is confirmed

Proper diagnosis can often restore system operation without replacing the complete analog input module.

Post-Repair Testing and Verification

After completing maintenance work, engineers should perform final system verification:

• Check all temperature input channels
• Confirm stable analog readings
• Verify PLC data accuracy
• Test temperature control response
• Monitor operation for stability
• Record repair information

A complete verification process ensures that the SLC 500 temperature monitoring system operates reliably after repair.

Frequently Asked Questions

Why does the 1746-NT4/B display incorrect temperature values?

Possible causes include incorrect sensor wiring, wrong configuration, signal interference, damaged sensors, or module problems.

Why does the temperature signal fluctuate?

Common reasons include loose connections, poor shielding, grounding problems, or electrical interference from nearby equipment.

Should the 1746-NT4/B be replaced immediately after a temperature fault?

No. Engineers should first check sensors, wiring, configuration, and signal conditions before replacing the module.

Engineering Summary

The Allen-Bradley 1746-NT4/B SLC 500 Thermocouple/mV Analog Input Module Troubleshooting process requires a systematic inspection of sensors, wiring, configuration parameters, signal quality, and module performance. Accurate Fault Diagnosis helps restore temperature measurement accuracy, reduce machine downtime, and improve the reliability of industrial automation systems.
