Allen Bradley 1606-XLE80E Power Supply Installation Overview

Allen Bradley 1606-XLE80E Power Supply installation should be treated as part of the complete DC power distribution design, not simply as a mounting operation. The most important installation checks are correct AC input wiring, protective grounding, secure terminals, appropriate cabinet ventilation and verification of the downstream 24 VDC load. A proper Installation Guide helps prevent PLC Controller resets, I/O communication interruptions and unstable field-device operation before the system reaches production.

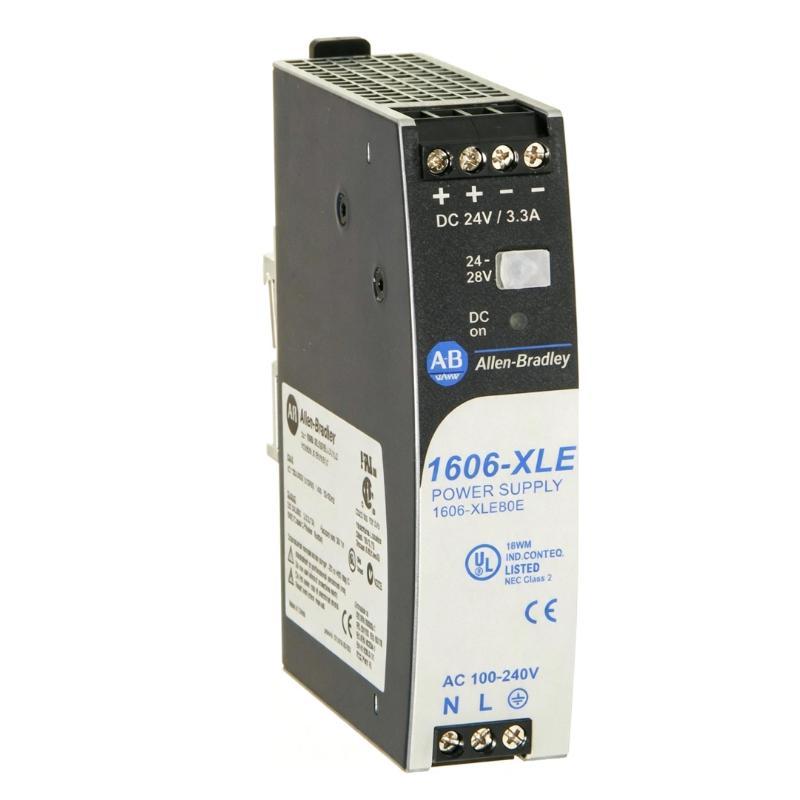

The Allen Bradley 1606-XLE80E belongs to the 1606-XLE family of industrial power supplies and is intended for control-panel applications where reliable DC power is required. During Setup and Commissioning, engineers should establish electrical baseline measurements that can later be used for Troubleshooting and Fault Diagnosis.

Allen Bradley 1606-XLE80E Power Supply Application and System Role

In an industrial automation cabinet, the power supply is normally positioned between the incoming electrical distribution and low-voltage control equipment. Its output may feed a combination of PLC Controllers, remote I/O Modules, HMIs, communication devices, Sensors and other control components.

• PLC and controller power distribution
• Remote I/O systems
• Industrial communication equipment
• Human-machine interfaces
• Control relays and interface devices
• Industrial Sensors and instrumentation

The power supply should therefore be evaluated according to the total System Configuration rather than as an isolated component.

Allen Bradley 1606-XLE80E Installation Preparation

Before installation, calculate the expected DC load under both normal and maximum operating conditions. Pay particular attention to equipment that creates short-duration current peaks, because intermittent voltage drops may not appear when the machine is operating without a full load.

• Review the electrical drawings.
• Confirm the incoming supply arrangement.
• Calculate connected DC loads.
• Check branch circuit protection.
• Inspect the cabinet ventilation path.
• Verify protective earth continuity.
• Prepare correctly sized conductors.
• Separate control wiring from high-current motor wiring.

All work involving hazardous voltage should be performed by qualified personnel under the site’s approved isolation and lockout procedures.

Allen Bradley 1606-XLE80E Mounting and Cabinet Installation

Install the Allen Bradley 1606-XLE80E securely in the intended control cabinet location. Maintain sufficient space around the unit for heat dissipation and service access. Avoid placing the power supply immediately beside components that generate substantial heat.

Before completing the mechanical installation, inspect the mounting surface and DIN-rail condition. A poorly secured component can experience mechanical vibration, which may eventually contribute to connector or terminal problems.

Cabinet layout should also consider future maintenance. Incoming power terminals, DC distribution and measurement points should remain accessible to qualified technicians without requiring unnecessary removal of neighboring equipment.

Allen Bradley 1606-XLE80E Wiring and Electrical Setup

Correct wiring is one of the most important parts of the Allen Bradley 1606-XLE80E Installation Guide. Before connecting conductors, confirm the actual terminal designations from the equipment documentation and site electrical drawings rather than relying on assumptions based on another 1606-series model.

• Verify incoming AC conductors.
• Connect protective earth correctly.
• Confirm the DC output polarity.
• Use suitable wire sizes for the expected current.
• Check terminal tightness.
• Keep DC control wiring organized.
• Label outgoing circuits clearly.

Incoming AC Supply
        |
        v
Allen Bradley 1606-XLE80E
        |
        v
Regulated DC Distribution
        |
   +----+----+---------+
   |         |         |
 PLC       Remote     HMI /
Controller I/O        Network
   |         |
   +---------+
        |
     Sensors

After wiring, perform a visual inspection and verify that no conductor strands are exposed or trapped incorrectly beneath terminals. Check polarity carefully before connecting sensitive electronic equipment.

Allen Bradley 1606-XLE80E Setup and Commissioning

Commissioning should be performed progressively. Energizing the entire automation system at once can make it difficult to identify the source of an abnormal condition.

1. Verify the incoming supply with the circuit de-energized and isolated.
2. Complete the final wiring inspection.
3. Energize the power supply according to the approved startup procedure.
4. Measure the DC output.
5. Connect or enable control-system loads progressively.
6. Observe PLC Controller startup behavior.
7. Check remote I/O and communication devices.
8. Operate the system under increasing load.

Record the measured DC voltage at the power supply and at important downstream distribution points. These readings become useful reference values for future Fault Diagnosis.

Allen Bradley 1606-XLE80E Installation Validation and System Testing

A successful Installation and Commissioning process should verify more than whether the power supply turns on. The complete System Configuration should remain stable during normal machine operation.

• DC output remains stable.
• PLC Controller completes startup normally.
• Remote I/O remains online.
• Industrial communication is stable.
• HMI operation remains uninterrupted.
• Sensor signals remain consistent.
• No abnormal heating is observed.
• No unexplained control-system resets occur.

For larger control systems, repeat voltage measurements while motors, contactors and other major loads are operating. A stable unloaded measurement does not automatically prove that the DC distribution is adequate under production conditions.

Allen Bradley 1606-XLE80E Field Commissioning Case

In one commissioning case involving a packaging machine, the PLC operated normally when the machine was idle but restarted intermittently when several pneumatic solenoids and auxiliary control devices were activated together.

The Allen Bradley 1606-XLE80E Power Supply was initially suspected because the PLC and field devices shared the same DC distribution network. Engineers first measured the supply output under no-load conditions and obtained approximately 24.1 VDC. The reading appeared normal.

The next measurement was taken at the remote I/O cabinet while the machine was operating. The voltage briefly decreased to approximately 22.4 VDC during simultaneous device activation.

Further inspection found a loose DC distribution terminal combined with an excessively long branch cable. After correcting the connection and improving the distribution arrangement, the remote voltage remained close to 24 VDC during the same operating sequence.

The power supply itself did not require replacement. The case demonstrates why installation verification should include the entire DC distribution path rather than focusing only on the power supply terminals.

Allen Bradley 1606-XLE80E Installation FAQ

What should be checked before installing the Allen Bradley 1606-XLE80E?

Review the electrical drawings, incoming supply, DC load, grounding, cabinet ventilation, wiring and protective devices before energizing the equipment.

Why is DC polarity verification important?

Incorrect polarity can damage connected electronic equipment and create unnecessary commissioning failures. Always verify the actual terminal markings before connection.

Should the DC voltage be measured at remote equipment?

Yes. Measuring only at the power supply can hide voltage drops caused by long cables, overloaded branches or high-resistance terminals.

Can the power supply be commissioned with the entire machine connected?

A staged startup is preferable. Progressive loading makes abnormal voltage behavior easier to identify and reduces troubleshooting time.

Allen Bradley 1606-XLE80E Technical Summary

The Allen Bradley 1606-XLE80E Power Supply Installation Guide should combine safe electrical preparation, correct cabinet mounting, verified wiring, controlled Setup and structured Commissioning. The most reliable installation approach is to treat the power supply and its DC distribution network as one system. Recording baseline measurements during commissioning also provides valuable information for future maintenance, Troubleshooting and Fault Diagnosis.

Table of Contents

• Allen Bradley 1606-XLE80E Power Supply Fault Diagnosis Overview
• Allen Bradley 1606-XLE80E Common Troubleshooting Symptoms
• Allen Bradley 1606-XLE80E Troubleshooting Diagnostic Path
• Allen Bradley 1606-XLE80E Electrical Fault Diagnosis
• Allen Bradley 1606-XLE80E External Circuit Troubleshooting
• Allen Bradley 1606-XLE80E Repair and Replacement Strategy
• Allen Bradley 1606-XLE80E Real Maintenance Case
• Allen Bradley 1606-XLE80E Troubleshooting FAQ
• Allen Bradley 1606-XLE80E Technical Summary

Allen Bradley 1606-XLE80E Power Supply Fault Diagnosis Overview

Allen Bradley 1606-XLE80E Power Supply Troubleshooting should start with measured voltage and load behavior, not immediate component replacement. If a PLC Controller repeatedly resets, an I/O Module disappears from the network or a Sensor becomes unstable, the power supply may be involved, but the actual root cause can also be downstream wiring, excessive load, grounding problems or a high-resistance connection.

The fastest Fault Diagnosis method is to determine whether the abnormal condition exists at the power supply itself or appears only after the DC power travels through the distribution system.

Allen Bradley 1606-XLE80E Common Troubleshooting Symptoms

• PLC Controller unexpectedly restarts.
• Remote I/O communication is interrupted.
• HMI resets intermittently.
• Network equipment loses power.
• Sensor readings become unstable.
• Control relays drop out unexpectedly.
• Automation equipment works at light load but fails during production.
• DC voltage appears unstable at remote devices.

The timing of the failure is particularly important. A fault that occurs only when several loads start simultaneously points toward a different diagnostic path than a fault that exists immediately after AC power is applied.

Allen Bradley 1606-XLE80E Troubleshooting Diagnostic Path

Use a divide-and-isolate approach. First establish whether the abnormal voltage exists at the Allen Bradley 1606-XLE80E output. If the supply output is stable, move downstream through the distribution system.

Fault Report
     |
     v
Check Incoming AC
     |
     v
Check 1606-XLE80E Output
     |
     +---- Unstable --> Investigate Power Supply / Input
     |
     +---- Stable
             |
             v
       Check DC Distribution
             |
             v
       Check Remote Voltage
             |
             v
      Check Connected Loads
             |
             v
        Root Cause

This method prevents a common maintenance mistake: replacing a functioning power supply simply because several downstream devices lose power at the same time.

Allen Bradley 1606-XLE80E Electrical Fault Diagnosis

Electrical measurements should be taken under both idle and loaded conditions. A power supply can appear normal with minimal load while a distribution problem becomes visible only during peak demand.

• Measure incoming AC voltage.
• Measure DC output voltage.
• Measure voltage at the main DC distribution block.
• Measure voltage at the affected PLC Controller.
• Measure voltage at remote I/O Modules.
• Observe voltage during load switching.
• Check protective earth continuity.

Example diagnostic records can be organized as follows:

Condition: Machine idle
Power supply output: approximately 24.1 VDC
Remote cabinet: approximately 24.0 VDC

Condition: Multiple loads active
Power supply output: approximately 24.0 VDC
Remote cabinet: approximately 22.3 VDC

Diagnostic direction:
Investigate DC distribution rather than immediately replacing
the power supply.

The values above are an example diagnostic format rather than universal specifications for every installation.

Allen Bradley 1606-XLE80E External Circuit Troubleshooting

When the power supply output remains stable but the connected automation equipment experiences failures, inspect the external circuit carefully.

• Loose terminal screws
• Corroded distribution terminals
• Undersized conductors
• Excessively long DC branches
• Overloaded circuits
• Incorrectly connected loads
• Grounding problems
• Damaged cables

Special attention should be given to recently modified cabinets. A machine that operated correctly for years but develops intermittent DC problems immediately after an expansion often has a distribution or wiring issue rather than a spontaneous power supply failure.

Allen Bradley 1606-XLE80E Repair and Replacement Strategy

Repair decisions should be based on evidence. The following sequence is useful for field maintenance:

1. Confirm the reported symptom.
2. Inspect the power supply and cabinet visually.
3. Verify the incoming AC supply.
4. Measure the DC output.
5. Measure downstream voltage under load.
6. Check connected equipment current demand.
7. Inspect terminals and wiring.
8. Compare results with commissioning baseline data.
9. Replace the power supply only when evidence indicates an internal fault.

If a replacement is necessary, record the original failure conditions before removing the unit. This information can help determine whether the replacement actually resolves the root problem.

Allen Bradley 1606-XLE80E Real Maintenance Case

During maintenance of an automated material-handling system, operators reported that the PLC Controller occasionally restarted after several conveyors were enabled simultaneously. The problem did not occur when only one conveyor was running.

Because the PLC, I/O and control relays were powered from the same DC network, the Allen Bradley 1606-XLE80E was initially identified as a possible cause.

Engineers compared the supply output with the voltage at the PLC cabinet. At idle, the power supply measured approximately 24.2 VDC and the PLC measured approximately 24.0 VDC. During simultaneous conveyor startup, the supply remained near 24 VDC, but the PLC input dropped briefly to approximately 22.1 VDC.

The troubleshooting team then inspected the distribution path and discovered a partially loosened terminal on the DC bus. The connection generated a measurable voltage drop when the current increased.

After the terminal was properly serviced and the distribution connections were rechecked, the PLC remained stable through repeated conveyor starts. No power supply replacement was required.

This case highlights an important Fault Diagnosis principle: if the source voltage is stable but the load voltage collapses, investigate the path between the source and the load.

Allen Bradley 1606-XLE80E Troubleshooting FAQ

How can I determine whether the 1606-XLE80E itself is faulty?

Compare its input and DC output behavior under both idle and loaded conditions. If the output remains stable while downstream voltage falls, investigate external distribution circuits first.

Why does the PLC restart only when the machine is heavily loaded?

Peak current demand can expose voltage drops caused by undersized cables, overloaded branches or high-resistance connections.

Can a loose terminal cause intermittent faults?

Yes. A loose connection may appear normal at low current and produce significant voltage loss when the connected equipment demands more current.

Should the power supply be replaced whenever multiple devices lose power?

No. Multiple device failures can result from a single downstream distribution problem. Measure the voltage at both the power supply and affected equipment before deciding on replacement.

Allen Bradley 1606-XLE80E Technical Summary

The Allen Bradley 1606-XLE80E Power Supply Troubleshooting Guide is based on a simple but effective engineering principle: locate the point where electrical performance changes. By comparing incoming power, supply output and downstream DC voltage under real operating conditions, technicians can distinguish an internal power supply problem from wiring, distribution and load-related faults. This approach improves Fault Diagnosis accuracy, reduces unnecessary replacement and supports reliable operation of PLC Controllers, I/O Modules and industrial automation equipment.
