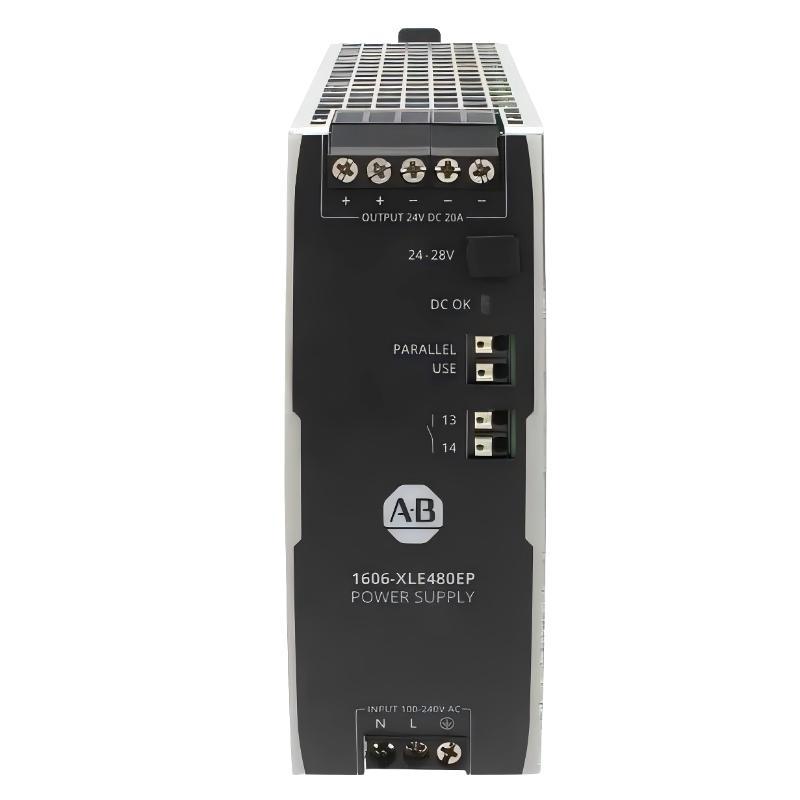

Allen Bradley 1606-XLE480EP Fault Diagnosis Overview

Allen Bradley 1606-XLE480EP Power Supply faults should be diagnosed by following the electrical power path instead of replacing hardware immediately. In industrial automation systems, PLC Controller restarts, Ethernet communication failures and unstable Sensor signals are more commonly caused by poor DC distribution, overloaded circuits or loose wiring than by an internal power supply defect.

An effective Troubleshooting process identifies exactly where voltage becomes unstable under actual operating conditions.

Allen Bradley 1606-XLE480EP Common Fault Symptoms

• Unexpected PLC Controller reboot.
• Industrial Ethernet communication loss.
• Remote I/O disconnects.
• HMI restart.
• Servo controller faults.
• Sensor instability.
• Voltage drop during production.

Recording when the faults occur greatly improves the efficiency of Fault Diagnosis.

Allen Bradley 1606-XLE480EP Troubleshooting Workflow

Incoming AC
      │
      ▼
Measure Input Voltage
      │
      ▼
Verify Power Supply Output
      │
      ▼
Inspect DC Distribution
      │
      ▼
Measure Remote Cabinet
      │
      ▼
Check PLC Controller
      │
      ▼
Verify Field Devices
      │
      ▼
Determine Root Cause

Measurements should always be taken while the equipment is operating under the same conditions that generate the reported fault.

Common Causes of Allen Bradley 1606-XLE480EP Power Supply Faults

• Loose DC terminals.
• Overloaded distribution circuits.
• Undersized cables.
• Poor grounding.
• High-resistance terminal blocks.
• Improper cabinet modifications.
• Excessive ambient temperature.

Many of these issues create symptoms nearly identical to an internal power supply failure.

Allen Bradley 1606-XLE480EP Repair Strategy

1. Verify incoming AC supply.
2. Measure regulated DC output.
3. Inspect protective devices.
4. Check distribution terminals.
5. Measure voltage throughout the DC network.
6. Review total connected load.
7. Replace the power supply only after external causes have been eliminated.

This engineering-based approach minimizes unnecessary spare-part replacement and production downtime.

Allen Bradley 1606-XLE480EP Real Maintenance Case

At an automotive assembly facility, operators reported repeated PLC communication alarms affecting multiple production cells during peak manufacturing periods.

The Allen Bradley 1606-XLE480EP Power Supply was initially considered defective because every affected PLC shared the same 24 VDC source.

Engineers continuously monitored voltage throughout the distribution network. The power supply output remained stable at approximately 24.18 VDC, while voltage measured inside a remote control cabinet periodically fell to approximately 21.7 VDC during simultaneous servo acceleration.

Inspection revealed oxidation on a DC distribution terminal together with additional equipment that had been connected without recalculating the power budget. After replacing the terminal block and redistributing the electrical load, remote voltage stabilized above 24.0 VDC and all communication alarms disappeared.

The original power supply remained in service, confirming that systematic engineering analysis is more reliable than replacing components based solely on fault symptoms.

Allen Bradley 1606-XLE480EP Troubleshooting FAQ

Why can PLC Controllers restart even when the power supply output is normal?

Voltage loss often occurs in downstream wiring or overloaded distribution circuits rather than inside the power supply.

Which measurement is the most important?

Compare the voltage at the power supply output with measurements taken directly at the affected PLC Controller or remote I/O Module during operation.

Can additional field equipment overload the DC system?

Yes. System expansion without updating the power calculation is one of the most common causes of intermittent automation faults.

Why should commissioning records be retained?

Baseline measurements provide valuable reference data that significantly accelerate future Troubleshooting and Fault Diagnosis.

Allen Bradley 1606-XLE480EP Technical Summary

The Allen Bradley 1606-XLE480EP Power Supply Troubleshooting Guide combines engineering analysis, practical field experience and systematic electrical measurement. By verifying the complete System Configuration and tracing voltage throughout the distribution network, maintenance engineers can accurately locate root causes, avoid unnecessary component replacement and improve the long-term reliability of PLC Controllers, I/O Modules, Sensors and industrial automation systems.
