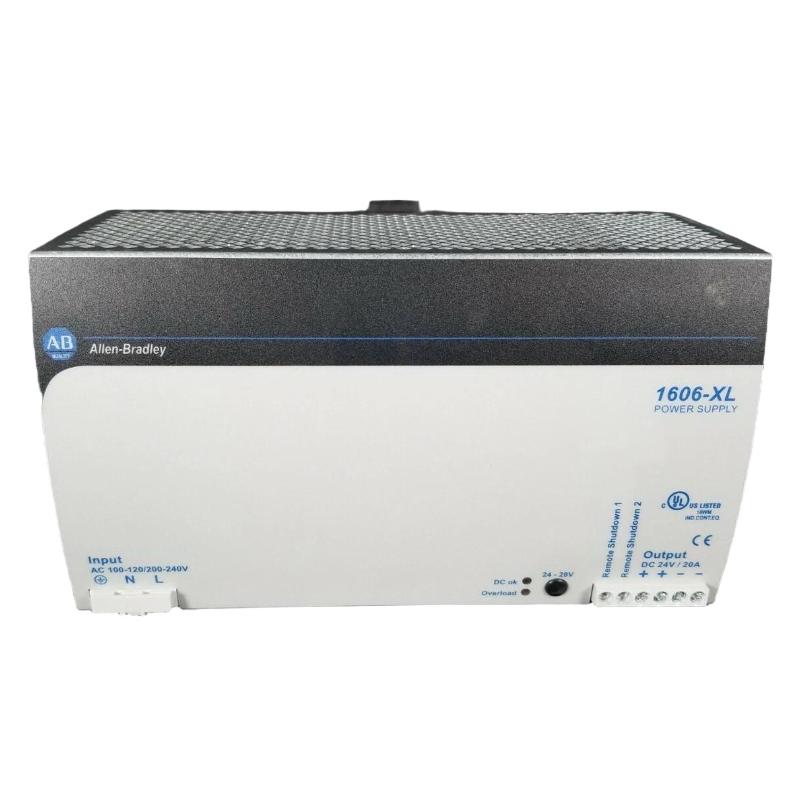

1606-XL480EPT Power Supply Overview

The Allen-Bradley 1606-XL480EPT Power Supply is designed to deliver stable DC power for industrial automation equipment operating in demanding production environments. It supplies reliable power to PLC controllers, distributed I/O systems, HMIs, sensors, industrial communication devices, and other control components.

Its industrial-grade design supports continuous operation while helping improve system reliability and simplify maintenance within electrical control cabinets.

Industrial Applications

The 1606-XL480EPT power supply is suitable for numerous industrial applications, including:

• PLC control systems
• Industrial automation cabinets
• Manufacturing production lines
• Packaging machinery
• Water treatment systems
• Material handling equipment
• Process automation systems

Installation Preparation

Before installation, complete the following preparation tasks:

• Verify the incoming AC power specifications.
• Calculate the required DC load capacity.
• Inspect the control cabinet installation space.
• Prepare suitable power cables and terminals.
• Confirm protective grounding requirements.
• Review the electrical wiring drawings.

DIN Rail Mounting Procedure

The power supply should be securely installed on a DIN rail inside a properly ventilated electrical enclosure.

1. Disconnect the incoming power source.
2. Select an appropriate mounting position.
3. Attach the module securely to the DIN rail.
4. Verify the locking mechanism is fully engaged.
5. Maintain adequate clearance for ventilation.

Input and Output Wiring

Correct wiring ensures safe and reliable operation.

• Connect the AC input terminals correctly.
• Connect protective earth.
• Wire the DC output terminals according to system requirements.
• Verify correct output polarity.
• Tighten all terminal screws securely.
• Separate power cables from communication wiring whenever possible.

1606_XL480EPT_INSTALL_CHECK

MODEL = 1606-XL480EPT

CHECK_01 = INPUT_POWER
CHECK_02 = OUTPUT_WIRING
CHECK_03 = DC_POLARITY
CHECK_04 = GROUND_CONNECTION
CHECK_05 = TERMINAL_INSPECTION
CHECK_06 = OUTPUT_TEST

Power-On Verification

• Measure the DC output voltage.
• Verify output stability under load.
• Inspect indicator status.
• Confirm connected devices receive normal power.
• Check for abnormal temperature rise.

Commissioning Procedure

1. Inspect all electrical connections.
2. Verify grounding integrity.
3. Apply input power.
4. Measure output voltage.
5. Power the connected automation equipment.
6. Monitor system performance.
7. Record commissioning parameters.

Installation Summary

The Allen-Bradley 1606-XL480EPT Power Supply installation procedure includes proper DIN rail mounting, accurate electrical wiring, reliable grounding, and comprehensive commissioning tests. Following these steps helps ensure stable DC power distribution and dependable operation throughout industrial automation systems.
