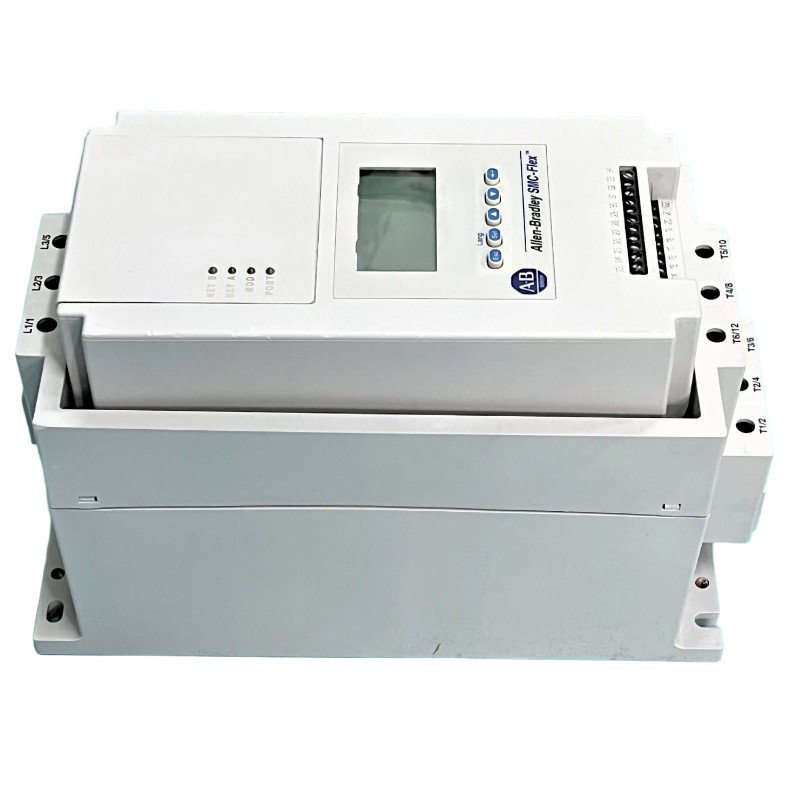

150-F85NBDB SMC Flex Smart Motor Controller Troubleshooting Overview

The Allen-Bradley 150-F85NBDB SMC Flex Smart Motor Controller Troubleshooting Guide provides a practical maintenance method for diagnosing motor startup failures, overload alarms, abnormal current conditions, and control problems.

The SMC Flex controller manages motor acceleration, stopping, and protection functions. When abnormal operation occurs, engineers should inspect the complete motor control system rather than replacing the controller immediately.

Field Fault Case Analysis

In one industrial conveyor application, the motor failed to complete the startup process. The controller received the start command, but the motor stopped during acceleration.

Maintenance engineers inspected the controller status and then checked the motor circuit. The investigation found that the mechanical load had increased because of equipment blockage.

After removing the excessive load and restarting the system, the motor returned to normal operation.

Common Fault Symptoms

• Motor cannot start
• Motor stops during acceleration
• Overload protection activated
• Abnormal motor current
• Controller shows fault status
• Start command does not respond
• Unexpected shutdown

Fault Diagnosis Process

1. Check incoming power supply
2. Review controller status
3. Inspect motor wiring
4. Measure motor current
5. Check parameter settings
6. Verify control signals
7. Inspect mechanical load

Common Failure Causes

• Incorrect motor parameters
• Loose electrical terminals
• Motor overload
• Phase imbalance
• Incorrect acceleration settings
• Control signal interruption
• Mechanical equipment problems
• Controller hardware failure

Troubleshooting Procedure

1. Record fault information
2. Check power conditions
3. Inspect motor connection
4. Verify controller parameters
5. Test control circuit
6. Check motor operation
7. Confirm system recovery

150_F85NBDB_DIAGNOSTIC

MODEL = 150-F85NBDB

STEP_01 = POWER_CHECK
STEP_02 = MOTOR_CHECK
STEP_03 = PARAMETER_CHECK
STEP_04 = CONTROL_CHECK
STEP_05 = LOAD_CHECK

Repair and Recovery Actions

• Tighten loose terminals
• Repair damaged cables
• Correct motor parameters
• Adjust acceleration settings
• Remove mechanical blockage
• Restore control signals
• Replace damaged components if required

Post-Repair Testing

• Confirm stable power supply
• Test motor startup
• Monitor acceleration process
• Verify operating current
• Check protection functions
• Record maintenance results

Engineering Summary

The Allen-Bradley 150-F85NBDB SMC Flex Smart Motor Controller Troubleshooting process requires systematic inspection of electrical wiring, motor conditions, controller parameters, and mechanical loads. Proper fault diagnosis helps reduce downtime and restore reliable motor operation in industrial automation systems.
