Troubleshooting Overview

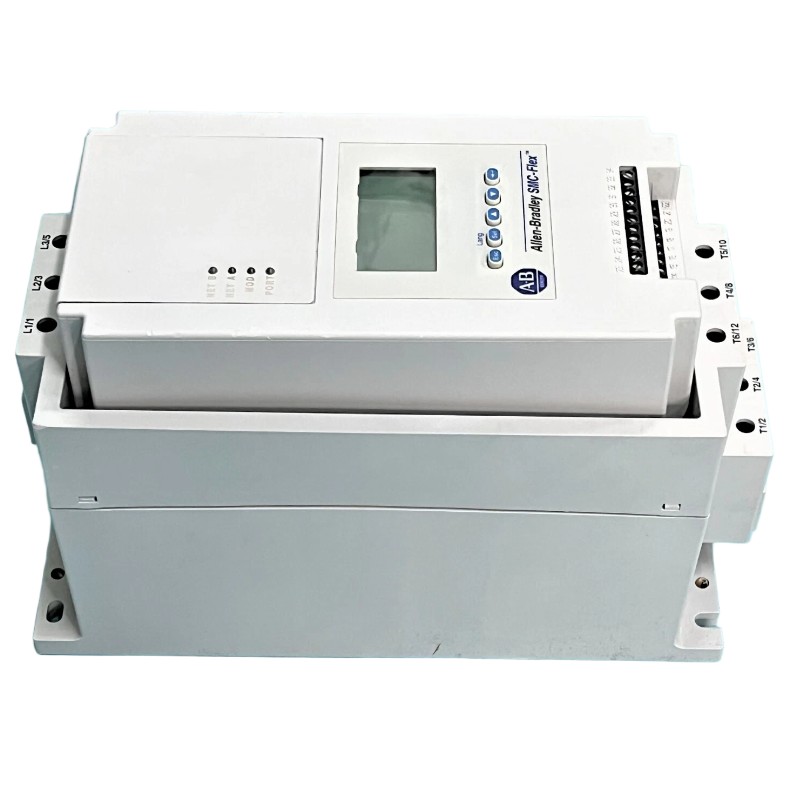

The Allen-Bradley 150-F85NBDB SMC Flex Smart Motor Controller Troubleshooting Guide provides a practical method for diagnosing motor startup failures, overload alarms, abnormal current conditions, and control problems.

The SMC Flex controller manages motor acceleration, stopping, and protection functions. When abnormal operation occurs, engineers should inspect the complete motor control system, including power supply, motor condition, wiring, parameters, and mechanical load.

Common Fault Symptoms

• Motor cannot start
• Controller displays fault condition
• Motor stops during acceleration
• Overload protection activates
• Motor current becomes abnormal
• Start command does not respond
• Unexpected shutdown occurs

Common Failure Causes

The main causes of 150-F85NBDB faults include:

• Incorrect motor parameter settings
• Loose power connections
• Motor overload condition
• Phase loss or imbalance
• Incorrect acceleration settings
• Control signal failure
• Mechanical equipment problems
• Controller internal failure

Fault Diagnosis Process

The recommended troubleshooting procedure includes:

1. Record fault information
2. Check incoming power supply
3. Inspect motor wiring
4. Verify control signals
5. Review controller parameters
6. Check motor load condition
7. Test system operation

150_F85NBDB_DIAGNOSTIC

MODEL = 150-F85NBDB

STEP_01 = POWER_CHECK
STEP_02 = MOTOR_CHECK
STEP_03 = CONTROL_CHECK
STEP_04 = PARAMETER_CHECK
STEP_05 = LOAD_CHECK

Repair Methods

After identifying the fault source, engineers can perform corrective actions:

• Tighten loose terminals
• Repair damaged cables
• Correct motor parameters
• Adjust acceleration settings
• Remove excessive mechanical load
• Restore control signals
• Replace damaged components if necessary

Post-Repair Verification

• Confirm stable power supply
• Test motor startup sequence
• Monitor acceleration performance
• Verify operating current
• Check protection functions
• Record maintenance results

Troubleshooting Summary

The Allen-Bradley 150-F85NBDB SMC Flex Smart Motor Controller troubleshooting process requires systematic inspection of electrical wiring, motor conditions, controller parameters, and mechanical loads. Correct fault diagnosis helps reduce downtime and improves the reliability of industrial automation systems.
