150-F135NBD SMC Flex Soft Starter Overview

The Allen-Bradley 150-F135NBD SMC Flex Soft Starter Installation Guide provides a complete engineering procedure for installing, wiring, configuring, and commissioning solid-state motor starting equipment in industrial automation systems.

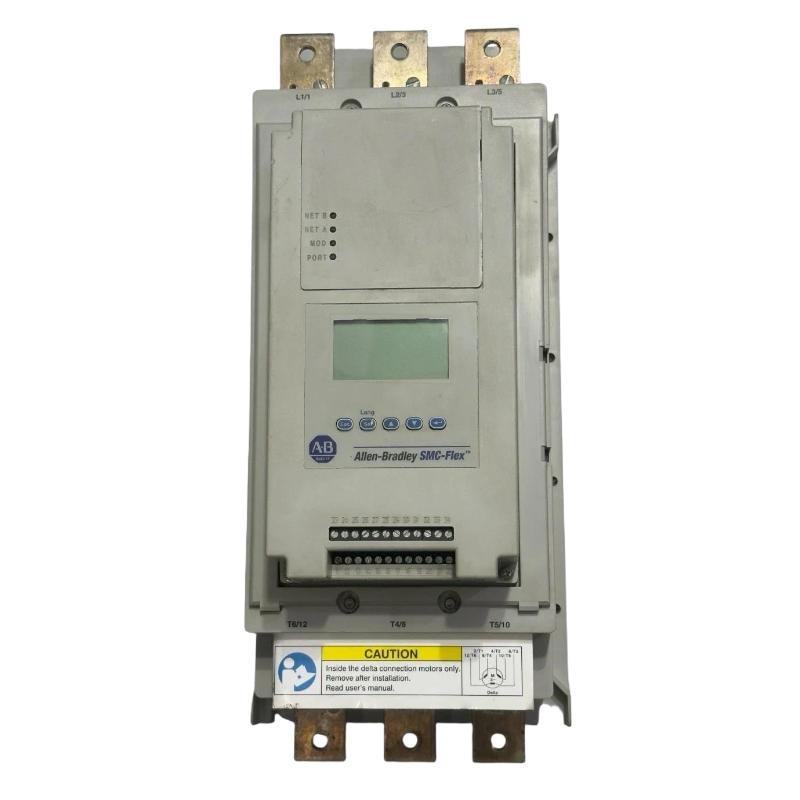

The 150-F135NBD is an Allen-Bradley SMC Flex smart motor controller designed for controlling three-phase AC motors. It provides controlled motor starting and stopping functions, helping reduce mechanical stress, current impact, and equipment wear during motor acceleration. The model is rated at 135 A with a 200…480V AC input range and 100…240V AC control voltage.

The SMC Flex soft starter is commonly used in industrial motor applications requiring smooth acceleration, motor protection, and reliable operation control.

Industrial Applications of 150-F135NBD

The Allen-Bradley 150-F135NBD SMC Flex Soft Starter is widely applied in heavy-duty motor control systems.

• Pump control systems
• Fan and blower applications
• Conveyor equipment
• Compressor systems
• Industrial processing machines
• Material handling equipment

By controlling motor starting current and acceleration characteristics, the soft starter helps improve mechanical system stability and reduce sudden starting impact.

Installation Preparation Requirements

Before installing the 150-F135NBD soft starter, engineers should complete the following preparation work:

• Confirm motor voltage and current specifications
• Verify three-phase power supply conditions
• Check cabinet installation space
• Review electrical wiring diagrams
• Prepare motor protection components
• Confirm grounding requirements

Correct preparation helps prevent wiring mistakes and ensures safe startup operation.

150-F135NBD Hardware Installation Procedure

The 150-F135NBD should be installed inside an appropriate electrical enclosure with sufficient ventilation and protection.

1. Disconnect incoming power supply
2. Select suitable cabinet installation position
3. Mount the soft starter securely
4. Check mechanical fixing condition
5. Connect power and control wiring
6. Inspect installation quality before energizing

Proper mechanical installation improves heat dissipation and long-term reliability of the motor control system.

Motor Power and Control Wiring

Correct wiring is essential for reliable operation of the SMC Flex soft starter.

Main wiring checks include:

• Connect three-phase incoming power correctly
• Connect motor output terminals correctly
• Verify motor rotation direction
• Connect control power supply
• Connect start and stop control signals
• Check auxiliary contact wiring
• Verify grounding connection

150_F135NBD_INSTALL_CHECK

MODEL = 150-F135NBD

CHECK_01 = POWER_CONNECTION
CHECK_02 = MOTOR_CONNECTION
CHECK_03 = CONTROL_POWER
CHECK_04 = START_STOP_SIGNAL
CHECK_05 = GROUNDING

During one motor control system installation, engineers found that the motor rotated in the incorrect direction after startup. Inspection showed that two phases of the motor power wiring were reversed. After correcting the phase sequence, the motor operated normally.

Parameter Configuration and Setup

After completing wiring, the 150-F135NBD parameters should be configured according to motor characteristics and application requirements.

• Set motor full-load current parameters
• Configure starting mode
• Adjust acceleration ramp time
• Set stopping method
• Configure overload protection settings
• Verify protection functions

Correct parameter settings allow the soft starter to provide suitable motor acceleration performance and protection.

Startup and Commissioning Process

A complete commissioning procedure includes:

1. Check all wiring connections
2. Apply control power
3. Verify display and status information
4. Start motor with low-risk testing
5. Monitor current and acceleration process
6. Confirm normal running condition
7. Record commissioning parameters

Engineers should monitor the first startup carefully to confirm that motor current, acceleration time, and mechanical response meet application requirements.

Engineering Installation Recommendations

Recommended installation practices include:

• Select correct soft starter rating according to motor load
• Maintain proper cabinet ventilation
• Separate power and control cables
• Check all terminal tightening points
• Keep parameter records after commissioning
• Perform regular inspection and maintenance

Following professional installation methods improves motor starting reliability and extends equipment service life.

Engineering Summary

The Allen-Bradley 150-F135NBD SMC Flex Soft Starter Installation process requires careful attention to mechanical mounting, power wiring, motor connection, parameter configuration, and commissioning testing. A correct installation approach ensures smooth motor starting, reliable protection performance, and stable operation in industrial automation applications.
