Table of Contents

• Field Case: SMC-3 Motor Startup Fault Investigation
• 150-C3NBR Smart Motor Controller Fault Symptoms
• SMC-3 Fault Diagnosis Process
• Common Causes of 150-C3NBR Faults
• 150-C3NBR Troubleshooting Procedure
• Motor Controller Repair and Recovery Actions
• System Testing After Fault Recovery
• FAQs on 150-C3NBR Troubleshooting
• Engineering Summary

Field Case: SMC-3 Motor Startup Fault Investigation

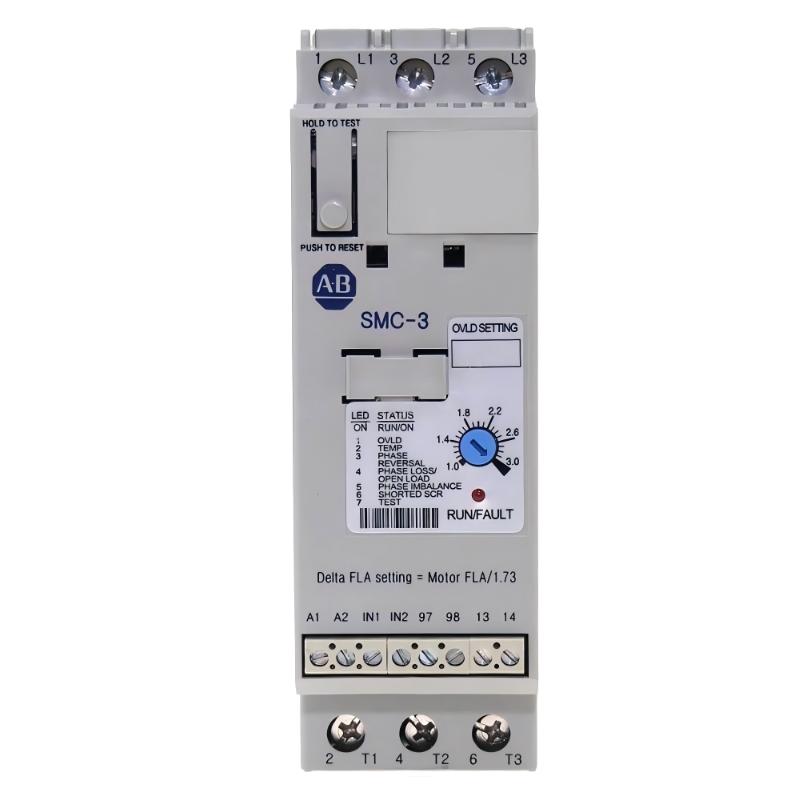

The Allen-Bradley 150-C3NBR SMC-3 Smart Motor Controller Troubleshooting process requires a complete inspection of the motor control system. In one industrial pump application, operators reported that the motor could not complete the startup sequence and the controller entered a protection state.

The maintenance team initially suspected that the SMC-3 controller had failed. However, after checking the electrical system, engineers discovered that the actual cause was an incorrect motor connection combined with unsuitable protection parameters.

This case demonstrates that many controller faults are caused by external system conditions. A professional Fault Diagnosis process must evaluate the power supply, motor load, wiring, configuration, and controller status together.

150-C3NBR Smart Motor Controller Fault Symptoms

Common fault symptoms found during troubleshooting include:

• Motor does not start after command input
• Controller stops during acceleration
• Overload protection activation
• Unexpected fault indication
• Motor current abnormality
• Repeated startup failure
• Control signal not responding

These symptoms may be caused by different parts of the motor system, so engineers should perform systematic analysis before replacing the controller.

SMC-3 Fault Diagnosis Process

A complete Fault Diagnosis procedure should include the following steps:

1. Record the current fault condition
2. Check incoming power quality
3. Verify motor wiring connections
4. Inspect control circuit signals
5. Review protection settings
6. Check startup parameters
7. Perform controlled restart testing

This diagnostic method helps identify whether the fault comes from the motor, electrical system, control circuit, or the 150-C3NBR controller.

Common Causes of 150-C3NBR Faults

The most common causes of SMC-3 motor controller faults include:

• Incorrect power wiring
• Loose motor terminals
• Motor overload condition
• Excessive mechanical load
• Incorrect protection settings
• Unstable control signals
• Improper startup parameters
• Poor cabinet cooling conditions

In practical industrial maintenance, many SMC-3 problems can be resolved by correcting external conditions instead of replacing the controller.

150-C3NBR Troubleshooting Procedure

A structured troubleshooting workflow includes:

1. Check controller status information
2. Inspect power and motor wiring
3. Verify start and stop commands
4. Check motor current condition
5. Review configuration parameters
6. Test system operation after correction

SMC3_FAULT_DIAG

MODEL = 150-C3NBR
CHECK = POWER_INPUT
CHECK = MOTOR_WIRING
CHECK = CONTROL_SIGNAL
CHECK = PARAMETERS
CHECK = PROTECTION_STATUS

During one field troubleshooting case, a conveyor motor repeatedly stopped during startup. Engineers checked the system and found that the motor acceleration requirement exceeded the configured startup settings. After adjusting the parameters, the SMC-3 controller completed the startup process successfully.

Motor Controller Repair and Recovery Actions

After identifying the root cause, engineers can perform the following corrective actions:

• Correct motor and power wiring
• Tighten loose terminal connections
• Adjust protection parameters
• Correct control circuit wiring
• Improve cabinet ventilation
• Verify motor load condition

Many 150-C3NBR faults can be recovered through proper troubleshooting without replacing the complete motor controller.

System Testing After Fault Recovery

After completing repair actions, engineers should perform final testing:

• Verify power supply stability
• Confirm motor startup sequence
• Check controller operating status
• Test overload protection function
• Monitor motor operation under load
• Record troubleshooting results

Complete testing ensures that the motor control system returns to reliable operation.

FAQs on 150-C3NBR Troubleshooting

Why does the 150-C3NBR stop during motor startup?

Possible causes include excessive load, incorrect parameters, wiring problems, unstable power supply, or protection settings.

Should the SMC-3 controller be replaced after a fault?

No. Engineers should first complete Fault Diagnosis because many failures are caused by external conditions.

What is the key point in SMC-3 troubleshooting?

The key point is identifying whether the problem comes from the motor system, control circuit, configuration, or controller hardware.

Engineering Summary

The Allen-Bradley 150-C3NBR SMC-3 Smart Motor Controller Troubleshooting process requires systematic analysis of electrical connections, motor conditions, control signals, and configuration parameters. Field experience shows that most startup failures and protection alarms can be resolved through accurate Fault Diagnosis and proper adjustment, improving system reliability while reducing unnecessary replacement costs.
