Product Overview

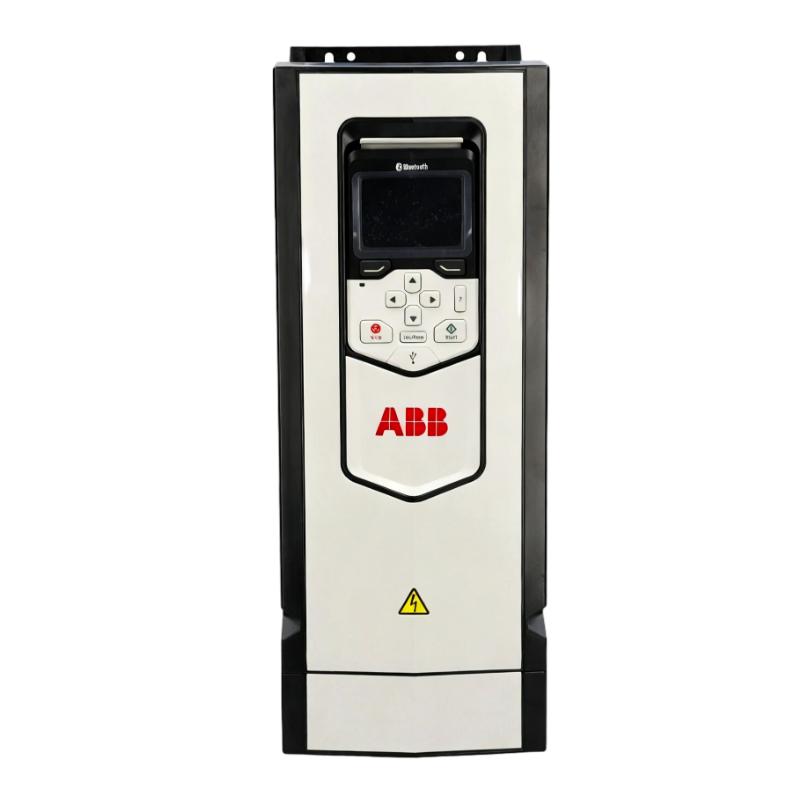

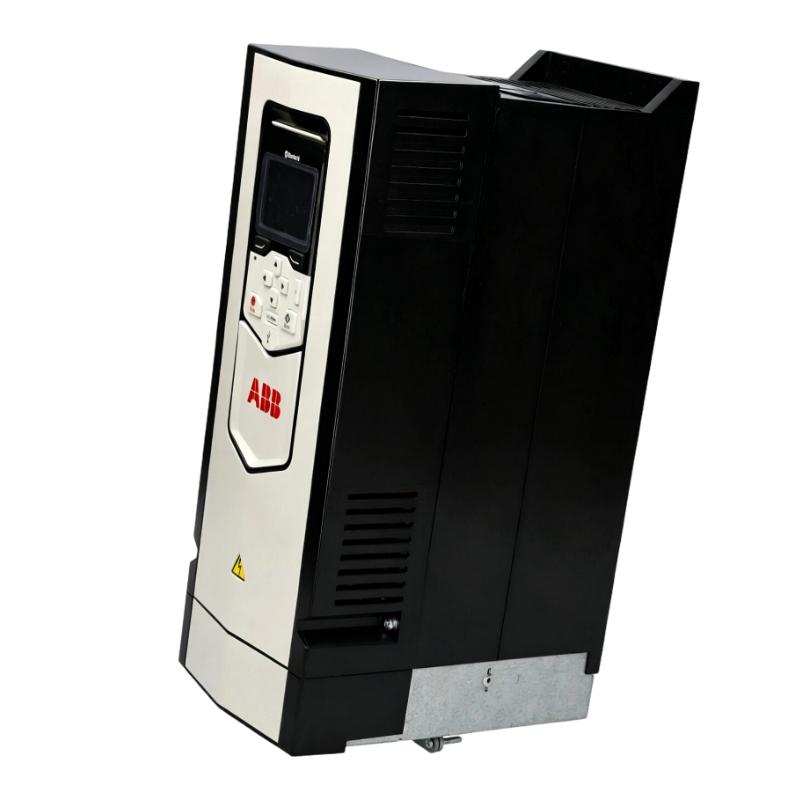

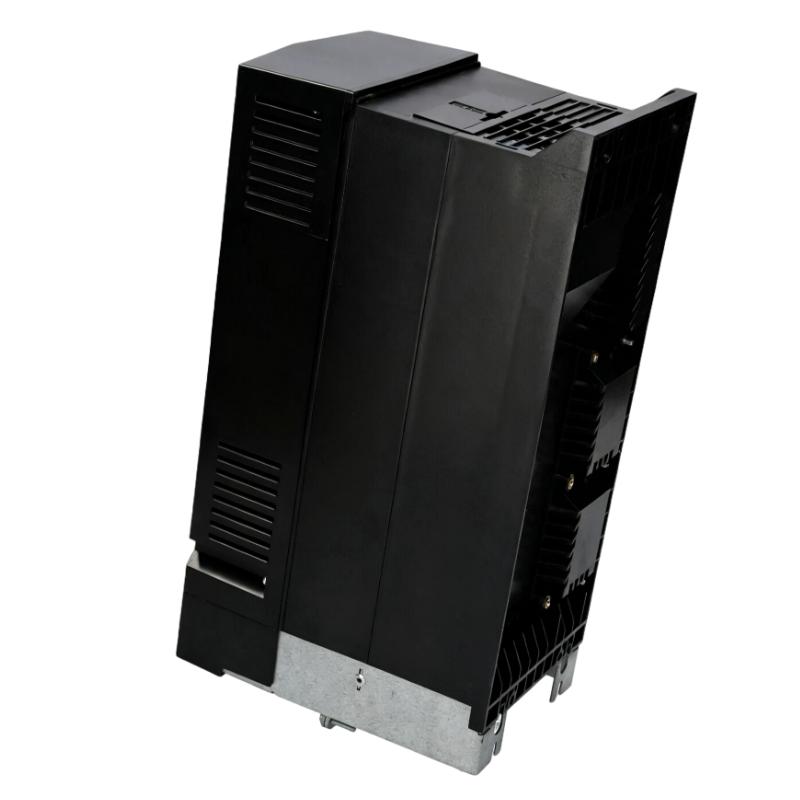

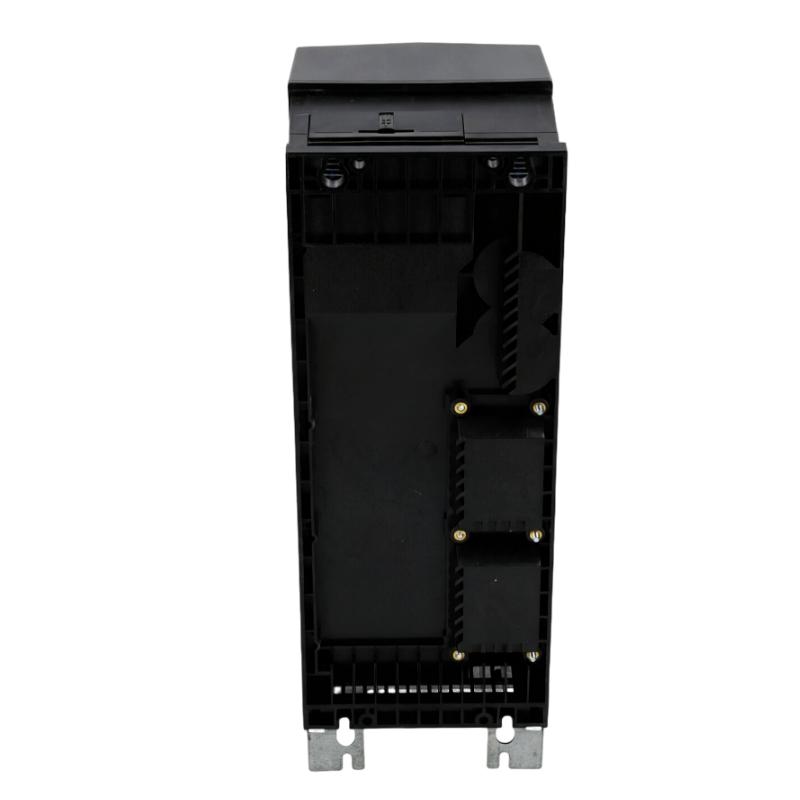

The ABB ACS880-01-02A4-3 (3AUA0000107974) Frequency Converter is a compact industrial AC drive designed for precise motor speed control, reliable operation, and efficient performance in modern automation systems.
As part of the ABB ACS880 single drive family, the ACS880-01-02A4-3 provides advanced motor control capability for applications requiring stable speed regulation, accurate torque control, and flexible integration with industrial automation systems.
This frequency converter is suitable for various low-power industrial applications, including pumps, fans, conveyors, small processing machines, and OEM automation equipment.
With dimensions of 409 x 155 x 226 mm and a weight of 7 kg, the ACS880-01-02A4-3 features a compact R1 frame design that allows efficient installation in limited spaces while maintaining reliable industrial performance.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | ACS880-01-02A4-3 |
| Part Number | 3AUA0000107974 |
| Product Type | Frequency Converter |
| Series | ACS880 |
| Drive Type | Industrial AC Drive |
| Rated Power | 0.75 kW |
| Output Current | 2.4 A |
| Input Voltage | 380–415 V AC |
| Phase | Three Phase |
| Frequency Range | 50/60 Hz |
| Control Technology | Direct Torque Control |
| Frame Size | R1 |
| Installation Type | Wall Mounted |
| Cooling Method | Air Cooling |
| Dimensions | 409 x 155 x 226 mm |
| Weight | 7 kg |
| Application | Industrial Motor Control |
Product Features
Compact Industrial Drive Design
The ABB ACS880-01-02A4-3 provides a compact solution for applications where installation space is limited.
Main advantages:
- Small installation footprint
- Lightweight structure
- Easy wall mounting
- Efficient cooling design
- Convenient maintenance access
The compact R1 frame makes it suitable for machine-level automation applications and small control cabinets.
Accurate Motor Control Performance
The frequency converter provides stable motor operation through advanced control technology.
Key benefits:
- Precise speed adjustment
- Reliable torque control
- Smooth acceleration and deceleration
- Stable operation under changing loads
- Improved process consistency
The drive helps maintain accurate motor performance in different industrial conditions.
Energy-Efficient Operation
The ACS880-01-02A4-3 helps improve system efficiency by adjusting motor speed according to actual process requirements.
Advantages:
- Reduced unnecessary energy consumption
- Optimized motor operation
- Lower mechanical stress
- Improved equipment efficiency
Flexible Automation Integration
The drive is designed for modern industrial automation environments.
Features:
- Flexible parameter configuration
- Easy commissioning
- Compatible with automation control systems
- Suitable for different motor applications
- Expandable control functions
Working Principle
The ABB ACS880-01-02A4-3 converts fixed-frequency AC input power into adjustable-frequency AC output power.
The operation process includes:
- AC power enters the frequency converter.
- The rectifier converts AC voltage into DC voltage.
- The DC bus stabilizes the electrical energy.
- The inverter converts DC power into controlled AC output.
- The motor receives optimized voltage and frequency.
- Motor speed and torque are adjusted according to application requirements.
This process allows accurate motor control and improves overall system performance.
Industrial Applications
Pump Systems
The ACS880-01-02A4-3 is suitable for small industrial pumping applications.
Typical uses:
- Water circulation pumps
- Cooling pumps
- Process fluid systems
- Transfer pumps
Benefits:
- Smooth startup
- Improved flow control
- Reduced energy consumption
- Extended pump lifetime
Fan and Ventilation Equipment
The drive provides efficient speed regulation for fan applications.
Applications:
- Ventilation systems
- Cooling fans
- Exhaust equipment
- Air handling systems
Advantages:
- Adjustable airflow
- Stable operation
- Reduced motor wear
- Improved efficiency
Conveyor Systems
The ACS880-01-02A4-3 can control small conveyor equipment requiring stable speed operation.
Applications:
- Packaging machines
- Assembly equipment
- Material handling systems
Benefits:
- Smooth acceleration
- Accurate speed control
- Reduced mechanical impact
OEM Machinery
The compact frequency converter is suitable for machine builders and automation equipment.
Applications:
- Small production machines
- Processing equipment
- Automated machinery
Advantages:
- Compact installation
- Reliable control
- Flexible configuration
Installation Guide
Installation Preparation
Before installation, check:
- Correct frequency converter model
- Motor voltage and current ratings
- Power supply requirements
- Installation environment
- Grounding connection
- Cooling conditions
Step 1: Mounting Installation
Installation procedure:
- Select a clean and ventilated installation location.
- Mount the drive vertically.
- Secure the converter firmly.
- Confirm ventilation openings are unobstructed.
Step 2: Power Wiring
Connect:
- Three-phase input power
- Motor output terminals
- Protective grounding
Before powering on, confirm all terminals are correctly tightened.
Step 3: Control Wiring
Connect:
- Start/stop commands
- Speed reference signals
- Digital inputs
- Analog inputs
- Communication connections
Keep control cables away from high-power cables.
Step 4: Parameter Setup
Configure:
- Motor rated voltage
- Motor rated current
- Motor speed
- Motor frequency
- Acceleration time
- Deceleration time
- Control mode
Correct parameter settings ensure stable operation.
Step 5: Commissioning Test
Perform:
- Wiring inspection
- Power-up test
- Motor rotation check
- Parameter verification
- Load operation test
Confirm normal operation before putting the system into service.
Fault Diagnosis and Troubleshooting
Drive Cannot Start
Possible Causes
- No input power
- Incorrect start command
- Incorrect parameter settings
- Control wiring problem
Solutions
- Check incoming power
- Verify control signals
- Review parameters
- Inspect wiring connections
Overcurrent Fault
Possible Causes
- Motor overload
- Motor cable short circuit
- Incorrect motor parameters
- Mechanical blockage
Solutions
- Check motor condition
- Inspect output cables
- Verify motor data
- Remove mechanical problems
Overvoltage Fault
Possible Causes
- Excessive regenerative energy
- Deceleration time too short
- Incorrect braking configuration
Solutions
- Increase deceleration time
- Adjust braking parameters
- Check load conditions
Overheating Fault
Possible Causes
- Poor ventilation
- Blocked cooling path
- High ambient temperature
- Excessive load
Solutions
- Improve airflow
- Clean cooling areas
- Check installation environment
- Reduce overload operation
Communication Fault
Possible Causes
- Incorrect communication settings
- Damaged cables
- Control system configuration errors
Solutions
- Check communication parameters
- Replace damaged cables
- Verify control system settings
Maintenance Recommendations
To maintain reliable operation:
- Clean cooling areas regularly
- Inspect electrical terminals
- Check operating temperature
- Review fault records
- Verify motor parameters
- Inspect wiring conditions
Regular maintenance helps improve system reliability and extend the service life of the frequency converter.
Key Advantages
0.75 kW Motor Control Capability
Suitable for small industrial motor applications.
2.4 A Output Capability
Provides stable motor control performance for compact equipment.
Compact R1 Frame Design
Supports installation in limited spaces.
Advanced Motor Control
Provides accurate speed and torque management.
Industrial Reliability
Designed for continuous operation in automation environments.
Technical FAQs
What is ABB ACS880-01-02A4-3?
The ABB ACS880-01-02A4-3 is an industrial frequency converter designed for variable-speed motor control.
What is the part number?
The part number is 3AUA0000107974.
What is the rated power?
The rated power is 0.75 kW.
What is the output current?
The output current is 2.4 A.
What are the dimensions?
The dimensions are 409 x 155 x 226 mm.
What is the weight?
The weight is 7 kg.
Conclusion
The ABB ACS880-01-02A4-3 3AUA0000107974 Frequency Converter is a compact and reliable industrial drive designed for accurate motor control, efficient operation, and flexible automation integration.
With its 0.75 kW power capability, 2.4 A output current, compact R1 frame structure, advanced control technology, and reliable industrial performance, it provides an effective solution for pumps, fans, conveyors, OEM machinery, and small automation systems.
The ACS880-01-02A4-3 helps improve motor efficiency, optimize equipment performance, reduce mechanical stress, and maintain stable operation in modern industrial environments.
