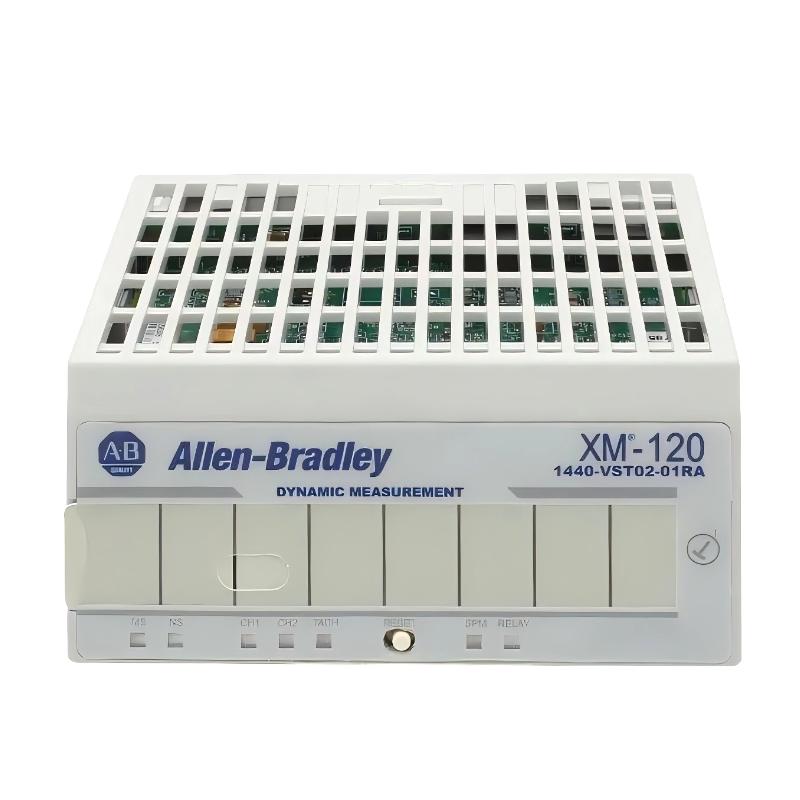

1440-VST02-01RA Dynamic Measurement Module Installation Overview

The Allen-Bradley 1440-VST02-01RA Dynamic Measurement Module Installation Guide explains the practical engineering steps required to install, configure, and commission an XM-120 dynamic monitoring system. Correct installation ensures reliable measurement performance for industrial equipment condition monitoring applications.

The 1440-VST02-01RA is a Dynamic Measurement Module used for collecting dynamic machine signals in automation and condition monitoring systems. It is commonly applied in rotating machinery applications where engineers need continuous monitoring of vibration behavior, machine movement, and operating condition changes.

A successful installation requires more than mechanical mounting. Engineers must verify sensor connection, signal quality, power stability, communication status, and System Configuration before the module enters normal operation.

XM-120 Dynamic Measurement Module Industrial Application

The Allen-Bradley 1440-VST02-01RA Dynamic Measurement Module provides important measurement functions in industrial monitoring systems.

• Rotating equipment condition monitoring
• Motor vibration analysis
• Pump and compressor monitoring
• Machine dynamic behavior analysis
• Predictive maintenance applications

In one industrial project, engineers installed the module on a large rotating machine to establish normal operating data. The collected dynamic signals were later used as reference information during Fault Diagnosis activities.

Installation Preparation and System Planning

Before starting the 1440-VST02-01RA Setup process, engineers should complete preparation work to avoid commissioning issues.

• Confirm monitoring requirements
• Verify sensor type and application range
• Review wiring drawings
• Check terminal base condition
• Confirm power supply stability
• Prepare PLC Controller communication settings

Proper preparation reduces installation errors because many field problems originate from incorrect wiring, incomplete configuration, or poor planning.

1440-VST02-01RA Module Mounting and Hardware Setup

The hardware installation process should provide a stable connection between the Dynamic Measurement Module and the monitoring system.

1. Install the compatible terminal base in the control cabinet
2. Inspect module connectors before installation
3. Insert the 1440-VST02-01RA module securely
4. Confirm mechanical locking condition
5. Check cabinet environmental conditions

In vibration-sensitive industrial environments, secure mounting is important because loose connections may create intermittent measurement faults.

Dynamic Sensor Wiring and Signal Connection Method

The wiring stage is one of the most important parts of the Installation Guide. Dynamic measurement accuracy depends heavily on clean and stable sensor signals.

• Connect sensors according to engineering drawings
• Verify channel assignment
• Check sensor cable continuity
• Use proper shielding methods
• Keep signal cables away from high-voltage wiring
• Confirm grounding arrangement

XM120_INSTALL_CHECK

MODEL = 1440-VST02-01RA
CHECK = SENSOR_CONNECTION
CHECK = SIGNAL_QUALITY
CHECK = CHANNEL_SETUP
CHECK = COMMUNICATION_STATUS

During one commissioning project, engineers found unstable dynamic measurement values after installation. The investigation showed that the signal cable was routed together with motor power cables, causing electrical interference. After changing the cable route, the signal became stable.

PLC Controller System Configuration Setup

After completing physical installation, engineers must perform System Configuration before commissioning.

• Configure measurement channels
• Set monitoring parameters
• Define alarm limits
• Verify communication settings
• Save configuration backup information

Correct configuration allows the PLC Controller and monitoring system to correctly interpret dynamic measurement signals.

Dynamic Measurement Module Setup and Commissioning

A complete Setup and Commissioning procedure includes:

1. Apply system power
2. Check module operating status
3. Verify sensor response
4. Confirm communication operation
5. Test monitoring functions
6. Record initial operating baseline

During one field commissioning case, engineers recorded a normal dynamic signal baseline before production operation. This reference data was later used to identify abnormal machine behavior during maintenance inspection.

Field Installation Experience and Practical Notes

Common installation issues observed in real industrial projects include:

• Incorrect sensor connection
• Poor cable shielding
• Wrong channel configuration
• Unstable power supply
• Incorrect monitoring parameters

Experienced engineers normally complete signal validation before machine startup because early verification reduces future Troubleshooting workload.

FAQs on 1440-VST02-01RA Installation

What is the purpose of the 1440-VST02-01RA Dynamic Measurement Module?

The module is used for collecting and monitoring dynamic machine signals in industrial condition monitoring systems.

Why can wiring affect dynamic measurement accuracy?

Because electrical interference, poor shielding, and incorrect connections can introduce unstable measurement signals.

What should be verified during commissioning?

Engineers should verify sensor signals, communication status, configuration parameters, and normal operating baseline data.

Engineering Summary

The Allen-Bradley 1440-VST02-01RA Dynamic Measurement Module Installation Guide requires a practical engineering approach covering hardware setup, sensor wiring, PLC Controller communication, System Configuration, and commissioning validation. Field experience shows that reliable dynamic measurement depends on both the quality of the Module and the accuracy of the installation process.
