Field Case: Intermittent Channel Loss Under Continuous Operation

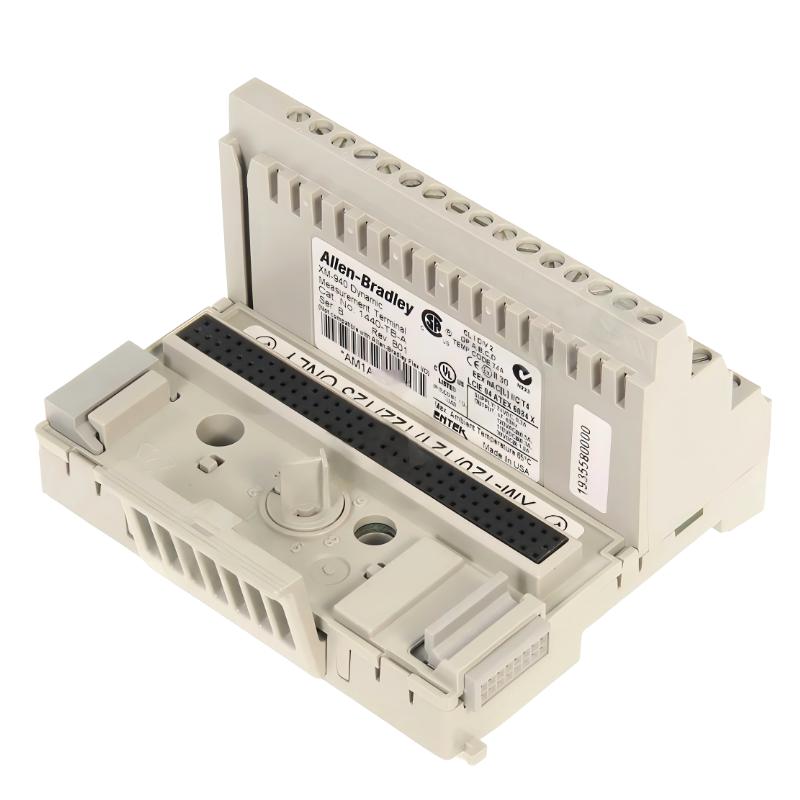

The Allen-Bradley 1440-TB-B terminal base is a passive wiring interface, but in XM condition monitoring systems it directly affects signal stability. In one compressor station, engineers observed intermittent dropout on Channel 3 vibration input while other channels remained stable under identical operating conditions.

Fault Symptoms of 1440-TB-B Terminal Base

Typical field symptoms include:

• Intermittent signal loss on vibration or speed channels
• Random spikes in RMS or peak vibration data
• Channel recovery after cabinet movement or vibration
• Unstable readings despite stable machine operation

Observed Signal Instability Patterns

During field diagnostics, engineers recorded inconsistent behavior:

CHANNEL_1 = stable (2.3 mm/s RMS)
CHANNEL_2 = stable (2.1 mm/s RMS)
CHANNEL_3 = intermittent dropout / zero signal
NOISE_SPIKES = present during cabinet vibration
CONTINUITY_TEST = unstable at terminal group B
GROUND_REFERENCE = fluctuating potential difference

The pattern strongly indicated termination instability rather than sensor or module failure.

Root Cause Analysis (Mechanical Loosening & Ground Loop Effects)

The 1440-TB-B relies on screw clamp pressure and shielding integrity for stable signal transmission. Common failure mechanisms include:

• Insufficient torque causing micro-movement under vibration load
• Stranded conductor fatigue without ferrule protection
• Oxidation at terminal contact points increasing resistance
• Ground loop currents entering analog reference paths

In one case, a slightly loose clamp caused intermittent open-circuit behavior when cabinet vibration exceeded 1.0 g RMS.

Diagnostic Workflow for Terminal Base Issues

A structured mechanical and electrical inspection approach is required:

1. Perform continuity test while flexing cable harness gently
2. Check screw clamp torque using calibrated driver
3. Inspect terminals for oxidation or discoloration
4. Measure ground potential difference across cabinet points
5. Swap channels to isolate terminal base fault

TB_B_FAULT_CHECK /MODEL=1440-TB-B /CONTINUITY_SWEEP /VIBRATION_TEST /GROUND_LOOP_ANALYSIS

Repair & Recovery Actions

• Re-torqued all affected screw clamps
• Re-terminated wires with ferrules for stability
• Cleaned oxidized contact surfaces
• Reconfigured grounding to single-point architecture

After correction, channel dropout events disappeared and vibration trends stabilized across the system.

Prevention Strategy for Stable Signal Termination

• Perform periodic torque inspection during maintenance cycles
• Use ferrules for all stranded conductors in vibration environments
• Maintain single-point grounding for analog signals
• Avoid mechanical stress on terminal wiring
• Inspect terminal blocks during scheduled shutdowns

FAQs on 1440-TB-B Faults

Can a terminal base really cause signal dropout?

Yes. Even slight contact instability can interrupt low-level analog signals in XM systems.

Why does signal recover when cabinet is tapped?

Because vibration temporarily restores mechanical contact pressure in loose terminals.

Is replacement always necessary?

No. Most issues are resolved through re-termination and torque correction.

Engineering Summary

The Allen-Bradley 1440-TB-B terminal base is a critical signal interface component in XM monitoring systems. Field faults are most commonly caused by mechanical loosening, oxidation, or grounding issues rather than electronic failure. Proper torque control and disciplined wiring practices are essential for long-term stability.
