Allen Bradley 1336-PB-SP5A Fault Diagnosis Strategy

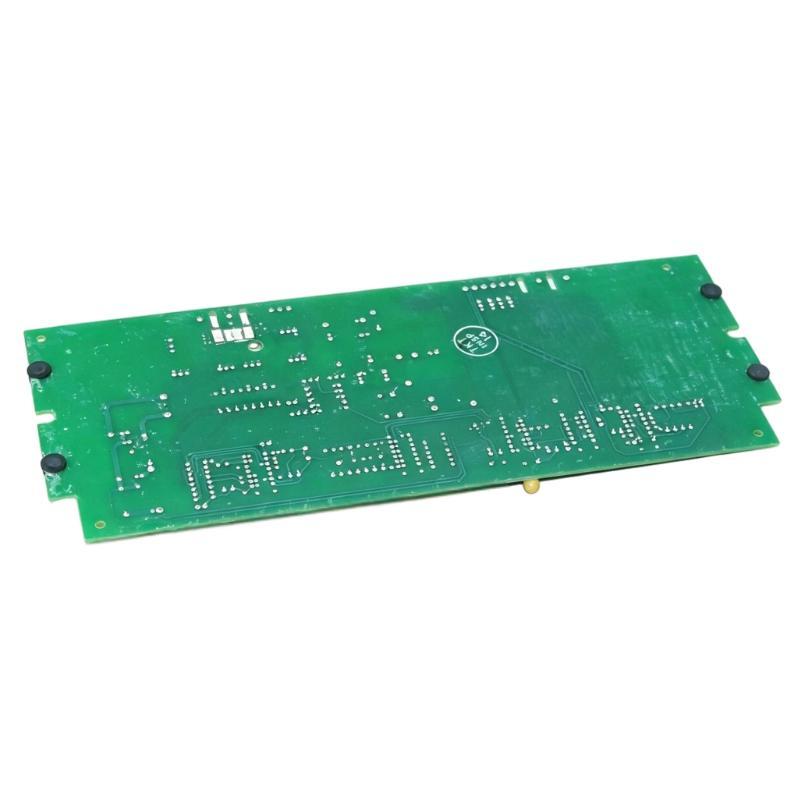

Allen Bradley 1336-PB-SP5A Precharge Circuit Board faults should be diagnosed by evaluating the entire precharge circuit rather than replacing the board immediately. In many industrial drives, startup faults are caused by defective contactors, damaged precharge resistors, loose wiring or deteriorated DC bus capacitors instead of the circuit board itself.

Successful Troubleshooting follows the complete charging path from the AC input through the precharge circuit to the DC bus.

Allen Bradley 1336-PB-SP5A Common Fault Symptoms

• Drive trips immediately after power-up.
• DC bus undervoltage alarm.
• DC bus overvoltage alarm.
• Precharge timeout.
• Repeated startup failure.
• Main contactor fails to energize.
• Drive cannot complete initialization.

Accurate symptom timing is often the most valuable clue during Fault Diagnosis.

Common Causes of Allen Bradley 1336-PB-SP5A Faults

• Failed precharge resistor.
• Welded contactor.
• Loose power terminals.
• Damaged wiring harness.
• Failed relay coil.
• Aging DC bus capacitors.
• Internal board failure.

External components should always be verified before replacing the precharge board.

Allen Bradley 1336-PB-SP5A Diagnostic Procedure

Incoming AC
      │
      ▼
Rectifier Check
      │
      ▼
Precharge Resistor
      │
      ▼
1336-PB-SP5A
      │
      ▼
Contactor Operation
      │
      ▼
DC Bus Voltage
      │
      ▼
Root Cause

Measure voltage throughout the charging sequence rather than relying only on fault codes.

Allen Bradley 1336-PB-SP5A Repair Recommendations

1. Verify AC supply.
2. Inspect precharge resistor.
3. Measure contactor coil voltage.
4. Observe relay timing.
5. Monitor DC bus charging profile.
6. Inspect board connectors.
7. Replace the board only after confirming associated components are functioning correctly.

This structured engineering approach significantly reduces unnecessary spare part replacement.

Allen Bradley 1336-PB-SP5A Real Maintenance Case

At a steel processing facility, a medium-voltage conveyor drive repeatedly failed during startup with intermittent DC bus charging alarms.

Maintenance personnel initially planned to replace the Allen Bradley 1336-PB-SP5A Precharge Circuit Board. Instead, engineers monitored the charging sequence and observed that the DC bus voltage stalled at approximately 180 VDC instead of continuing toward its normal operating level.

Further testing identified an open-circuit precharge resistor that prevented the capacitor bank from charging correctly. After replacing the resistor and confirming proper relay operation, the DC bus voltage increased normally to approximately 620 VDC, and the drive entered Ready status without additional faults.

The original board remained operational, demonstrating that systematic electrical analysis is more effective than replacing components based solely on alarm messages.

Allen Bradley 1336-PB-SP5A Troubleshooting FAQ

Does every precharge alarm indicate a defective board?

No. Contactors, resistors, wiring and capacitors frequently cause identical startup symptoms.

Why monitor the DC bus charging profile?

The charging curve helps determine whether the precharge circuit is operating correctly before the main contactor closes.

Should relays be tested during troubleshooting?

Yes. Incorrect relay timing can interrupt the normal charging sequence and produce startup faults.

When should the board be replaced?

Replace the Allen Bradley 1336-PB-SP5A only after confirming that all associated electrical components and System Configuration are functioning correctly.

Allen Bradley 1336-PB-SP5A Technical Summary

The Allen Bradley 1336-PB-SP5A Precharge Circuit Board Troubleshooting Guide combines engineering logic, electrical measurement and practical field experience. By analyzing the complete charging circuit—including resistors, contactors, DC bus voltage and associated wiring—maintenance engineers can identify the true root cause of startup failures, avoid unnecessary board replacement and improve the long-term reliability of Allen Bradley 1336 drive systems.
