Field Case: 1336 Drive Trips with Zero Output Torque

Allen-Bradley 1336-BDB-SP76D gate driver module faults are often misdiagnosed as motor or rectifier failures. In one 1336STEF drive system used in a conveyor line, the drive powered up normally but produced no output voltage under load. Initial replacement of the motor and control board did not resolve the issue until the gate driver PCB was inspected.

Fault Symptoms of 1336-BDB-SP76D Gate Driver

Typical field symptoms include:

• Drive powers ON but motor does not rotate
• Frequent DC bus stable but no inverter output
• Overcurrent fault immediately after run command
• IGBT fault or “power stage failure” alarm

Observed Switching Behavior & Gate Signal Abnormality

During diagnostic testing, engineers observed missing or distorted gate pulses to the inverter stage:

DC_BUS = stable (≈650V)
GATE_SIGNAL_U_PHASE = missing pulses
GATE_SIGNAL_V_PHASE = intermittent
GATE_SIGNAL_W_PHASE = unstable
IGBT_SWITCHING = incomplete / asymmetric
DRIVE_FAULT_CODE = instantaneous trip on run

Oscilloscope analysis confirmed that PWM commands were generated by control logic but not properly amplified to IGBT gate levels.

Root Cause Analysis (IGBT Drive Loss & Control Signal Failure)

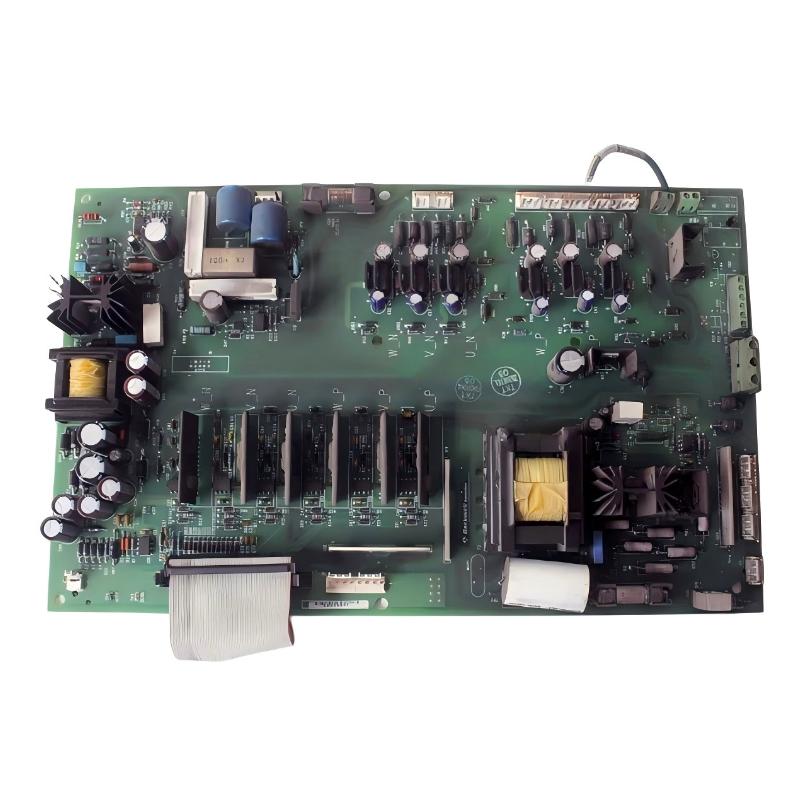

The 1336-BDB-SP76D gate driver board is responsible for converting low-level control signals into high-current gate drive pulses. Common failure mechanisms include:

• Gate driver transistor degradation due to thermal cycling
• Optocoupler aging leading to signal distortion
• Power supply ripple affecting driver stability
• IGBT short-circuit feedback damaging driver channels

In one field case, repeated inverter short-circuit events damaged only one phase driver channel, causing asymmetric switching and immediate fault trip.

Diagnostic Workflow for Gate Driver Board

Proper diagnosis requires separating control logic from power stage behavior:

1. Verify DC bus voltage stability under no-load conditions
2. Check control PWM output from main drive controller
3. Measure gate pulse output using isolated oscilloscope probe
4. Inspect driver board for heat discoloration or burnt components
5. Test IGBT module for short/open conditions

GATE_DRIVER_TEST /MODEL=1336-BDB-SP76D /PWM_CHECK /IGBT_VERIFY /POWER_STAGE_DIAG

Repair & Recovery Actions

• Replaced failed gate driver PCB with matched SP76D revision
• Verified all IGBT modules before re-energizing system
• Cleaned heat sink assembly and improved thermal interface material
• Checked snubber circuits for overvoltage stress protection

After correction, the drive restored full PWM output and operated under rated load without further fault trips.

Prevention Strategy for VFD Power Stage Reliability

• Avoid repeated short-circuit testing without full protection reset
• Maintain clean cooling airflow across drive power section
• Monitor IGBT temperature during high load cycles
• Replace aging gate driver boards in preventive maintenance cycles
• Ensure correct grounding to reduce noise coupling into driver circuits

FAQs on 1336-BDB-SP76D Faults

Why does the drive power on but not run the motor?

This is often caused by missing or failed gate drive signals preventing IGBT switching.

Can a faulty gate driver damage IGBTs?

Yes. Unbalanced or incorrect gate signals can lead to IGBT stress and secondary failures.

Is replacing the control board enough?

No. Power stage, gate driver, and IGBT modules must be checked together as a system.

Engineering Summary

The Allen-Bradley 1336-BDB-SP76D gate driver module is a critical interface in 1336 series VFD power stages. Most failures are related to thermal stress, aging semiconductor drivers, or downstream IGBT faults rather than control logic issues. Proper diagnostic separation between PWM generation and gate amplification is essential for accurate troubleshooting and reliable system recovery.
