Installation Overview of 100S-D210EA22BC Safety Contactor

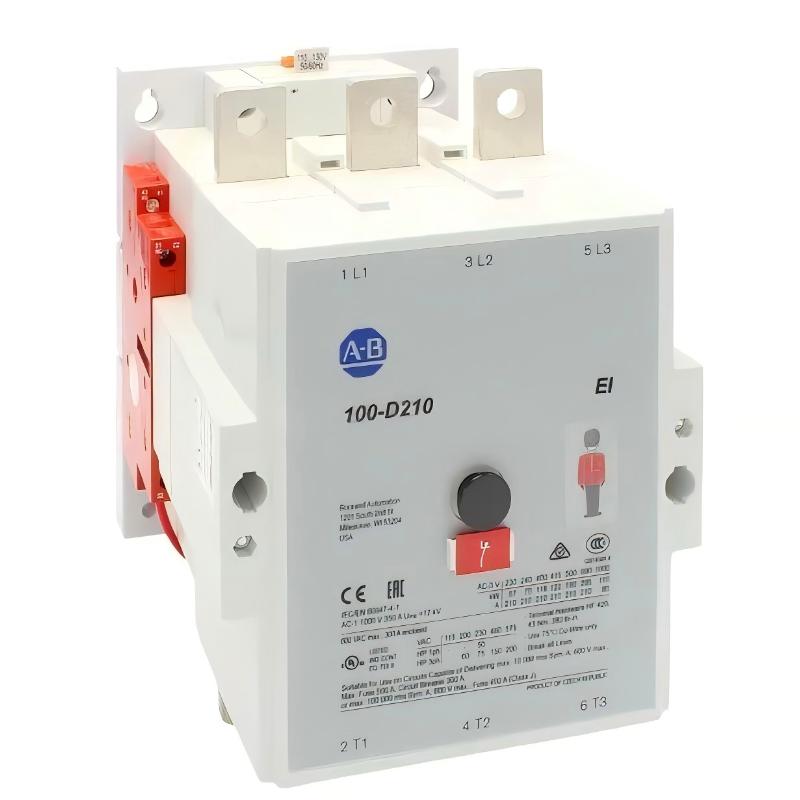

Allen-Bradley 100S-D210EA22BC safety contactor is designed for high-current industrial safety applications, particularly in motor shutdown and emergency stop circuits. Correct installation is critical because improper wiring or thermal layout can lead to unsafe switching behavior or premature contact wear.

Role in High-Current Safety Shutdown Systems

The 100S-D210EA22BC provides reliable isolation of high-power loads during emergency conditions. It is commonly used in heavy motor systems, conveyor drives, and industrial machinery where rapid power disconnection is required for operator safety.

Pre-Installation Electrical & Safety Checks

• Confirm complete system de-energization (LOTO procedure)
• Verify contactor current rating vs motor full-load current
• Check safety category compliance (ISO 13849 / IEC 62061)
• Inspect auxiliary contacts and coil rating (24V DC typical)
• Prepare arc suppression devices for inductive loads

Mechanical Mounting & Thermal Layout

1. Mount contactor on DIN rail or panel with secure locking
2. Ensure vertical installation for optimal heat dissipation
3. Maintain clearance between adjacent high-current devices
4. Avoid placement near heat sources such as drives or transformers

In one commissioning case, insufficient spacing caused thermal buildup leading to coil instability during continuous operation.

Power Circuit & Safety Control Wiring

Proper wiring ensures reliable safety isolation:

• Connect main contacts in series with motor power circuit
• Use correctly rated cables for full load current
• Wire coil through certified safety relay output only
• Separate control wiring from high-voltage power lines

Field observation: incorrect power wiring sequence caused backfeed voltage, preventing proper contactor dropout during E-stop testing.

Commissioning & Functional Safety Test

• Perform no-load E-stop activation test first
• Verify contactor drop-out time after coil de-energization
• Measure load-side voltage after shutdown command
• Test auxiliary feedback signals in safety PLC system
• Conduct full-load shutdown test under operational conditions

SAFETY_COMMISSION /MODEL=100S-D210EA22BC /E_STOP_TEST /LOAD_TEST /THERMAL_CHECK

FAQs on 100S-D210EA22BC Installation

Can this contactor handle frequent E-stop cycling?

It is designed for safety switching, but excessive cycling under high load can reduce mechanical life.

Is arc suppression mandatory?

Yes, especially for inductive motor loads to prevent contact erosion and welding.

What causes delayed drop-out during shutdown?

Common causes include backfeed voltage, incorrect wiring, or residual coil energization.

Engineering Summary & Field Practices

The Allen-Bradley 100S-D210EA22BC safety contactor is a high-capacity safety device used in critical shutdown applications. Proper installation requires strict adherence to wiring standards, thermal design, and safety circuit architecture. Field experience shows that most operational issues stem from installation design flaws rather than device failure, making correct engineering practice essential for reliable safety system performance.
