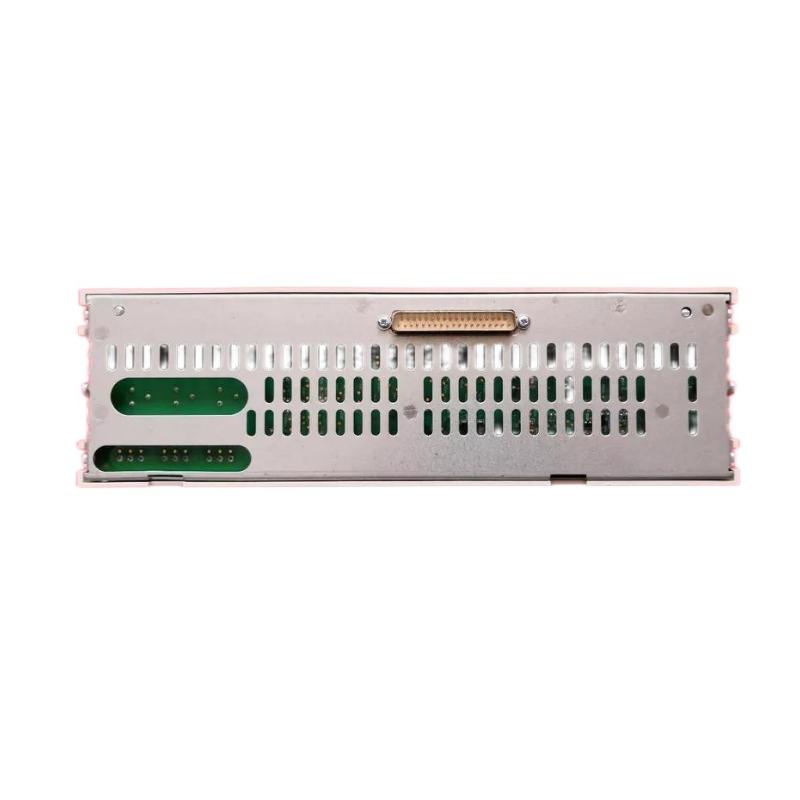

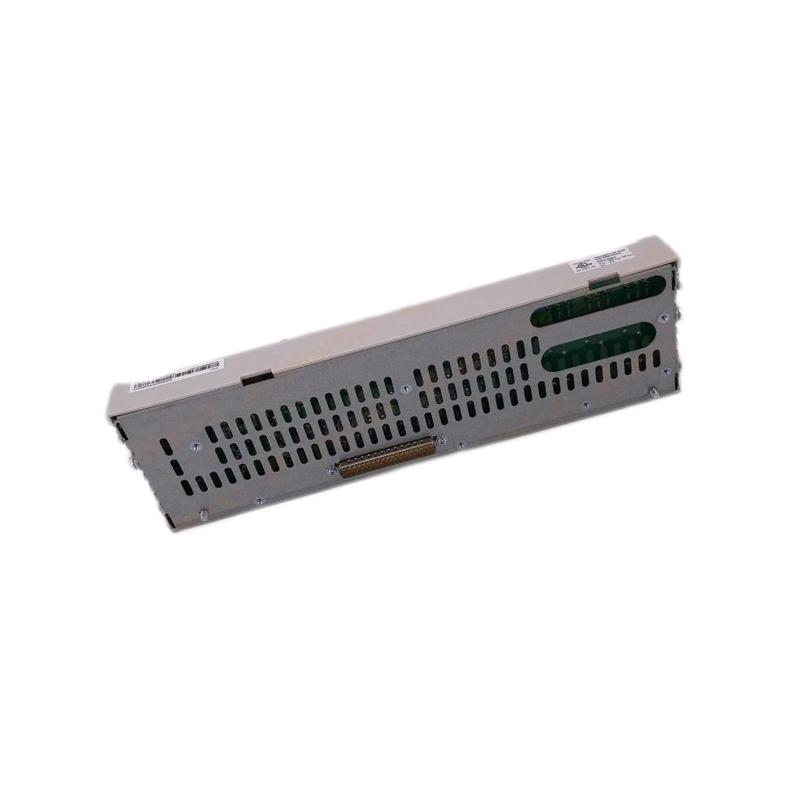

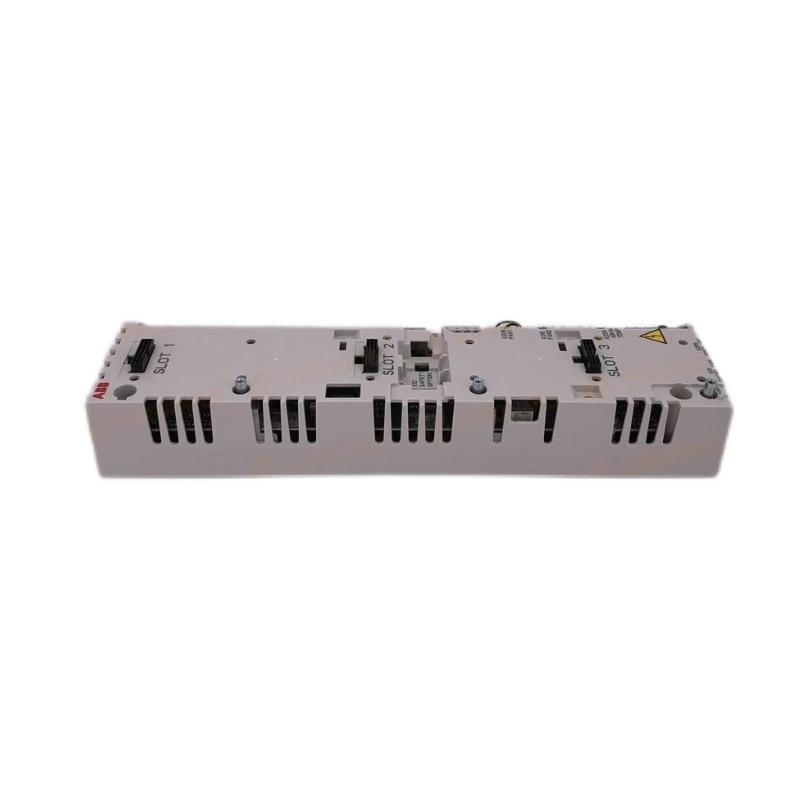

ABB ZCU-14 (3AXD50000182992 / 3AXD5000005164) Product Profile
Product Overview
The ABB ZCU-14 is a high-performance drive control unit designed for medium voltage drives in industrial applications. This unit provides precise motor control, energy efficiency, and reliable operation in demanding industrial environments. Its advanced design enables seamless integration with automation systems and ensures optimal performance in sectors such as manufacturing, mining, water treatment, and energy management.
The ZCU-14 is part of the ABB drive control series and is recognized for its robust engineering, high reliability, and extensive compatibility with medium-voltage drive systems.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | ZCU-14 |
| Part Number | 3AXD50000182992 / 3AXD5000005164 |
| Series | ZCU Series |
| Brand | ABB |
| Dimensions (mm) | 300 × 250 × 120 |
| Weight (kg) | 6.2 |
| Input Voltage | 380–480 V AC |
| Output Voltage | 0–480 V AC |
| Control Type | Vector Control / V/F Control |
| Rated Current | 14 A |
| Communication Interfaces | Profibus, Modbus, EtherNet/IP |
| Operating Temperature | 0°C – 50°C |
| Storage Temperature | -25°C – 70°C |
| Protection Class | IP20 |
| Cooling Type | Forced Air / Internal Fan |
| Compliance Standards | CE, UL |
Applications
- Medium-voltage motor control in industrial plants.
- Pumps, fans, and compressors for process industries.
- Mining and material handling machinery.
- Water treatment plants and wastewater management systems.
- Energy optimization in industrial production lines.
- Conveyor belts and automated manufacturing systems.
Product Advantages
- High Performance: Provides precise motor control and rapid response for dynamic loads.
- Energy Efficiency: Optimized drive algorithms reduce energy consumption and operational costs.
- Modular Design: Easily integrates into existing drive systems and automation networks.
- Robust Construction: Reliable operation in harsh industrial environments.
- Advanced Communication: Supports multiple industrial communication protocols for seamless automation integration.
- Compact Size: Space-saving design suitable for control panels.
- User-Friendly Interface: Simplified configuration and monitoring through digital displays and software tools.
- Safety Compliance: Meets industry standards for safe operation and protection.
Related Models in the Same Series (ZCU Series)
| Model | Key Parameters |
|---|---|
| ZCU-10 | 10 A, 380–480 V AC, Dimensions 280×220×110 mm, Weight 5.5 kg |
| ZCU-12 | 12 A, 380–480 V AC, Dimensions 290×230×115 mm, Weight 5.8 kg |
| ZCU-16 | 16 A, 380–480 V AC, Dimensions 320×260×125 mm, Weight 6.5 kg |
| ZCU-20 | 20 A, 380–480 V AC, Dimensions 340×270×130 mm, Weight 7.2 kg |
| ZCU-25 | 25 A, 380–480 V AC, Dimensions 360×280×135 mm, Weight 8.0 kg |
Popular Models from the Same Brand (ABB Drives)
| Model | Key Parameters |
|---|---|
| ACS880-07 | 0.75–315 kW, 380–480 V AC, IP21/IP54, Dimensions 400×250×200 mm, Weight 12 kg |
| ACS880-17 | 7.5–500 kW, 380–690 V AC, IP21/IP54, Dimensions 450×300×220 mm, Weight 18 kg |
| ACH580-01 | 0.37–500 kW, 380–480 V AC, IP21, Dimensions 380×240×180 mm, Weight 10 kg |
| ACS580-01 | 0.75–250 kW, 380–480 V AC, IP21/IP55, Dimensions 420×260×200 mm, Weight 13 kg |
| ACS880-01 | 0.75–5600 kW, 380–690 V AC, IP21/IP54/IP55, Dimensions 500×300×250 mm, Weight 25 kg |
Frequently Asked Questions (FAQ)
Q1: What is the input voltage range of the ZCU-14?
A1: The ZCU-14 operates at 380–480 V AC input voltage.
Q2: What is the rated output current?
A2: The module provides up to 14 A output current.
Q3: Can it communicate with industrial networks?
A3: Yes, it supports Profibus, Modbus, and EtherNet/IP.
Q4: What type of motor control does ZCU-14 provide?
A4: It supports vector control and V/F control for precise motor operation.
Q5: What is the operating temperature range?
A5: The unit operates reliably between 0°C and 50°C.
Q6: Is the ZCU-14 suitable for harsh environments?
A6: Yes, its robust construction allows operation in industrial conditions.
Q7: How is the unit cooled?
A7: Cooling is provided via a forced-air internal fan system.
Q8: What is the protection class of the ZCU-14?
A8: The device has an IP20 protection rating.
Q9: What are the physical dimensions and weight of the unit?
A9: Dimensions are 300 × 250 × 120 mm, and the weight is 6.2 kg.
Q10: Can it be integrated with existing automation systems?
A10: Yes, its modular design and communication protocols allow seamless integration.
