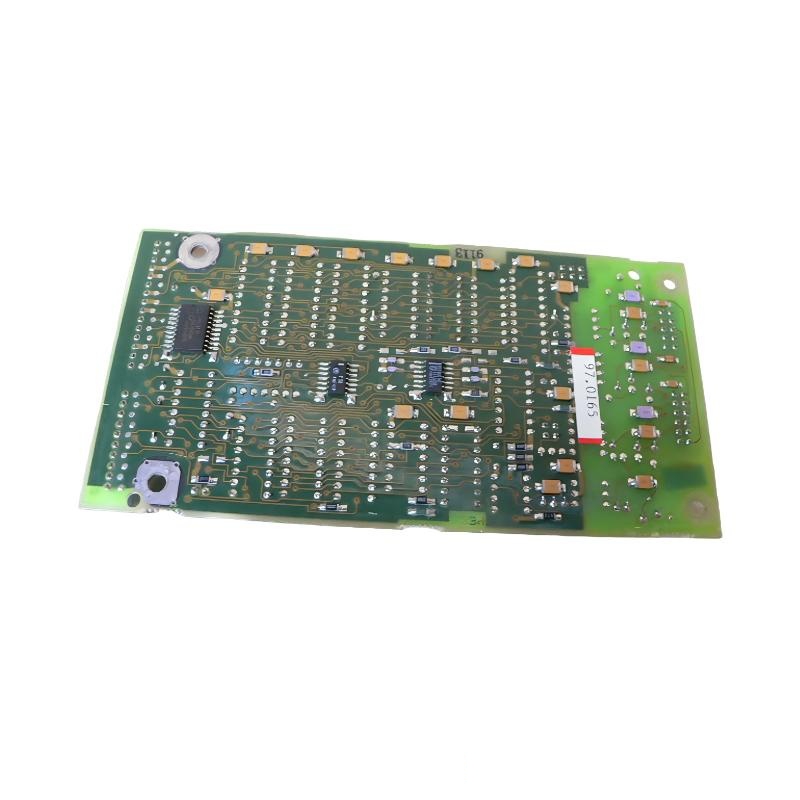

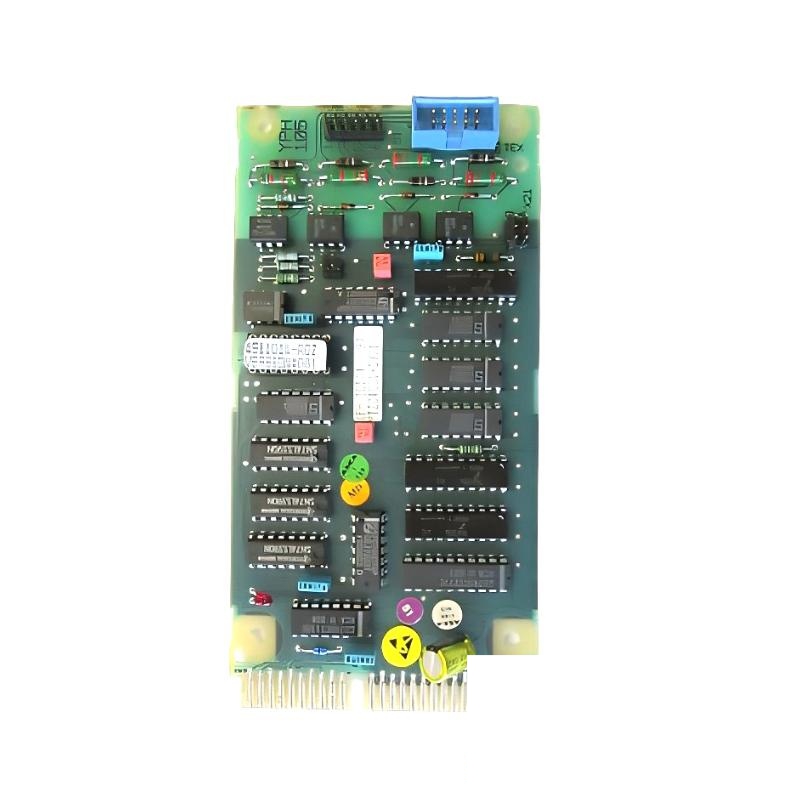

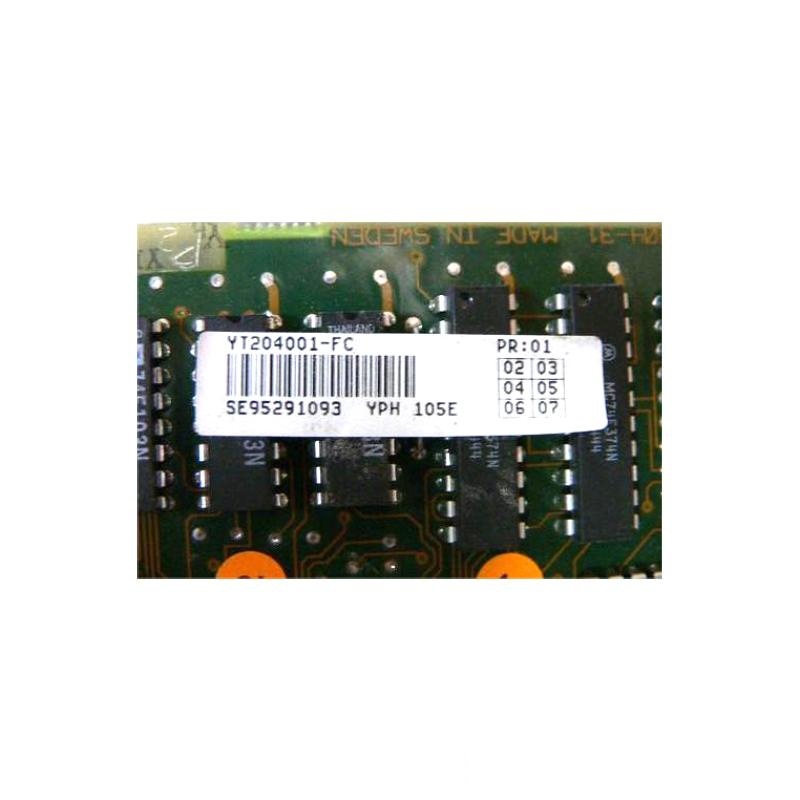

ABB YPH 105E YT204001-FC Digital Speed Input Module
Product Overview:
The ABB YPH 105E YT204001-FC Digital Speed Input Module is a high-performance module designed for monitoring and controlling rotational speed in industrial automation systems. It is engineered to receive and process digital speed input signals from various speed sensors, making it an ideal choice for applications in machinery, motors, and other equipment requiring precise speed control and measurement.
This module provides reliable and accurate speed input, and its robust design allows it to perform optimally even in demanding industrial environments. The YPH 105E integrates seamlessly into ABB’s automation systems, offering superior flexibility, efficiency, and compatibility with existing equipment.
Product Specifications:
| Parameter | Value |
|---|---|
| Dimensions | 140 x 70 x 30 mm |
| Weight | 0.077 kg |
| Input Type | Digital Speed Input (Pulse) |
| Input Frequency Range | 0 to 100 kHz |
| Power Consumption | 1.2W |
| Operating Temperature | -20 to +60°C |
| Storage Temperature | -40 to +85°C |
| Mounting Type | DIN Rail |
| Compliance | CE, UL |
| Input Isolation | 1500V RMS |
Product Application:
The ABB YPH 105E YT204001-FC Digital Speed Input Module is primarily used for speed measurement and control in industrial automation systems. It is suitable for a wide range of applications, such as:
-
Motor Speed Control: Monitors motor speeds and helps maintain them within specified limits, ensuring smooth operation in critical applications.
-
Machinery Monitoring: Used in various machines to track rotational speed, helping to detect issues such as abnormal speed variations that could indicate potential failure.
-
Pump and Fan Control: Essential in pump and fan systems to monitor and adjust rotational speeds, ensuring efficiency and preventing mechanical damage.
-
Industrial Equipment: Provides essential speed feedback in applications like conveyors, gearboxes, and other rotating equipment in manufacturing processes.
Advantages:
-
High-Speed Input: The YPH 105E can handle input frequencies up to 100 kHz, allowing for high-speed processing and real-time control.
-
Compact Design: With its dimensions of 140 x 70 x 30 mm and lightweight design (0.077 kg), the module is easy to integrate into control systems with limited space.
-
High Accuracy: Designed for precise speed monitoring, ensuring that speed readings are accurate and reliable in real-time.
-
Broad Temperature Range: Operates in temperatures ranging from -20°C to +60°C, making it suitable for use in diverse environmental conditions.
-
Electrical Isolation: Provides 1500V RMS electrical isolation, offering protection against electrical noise and surges, ensuring stable operation even in electrically noisy environments.
-
Energy Efficient: Consumes only 1.2W of power, contributing to energy-efficient operations, especially in systems with continuous use.
Brand
-
Brand: ABB
Recommended Models in the Same Series:
| Model | Description | Key Specifications |
|---|---|---|
| YPH 105A | Digital Speed Input Module | Pulse input, 0 to 100 kHz frequency range |
| YPH 110A | Digital Encoder Module | For encoder input, 0 to 100 kHz |
| YPH 115B | Digital Frequency Input Module | Frequency input, 0 to 50 kHz |
| YPH 120C | Pulse Input Module | Compatible with TTL and open-collector outputs |
| YPH 125E | High-Speed Digital Input Module | For applications requiring pulse input at very high speeds |
Popular ABB Models:
| Model | Description | Key Specifications |
|---|---|---|
| YTG 110A | Digital Input Module | 24V DC, 16 digital inputs |
| YTP 200A | Process Controller | 4-20mA Input, 0-10V Output |
| YTP 210B | Temperature Control Module | RTD, Thermocouple input |
| YTP 300C | Power Supply Unit | 24V DC, 5A output |
| YPD 100A | Digital Output Module | 16 outputs, 24V DC |
FAQ (Frequently Asked Questions):
Q1: What is the main function of the ABB YPH 105E module?
A1: The ABB YPH 105E is a digital speed input module designed to measure and control rotational speed in industrial automation systems using pulse signals.
Q2: What input signals does the YPH 105E accept?
A2: The YPH 105E accepts digital pulse input signals, making it compatible with a wide range of speed sensors.
Q3: What is the frequency range of the input signal for this module?
A3: The YPH 105E supports input frequencies from 0 to 100 kHz, allowing for high-speed processing in various applications.
Q4: Is this module suitable for harsh environments?
A4: Yes, the YPH 105E is designed to operate in temperatures from -20°C to +60°C and is built to withstand industrial environments.
Q5: How is the YPH 105E mounted?
A5: The YPH 105E is designed for DIN rail mounting, which is a standard method in industrial control systems.
Q6: What is the power consumption of the YPH 105E?
A6: The YPH 105E consumes only 1.2W of power, making it energy-efficient for continuous use in industrial applications.
Q7: Does the YPH 105E provide electrical isolation?
A7: Yes, the YPH 105E offers 1500V RMS input isolation, ensuring stable operation even in electrically noisy environments.
Q8: Can the YPH 105E be used in outdoor applications?
A8: Yes, as long as the operating temperature is within the specified range of -20°C to +60°C, the YPH 105E can be used in outdoor environments.
Q9: What is the weight of the YPH 105E module?
A9: The YPH 105E weighs 0.077 kg, making it lightweight and easy to install.
Q10: Is the YPH 105E module CE and UL certified?
A10: Yes, the YPH 105E is both CE and UL certified, ensuring compliance with international safety standards.
