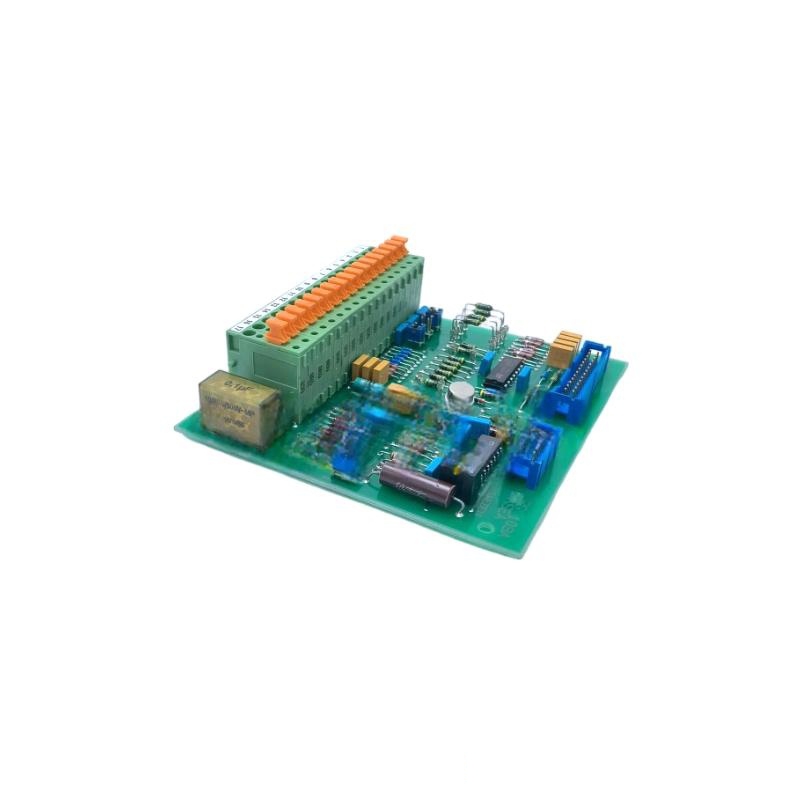

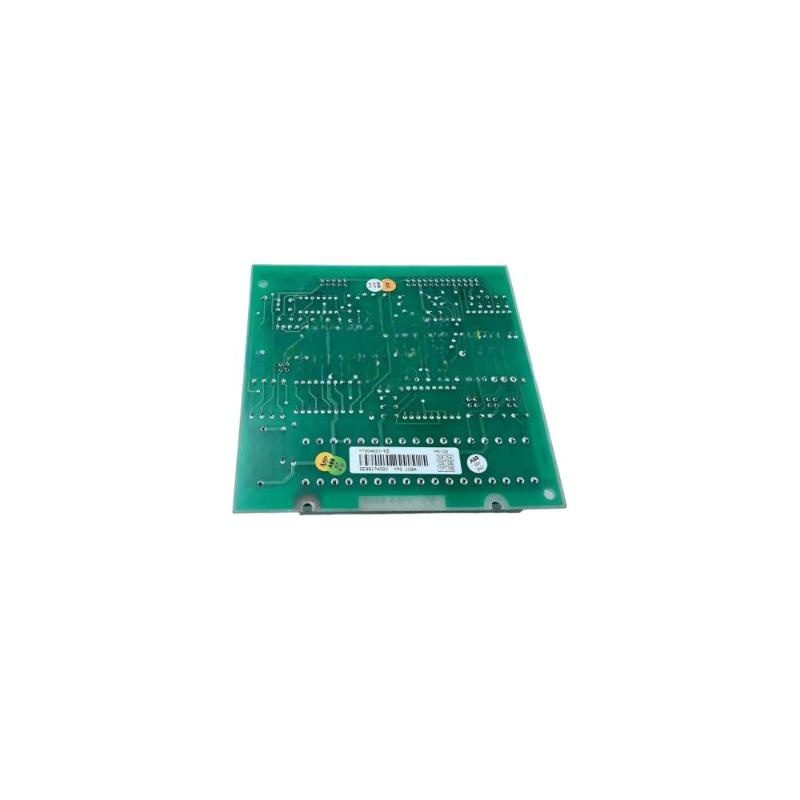

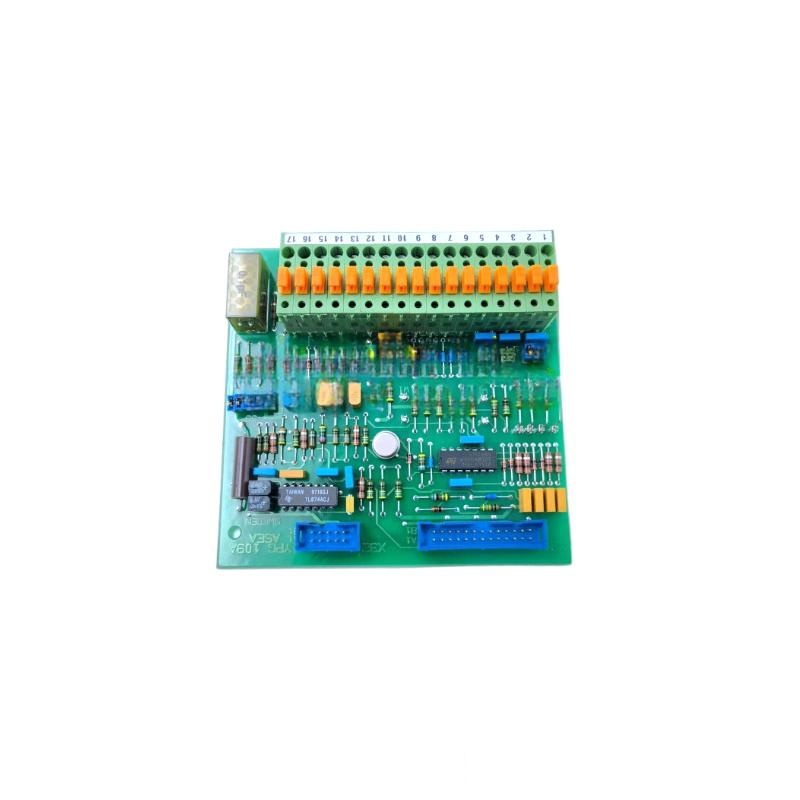

ABB YPG 109B YT204001-JU Analog Input Module
Product Overview:
The ABB YPG 109B YT204001-JU Analog Input Module is designed to provide high-quality analog signal input for industrial automation systems. This module offers enhanced performance and flexibility, supporting a range of applications that require precise data acquisition. With a robust design and a high level of reliability, the YPG 109B ensures that industrial systems maintain optimal performance even in demanding environments.
The module supports both analog voltage (0-10V) and current (4-20mA) inputs, making it a versatile solution for various applications, including process control, energy management, and industrial automation. Its compact design allows for easy integration into existing systems, while its precision ensures consistent and accurate data collection.
Product Specifications:
| Parameter | Value |
|---|---|
| Dimensions | 110 x 85 x 25 mm |
| Weight | 0.12 kg |
| Input Type | Analog Voltage (0-10V), Analog Current (4-20mA) |
| Input Resolution | 16-bit |
| Input Impedance | > 1 MΩ |
| Power Consumption | 1.5W |
| Operating Temperature | -20 to +60°C |
| Storage Temperature | -40 to +85°C |
| Mounting Type | DIN Rail |
| Compliance | CE, UL |
| Input Isolation | 1500V RMS |
Product Application:
The ABB YPG 109B YT204001-JU Analog Input Module is ideal for a range of industrial applications, providing high-precision monitoring and control for the following:
-
Process Control: Ensures accurate measurement and control of variables such as temperature, pressure, and flow, enhancing process stability and performance.
-
Energy Management: Ideal for monitoring energy consumption and optimizing power usage, making it an essential tool in energy efficiency strategies.
-
Building Automation: Used in systems for HVAC control, lighting, and environmental monitoring, improving building energy management and comfort.
-
Industrial Automation: Perfect for applications requiring precise signal processing in automated systems across various industries.
Advantages:
-
High Precision: The YPG 109B features 16-bit resolution, ensuring the most accurate analog signal readings for your systems.
-
Wide Input Compatibility: Supports both analog voltage (0-10V) and current (4-20mA) inputs, allowing the module to be integrated into a variety of industrial setups.
-
Compact and Space-Saving: With its dimensions of 110 x 85 x 25 mm, the YPG 109B fits easily into compact control panels and systems with limited space.
-
Durability: Built to withstand harsh environmental conditions, the module operates within a broad temperature range and offers electrical isolation up to 1500V RMS.
-
Energy Efficient: The module consumes only 1.5W of power, making it an energy-efficient solution for long-term operational cost savings.
Brand
-
Brand: ABB
Recommended Models in the Same Series:
| Model | Description | Key Specifications |
|---|---|---|
| YPG109A | Analog Input Module | Supports voltage (0-10V) and current (4-20mA) |
| YPG110A | Digital Input Module | 16 digital inputs, 24V DC |
| YPG110B | Digital Output Module | 16 digital outputs, 24V DC |
| YPG120A | Analog Input/Output Combo | Dual input/output capability |
| YPG122A | Multifunction Input Module | Supports multiple signal types |
Popular ABB Models:
| Model | Description | Key Specifications |
|---|---|---|
| YXA118A | Industrial cable designed for stable power and signal transmission in automation systems. | High durability, resistant to electrical interference, suitable for harsh environments. |
| YXE152A | Multi-purpose cable optimized for data and power transmission in industrial machinery. | Flexible, robust insulation, designed for high-performance control systems. |
| YXI 115B | High-performance cable for data transfer in sensitive industrial applications. | Superior shielding, enhanced resistance to mechanical stress and electrical noise. |
| YXA119A | 19-meter cable offering reliable performance in demanding automation systems. | 19 meters, superior insulation, ideal for industrial environments. |
| YXE153A | Upgraded version designed for long-distance power transmission with enhanced flexibility. | 25 meters, highly flexible, designed for heavy-duty industrial tasks. |
FAQ (Frequently Asked Questions):
Q1: What does the ABB YPG 109B module do?
A1: The ABB YPG 109B is an analog input module designed to receive and process analog voltage and current signals for industrial automation systems.
Q2: Which input signals are supported by the YPG109B?
A2: The YPG 109B supports both voltage (0-10V) and current (4-20mA) input signals, making it flexible for various applications.
Q3: Can the YPG 109B be used in outdoor environments?
A3: Yes, the module is rated for use in outdoor environments as long as the operating temperature remains within -20 to +60°C.
Q4: How is the module mounted?
A4: The YPG 109B module is designed for DIN rail mounting, which is commonly used in industrial control panels.
Q5: What is the resolution of the analog signals?
A5: The module offers 16-bit resolution, ensuring high accuracy for analog signal processing.
Q6: Does the YPG 109B provide electrical isolation?
A6: Yes, the module provides 1500V RMS electrical isolation, ensuring protection from electrical interference and surges.
Q7: Is the YPG 109B CE and UL certified?
A7: Yes, the module is CE and UL certified, ensuring it meets international safety and quality standards.
Q8: What is the power consumption of the YPG 109B module?
A8: The YPG 109B consumes 1.5W of power, making it an energy-efficient component for industrial systems.
Q9: Can the YPG 109B module be used in hazardous locations?
A9: The YPG 109B is designed for industrial environments. It is recommended to assess its suitability for hazardous areas based on local safety standards.
Q10: What is the weight of the YPG 109B module?
A10: The YPG 109B weighs 0.12 kg, making it lightweight and easy to integrate into control systems.
