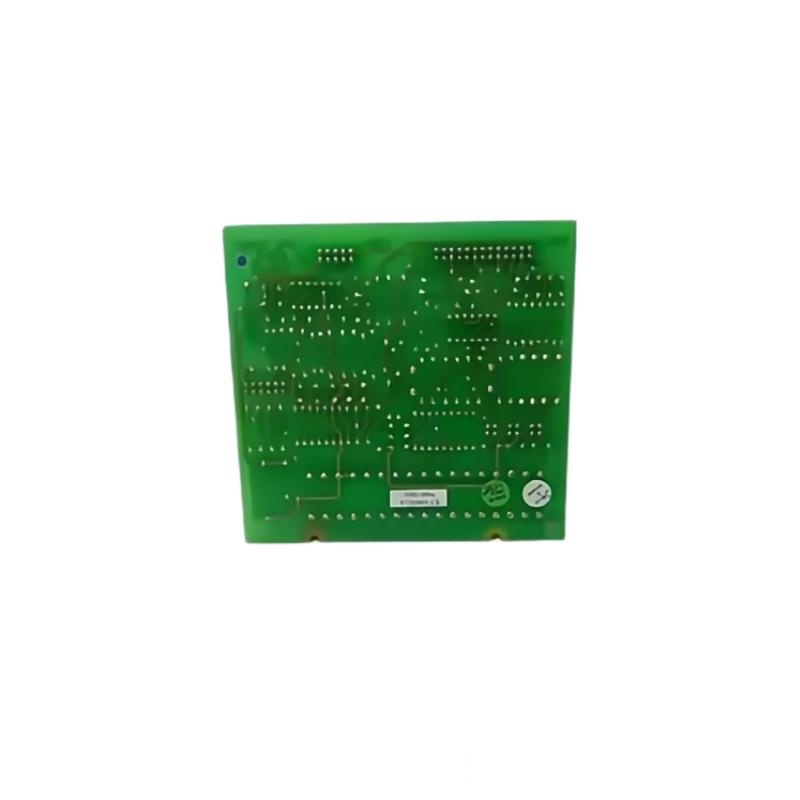

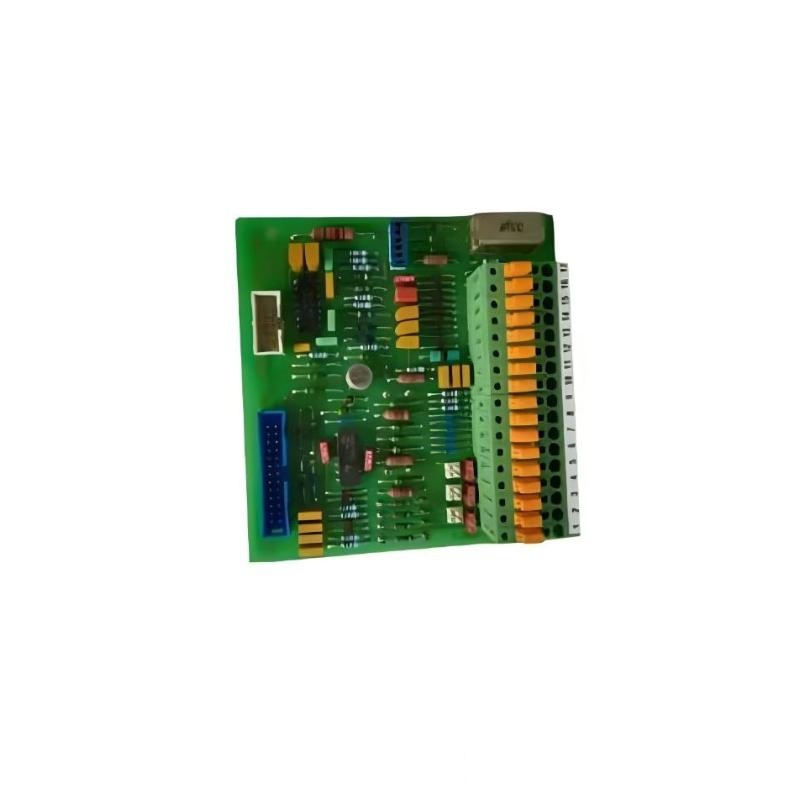

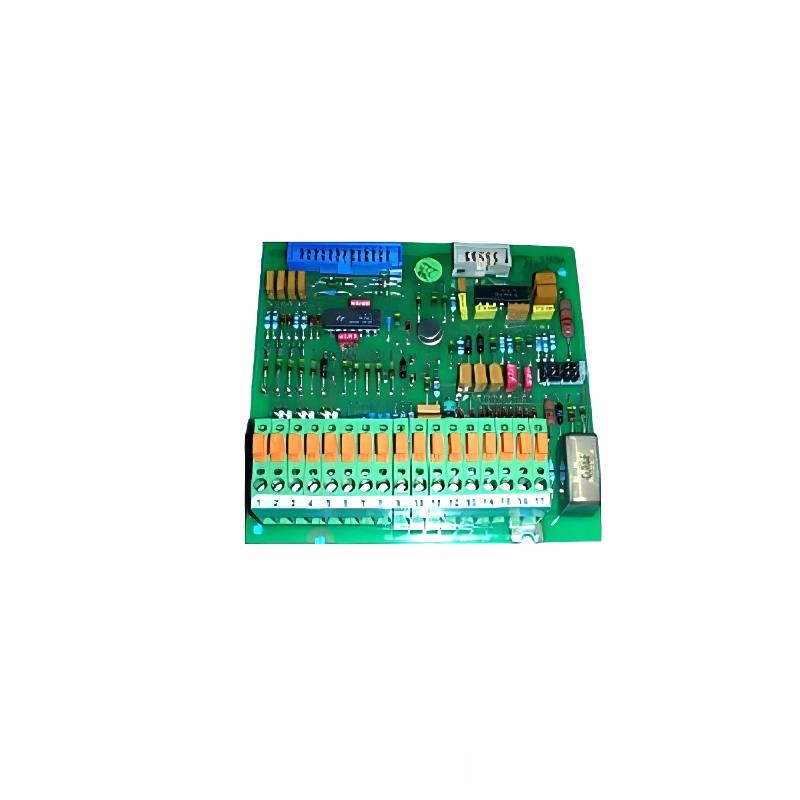

ABB YPG 109A YT204001-CE Analog Input Module
Product Overview:
The ABB YPG 109A YT204001-CE Analog Input Module is a cutting-edge industrial automation component designed to facilitate high-precision monitoring and control of analog signals. It is widely used in industries requiring accurate data acquisition, offering excellent flexibility and reliability for different applications. The module ensures smooth integration into existing systems, providing a simple solution for various analog signal input requirements.
This module supports both analog voltage (0-10V) and current (4-20mA) inputs, offering users versatile options for a range of measurement tasks. With its robust design and easy integration, it is ideal for industries such as manufacturing, process control, and energy management.
Product Specifications:
| Parameter | Value |
|---|---|
| Dimensions | 110 x 85 x 25 mm |
| Weight | 0.12 kg |
| Input Type | Analog Voltage (0-10V), Analog Current (4-20mA) |
| Input Resolution | 16-bit |
| Input Impedance | > 1 MΩ |
| Power Consumption | 1.5W |
| Operating Temperature | -20 to +60°C |
| Storage Temperature | -40 to +85°C |
| Mounting Type | DIN Rail |
| Compliance | CE, UL |
| Input Isolation | 1500V RMS |
Product Application:
The ABB YPG 109A YT204001-CE Analog Input Module is designed to handle a wide range of applications, offering excellent performance in the following fields:
-
Process Control: Provides accurate monitoring and control of variables like temperature, pressure, and flow, ensuring smooth and stable operations.
-
Energy Management: Ideal for monitoring power usage and energy consumption, contributing to cost savings and efficiency.
-
Building Automation: Used in systems for controlling lighting, HVAC, and environmental monitoring to enhance building energy efficiency.
-
Industrial Automation: Key in applications where precise analog signal measurement and integration into control systems are essential.
Advantages:
-
High Accuracy: With a 16-bit resolution, the YPG 109A module offers precise analog signal monitoring, ensuring accurate data collection.
-
Versatile Input Support: Supports both voltage (0-10V) and current (4-20mA) input, providing flexibility for different measurement tasks.
-
Compact Design: Its small size (110 x 85 x 25 mm) makes it easy to integrate into control systems with limited space.
-
Robust and Reliable: Designed for use in harsh industrial environments, the module offers wide operating temperature ranges and high isolation for protection.
-
Energy Efficient: Consumes only 1.5W of power, making it an ideal choice for energy-conscious systems.
Brand
-
Brand: ABB
Recommended Models in the Same Series:
| Model | Description | Key Specifications |
|---|---|---|
| YPG109B | Analog Output Module | Output Range: 0-10V, 4-20mA |
| YPG110A | Digital Input Module | 16 digital inputs, 24V DC |
| YPG110B | Digital Output Module | 16 digital outputs, 24V DC |
| YPG120A | Analog Input/Output Combo | Dual input/output capability |
| YPG122A | Multifunction Input Module | Supports multiple signal types |
Popular ABB Models:
| Model | Description | Key Specifications |
|---|---|---|
| YTG110A | Digital Input Module | 24V DC, 16 digital inputs |
| YTG120A | Analog Output Module | Output range: 0-10V, 4-20mA |
| YTP200A | Process Controller | 4-20mA Input, 0-10V Output |
| YTP210B | Temperature Control Module | RTD, Thermocouple input |
| YTP300C | Power Supply Unit | 24V DC, 5A output |
FAQ (Frequently Asked Questions):
Q1: What is the primary function of the ABB YPG 109A module?
A1: The ABB YPG 109A is an analog input module that allows for precise monitoring and control of analog signals such as voltage and current inputs.
Q2: What are the input types supported by this module?
A2: The module supports both analog voltage (0-10V) and current (4-20mA) inputs, offering flexibility for a wide range of applications.
Q3: Is this module suitable for outdoor use?
A3: Yes, it can be used outdoors as long as the temperature stays within the operating range of -20 to +60°C.
Q4: How is the module mounted?
A4: The YPG 109A module is designed to be mounted on a DIN rail, which is a standard in industrial control systems.
Q5: What is the resolution of the analog inputs?
A5: The module provides a 16-bit resolution for precise data measurement and control.
Q6: Does the YPG 109A offer electrical isolation?
A6: Yes, the module provides 1500V RMS electrical isolation, ensuring protection from electrical surges.
Q7: What certifications does this module have?
A7: The YPG 109A is CE and UL certified, meeting international safety and quality standards.
Q8: What is the power consumption of the YPG 109A module?
A8: The module consumes 1.5W, making it energy efficient.
Q9: Is the YPG 109A module compatible with hazardous environments?
A9: The YPG 109A is designed for industrial environments, but it is essential to assess its suitability for hazardous areas according to specific safety regulations.
Q10: How much does the YPG 109A weigh?
A10: The module weighs only 0.12 kg, making it lightweight and easy to integrate into control systems.
