Product Overview

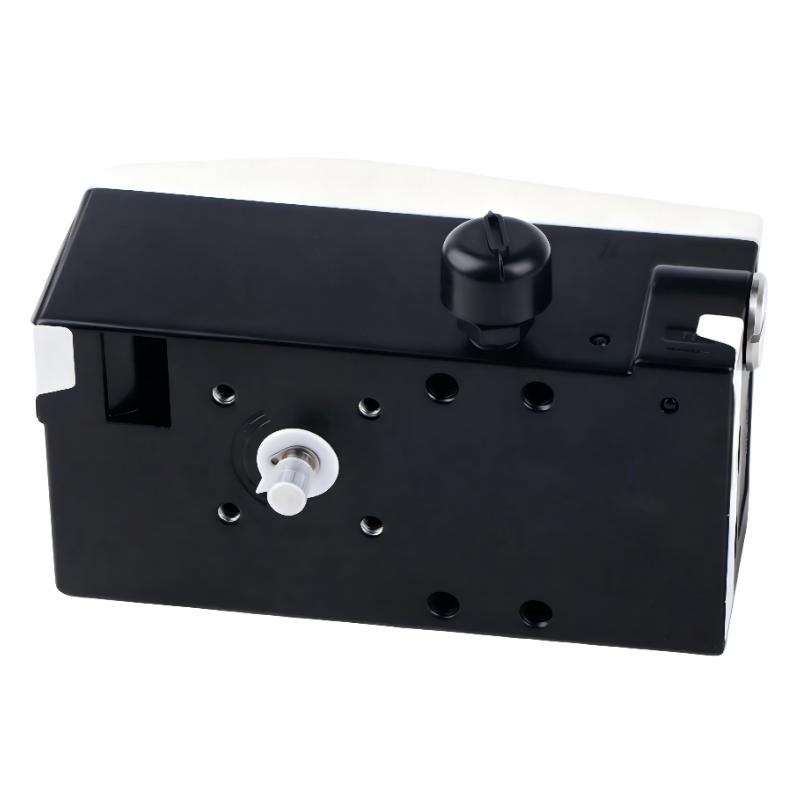

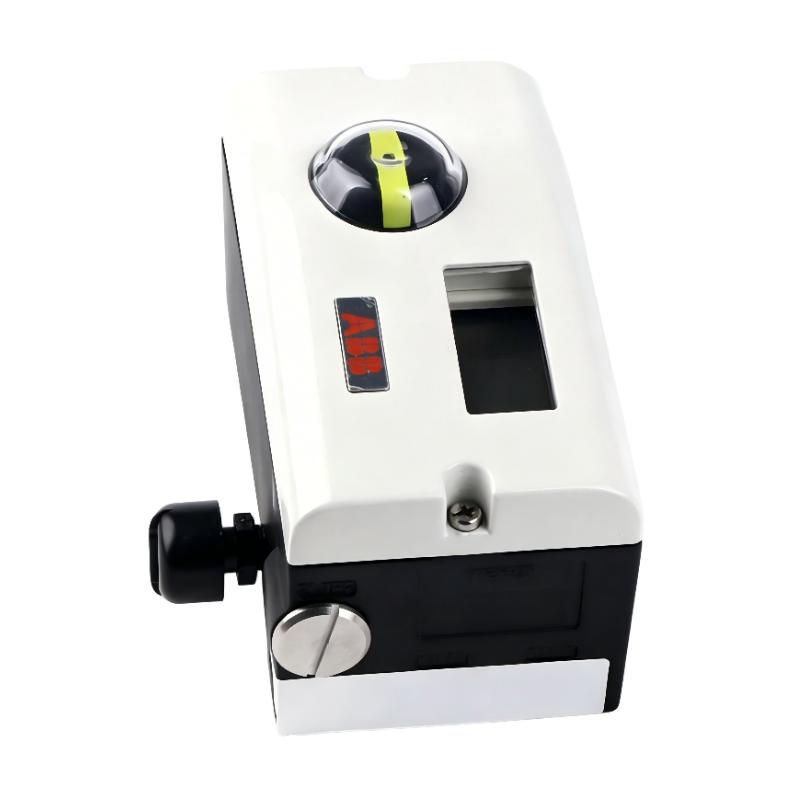

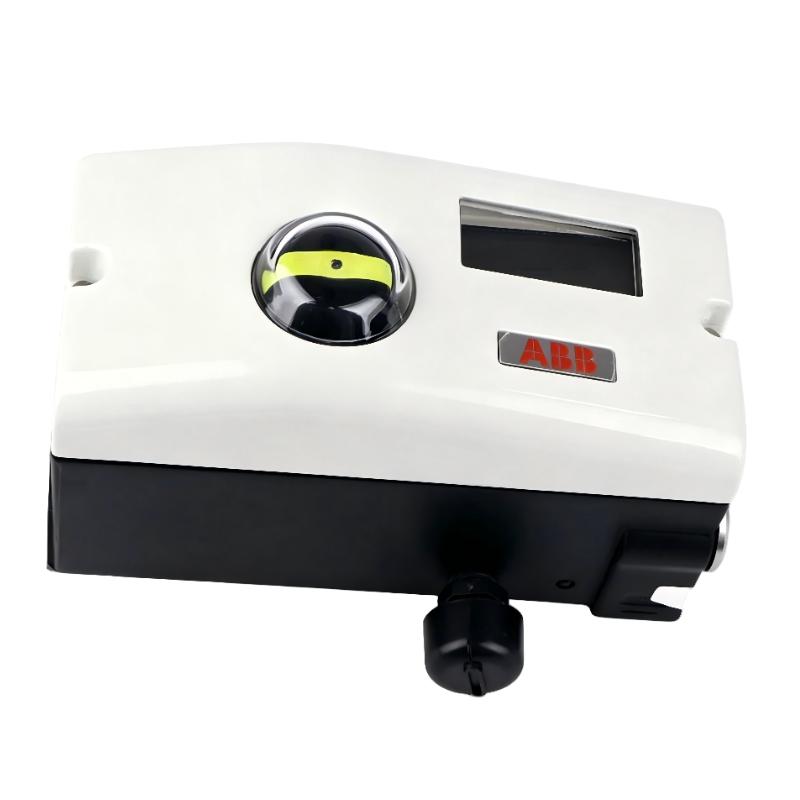

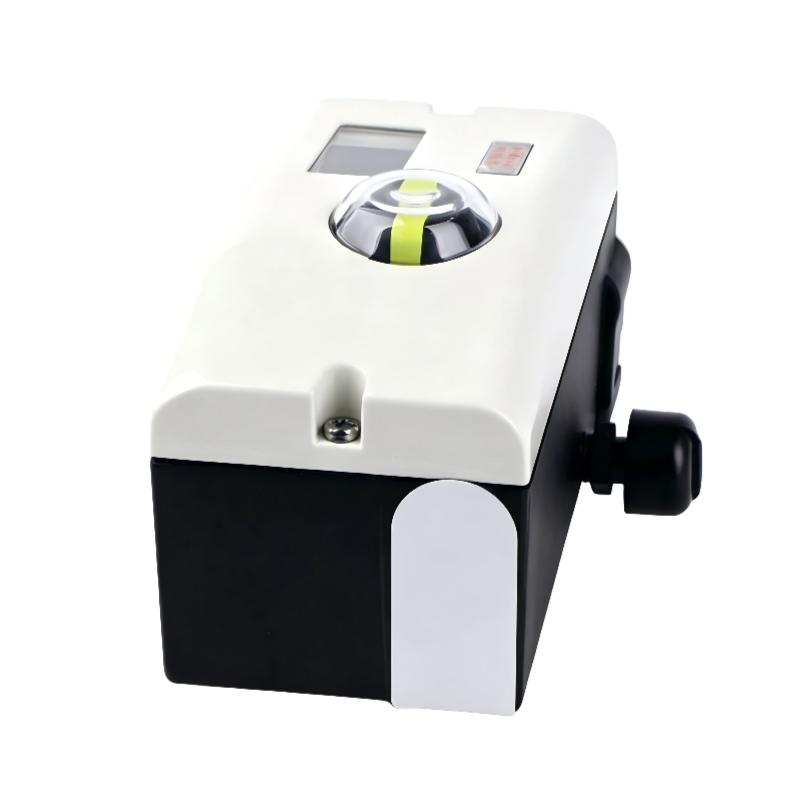

The ABB V18345-2020521001 Valve Positioner is an intelligent electro-pneumatic control device designed for accurate and stable positioning of pneumatic control valves in industrial automation and process control applications.
The valve positioner receives control signals from PLC, DCS, or industrial control systems and converts these signals into precise pneumatic output pressure to control valve actuator movement. Through continuous position feedback and automatic adjustment, it ensures that the control valve reaches the required position accurately and maintains stable operation during changing process conditions.
The ABB V18345-2020521001 Valve Positioner features a compact and durable industrial design with dimensions of 168.5 × 101 × 114.5 mm and a weight of 1.7 kg, making it suitable for installation on various pneumatic actuators and industrial control valves.
This valve positioner is widely applied in industries requiring precise regulation of flow, pressure, temperature, and other process parameters.
Typical applications include:
- Oil and gas processing equipment
- Chemical and petrochemical plants
- Power generation systems
- Water treatment facilities
- Industrial process control systems
- Steam control applications
- Automated production equipment
Technical Specifications
| Parameter |
Description |
| Manufacturer |
ABB |
| Model |
V18345-2020521001 |
| Product Type |
Valve Positioner |
| Control Technology |
Electro-pneumatic positioning |
| Dimensions |
168.5 × 101 × 114.5 mm |
| Weight |
1.7 kg |
| Installation Type |
Actuator-mounted installation |
| Application |
Pneumatic control valve regulation |
| Control System Compatibility |
PLC / DCS automation systems |
Working Principle
The ABB V18345-2020521001 Valve Positioner operates using a closed-loop control principle to achieve precise valve positioning.
The working process includes:
- The control system sends a target valve position command.
- The positioner receives and processes the input signal.
- The internal controller compares the target position with actual valve feedback.
- The pneumatic output pressure is adjusted automatically.
- The actuator moves the valve to the required position.
- The feedback system continuously corrects positioning errors.
This intelligent feedback control allows the valve to maintain accurate operation even when process conditions, pressure, or flow requirements change.
Main Features
1. High-Precision Valve Position Control
The ABB V18345-2020521001 provides accurate valve positioning performance for demanding industrial processes.
Key benefits:
- High positioning accuracy
- Reduced valve adjustment errors
- Improved process stability
- Fast response to control commands
Precise valve positioning helps maintain consistent production quality and improves automation system efficiency.
2. Intelligent Valve Adjustment Capability
The valve positioner provides convenient configuration and adjustment functions for industrial commissioning.
Advantages:
- Simplified startup process
- Reduced commissioning time
- Improved valve adaptation
- Enhanced operating reliability
This allows engineers to achieve efficient valve control system setup.
3. Compact Industrial Design
With dimensions of 168.5 × 101 × 114.5 mm, the ABB V18345-2020521001 offers a compact structure suitable for various valve assemblies.
Advantages:
- Space-saving installation
- Easy actuator integration
- Convenient maintenance
- Reliable mechanical structure
The compact design allows flexible installation in different industrial environments.
4. Stable Pneumatic Output Control
The positioner provides accurate pneumatic control for actuator operation.
Benefits:
- Smooth actuator movement
- Stable valve response
- Reduced valve fluctuation
- Improved process control accuracy
It supports continuous operation in industrial environments requiring reliable valve regulation.
5. Reliable Industrial Performance
The ABB V18345-2020521001 is designed for long-term operation in demanding automation applications.
Features:
- Durable construction
- Stable signal processing
- Reliable feedback control
- Strong environmental adaptability
Industrial Applications
Oil and Gas Industry
The ABB valve positioner is widely used in oil and gas process automation systems.
Applications include:
- Pipeline valve control
- Pressure regulation
- Gas processing systems
- Refinery process control
Accurate valve operation helps improve system safety and production efficiency.
Chemical and Petrochemical Industry
Chemical production requires precise control of fluids and process conditions.
Applications include:
- Reactor control valves
- Flow adjustment systems
- Pressure control equipment
- Chemical processing lines
The positioner helps maintain stable and efficient production processes.
Power Generation Industry
Power plants use valve positioners for reliable control of steam and auxiliary systems.
Applications include:
- Steam valves
- Boiler control systems
- Cooling water systems
- Turbine auxiliary equipment
Stable valve control improves plant reliability and operating efficiency.
Water Treatment Industry
The valve positioner supports automatic regulation in water processing applications.
Applications include:
- Flow control
- Pumping systems
- Chemical dosing systems
- Water distribution equipment
Installation Guide
Mechanical Installation
Recommended installation steps:
- Confirm the ABB V18345-2020521001 model.
- Check valve actuator compatibility.
- Install the positioner securely on the actuator.
- Connect the feedback mechanism correctly.
- Verify valve travel movement.
- Ensure proper alignment.
Correct mechanical installation ensures accurate valve position measurement.
Pneumatic Installation
Before operation:
- Check compressed air quality.
- Confirm air supply pressure.
- Connect pneumatic tubing correctly.
- Inspect all connections for leakage.
Recommended practices:
- Use clean and dry instrument air.
- Prevent contamination in pneumatic lines.
- Verify actuator response before operation.
Electrical Installation
Electrical connection procedure:
- Connect the control signal wiring.
- Verify terminal connections.
- Check grounding requirements.
- Confirm signal stability.
- Test communication with the automation system.
Correct electrical installation ensures reliable control performance.
Commissioning Procedure
Recommended commissioning steps:
- Install the ABB V18345-2020521001 correctly.
- Connect pneumatic and electrical systems.
- Perform valve calibration.
- Check valve movement range.
- Verify position feedback accuracy.
- Test automatic positioning function.
- Confirm PLC/DCS control response.
Proper commissioning improves system stability and reduces future maintenance problems.
Common Faults and Troubleshooting
| Fault Symptom |
Possible Cause |
Recommended Solution |
| Valve does not move |
Incorrect control signal |
Check input wiring and signal |
| Slow valve response |
Low pneumatic pressure |
Check air supply system |
| Incorrect valve position |
Calibration problem |
Perform recalibration |
| Position instability |
Feedback connection issue |
Inspect feedback mechanism |
| Air leakage |
Damaged pneumatic connection |
Repair tubing or fittings |
| No actuator output |
Internal pneumatic problem |
Check positioner operation |
Maintenance Recommendations
To ensure long-term reliable operation:
- Check instrument air quality regularly
- Inspect pneumatic connections
- Verify valve calibration
- Monitor position feedback signals
- Check mounting stability
- Perform periodic functional tests
Regular maintenance helps reduce downtime and extends equipment service life.
Advantages of ABB V18345-2020521001 Valve Positioner
- High-precision valve positioning
- Intelligent electro-pneumatic control
- Compact industrial design
- Reliable actuator regulation
- Easy installation and commissioning
- Compatible with PLC and DCS systems
- Stable process control performance
- Suitable for demanding industrial applications
Frequently Asked Questions
What is ABB V18345-2020521001?
The ABB V18345-2020521001 is an intelligent valve positioner designed for accurate control of pneumatic valves in industrial automation systems.
What is the main function of ABB V18345-2020521001?
It converts electrical control signals into pneumatic actuator movement to achieve precise valve positioning.
Where is ABB V18345-2020521001 used?
It is commonly used in oil and gas, chemical, power generation, water treatment, and industrial process automation applications.
What are the dimensions of ABB V18345-2020521001?
The dimensions are 168.5 × 101 × 114.5 mm.
What is the weight of ABB V18345-2020521001?
The weight is 1.7 kg.
Conclusion
The ABB V18345-2020521001 Valve Positioner is a reliable solution for precise pneumatic valve control in industrial automation systems.
With accurate positioning technology, compact structure, and stable electro-pneumatic performance, it helps improve process control accuracy, reduce equipment downtime, and enhance overall automation system reliability.
The ABB V18345-2020521001 Valve Positioner is an excellent choice for industrial applications requiring dependable valve regulation, precise process control, and long-term operational stability.
