Product Overview

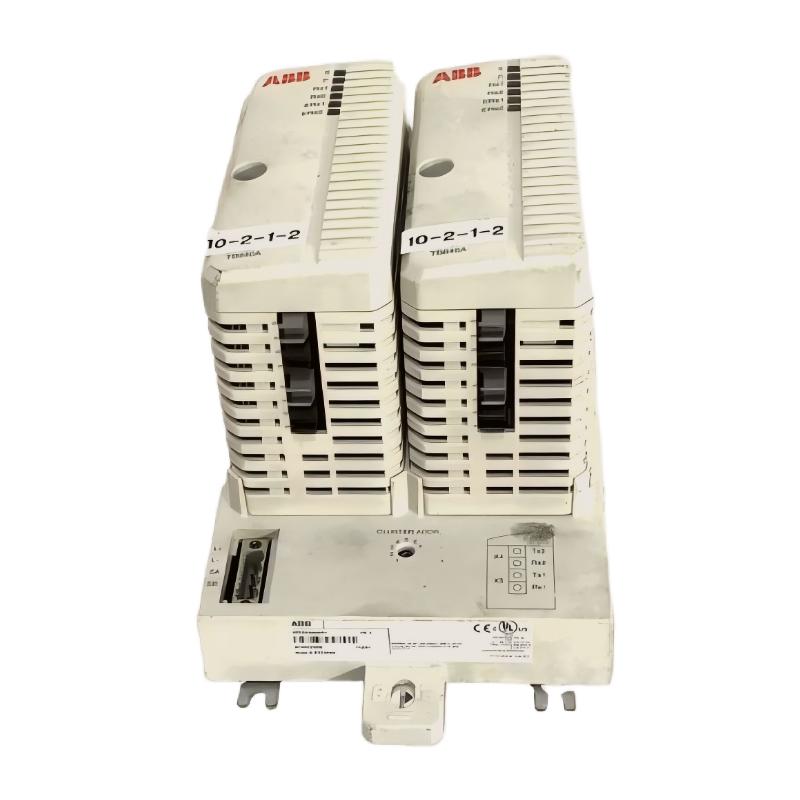

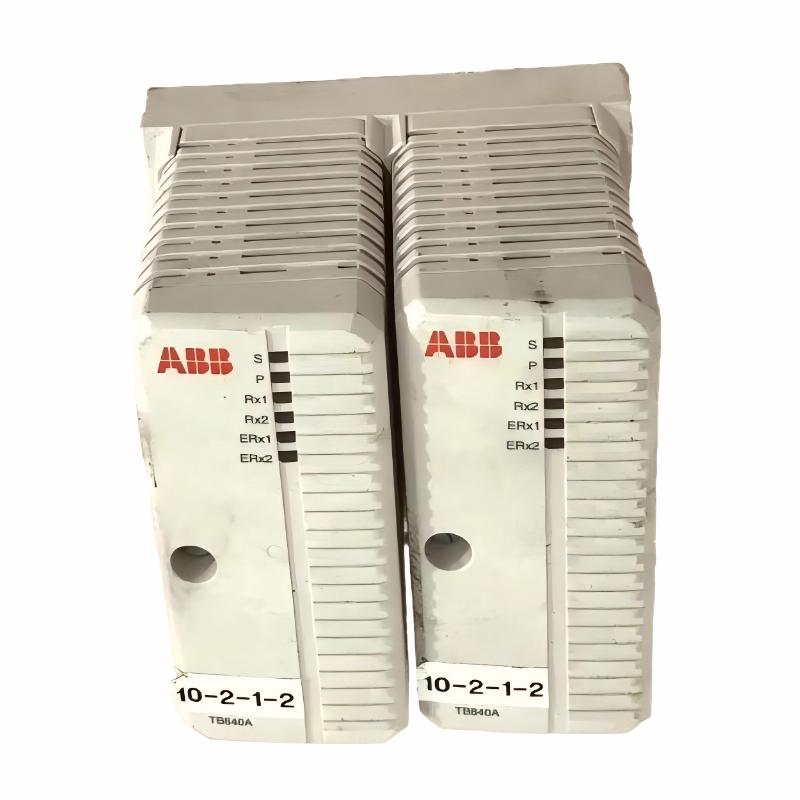

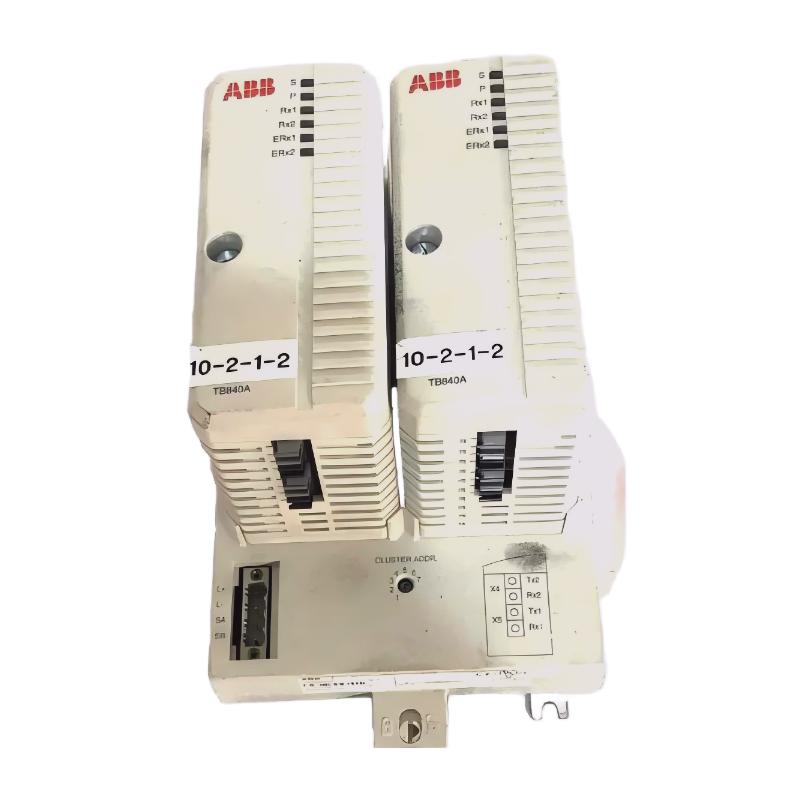

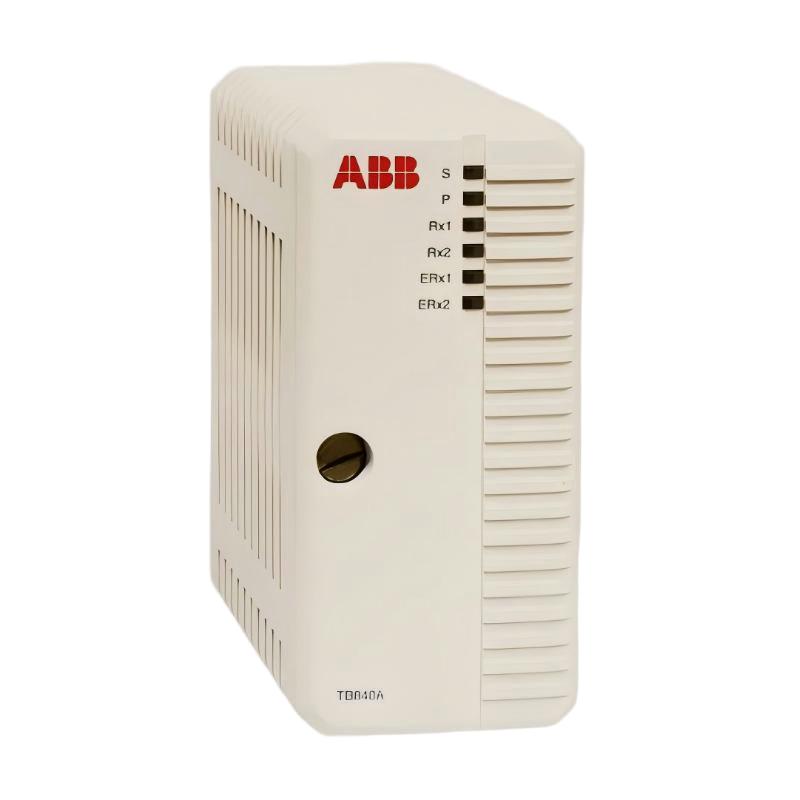

The ABB TB840A 3BSE037760R1 Module Bus Fiber Optic Trunking Modem is a high-performance communication interface module designed for ABB S800 I/O distributed automation systems. It provides an optical communication interface between electrical ModuleBus networks and fiber optic Optical ModuleBus networks, enabling reliable expansion of distributed I/O clusters in industrial control environments.
The TB840A is mainly used in redundant automation architectures where high system availability and reliable communication are required. It allows I/O modules to be distributed over fiber optic networks while maintaining stable communication between controllers and field devices.
By converting electrical ModuleBus communication into optical communication signals, the TB840A improves transmission reliability, increases communication distance, and provides strong resistance against electromagnetic interference commonly found in industrial environments.
The ABB TB840A is widely used in:
- Process automation systems
- Distributed control systems
- Power generation facilities
- Oil and gas industries
- Chemical processing plants
- Water treatment systems
- Manufacturing automation
- Large industrial I/O networks
With dimensions of 96 × 119 × 54 mm and a weight of 0.2 kg, the TB840A provides a compact and reliable communication solution for industrial control cabinets.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | TB840A |
| Part Number | 3BSE037760R1 |
| Product Type | ModuleBus Fiber Optic Trunking Modem |
| Application | ABB S800 I/O Communication Interface |
| Communication Protocol | ModuleBus |
| Communication Type | Electrical and Optical ModuleBus |
| Operation Mode | Redundant Communication Support |
| Fiber Optic Ports | 2 |
| ModuleBus Interface | Supported |
| I/O Module Expansion | Supported |
| Power Supply | 24 VDC |
| Typical Power Consumption | 120 mA |
| Installation Method | DIN Rail Mounting |
| Dimensions | 96 × 119 × 54 mm |
| Weight | 0.2 kg |
Function and Working Principle
The ABB TB840A ModuleBus Fiber Optic Trunking Modem functions as a communication bridge between local electrical ModuleBus connections and remote optical ModuleBus clusters.
The module provides:
- Electrical ModuleBus connection
- Fiber optic communication conversion
- Distributed I/O expansion
- Redundant communication support
- Communication supervision
The operating process includes:
- The TB840A is installed in an industrial control cabinet.
- Local I/O modules are connected through the electrical ModuleBus interface.
- Fiber optic cables are connected to remote Optical ModuleBus clusters.
- Electrical communication signals are converted into optical signals.
- Data is transmitted through fiber optic cables.
- Remote I/O modules exchange process information with the automation controller.
This architecture allows industrial facilities to install I/O modules closer to field equipment while maintaining reliable communication with the control system.
Main Features
1. Fiber Optic ModuleBus Communication
The ABB TB840A provides optical ModuleBus communication through fiber optic interfaces.
Main advantages:
- Long-distance communication capability
- High resistance to electromagnetic interference
- Stable signal transmission
- Suitable for harsh industrial environments
Fiber optic technology makes the TB840A ideal for large automation systems where control equipment and field devices are located in different areas.
2. Redundant Communication Design
The TB840A supports redundant communication configurations for applications requiring high availability.
Benefits include:
- Improved system reliability
- Reduced communication interruption risk
- Increased system uptime
- Better fault tolerance
Redundant architecture is especially important in industries where continuous operation is required.
3. Electrical and Optical ModuleBus Integration
The terminal modem integrates electrical and optical ModuleBus interfaces into one communication solution.
This enables:
- Local I/O module connection
- Remote I/O cluster expansion
- Flexible system architecture
- Simplified industrial network design
The conversion between electrical and optical communication helps engineers create scalable automation systems.
4. Distributed I/O Expansion Capability
The TB840A supports distributed I/O structures by allowing remote I/O clusters to communicate through fiber optic networks.
Typical applications include:
- Large production facilities
- Remote process areas
- Multi-zone automation systems
- Complex industrial plants
This reduces wiring requirements and improves installation flexibility.
5. Hot Swap and Maintenance Flexibility
The TB840A supports maintenance-friendly system designs where modules can be replaced with minimal impact on automation operation.
Advantages include:
- Reduced maintenance time
- Improved system availability
- Easier troubleshooting
- Lower production downtime
Industrial Applications
Process Automation Systems
The ABB TB840A is widely used in continuous process industries.
Typical applications:
- Chemical plants
- Pharmaceutical production
- Oil and gas facilities
- Industrial processing systems
Fiber optic communication ensures stable operation in environments with high electrical noise.
Power Industry Automation
The TB840A is suitable for power generation and energy control systems.
Applications include:
- Power plants
- Electrical monitoring systems
- Generator control
- Energy management systems
Reliable communication helps maintain stable operation of critical equipment.
Water Treatment Automation
The module can be used in distributed water and wastewater control systems.
Common applications:
- Pump stations
- Filtration systems
- Remote monitoring equipment
- Process control units
Manufacturing Automation
The TB840A supports large-scale manufacturing automation networks.
Applications include:
- Production lines
- Automated equipment
- Machine monitoring systems
- Factory control networks
Installation Guide
Mechanical Installation
Recommended installation steps:
- Install the TB840A securely inside the control cabinet.
- Ensure the mounting position is stable.
- Connect the electrical ModuleBus interface.
- Connect fiber optic communication cables.
- Verify module installation.
- Check environmental conditions before operation.
Correct installation ensures stable communication performance.
Electrical and Fiber Optic Wiring
Before startup, verify:
- 24 VDC power supply connection
- ModuleBus wiring
- Fiber optic cable connection
- Grounding condition
- Connector installation
Recommended practices:
- Avoid sharp bending of fiber optic cables.
- Keep communication cables away from strong interference sources.
- Protect fiber connectors from dust and contamination.
- Check cable conditions regularly.
Commissioning Procedure
Typical commissioning steps:
- Install the TB840A module.
- Connect power supply.
- Connect electrical ModuleBus devices.
- Connect fiber optic communication lines.
- Configure redundant communication settings.
- Check communication indicators.
- Test I/O module operation.
Proper commissioning ensures reliable distributed control performance.
Common Fault Symptoms and Troubleshooting
| Fault Symptom | Possible Cause | Recommended Solution |
|---|---|---|
| Fiber communication failure | Fiber cable damage | Inspect and replace fiber cable |
| Optical cluster unavailable | Incorrect configuration | Check cluster settings |
| ModuleBus communication error | Loose connection | Check ModuleBus wiring |
| Power indicator inactive | Power supply failure | Verify 24 VDC input |
| Communication instability | Fiber connector contamination | Clean connectors |
| I/O modules not detected | Incorrect installation | Check module connections |
| Redundant communication failure | Backup path problem | Inspect redundant connection |
Maintenance Recommendations
To maintain long-term reliable operation:
- Inspect fiber optic connections regularly
- Keep optical connectors clean
- Check ModuleBus wiring
- Verify power supply stability
- Monitor communication status
- Maintain proper cabinet conditions
- Inspect redundant communication paths
Regular maintenance helps improve system availability and reduce unexpected downtime.
Advantages of ABB TB840A
- Designed for ABB S800 I/O systems
- Fiber optic ModuleBus communication support
- Electrical and optical interface integration
- Supports redundant automation architectures
- High resistance to electromagnetic interference
- Compact industrial design
- Reliable distributed I/O communication
- Suitable for large-scale process automation systems
Technical FAQs
What is ABB TB840A?
The ABB TB840A is a ModuleBus fiber optic trunking modem designed for ABB S800 I/O distributed automation systems.
What is the main function of TB840A?
The main function of TB840A is to provide communication conversion between electrical ModuleBus and optical ModuleBus networks for distributed I/O expansion.
How many fiber optic ports does TB840A have?
The TB840A provides two fiber optic communication ports.
What applications use ABB TB840A?
The TB840A is commonly used in process automation, power systems, manufacturing plants, and distributed control applications requiring reliable fiber optic communication.
Conclusion
The ABB TB840A 3BSE037760R1 Module Bus Fiber Optic Trunking Modem is a reliable communication component designed for ABB S800 I/O distributed control systems.
With fiber optic communication capability, redundant operation support, electrical-to-optical ModuleBus conversion, and compact industrial design, it provides an effective solution for modern automation networks.
For process industries, power plants, manufacturing facilities, and large distributed control applications, the ABB TB840A helps engineers build flexible, stable, and high-availability industrial communication architectures.
