Product Overview

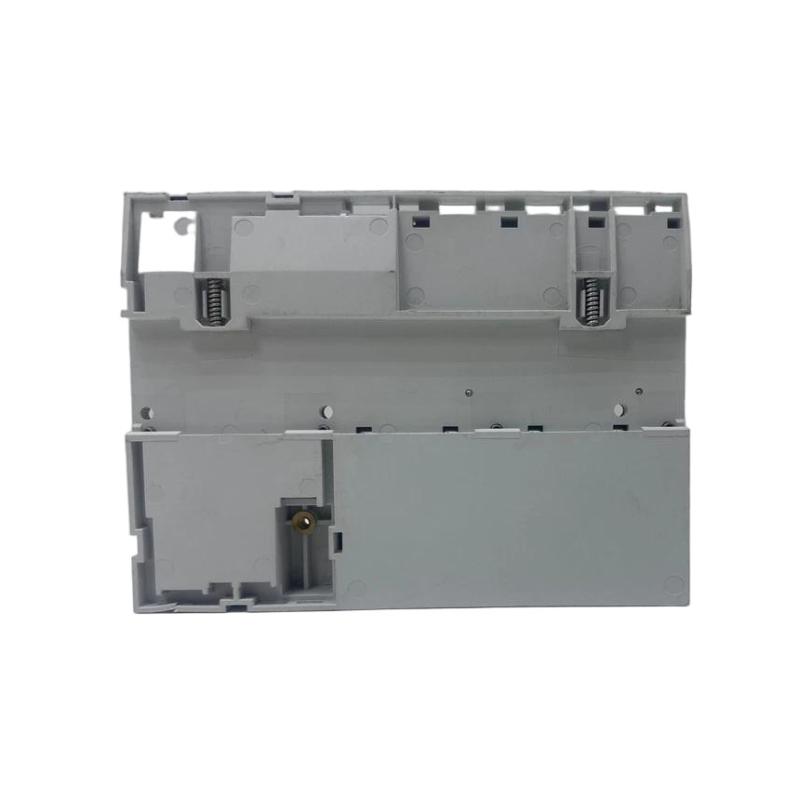

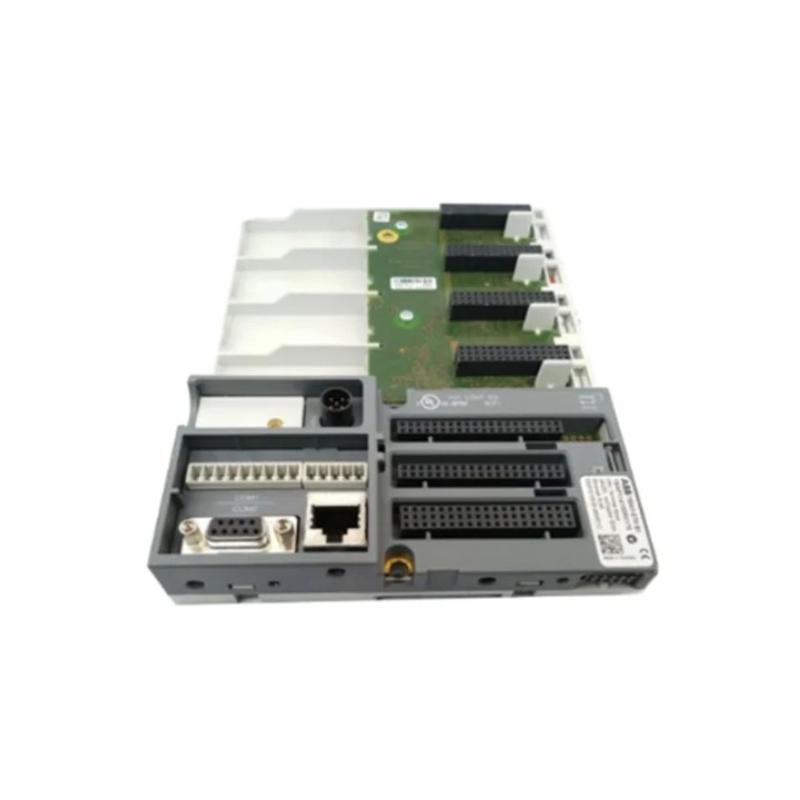

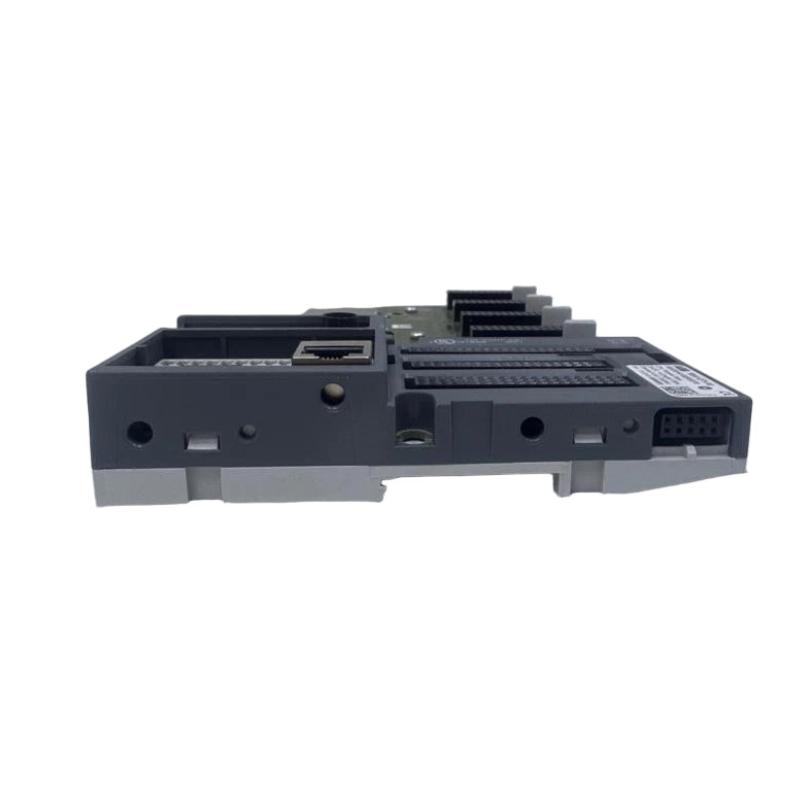

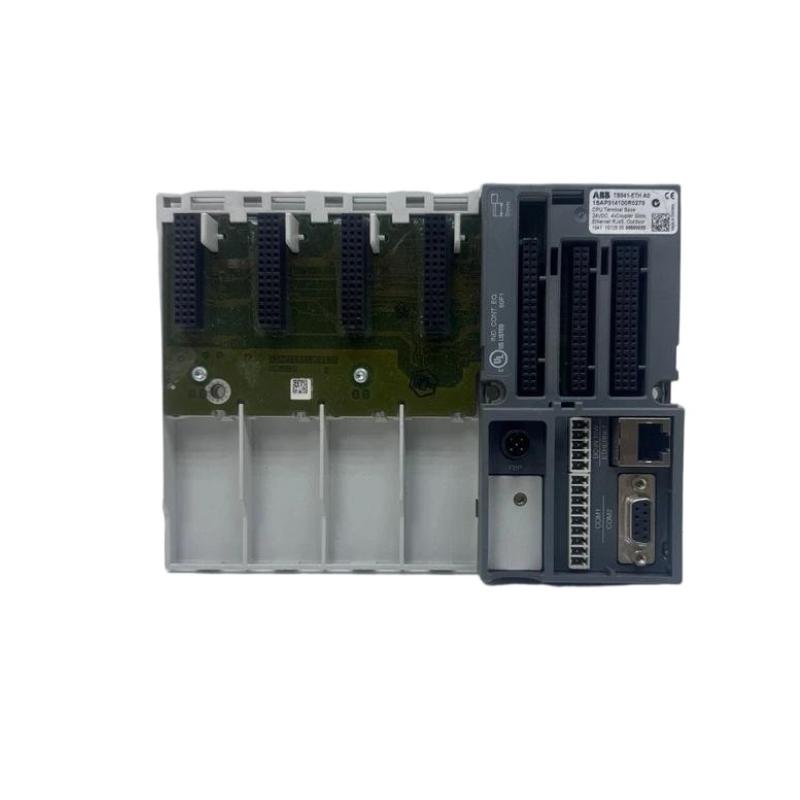

The ABB TB541-ETH 1SAP114100R0270 Terminal Base is a high-performance terminal base designed for ABB AC500 PLC automation systems. It provides a reliable mounting platform and electrical connection interface for processor modules and multiple communication modules, helping engineers build flexible, scalable, and efficient industrial control systems.
The TB541-ETH is designed for advanced automation applications that require multiple communication channels, stable industrial networking, and modular PLC expansion. It supports one processor module and up to four communication modules, making it suitable for complex control architectures where different communication interfaces and field devices must be integrated into a single automation system.
With Ethernet communication capability and serial communication support, the terminal base allows PLC systems to connect with HMIs, SCADA systems, industrial networks, remote devices, and other automation equipment.
The ABB TB541-ETH is widely used in:
- Factory automation systems
- Process control applications
- Energy management systems
- Water treatment facilities
- Manufacturing production lines
- OEM industrial machinery
- Distributed control systems
- Industrial communication networks
With dimensions of 28 × 135 × 179.5 mm and a weight of 0.24 kg, the TB541-ETH provides a compact and expandable solution for industrial control cabinets.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | TB541-ETH |
| Part Number | 1SAP114100R0270 |
| Product Type | Terminal Base |
| Compatible Platform | ABB AC500 PLC |
| Application | CPU and Communication Module Connection |
| CPU Slot | 1 Processor Module |
| Communication Module Slots | 4 Slots |
| Ethernet Interface | Supported |
| Serial Communication | RS232 / RS485 |
| Installation Method | DIN Rail Mounting |
| Expansion Capability | Supports Modular PLC Expansion |
| Dimensions | 28 × 135 × 179.5 mm |
| Weight | 0.24 kg |
Function and Working Principle
The ABB TB541-ETH Terminal Base serves as the connection foundation between the PLC processor, communication modules, and industrial automation networks.
The terminal base provides mechanical support and electrical connections, allowing the installed modules to exchange power, control signals, and communication data efficiently.
The basic operating process includes:
- Installing the terminal base on a DIN rail.
- Mounting the compatible ABB AC500 CPU module.
- Installing required communication modules.
- Connecting Ethernet communication networks.
- Connecting RS232/RS485 devices.
- Adding expansion modules according to system requirements.
- Establishing communication between the PLC and external devices.
The modular design simplifies system installation and improves automation system flexibility.
Main Features
1. Support for Multiple Communication Modules
The ABB TB541-ETH supports up to four communication modules, making it suitable for complex industrial automation systems.
Typical applications include:
- Multi-network communication
- Remote I/O integration
- Industrial device connection
- Data acquisition systems
- Distributed control architectures
The multi-module structure allows engineers to design customized PLC communication solutions.
2. Ethernet Communication Capability
The integrated Ethernet interface provides reliable communication between the PLC system and industrial networks.
Common applications include:
- HMI communication
- SCADA system integration
- PLC networking
- Remote monitoring
- Engineering access
Ethernet communication improves data exchange efficiency and system connectivity.
3. Serial Communication Support
The TB541-ETH supports serial communication functions for connecting various industrial devices.
Typical connected equipment includes:
- Sensors
- Industrial instruments
- Drives
- Operator panels
- Communication gateways
This provides additional flexibility for automation system integration.
4. Modular Expansion Design
The terminal base supports modular PLC architectures, allowing automation systems to expand according to project requirements.
Expansion applications include:
- Digital I/O modules
- Analog I/O modules
- Communication modules
- Remote control systems
- Industrial networking solutions
The modular structure reduces future upgrade complexity.
5. Compact and Reliable Industrial Structure
The compact design allows installation in limited control cabinet space while maintaining reliable performance.
Advantages include:
- Space-saving installation
- Simple wiring arrangement
- Easy maintenance
- Stable electrical connections
- Long service life
Industrial Applications
Factory Automation Systems
The ABB TB541-ETH is widely used in manufacturing automation.
Typical applications include:
- Production lines
- Assembly equipment
- Automated inspection systems
- Machine control stations
The flexible communication capability supports efficient automation management.
Process Control Applications
The terminal base is suitable for industrial process environments.
Applications include:
- Water treatment systems
- Chemical processing equipment
- Energy control systems
- Utility monitoring
Reliable PLC communication helps improve process stability and operational efficiency.
OEM Machinery
The compact modular design makes the TB541-ETH suitable for customized industrial machines.
Common applications include:
- Packaging equipment
- Testing machines
- Special-purpose machines
- Automated production systems
Distributed Automation Networks
The TB541-ETH supports distributed control architectures requiring multiple communication interfaces.
Applications include:
- Remote PLC systems
- Industrial Ethernet networks
- Smart manufacturing systems
- Large automation projects
Installation Guide
Mechanical Installation
Recommended installation procedure:
- Mount the TB541-ETH securely on a standard DIN rail.
- Confirm the installation position is stable.
- Install the compatible processor module.
- Install communication modules.
- Ensure adequate ventilation space.
- Check module connections before operation.
Correct mechanical installation improves system reliability.
Electrical Wiring
Before startup, verify:
- Power supply wiring
- Ethernet cable connection
- RS232/RS485 communication wiring
- Module installation status
- Grounding connection
Recommended practices:
- Keep communication cables away from high-voltage wiring.
- Avoid electromagnetic interference sources.
- Secure all terminal connections.
- Check cable conditions regularly.
Commissioning Procedure
Typical commissioning steps:
- Install CPU and communication modules.
- Connect Ethernet communication.
- Configure communication parameters.
- Connect field devices.
- Apply system power.
- Check module status.
- Test PLC communication and control functions.
Proper commissioning ensures stable automation operation.
Common Fault Symptoms and Troubleshooting
| Fault Symptom | Possible Cause | Recommended Solution |
|---|---|---|
| CPU module not detected | Poor module connection | Check CPU installation |
| Communication module failure | Incorrect installation | Reinstall communication module |
| Ethernet communication failure | Network connection problem | Check Ethernet cable and settings |
| Serial communication error | Wiring problem | Verify RS232/RS485 connection |
| PLC startup failure | Power supply issue | Check power wiring |
| Communication instability | Electrical interference | Improve cable routing |
| Expansion module unavailable | Configuration problem | Check system settings |
Maintenance Recommendations
To ensure long-term reliable operation:
- Inspect module connections regularly
- Keep the control cabinet clean
- Check Ethernet connectors
- Verify communication stability
- Inspect wiring conditions
- Monitor PLC system status
- Replace damaged cables when necessary
Regular maintenance helps reduce downtime and improves system reliability.
Advantages of ABB TB541-ETH
- Designed for ABB AC500 PLC systems
- Supports one CPU module and four communication modules
- Integrated Ethernet communication capability
- RS232/RS485 communication support
- Flexible modular system design
- Compact DIN rail installation
- Reliable industrial connection structure
- Easy maintenance and replacement
- Suitable for advanced automation applications
Technical FAQs
What is ABB TB541-ETH?
The ABB TB541-ETH is a terminal base designed for ABB AC500 PLC systems, providing mounting and communication connections for processor and communication modules.
How many communication modules can the TB541-ETH support?
The TB541-ETH supports up to four communication modules, allowing flexible automation system configuration.
Does the ABB TB541-ETH support Ethernet communication?
Yes. The terminal base provides Ethernet communication capability for industrial networking applications.
Where is the ABB TB541-ETH commonly used?
It is commonly used in factory automation, process control, OEM machinery, energy systems, and distributed industrial control applications.
Conclusion
The ABB TB541-ETH 1SAP114100R0270 Terminal Base is a reliable and expandable component for ABB AC500 PLC automation systems.
With support for multiple communication modules, Ethernet connectivity, serial communication interfaces, and modular expansion capability, it provides a strong foundation for modern industrial control solutions.
For manufacturing plants, process industries, OEM machines, and distributed automation networks, the ABB TB541-ETH helps engineers create flexible, scalable, and reliable PLC control systems.
