Product Overview

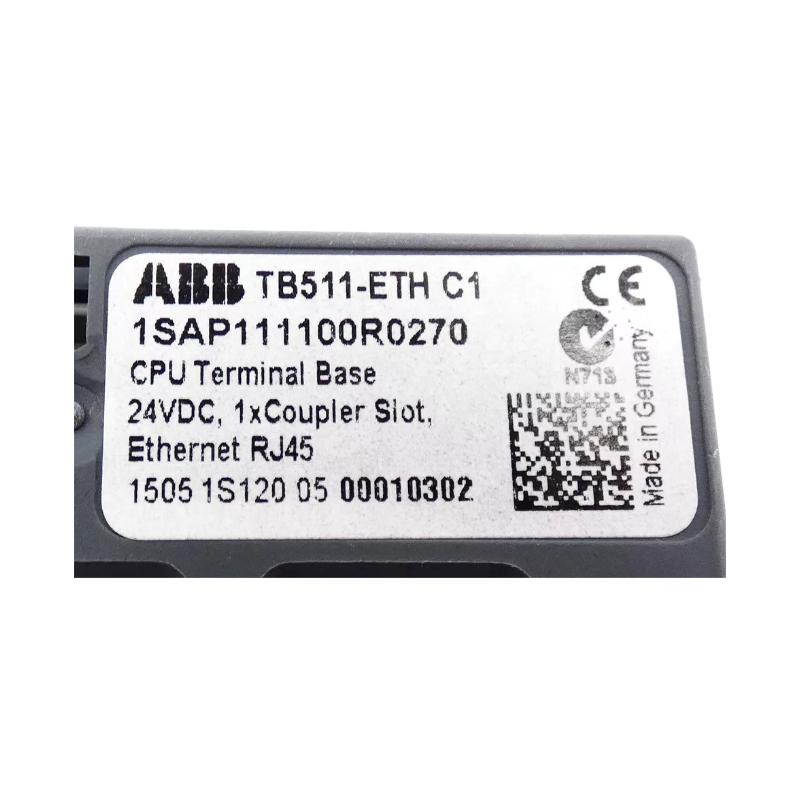

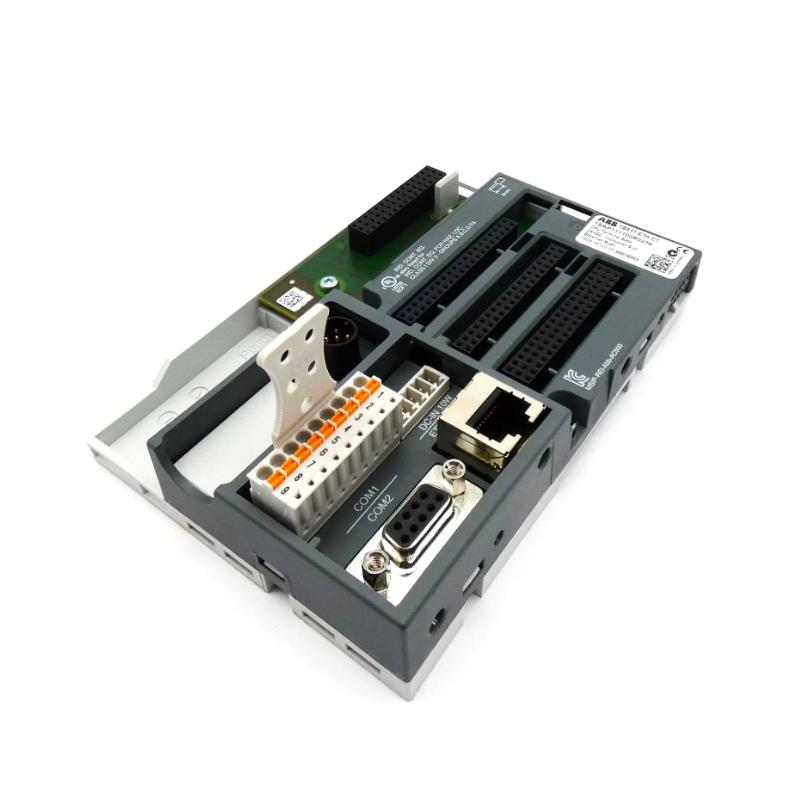

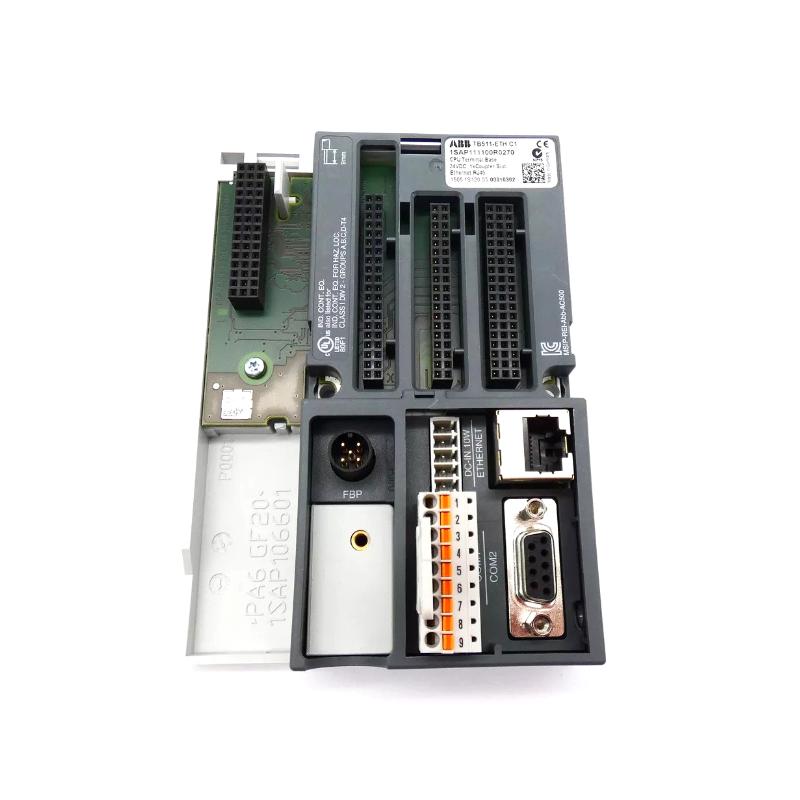

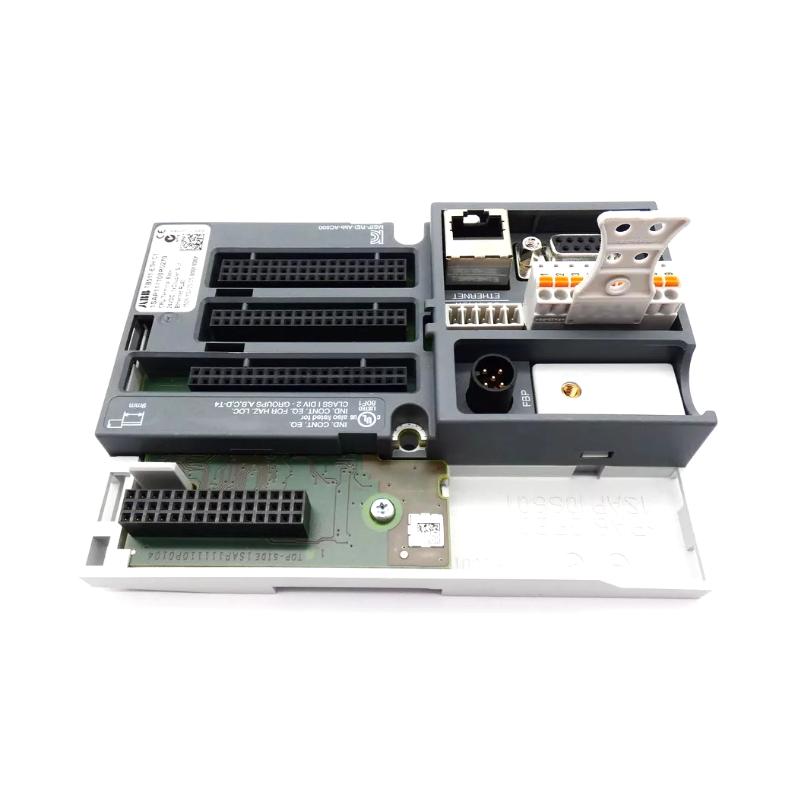

In modern industrial automation systems, a reliable PLC hardware foundation is essential for achieving stable control performance, flexible expansion, and efficient communication management. The ABB TB511-ETH (1SAP111100R0270) Terminal Base is a dedicated terminal base component designed for ABB AC500 V2 PLC systems, providing a mounting platform and communication interface connection between CPU modules, communication modules, and automation devices.
The TB511-ETH is not a PLC processor itself. Instead, it provides the physical and electrical connection structure required for installing controller modules and expanding communication functions. By supporting Ethernet communication and serial interfaces, this terminal base allows ABB AC500 controllers to connect with industrial networks, engineering tools, HMIs, and external automation equipment.
With its compact design, reliable connection structure, and flexible communication capability, the ABB TB511-ETH is widely used in machine automation, factory control systems, process automation, and industrial communication applications.
The terminal base plays an important role in simplifying PLC cabinet design, improving wiring organization, and supporting scalable automation solutions.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | TB511-ETH |
| Part Number | 1SAP111100R0270 |
| Product Type | Terminal Base |
| Application Category | PLC Controller Hardware Component |
| Compatible System | ABB AC500 V2 PLC System |
| Main Function | CPU and communication module mounting support |
| Communication Interface | Ethernet Interface |
| Serial Interface | RS232 / RS485 |
| Communication Module Slot | 1 |
| Processor Module Slot | 1 |
| Supply Voltage | 24 VDC |
| Installation Method | DIN rail mounting |
| Protection Level | Industrial cabinet installation |
| Dimensions | 28 × 135 × 95.5 mm |
| Weight | 0.164 kg |
| Application | Industrial PLC automation systems |
Function and Working Principle
The ABB TB511-ETH operates as the hardware connection foundation of an AC500 PLC system.
It provides mechanical mounting, electrical connection, and communication interfaces between the controller modules and external automation equipment.
1. PLC Module Mounting Support
The main function of the TB511-ETH is providing a stable installation platform for AC500 controller modules.
It supports:
- CPU module installation
- Communication module connection
- Internal system bus connection
- Secure mechanical positioning
This allows engineers to build compact and reliable PLC control cabinets.
2. Ethernet Communication Support
The TB511-ETH integrates Ethernet communication capability for industrial networking.
It enables:
- PLC programming communication
- Data exchange with supervisory systems
- Connection with industrial Ethernet devices
- Remote monitoring applications
This improves the flexibility of automation system integration.
3. Serial Communication Connection
In addition to Ethernet communication, the terminal base supports RS232 and RS485 interfaces.
These interfaces allow connection with:
- Serial instruments
- Industrial controllers
- Communication converters
- External automation equipment
This provides additional communication flexibility for different project requirements.
Role in Industrial Automation Systems
The ABB TB511-ETH acts as an important hardware platform within ABB AC500 PLC architectures.
It connects different automation components together and provides the foundation for controller operation.
| System Component | Function |
|---|---|
| TB511-ETH Terminal Base | Provides module mounting and communication interfaces |
| AC500 CPU Module | Executes PLC control programs |
| Communication Module | Expands network communication functions |
| I/O Modules | Connect sensors and actuators |
| Ethernet Devices | Provides industrial data exchange |
| HMI System | Displays and manages automation processes |
The terminal base ensures stable communication and reliable connection between different automation devices.
Industrial Applications
Machine Automation Systems
The ABB TB511-ETH is commonly used in:
- Packaging machines
- Production equipment
- Assembly systems
- Motion control applications
Its compact structure makes it suitable for machine control cabinets.
Factory Automation
Typical applications include:
- Manufacturing lines
- Material handling systems
- Automated inspection equipment
- Industrial production systems
The Ethernet communication capability supports modern factory networking.
Process Control Applications
The TB511-ETH can also be used in:
- Water treatment systems
- Energy management equipment
- Industrial monitoring systems
- Small-scale process control systems
Building Automation Systems
Applications include:
- HVAC control
- Facility monitoring
- Energy optimization systems
- Smart infrastructure projects
Installation and System Integration
Proper installation is important to ensure stable PLC operation.
Hardware Installation
The ABB TB511-ETH should be installed inside a suitable control cabinet.
Recommended installation steps:
- Mount the terminal base securely on DIN rail
- Install compatible CPU modules
- Connect communication modules
- Complete power wiring
- Verify mechanical locking
Electrical Connection
During installation, engineers should check:
- 24 VDC power connection
- Ethernet cable connection
- RS232/RS485 wiring
- Communication terminal connections
- Grounding requirements
Correct wiring helps prevent communication failures.
Commissioning Process
Before system operation:
- Check module installation
- Verify communication status
- Test Ethernet connection
- Confirm PLC programming communication
- Check system diagnostics
Proper commissioning improves long-term reliability.
Compatible System Components
The ABB TB511-ETH is designed to work with ABB AC500 automation components.
| Component | Function |
|---|---|
| ABB AC500 CPU Modules | PLC control processing |
| ABB Communication Modules | Network expansion |
| ABB I/O Modules | Field signal connection |
| Ethernet Industrial Devices | Network communication |
| RS232/RS485 Devices | Serial communication |
| HMI Systems | Operator monitoring and control |
Common Fault Symptoms and Troubleshooting
| Fault Symptom | Possible Cause | Recommended Solution |
|---|---|---|
| PLC communication failure | Ethernet connection problem | Check network cable and configuration |
| CPU module not recognized | Poor module connection | Reinstall and check contacts |
| Serial communication error | Incorrect RS232/RS485 wiring | Verify communication wiring |
| Controller instability | Power supply issue | Check 24 VDC supply |
| Network interruption | Communication interference | Improve cable routing and shielding |
Recommended Alternative Models
| Model | Product Type | Key Feature | Application |
|---|---|---|---|
| ABB TB511-ETH (1SAP111100R0270) | Terminal Base | Ethernet and serial communication support | AC500 PLC systems |
| ABB TB511-ARCNET | Terminal Base | ARCNET communication interface | Special communication networks |
| ABB TB521-ETH | Terminal Base | Supports additional communication modules | Larger PLC systems |
| ABB TB541-ETH | Terminal Base | Multi-module expansion capability | Complex automation projects |
| ABB AC500 Terminal Base Series | PLC Hardware Platform | Flexible controller configuration | Industrial automation |
Key Advantages
- Designed for ABB AC500 V2 PLC systems
- Supports Ethernet industrial communication
- Provides RS232 and RS485 interfaces
- Simplifies PLC cabinet installation
- Enables flexible system expansion
- Improves wiring organization
- Compact and lightweight design
- Suitable for industrial automation environments
Technical FAQs
What is the ABB TB511-ETH?
The ABB TB511-ETH (1SAP111100R0270) is a terminal base designed for ABB AC500 V2 PLC systems, providing module installation support and communication interfaces.
Does the TB511-ETH contain a PLC processor?
No. The TB511-ETH is a terminal base component and requires an AC500 CPU module to perform PLC control functions.
What communication interfaces are available?
The TB511-ETH provides Ethernet communication and RS232/RS485 serial interfaces.
Where is the ABB TB511-ETH used?
It is mainly used in industrial automation systems, machine control, factory automation, and PLC-based control applications.
Conclusion
The ABB TB511-ETH (1SAP111100R0270) Terminal Base is a key hardware component for building reliable and scalable ABB AC500 PLC automation systems.
By providing secure module mounting, Ethernet communication capability, and serial interface support, the TB511-ETH helps engineers create flexible industrial control solutions with improved communication performance and easier maintenance.
For automation engineers, PLC integrators, and industrial maintenance teams, the ABB TB511-ETH provides a dependable foundation for modern automation applications requiring stable control, communication, and system expansion capabilities.
